Hiltron security DX4000 Quick Start Manual

security
Made in Italy
BT2014/35/UE
EMC2014/30/UE
Functioning programmable separately
in bistable and monostable
Combination possible codes rolling code
Activatione of output through application of buttons
Visualization of memorized codes
Self-learning of new codes directly from remote-control.
Timing of monostable until 90sec.
Power Supply 12 Vcc
Maximum absorption: 110 mA @ 12 V
Absorption in standby with BIRD connected 25mA of 12 V
LED signal of active output
Output relay 4 C/NA/NC 1A
Dimensions: 87x 63mm

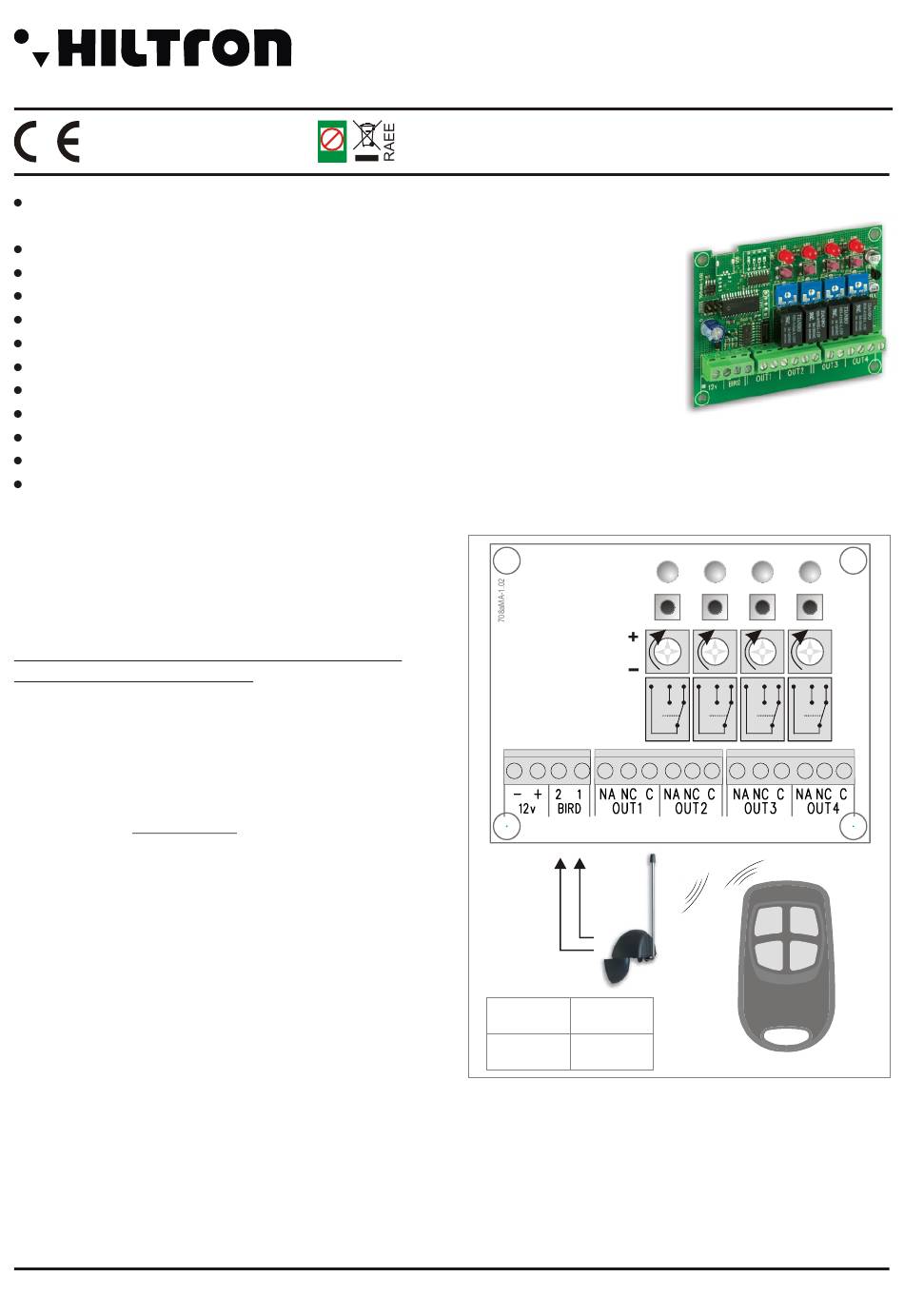

DX4000 is a decoder quad channel rolling
code associated to the antenna with
receiver BIRD dotated of four relays in
output piloted from four bottons
(Channels A, B,C and D)of remote-control QUAD.
The circuit DX4000 can programm from 1 to
1400 remote-control QUAD
INSTALLATION
Use a cable of two conductors + display
(type 2S) to connect the antenna BIRD to terminal
block of DX4000, respecting the connections "1"
and"2".
It's advisable not to pass this cable of connection to
the antenna BIRD with others cables.
NOTE : Once that the functions are decided of 4
output of DX4000, it's possible to test directly from
the circuit by making a double pression on one of the
four bottons S1-S2-S3-S4.
The bottons active the relatives output
OUT1-OUT2-OUT3-OUT4
Example: S2 (double pression) command OUT2
Lead free Lead free Lead free Lead free
Pb Pb Pb Pb
Decoder quad channel rolling code for rem. QUAD
RoHS RoHS RoHS RoHS
compliant compliant compliant compliant
DX4000
LED1
SW1
PT1
Monostable (until 90 sec.)
Bistable (0 sec.)
BIRD
ACTIVE LED ON
CHANNEL FIXED
DISACTIVE
LED OFF
CHANNEL
LED2 LED3 LED4
SW4
SW2 SW3
PT2 PT3 PT4
QUAD
1 2
OUT1 OUT2
3 4
OUT3 OUT4
1
