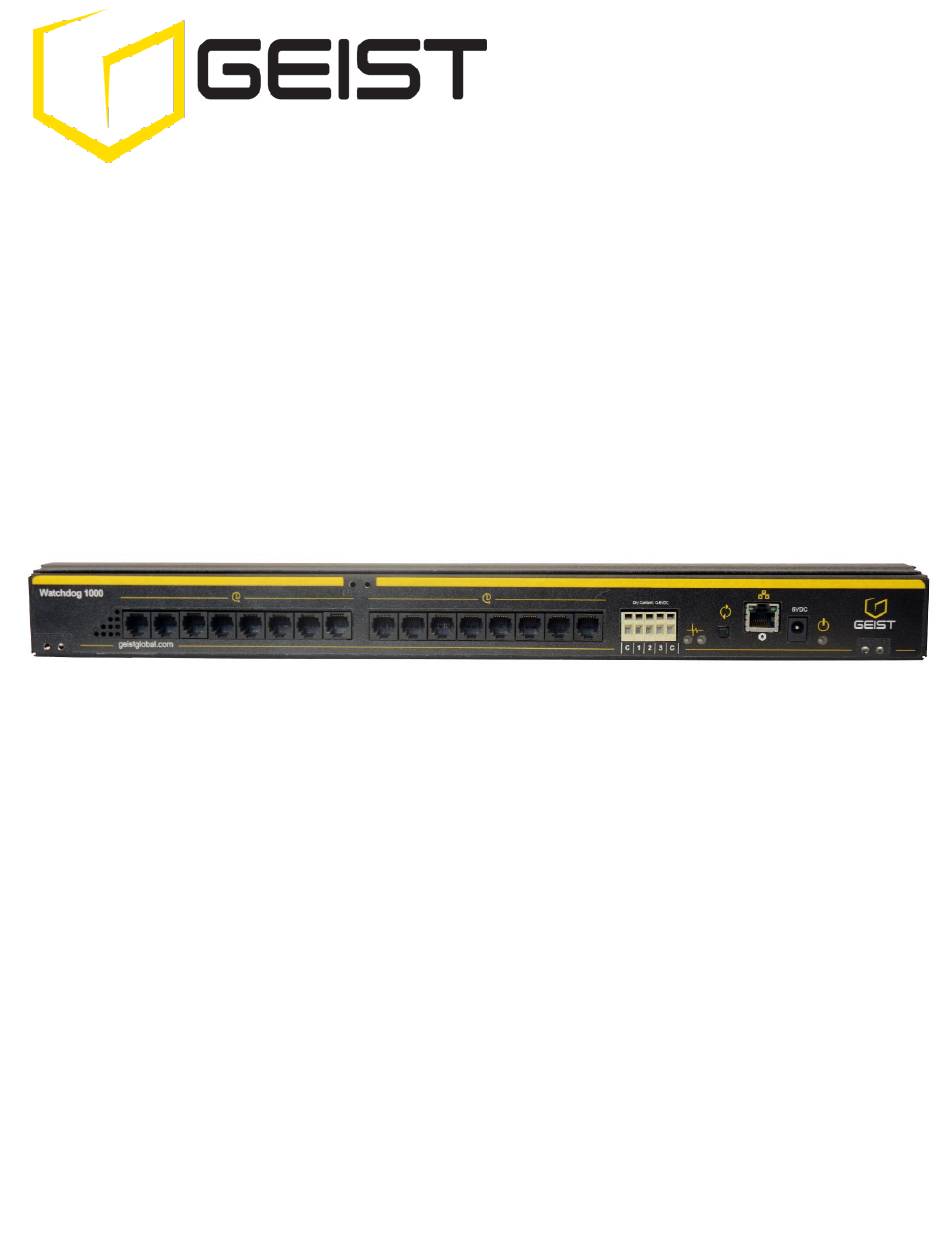

- Page 1 Instruction Manual Environmental Monitoring Unit Watchdog 1000 Series Firmware Version 3 Geist. 1821 Yolande Ave., Lincoln, NE 68521 800.432.3219 | 402.474.3400 | F: 402.474.4369 | www.geistglobal.com...
-
Page 2: Table Of Contents
IP-Addressable Network Cameras RSC Integration Alternate Data Formats Technical Support ......................28 Firmware Version Firmware Updates Resetting the Unit Service and Maintenance More Technical Support Table of Figures ......................29 Revision History GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 3: Specifications
Power Over Ethernet (POE) Enabled Networking Protocols HTTP, HTTPS (SSL/TLS), SMTP, POP3, ICMP, DHCP, TCP/IP, NTP, Telnet, Syslog Ethernet Link Speed 10 Mbit; half-duplex Data Formats HTML, SNMP, CSV/Plain Text, XML GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 4: Emc Verification
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 5: Installation
Mount the Watchdog 1000 Environmental Monitoring Unit so that a hazardous condition is not achieved due to uneven mechanical loading. Mounting Figure 1: 19" Horizontal/Panel Mount Brackets (7938) Using the 19” horizontal/panel mount brackets, attach Environmental Monitoring Unit to rack as shown GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 6: Network Overview
Protocol Version 4 (TCP/IPv4) Properties. Select “Use the following IP address”. Use these settings: IP Address: 192.168.123.1 Subnet Mask: 255.255.255.0 Gateway: Leave blank Figure 2: Network settings for initial setup. Images varies depending on Windows versions. GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 7: Figure 3: Mac Os Network Settings For Initial Setup. Image Varies Depending On Mac Versions
Figure 3: Mac OS network settings for initial setup. Image varies depending on Mac versions. Apply changes. The unit should now be accessible in a web browser via the unit’s permanent IP address: http://192.168.123.123/. See Unit Configuration (page 17) for details. GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 8: Web Interface
The menu bar allows access to the rest of the Environmental Monitoring Unit’s functionality. Real-Time Sensor Readings Historical Graph Sensor Data Color Code Alternate Formats Figure 4: Sensors Page – Internal Temperature Sensor GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 9: Logging Page
30 seconds for external sensors. Recorded data is available for download in a comma- separated values (CSV) file. Selected Sensors for Graph CVS Data Download Link Figure 5: Logging Page GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 10: Display Page
Analog Scale Adjustment Figure 6: Display Page GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 11: Alarms Page
The alarms are displayed in different sections based on the device the alarm is associated with. Alarm notification options include Email and SNMP Trap. See Alarms (page 22) for details. Figure 7: Alarms Page GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 12: Configuration Page
Configuration Network Tab The user can enter and update the network settings on the Network tab of the Configuration page. See Unit Configuration section for details. Figure 8: Configuration Network Tab GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 13: Figure 9: Configuration Monitoring Tab
The user can enter and update the email alert, SNMP, and camera settings on the Monitoring tab of the Configuration page. See Unit Configuration section (page 17) for details. Figure 9: Configuration Monitoring Tab GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 14: Figure 10: Configuration Diagnostics Tab
Configuration Diagnostics Tab The user can update the Syslog settings on the Diagnostics tab of the Configuration page. Figure 10: Configuration Diagnostics Tab GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 15: Figure 11: Configuration Event Log Tab
Configuration Event Log Tab The user can view the Event Log and update the Memory Syslog settings on the Event Log tab of the Configuration page. Figure 11: Configuration Event Log Tab GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 16: Figure 12: Configuration Admin Tab
The user can set the system clock and administrative information on this tab. Additionally the user can set administrator and account passwords. See Unit Configuration (page 17) section for details. Figure 12: Configuration Admin Tab GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 17: Unit Configuration
HTTP/HTTPS Server Port: Changes the TCP port that each server listens on. DNS Servers: Allows the unit to resolve host names for Email, NTP and SNMP servers as well as cameras. GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 18: Time And Date
The unit is capable of sending e-mail to as many as five addresses at once. Most SMTP and ESMTP servers are compatible. Authentication options are None, POP3 (POP-before-SMTP) or ESMTP. The e-mail configuration is set on the Monitoring tab of the Configuration page. Figure 16: E-Mail Configuration GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 19: Snmp
Monitoring tab of the Configuration page. Figure 18: SNMP Configuration The default community string is “public” and the MIB is downloadable via a link at the top of the unit’s web page. GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 20: Accounts And Passwords
Note: All data sent via Telnet is unencrypted. Some settings can be changed and user names and network settings are available via Telnet. In secure environments, it is recommended that Telnet be disabled. GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 21: Camera Configuration
Information entered in the “Admin Info” section of the Admin tab of the Configuration page will show up at the bottom of the unit’s web interface. Figure 21: Admin Information Fields Figure 22: Admin Information Display GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 22: Alarms
The threshold value is typed into a data window when the alarm is created. Alarms are triggered based on the selected sensor’s data and the trip threshold type and value. Alarm settings can be edited or deleted at any time. GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... - Page 23 Note: Changes in settings take a few moments to become active. Rapidly resetting alarm values may not provide the desired results. Allow up to 2 minutes after changing a setting before modifying it again. GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015...
-
Page 24: Sensors
Door switches can be wired in a serial connection; if the chain is broken the entire group is classified as open. The limiting factor on the I/O ports is the length of the wire, found to be around 400’. Figure 24: Water Sensor Wiring Example GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 25: Figure 25: Door Sensor Wiring Example
RCP-2: 125 V City Power Monitor WSK-10: 10’ Water Sensing Cable Kit WSK-40: 40’ Water Sensing Cable Kit -48 VDCM: Power Monitor 30 VDCM: Power Monitor GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 26: Remote Sensors
Geist R-Series devices may require a firmware update to allow for proper compatibility with the new RTAFHD3 sensors. If your Geist R-Series device is using firmware version 2.xx you will want to make sure you are using firmware version 2.94 or newer. -
Page 27: Accessories
Camera model and IP address are entered on the Monitoring tab of the Configuration page. Note: Some cameras require additional software downloads to display live video in a web browser. RSC Integration For users with multiple units, Geist RSC software offers: Convenient, single-window monitoring of multiple units via simple web-based interface ... -
Page 28: Technical Support
No service or maintenance is required. Do not attempt to open the unit or you may void the warranty. No serviceable parts inside. More Technical Support http://www.geistglobal.com (800) 432-3219 Email: support@geistglobal.com Or contact your distributor. GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 29: Table Of Figures
Figure 24: Water Sensor Wiring Example .................. 24 Figure 25: Door Sensor Wiring Example ..................25 Figure 26: Camera Images ...................... 27 Figure 27: Alternate Format Links .................... 27 Figure 28: Web Page Header ....................28 GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015... -
Page 30: Revision History
Minor Text Edits 10/15/2010 RTAFHD3 Information Added 4/27/2012 Added GT3HD and GTHD 6/22/2012 Changed logo and web address 6/25/2013 Added ‘G’ to product names 2/13/2015 Changed product names and screenshots. GM1093 - Watchdog 1000 Series User Manual Revision Date: 02/13/2015...
