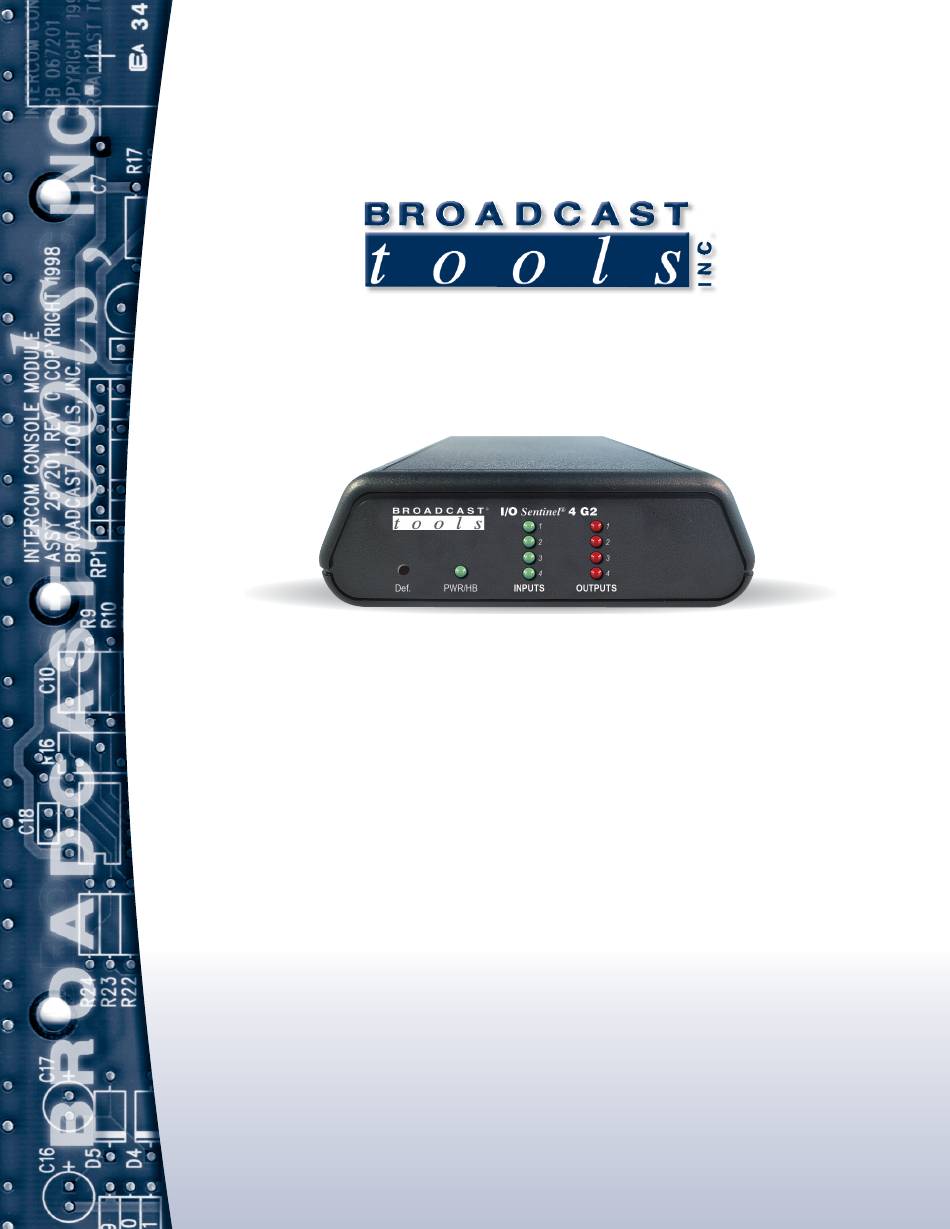

Installation and Operation Manual
Web-enabled four status/logic input, four relay output module
For firmware versions equal to or greater than 2.05.
If you need a firmware upgrade, contact Broadcast Tools®
No part of this document may be reproduced or distributed without permission.
ALL SPECIFICATIONS AND FEATURES FOR THIS PRODUCT ARE SUBJECT TO
NOTE: We recommend the use of Chrome, Firefox or Safari as your browser.
Due to the dynamic nature of product design, the information contained in this
document is subject to change without notice. Broadcast Tools, Inc., assumes no
responsibility for errors and/or omissions contained in this document. Revisions
of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools, Inc.
All Sentinel® labeled products are registered trademarks of Broadcast Tools, Inc.
Copyright® 1989 - 2022 by Broadcast Tools, Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Visit www.broadcasttools.com for important product update information.
P R O B L E M S O LV E D
I/O Sentinel 4 G2
Manual update: 3/2/2022
CHANGE WITHOUT NOTICE
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broadcast Tools I/O Sentinel 4 G2
Summary of Contents for Broadcast Tools I/O Sentinel 4 G2
- Page 1 NOTE: We recommend the use of Chrome, Firefox or Safari as your browser. Due to the dynamic nature of product design, the information contained in this document is subject to change without notice. Broadcast Tools, Inc., assumes no responsibility for errors and/or omissions contained in this document. Revisions of this information or new editions may be issued to incorporate such changes.
-
Page 2: Table Of Contents
I/O Sentinel 4 G2 Installation and Operation Manual Table of Contents Section Title Page # Introduction............3 Safety Information . -
Page 3: Introduction
I/O Sentinel 4 G2 Installation and Operation Manual INTRODUCTION CAUTION! Thank you for your purchase of a Broadcast Tools® I/O Sentinel 4 G2 (referred to as the I/O Sentinel 4 G2 throughout this manual). We’re confident that this product will Broadcast Tools®... -
Page 4: Product Overview
I/O Sentinel 4 G2 Installation and Operation Manual Product Overview The I/O Sentinel® 4 G2 is a robust, full-featured Ethernet based data acqui- sition and remote-control device with four optically isolated status (logic) inputs and four programmable relay outputs. The I/O Sentinel® 4 G2’s four optically isolated status/logic inputs may be configured for wet or dry (contact closure) status/logic monitoring. -
Page 5: Inspection
I/O Sentinel 4 G2 Installation and Operation Manual Inspection CAUTION! Please examine your I/O Sentinel 4 G2 carefully for any damage that may have been sustained during shipping. If any damage is noted, please notify the shipper imme- Installation of the I/O diately and retain the packaging for inspection by the shipper. -
Page 6: Led Indicators
Relay Outputs The I/O Sentinel 4 G2’s relay outputs are SPDT normally open/dry. Make your con- nections to the desired relays, K1 thru K4. Front panel LEDs indicate when a relay is active. -
Page 7: Status Inputs
2200 ohms = Internal resistor For example: To connect a 48 VDC signal voltage to an input on the I/O Sentinel 4 G2 in “wet” configuration the completed equation for the external resistor value would be: R = ((48-1.2)/0.009)-2200 = 3000 ohms To calculate the power dissipated by the external resistor, the equation would be: P = I x I x R, so the resistor must be at least .009 x .009 x 2200 = 0.243 Watts,... -
Page 8: Operation
ONE jumper over pins 2 & 3. Operation The I/O Sentinel 4 G2 can be controlled from over the network from its HTML- based web-browser interface, via SNMP, or via TCP commands. The slow blinking front panel “PWR/Heartbeat”... -
Page 9: Ethernet "Quick Start" Guide
I/O Sentinel 4 G2 Installation and Operation Manual Ethernet “Quick Start” Guide CAUTION! CAUTION! If you are not familiar with Ethernet enabled equipment, it may NEVER DOWNLOAD be useful to contact your IT department, network administrator or network FIRMWARE UPDATES consultant for assistance. - Page 10 I/O Sentinel 4 G2 Installation and Operation Manual Step 2: Click on the sidebar labelled Change adapter settings. The Network Connections windows will pop up, as shown below. Step 3: Right click on the icon labeled Local Area Connection or Ethernet. A menu will appear.
- Page 11 I/O Sentinel 4 G2 Installation and Operation Manual Step 4: On the Local Area Connection Properties page, double click on Internet Protocol (TCP/IPv4) to display properties. Step 5: Before making any changes to the network settings, write down the current...
-
Page 12: Opening The Login Web Page
I/O Sentinel 4 G2 Installation and Operation Manual Ethernet (NETWORK) port LED indicator functions NOTE: We recommend the use of Chrome, Firefox, or Safari for as your browser. Opening the LOGIN Web Page 1. Connect the supplied GRAY colored XOVER cable between the PC’s Ethernet port and the products “NET”... -
Page 13: Web Setup/Operation
I/O Sentinel 4 G2 Installation and Operation Manual Web Setup and Operation “Login” Web Page The Login screen displays the Username and Password entry points. WEBSITE: Visit our web site for product updates and additional information. SETUP e-mail: support@broadcasttools.com voice: 360.854.9559... -
Page 14: Monitor/Control" Web Page
I/O Sentinel 4 G2 Installation and Operation Manual After you have successfully logged in, the Monitor/Control page will be displayed. Depending on your access level, you may or may not be able to control or modify the product’s configuration. “Monitor/Control” Web Page... - Page 15 I/O Sentinel 4 G2 Installation and Operation Manual Relays: Allows the user with admin or monitor/control access to control each relay for its displayed function. Action/State: Determines how each relay will function. The relays may be config- ured for one of three states.
-
Page 16: User Setup" Web Page
I/O Sentinel 4 G2 Installation and Operation Manual “User Setup” Web Page NOTE: You may view a password by checking the “Show Password” box. Eight Usernames and Passwords may be configured for one of three access levels: “Admin” allows complete configuration access and control. -
Page 17: I/O Setup" Web Page
I/O Sentinel 4 G2 Installation and Operation Manual “I/O Setup” “Inputs” Web Page The I/O setup page allows you to label and configure the status inputs and relay out- puts. Use the drop-down menu to select “Inputs” or “Outputs” and the “Input x” and “Output x”... - Page 18 I/O Sentinel 4 G2 Installation and Operation Manual “I/O Setup” “Inputs” Web Page (cont.) Input selection drop-down: Allows for the selection of each status/logic input. Input Status Message: Used to identify each status/logic input. OFF Alarms: This box must be checked to enable alarms when the input is OFF.
- Page 19 I/O Sentinel 4 G2 Installation and Operation Manual “I/O Setup” “Relays” Web Page WEBSITE: Visit our web site for product updates and additional information. SETUP e-mail: support@broadcasttools.com voice: 360.854.9559 fax: 866.783.1742...
- Page 20 I/O Sentinel 4 G2 Installation and Operation Manual “I/O Setup” “Relays” Web Page (cont.) Selection drop-down: Allows the user to select the I/O setup configuration pages. Relay label: Used to identify the device. Alarms OFF: This option enables email alarms with an “OFF” relay.
-
Page 21: Email/Network Setup" Web Page
I/O Sentinel 4 G2 Installation and Operation Manual “Email/Network Setup” Web Page WEBSITE: Visit our web site for product updates and additional information. SETUP e-mail: support@broadcasttools.com voice: 360.854.9559 fax: 866.783.1742... - Page 22 I/O Sentinel 4 G2 Installation and Operation Manual “Email/Network Setup” Web Page – Device Network Settings Device Address: Enter a static IP address here. Default: 192.168.1.55 Device Netmask: Enter the Netmask here: Default: 255.255.255.0 Gateway Address: Enter the Gateway IP here: Default: 192.168.1.1...
- Page 23 I/O Sentinel 4 G2 Installation and Operation Manual “Email/Network Setup” Web Page – Email Logging Settings Logging Email Address: Email address for the “Logging” email recipi- ent (may be different from the 8 “Alarm” Recipient Addresses. Logging emails and Daily emails are sent to this address only.
- Page 24 I/O Sentinel 4 G2 Installation and Operation Manual “Email/Network Setup” Web Page – SNMP Manager Settings SNMP Enable: Enables or disables SNMP functionality, enabled by default. SNMP Enable Traps: When enabled, SNMP trap messages will be sent. When disabled, no trap messages will be sent to the manager IP.
- Page 25 I/O Sentinel 4 G2 Installation and Operation Manual “Email/Network Setup” Web Page – Other Settings Site ID: This is the Site Identifier that is displayed on the web and in email. Monitor Refresh Time (Sec): Interval at which the Monitor page refreshes. Shorter times may increase network traffic.
- Page 26 I/O Sentinel 4 G2 Installation and Operation Manual “Email/Network Setup” Web Page – Controls Save Settings: After pressing the “Save Settings” button, the device will reboot (If you changed the IP address, you must navigate your web browser to the new IP address (if the HTTP port was changed from port 80, be sure to add the new port number after the IP: xxx.xxx.xxx.xxx:port #).
-
Page 27: Show Alarms" Web Page
I/O Sentinel 4 G2 Installation and Operation Manual “Show Alarms” Web Page This page displays current alarms. Controls Disable Sound: Mutes the alarms sound. Silence Alarms: Makes active alarms as acknowledged. Clear Alarms: Empties the Alarm Log. WEBSITE: Visit our web site for product updates and additional information. -
Page 28: About" Web Page
I/O Sentinel 4 G2 Installation and Operation Manual “About” Web Page The “About” web page displays the product name, firmware version numbers, and Broadcast Tools® web site link. For firmware updates please contact Broadcast Tools® Technical Support. http://broadcasttools.com/support/ WEBSITE: Visit our web site for product updates and additional information. -
Page 29: Specifications
I/O Sentinel 4 G2 Installation and Operation Manual Specifications CAUTION! Ethernet Interface: RJ-45, 10base-T or 100base-TX, auto sensing with link & activity For safety, never con- LED indicators - Full/half duplex. nect 120 Vac circuits to the above relays! Protocols: TCP/IP, UDP/IP, ARP, ICMP, SNMP, DHCP, HTTP, SMTP. -
Page 30: Warranty
If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in accordance with Broadcast Tools’... - Page 31 I/O Sentinel 4 G2 Installation and Operation Manual I/O Sentinel 4 G2 ® INPUTS OUTPUTS Def. PWR/HB LAN/NET PWR 9-12VDC APPENDIX e-mail: support@broadcasttools.com voice: 360.854.9559 fax: 866.783.1742...
-
Page 32: Component Layout
Product_Name Installation and Operation Manual I/O Sentinel I/O Sentinel 4 G2 I/O Sentinel I/O Sentinel I/O Sentinel 4 G2 4 G2 ® ® ® Component Layout Component Layout Component Layout Component Layout Relay Output Relay Output Relay Output Input Input... - Page 33 Product_Name Installation and Operation Manual APPENDIX e-mail: support@broadcasttools.com voice: 360.854.9559 fax: 866.783.1742...
- Page 34 I/O Sentinel 4 G2 Installation and Operation Manual The I/O Sentinel 4 G2 supports the monitoring of status inputs and control of relay outputs via TCP byte streams. Under Email/Network Setup, the following settings must be configured:...
- Page 35 To decrypt query command response packets from a supported Broadcast Tools device, always decrypt the first byte to determine the information present in the packet. If after decryption the command field of the packet has a value of 0x02 (i.e.
- Page 36 -- contains log details Posting Data Data is modified on the Broadcast Tools Sentinel device by the use of the HTTP POST protocol, you must have already been successfully authenticated and provided a cookie, this cookie must be transmitted in the header of each POST request.
- Page 37 Every Broadcast Tools Sentinel device has different features that are specific to the operation of the device. Due to the number of Broadcast Tools Sentinel devices the specific features of each are not documented and are sub- ject to change between releases.
