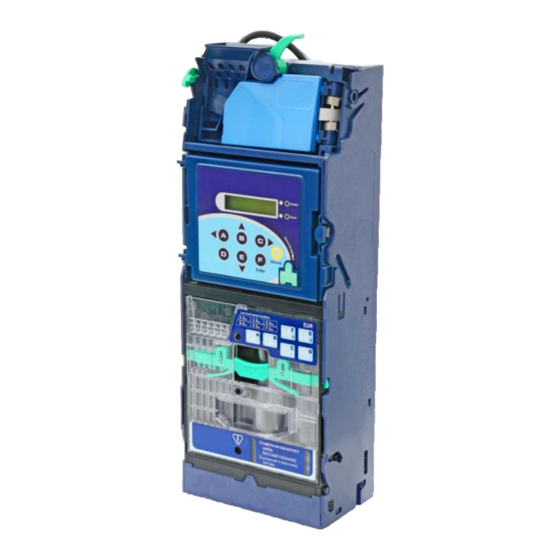

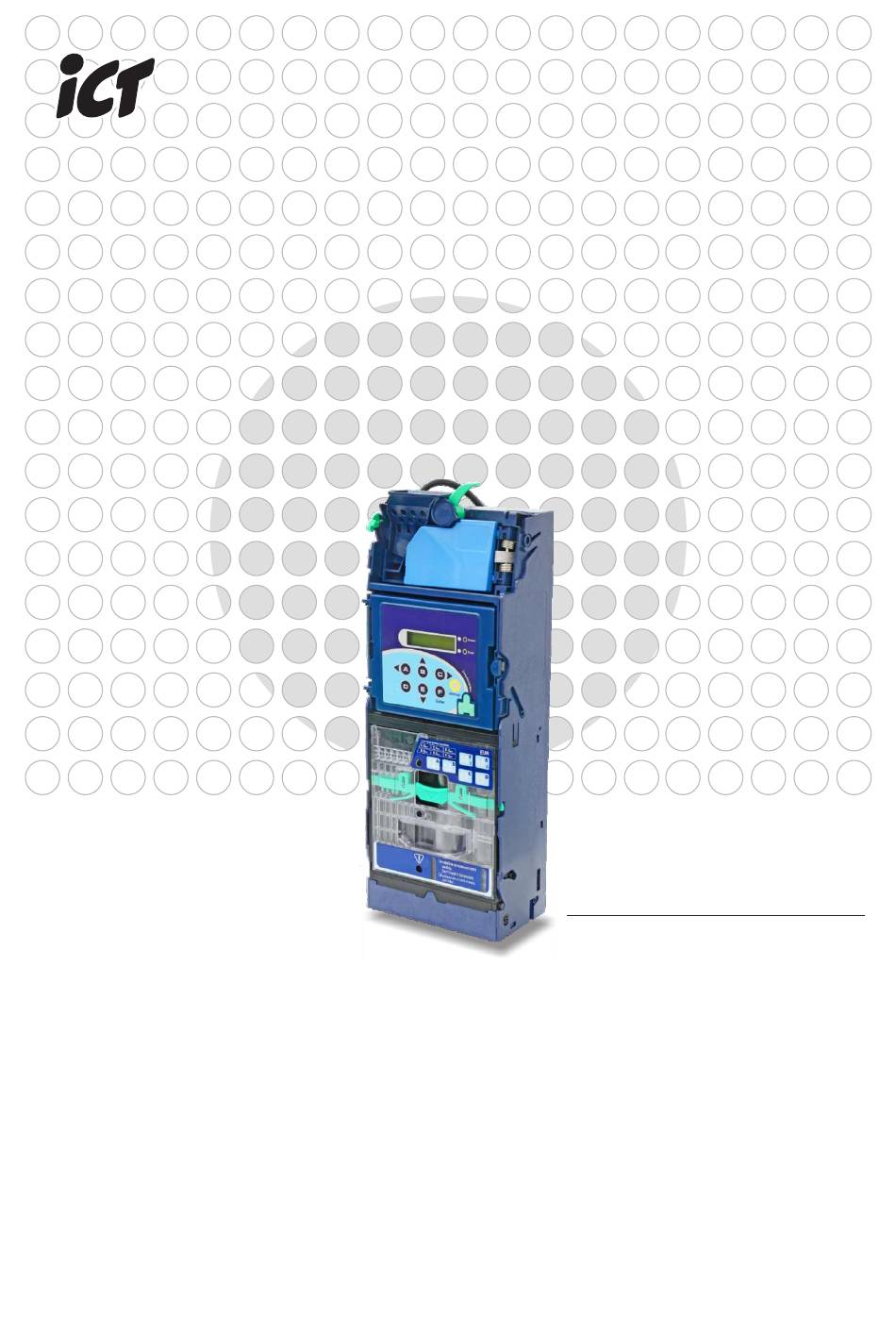

- Page 1 Coin Changer CC6100 Quick Start Guide series International Currency Technologies Corp.
- Page 2 All materials contained are the copyrighted property of ICT. All trademarks, service marks, and trade names are proprietary to ICT. ICT reserves the right at all times to disclose or to modify any information as ICT deems necessary to satisfy any applicable law, regulation, legal process or governmental request, or to edit, refuse to post or to remove any information or materials, in whole or in part, in ICT's sole discretion.
-
Page 3: Table Of Contents
CC6100 Contents 1. Before use ..................2 2. Installation 2-1. Device Mounting Instruction............3 2-2. Tube Cassette Refill Instruction..........4 2-3. Installation Checklist..............4 2-4. Initialization Checklist..............6 3. Wiring 3-1. Wiring for CC6100 JPSTD Model or MDB Model .......7 3-2. Wiring for CC6100 Executive & MDB Model......7 4. -
Page 4: Before Use
CC6100 1. Before use Dear Valuable customer, thank you for purchasing CC6100. CC6100 features six modular coin tubes to provide the highest level of flexibility in managing payout combinations. Japan Standard Communication Interface (JPSTD), MDB and Executive interface are available, to support multiple applications.............. -
Page 5: Installation
CC6100 2. Installation Attention!! Prior installation, please remove the coin changer from the carton and inspect for damages. Attention!! Turn off VMC Power during installation-IMPORTANT!!! Warning!! Do not plug both MDB and Executive connector to VMC board simultaneously!! It may cause damage of VMC board. 2-1. -
Page 6: Tube Cassette Refill Instruction
CC6100 2-2. Tube Cassette Refill Instruction 1. Press the green cassette fixed latch to pull out the cassette at an upwardly slanted angle. 2. Refill coins into tube cassette and ensure that the coins enter Latch the corresponding tubes and flatly placed. - Page 7 CC6100 Check that when vending machine return lever has been pressed and released, the return reject gate of the coin recognition module mechanism can be opened and closed properly. Check that the coin insertion, coin return box, and coin storage box channels of the vending machine line up with the corresponding slots of the coin changer.
-
Page 8: Initialization Checklist
CC6100 2-4. Initialization Checklist While vending machine in an energized state, please DO NOT plug/unplug any wires on CC6100. Please ensure that there are no interferences between the connected wires, the coin insert and return device, and the door of the automatic vending machine. -
Page 9: Wiring
JPSTD or MDB WEL-RCC23 WEL-RCC67 ICT-BA MDB VMC MDB ICT Coin Changer provides the MDB or JPSTD cable only. Please let your sales representative know to your vending machine needs. 3-2. Wiring for CC6100 Executive & MDB Model WEL-RCC54 VMC Executive... -
Page 10: Lcm Module Description
CC6100 4. LCM Module Description IrDA (CC6100S/CC6100E) LED Indicator Keys Download Port Function Function Tube A, move left Tube E, move downward Tube B, move upward Tube F, enter Tube C, move right Manual Enter main menu Tube D, back 4-1. - Page 11 Coin Tube Configuration Mode. Special Function Display Error Message Records. Error Info Bill(s) per Transaction ICT BA only Set the Bill Acceptance Limitation for the BA. CashFloat Mode Set Coin Tube Inventory Counting Mode. Cash Flow Mode only Set ID Set Customer &...
- Page 12 CC6100 Setting Functions LCM Display Function Description Code Residual Credit Credit should remain on VMC. Token Learning Mode Token learning mode. For MDB & Executive Reject Lever Setting Set no refund after inserting payment. For MDB & Executive Acceptance limit For Set Credit Acceptance Limit.
- Page 13 CC6100 Setting Functions LCM Display Function Description Code Set give changes order TWD set give changes order. Only for TWD VMC support value Set up VMC support value. Set up and write each THB set up and write each tube stock Only for THB of coins.
-
Page 14: Dip Switch Setting
CC6100 5. DIP Switch Setting DIP Switches 5-1. DIP Switch Setting for JPSTD, MDB SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 FUNCTION High anti-counterfeiting (1st coin value) High acceptance (1st coin value) High anti-counterfeiting (2nd coin value) High acceptance (2nd coin value) High anti-counterfeiting (3rd coin value) High acceptance (3rd coin value) High anti-counterfeiting (4th coin value) -
Page 15: Dip Switch Setting For Executive
CC6100 5-2. DIP Switch Setting for EXECUTIVE SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 FUNCTION High anti-counterfeiting (1st coin value) High acceptance (1st coin value) High anti-counterfeiting (2nd coin value) High acceptance (2nd coin value) High anti-counterfeiting (3rd coin value) High acceptance (3rd coin value) High anti-counterfeiting (4th coin value) High acceptance (4th coin value) -
Page 16: Dip Switch Setting For Cc6100Sa
CC6100 5-3. DIP Switch Setting for CC6100SA SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 FUNCTION High anti-counterfeiting (1st coin value) High acceptance (1st coin value) High anti-counterfeiting (2nd coin value) High acceptance (2nd coin value) High anti-counterfeiting (3rd coin value) High acceptance (3rd coin value) High anti-counterfeiting (4th coin value) High acceptance (4th coin value) -
Page 17: Error Message
CC6100 6. Error Message Code Cause LCM Panel Open 5 Red + 2 Red Red Light Checksum Error Signal from the coin base was not received when the power was turned on. Red Light Two seconds after activation, the SYSTEM did not wait for the READY signal from the DEVICE and jumped to the exception. - Page 18 CC6100 Code Cause Normal Mode Fished. Only for THB None Security Mode Locked. Only for THB None Security Mode Losted. Only for THB None Coin Calibration fail. Only for THB None The “Inhibit” signal transmitted by the interface. None 2 Red -16-...
- Page 19 CC6100 Taiwan International Currency Technologies Corporation No.28, Ln. 15, Sec. 6, Minquan E. Rd., Neihu Dist., Taipei City 114, Taiwan sales@ictgroup.com.tw (For Sales) fae@ictgroup.com.tw (For Customer Service) Website: www.ictgroup.com.tw...
- Page 20 © 2013 International Currency Technologies Corporation V. 5.0 Part Number: H6491D-R...
