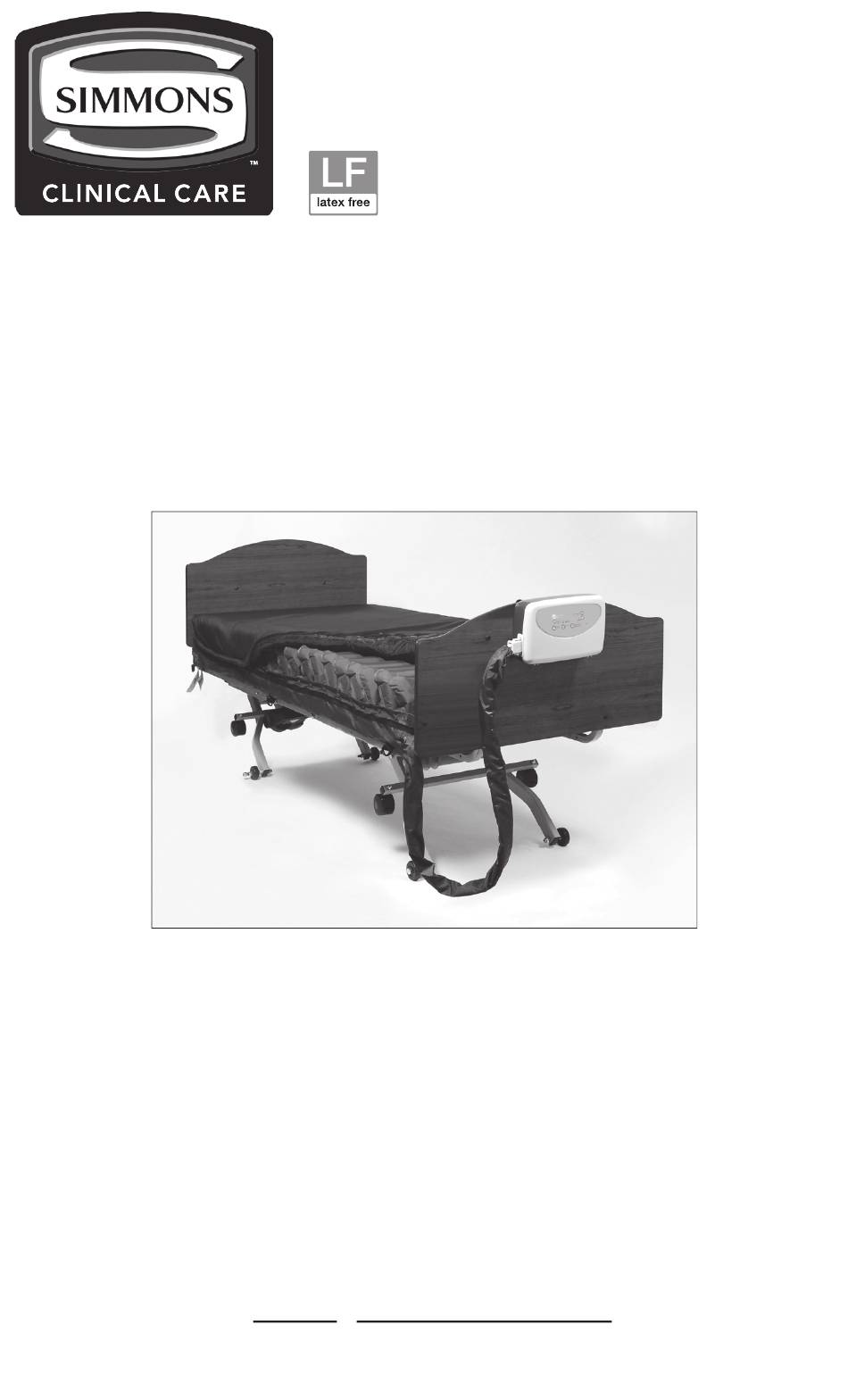

765000S
Not made with natural rubber latex.
CLINICAL PLUS ALTERNATING
PRESSURE MATTRESS SYSTEM
WITH ACTIVE SENSOR TECHNOLOGY
USER MANUAL
Important: Do not operate the Mattress System
without first reading and understanding this manual!
Save this manual for future use.
Info: The most current version of this manual can be
found online at www.grahamfield.com.
765000S-INS-LAB-RevC14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simmons 765000S
Summary of Contents for Simmons 765000S
- Page 1 765000S Not made with natural rubber latex. CLINICAL PLUS ALTERNATING PRESSURE MATTRESS SYSTEM WITH ACTIVE SENSOR TECHNOLOGY USER MANUAL Important: Do not operate the Mattress System without first reading and understanding this manual! Save this manual for future use. Info: The most current version of this manual can be found online at www.grahamfield.com.
-
Page 2: Table Of Contents
ONE (1) YEAR LIMITED WARRANTY ............... 24 APPENDIX A: EMC INFORMATION ..............25 SIMMONS Clinical Care products manufactured by GF Health Products, Inc. under license from the trademark owner, Dreamwell, Ltd., a subsidiary of Simmons Bedding Company, Atlanta, Georgia. SIMMONS is a trademark of Dreamwell, Ltd. -
Page 3: Introduction
INTRODUCTION Use this manual for set-up and operation of the SIMMONS Clinical Care 765000S Clinical Plus Alternating ™ Pressure Mattress System with Active Sensor Technology. Read all instructions before using the mattress system. Save this manual for future reference. INTENDED USE OF THIS DEVICE... -
Page 4: Important Safety Precautions
NOTICE: Indicates a potential hazard or unsafe practice that, if not avoided, could result in product or property damage. Info: Provides application recommendations or other useful information to ensure that you get the most from your product. 765000S-INS-LAB-RevC14... -
Page 5: Danger
DANGER: Do not place this product in or drop into water or other liquid. DANGER: Do not reach for a product that has fallen into water. Unplug it immediately. 765000S-INS-LAB-RevC14... -
Page 6: Warning
WARNING: Maximum patient weight capacity for this product is 400 lb (189 kg), EVENLY DISTRIBUTED. WARNING: Notice for California Customers- California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and reproductive or developmental harm. 765000S-INS-LAB-RevC14... -
Page 7: Notice
NOTICE s NOTICE: The pump can be used only with the accompanying mattress. Do not use it for any other purpose. 765000S-INS-LAB-RevC14... -
Page 8: Equipment Symbols
EN 60601-1, EN 60601-1-2, EN 550011 Class B, IEC61000-3-2, IEC61000-3-3 For U.S. and Canada only Medical Equipment: Air Pump E305034 with respect to electrical shock, fire and 53DG mechanical hazards only in accordance with UL60601-1 and CAN/CSA C22.2 No. 601.1 765000S-INS-LAB-RevC14... -
Page 9: Product Description
PRODUCT DESCRIPTION PUMP AND MATTRESS SYSTEM foot end symbol CPR valves mattress pump quick connectors (mattress-pump connectors) pump and mattress system 765000S-INS-LAB-RevC14... -
Page 10: Pump: Front
PUMP: FRONT front panel quick connector PUMP: REAR fuse main power switch hanger power cord receptacle filter 765000S-INS-LAB-RevC14... -
Page 11: Pump: Front Panel
When auto-adjust is complete, the Ready indicator will illuminate. To disable the auto-adjust function, press the auto-adjust button until auto-adjust indicators de- illuminate. Info: During the auto-adjust operation, it is normal for the mattress system to cycle through a series of inflation and deflation. 765000S-INS-LAB-RevC14... - Page 12 When selected, both the alternate and seat inflation indicators illuminate. Static + Seat Inflation: For use when the head is raised, to increase pressure under the buttocks — in static therapy mode. When selected, both the static and seat inflation indicators illuminate. 765000S-INS-LAB-RevC14...
- Page 13 Alarm Mute button: The alarm mute button temporarily suspends the LED indicator and buzzer when either the low-pressure alarm or power failure alarm is activated. Should the problem not be resolved within three minutes, the alarm will resume. 765000S-INS-LAB-RevC14...
- Page 14 Power failure indicator: The power failure indicator illuminates, and the alarm sounds, when there is a power failure. Depress the alarm mute button to disable both alarm and LED. Service indicator: Mechanical failure, service required; contact your Graham-Field authorized distributor. 765000S-INS-LAB-RevC14...
-
Page 15: Installation
INSTALLATION UNPACKING 1. Carefully remove all components from the carton. 2. Inspect all components. 3. If damage is evident to the contents, please notify the carrier and your Graham-Field authorized distributor. 765000S-INS-LAB-RevC14... -
Page 16: Pump And Mattress Setup
Use of an improper extension cord could result in fire and electric shock. If an extension cord must be used, use a three conductor cord with ground, properly wired, in good electrical condition, and keep it as short as possible. 765000S-INS-LAB-RevC14... - Page 17 WARNING: Ensure that the local power voltage is appropriate for the pump unit. 5. Plug the power cord into a properly grounded electrical outlet. 765000S-INS-LAB-RevC14...
-
Page 18: Operation
6. You can now adjust therapy modes or tuning. Please see earlier section, PUMP: FRONT PANEL, for a complete description of available adjustments, buttons and indicators. QUICK DISCONNECT Pull the power plug from the wall connector to disconnect the device quickly. 765000S-INS-LAB-RevC14... -
Page 19: Transport Cap
1. Pull the CPR valves from the mattress in the location of the arrow shown at right, or 2. Disconnect the quick connector from the pump in the location of the arrow shown at right. 765000S-INS-LAB-RevC14... -
Page 20: Maintenance
3. Check airflow from the air hose connector. The airflow should alternate between each connector every half- cycle time while in alternating mode. 4. Check the air hoses for any kink or break. For replacement, please contact your Graham-Field authorized distributor. 765000S-INS-LAB-RevC14... -
Page 21: Fuse Replacement
2. Roll from the head end toward the foot end. 3. Stretch the foot-end strap around the rolled mattress to prevent unrolling. 4. Store mattress and pump in a dust-free environment with no exposure to direct sunlight. s NOTICE: Do not fold, crease or stack the mattress. 765000S-INS-LAB-RevC14... -
Page 22: Troubleshooting
If the problem still occurs, contact your Graham-Field authorized distributor SERVICE If a problem occurs with the SIMMONS Clinical Care ™ 765000S Clinical Plus Alternating Pressure Mattress System with Active Sensor Technology that you are unable to resolve, contact your Graham-Field authorized distributor for service. 765000S-INS-LAB-RevC14... -
Page 23: Specifications
Applied Part: Air Mattress Not suitable for use in the presence of a flammable anesthetic mixture (No AP or APG protection) Mattress Specification Dimensions (L x W x H) 78.7" x 35.4" x 8" (200 x 90 x 20.3 cm) 765000S-INS-LAB-RevC14... -
Page 24: One (1) Year Limited Warranty
This limited warranty is not transferable. The warranted components and time period are set forth below: SIMMONS™ Clinical Care 765000S Clinical Plus Alternating Pressure Mattress System with Active Sensor Technology: one year The applicable warranty period shall commence from date of shipment to the original customer, unless there is an expiration date on the component in which case the warranty shall expire on the earlier of warranty period or the expiration date. -
Page 25: Appendix A: Emc Information
Guidance and Manufacturer’s Declaration - Electromagnetic Immunity: 765000S-INS-LAB-RevC14 This device is intended for use in the electromagnetic environment specified below. The user of this device should make sure it is used in such an environment. - Page 26 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distances between portable and mobile RF 765000S-INS-LAB-RevC14 communications equipment and this device: This device is intended for use in an electromagnetic environment in which radiated RF disturbances are...
- Page 27 Note 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. Note 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people. 765000S-INS-LAB-RevC14...
- Page 28 Manufactured for: GF Health Products, Inc. 2935 Northeast Parkway Atlanta, Georgia 30360 telephone: 770-368-4700 fax: 770-368-2386 www.grahamfield.com © 2013 GF Health Products, Inc. Made in Taiwan...
