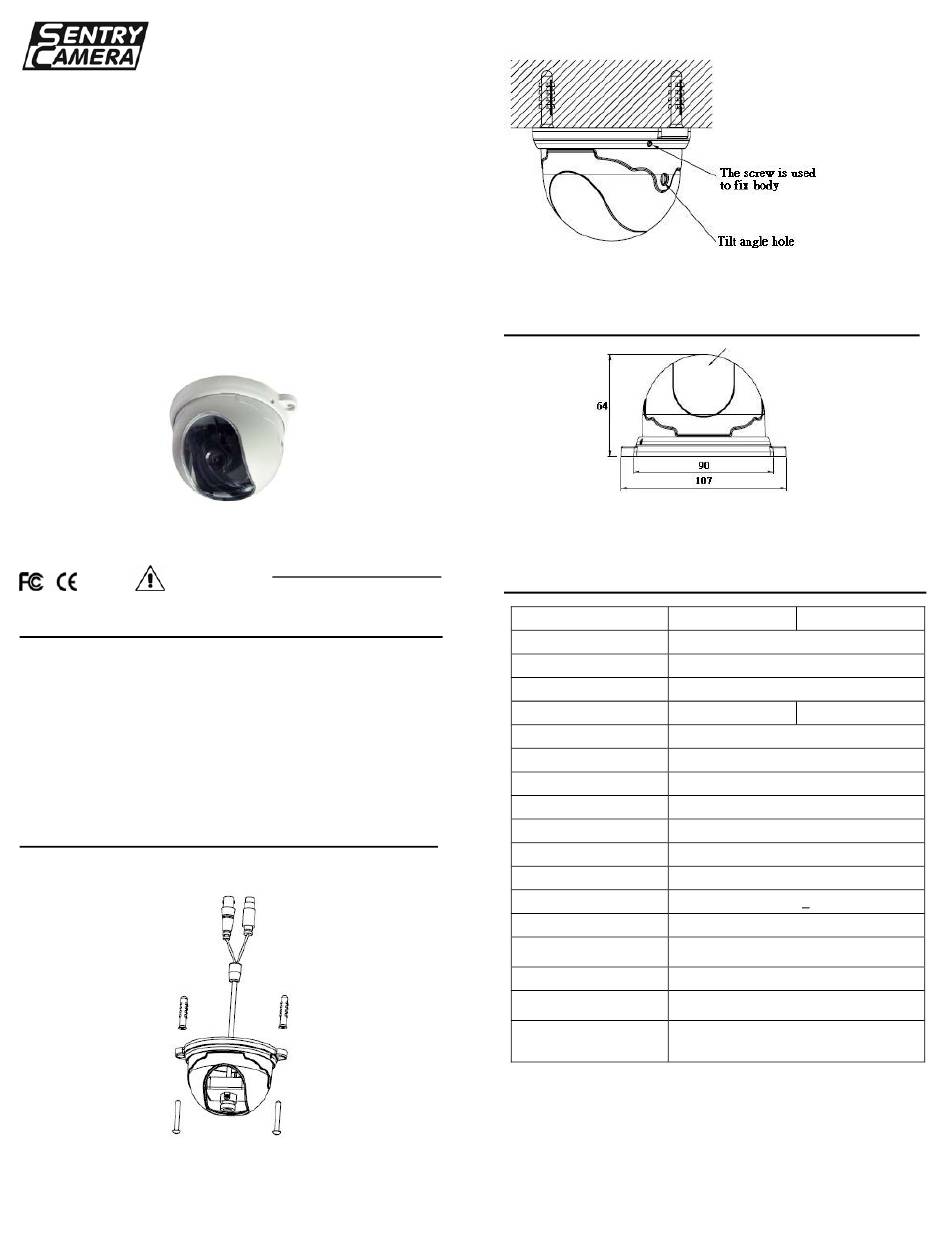

Sentry Camera ECD3-M5528 Operational Manual

ECD3-M5528
2.8mm Lens
ECD3-M5536
3.6mm Lens
ECD3-M5528P
2.8mm Lens
ECD3-M5536P
3.6mm Lens
Operational Manual
High Performance Mini Dome Color Camera
Please read the Manual & Cautions section
before attempting to use this product.

// FEATURES

• CMOS Micron Aptina Image Sensor
• 550 TV Lines
• 2.8mm or 3.6mm
• External 350° pan direction rotation & 75° tilt direction
adjustment
• 12V DC

// INSTALLATION

Step 1: Mark and drill two hole positions on wall/ceiling. Then screw
the camera to the wall/ceiling with the provided screws.
Copyright © 2009. All Rights Reserved.
Step 2: Adjust the tilt angle screw for suitable view position.

// DIMENSIONS

// SPECIFICATIONS

Model
...
Image Sensor
Resolution
Synchronization
Lens
Auto White Balance
Electronic Shutter
Aperture
AGC
BLC
...
Minimum Illumination
S/N Ratio
Power
Power Consumption
Operating
Temperature
Storage Temperature
Easy Adjustment
Dimensions
1
Unit: mm
ECD3-M5528
Aptina Image Sensor
550 TV Lines
Internal
2.8mm, F2.0
Auto (2500K ~ 9500K)
Auto
Auto
Auto
Auto (1/3 center)
0.1 Lux
> 52dB
12V DC + 10%
0.65W (max)
14°F~122°F / -10°C~50°C
-4°F~140°F / -20°C~60°C
External 350° pan direction rotation
75° tilt direction adjustment
107(Ø) x 65(H) mm
*Specifications are subject to change without notice
...
...
ECD3-M5536
3.6mm, F2.0
REV110209
