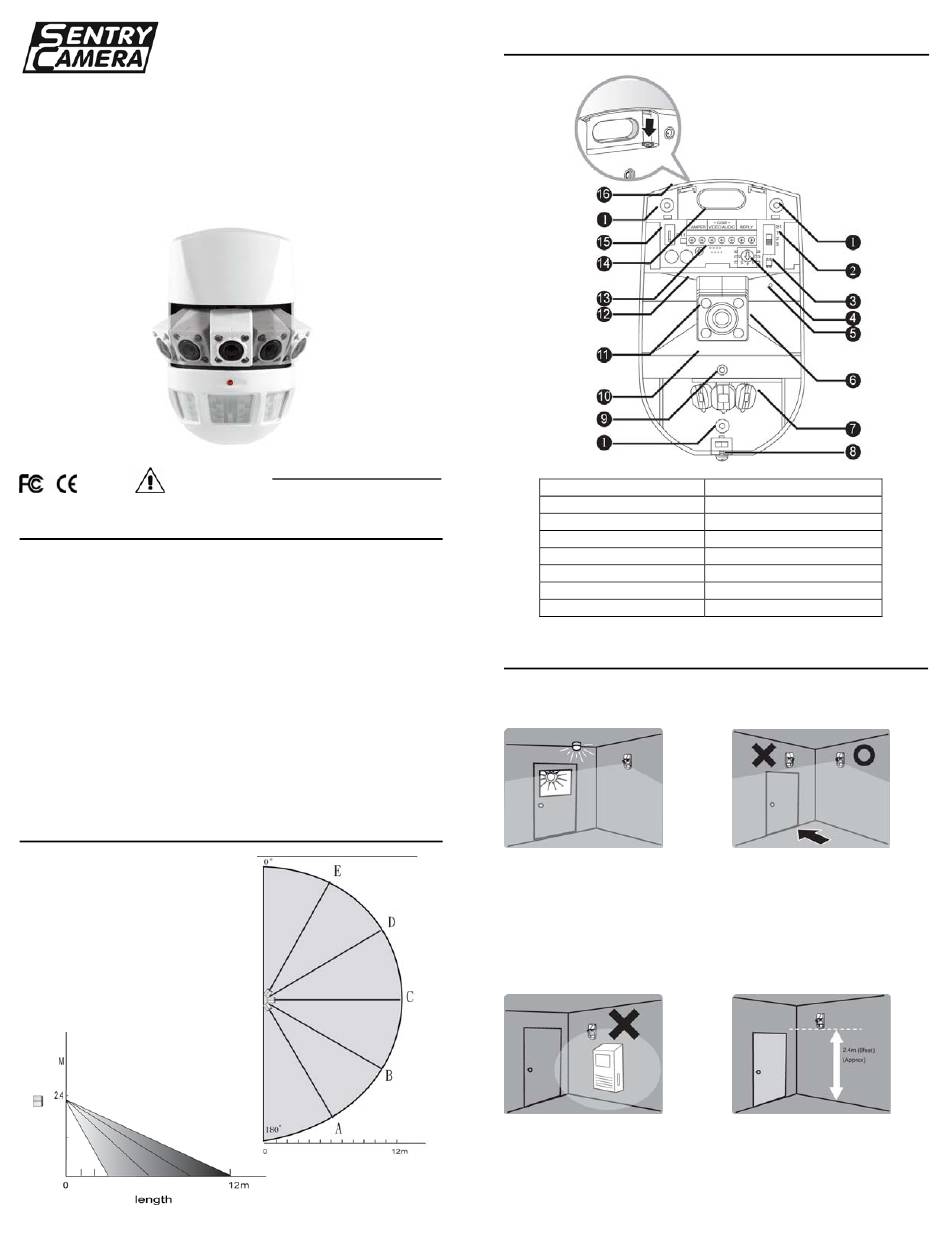

Sentry Camera TPI4-380 Operational Manual

Operational Manual
Auto Tracking PIR Camera with IR
Please read the Manual & Cautions section
before attempting to use this product.
// FEATURES
• Three dual-element PIR sensors
• Latest dual thermostat protection PIR sensors
• Three surveillance modes: Tracks & follows objects; Fixed
surveillance on specified area; Regular panning scan of
surveillance area
• Anti-tamper switch: normal close
• Built-in relay out video trigger for DVR or Alarm
• Tamper proof
• This design can be used in conjunction with conventional PIR
Security Systems
• Day & Night feature
• Built-in high gain MIC
• Two-color damage resistant ABS plastic
• 12V DC, 300mA
// LENS COVERAGE AREA
Horizontal Coverage
Triple sensor wide area coverage.
Vertical Coverage
Recommended installation
Height: 7.87~10.5ft / 2.4~3.2m
Copyright © 2009. All Rights Reserved.
TPI4-380
TPI4-380P
...
...
// PARTS & FUNCTIONS
(1) Mount Hole x3
(2) Function Selector
(3) Relay
(4) Position Selector
(5) Microphone
(6) Camera
(7) PIR Sensor x3
(8) Locking Screw
// INSTALLATION PRECAUTIONS
Read the following guidelines thoroughly before beginning the
installation process.
Ensure the camera is free of
obstructions and in clear view
of coverage area. Do not
install where the camera is in
or facing direct/reflected
sunlight windows.
Avoid locating the camera
near equipment that may
change the surrounding
temperature (i.e. overhead
A/C vent).
1
(9) LED Indicator
(10) Bottom Dust Cover
(11) Infrared Diode x4
(12) Top Dust Cover
(13) Terminal Block
(14) Cable Access
(15) Tamer Switch
(16) DC Jack
Install the camera across the
coverage zone to ensure
maximum detection sensitivity.
Install the camera at the
recommended height on a
solid flat surface.
REV072909
...
...
