HST HB102 Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
HB102/HB103

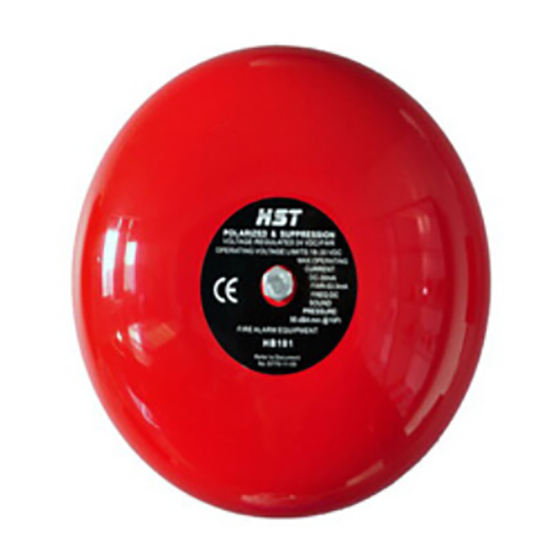

Conventional Electric Alarm Bell

SPECIFICATIONS

Operating Voltage Range:
Alarm Current
Alarm Sound Intensity:
Operating Humidity Range:
Operating Temperature Range:
Input terminal Wire Gauge:

BEFORE INSTALLING

NOTICE: This manual should be left with the
owner/user of this equipment.

GENERAL DESCRIPTION

The Electric Alarm Bell of notification appliances offers a
wide range of Sound, for wall and ceiling applications,
indoors and outdoors. They are designed to be used in 24
volt DC systems.

Loop Design and Wiring

The system designer must make sure that the total current
drawn by the devices on the loop does not exceed the
current capability of the panel supply, and that the last
device on the circuit is operated within its rated voltage.
When calculating the voltage available to the last device,
it is necessary to consider the voltage drop due to the
resistance of the wire. The thicker the wire, the smaller
the voltage drops. Wire resistance tables can be obtained
from electrical handbooks.

INSTALLATION

NOTE: All wiring must conform to applicable local
codes, ordinances, and regulations.
Mounting Indoor Wall or Ceiling Products
1. Take out the mounting plate from the bell. See Figure1.
Please refer to insert for the Limitations of Fire Alarm Systems
DC24V
Maximum 30 mA @ 24 VDC
Minimum 95dB
10% to 93% Relative Humidity, Non-condensing
-15°C to 60°C
12 to 18 AWG

THREE-YEAR LIMITED WARRANTY

1. Attach mounting plate to the wall. See Figure 2.
2. Connect field wiring to terminals
3. To attach product to mounting plate.
4. Secure product by tightening the two mounting screws
in the front of the product housing.

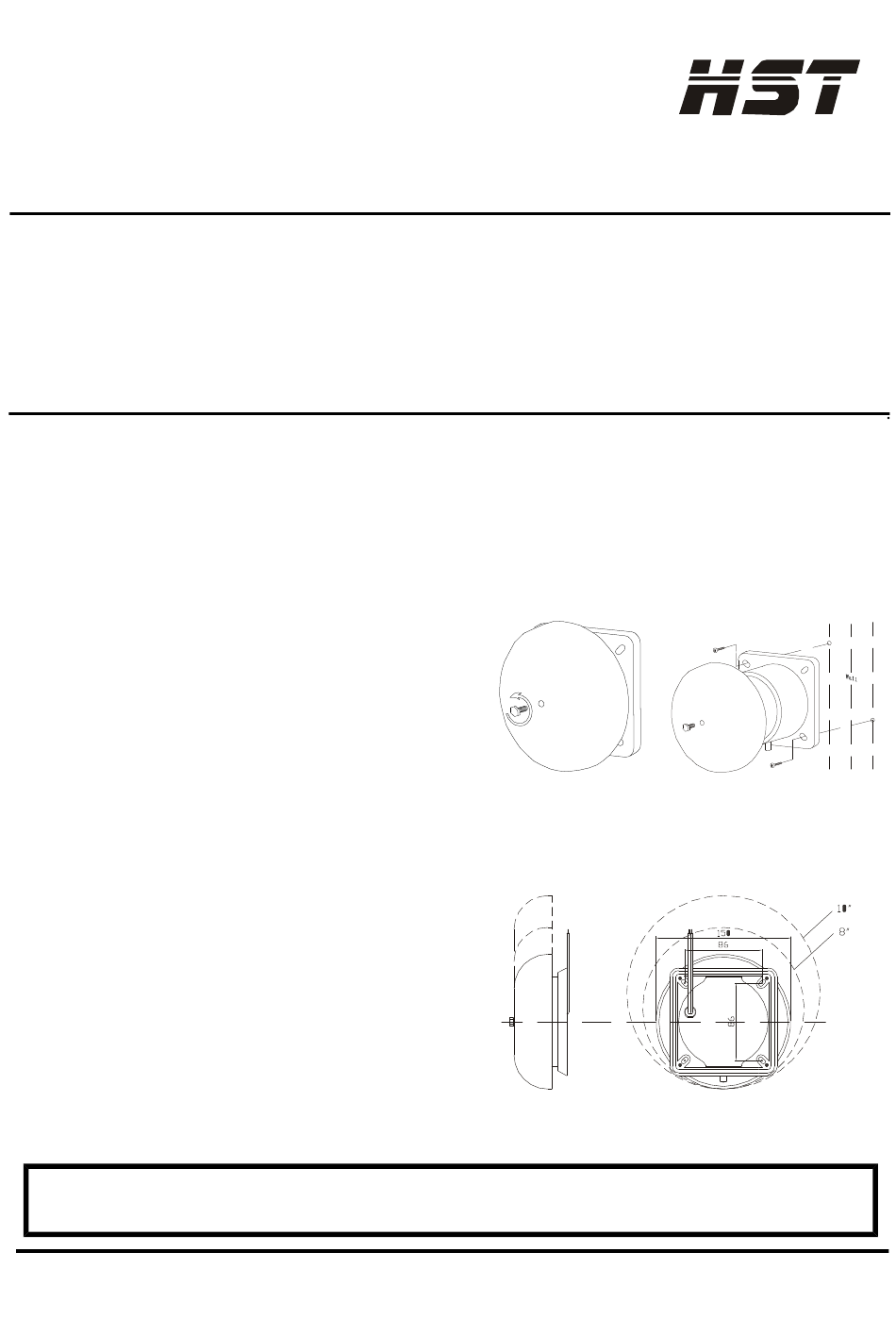

Figure1. Figure 2
Figure3.
©
