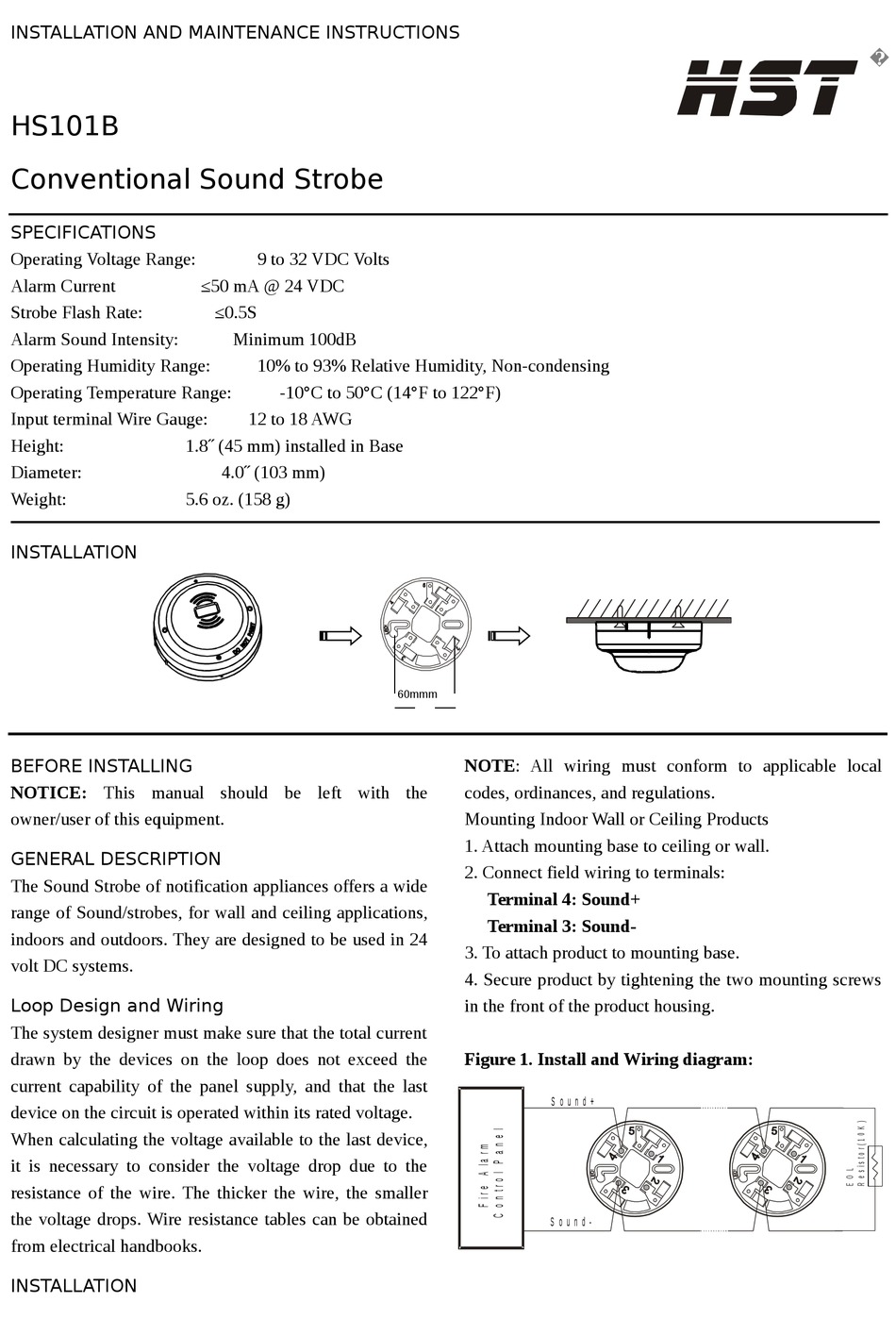

HST HS101B Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
HS101B
Conventional Sound Strobe

SPECIFICATIONS

Operating Voltage Range:
Alarm Current
Strobe Flash Rate:
Alarm Sound Intensity:
Operating Humidity Range:
Operating Temperature Range:
Input terminal Wire Gauge:
Height:
Diameter:
Weight:

INSTALLATION

BEFORE INSTALLING

NOTICE: This manual should be left with the
owner/user of this equipment.

GENERAL DESCRIPTION

The Sound Strobe of notification appliances offers a wide
range of Sound/strobes, for wall and ceiling applications,
indoors and outdoors. They are designed to be used in 24
volt DC systems.

Loop Design and Wiring

The system designer must make sure that the total current
drawn by the devices on the loop does not exceed the
current capability of the panel supply, and that the last
device on the circuit is operated within its rated voltage.
When calculating the voltage available to the last device,
it is necessary to consider the voltage drop due to the
resistance of the wire. The thicker the wire, the smaller
the voltage drops. Wire resistance tables can be obtained
from electrical handbooks.
INSTALLATION
9 to 32 VDC Volts
≤50 mA @ 24 VDC
≤0.5S
Minimum 100dB
10% to 93% Relative Humidity, Non-condensing
-10°C to 50°C (14°F to 122°F)
12 to 18 AWG
1.8˝ (45 mm) installed in Base
4.0˝ (103 mm)
5.6 oz. (158 g)
60mmm
NOTE: All wiring must conform to applicable local
codes, ordinances, and regulations.
Mounting Indoor Wall or Ceiling Products
1. Attach mounting base to ceiling or wall.
2. Connect field wiring to terminals:
Terminal 4: Sound+
Terminal 3: Sound-
3. To attach product to mounting base.
4. Secure product by tightening the two mounting screws
in the front of the product housing.
Figure 1. Install and Wiring diagram:
S o u n d +
S o u n d -
�
