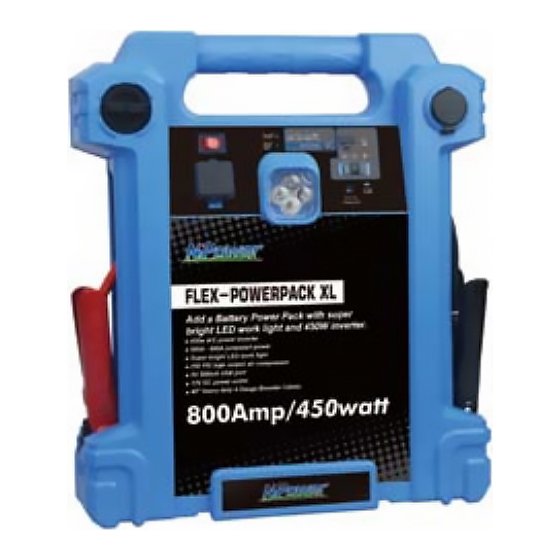

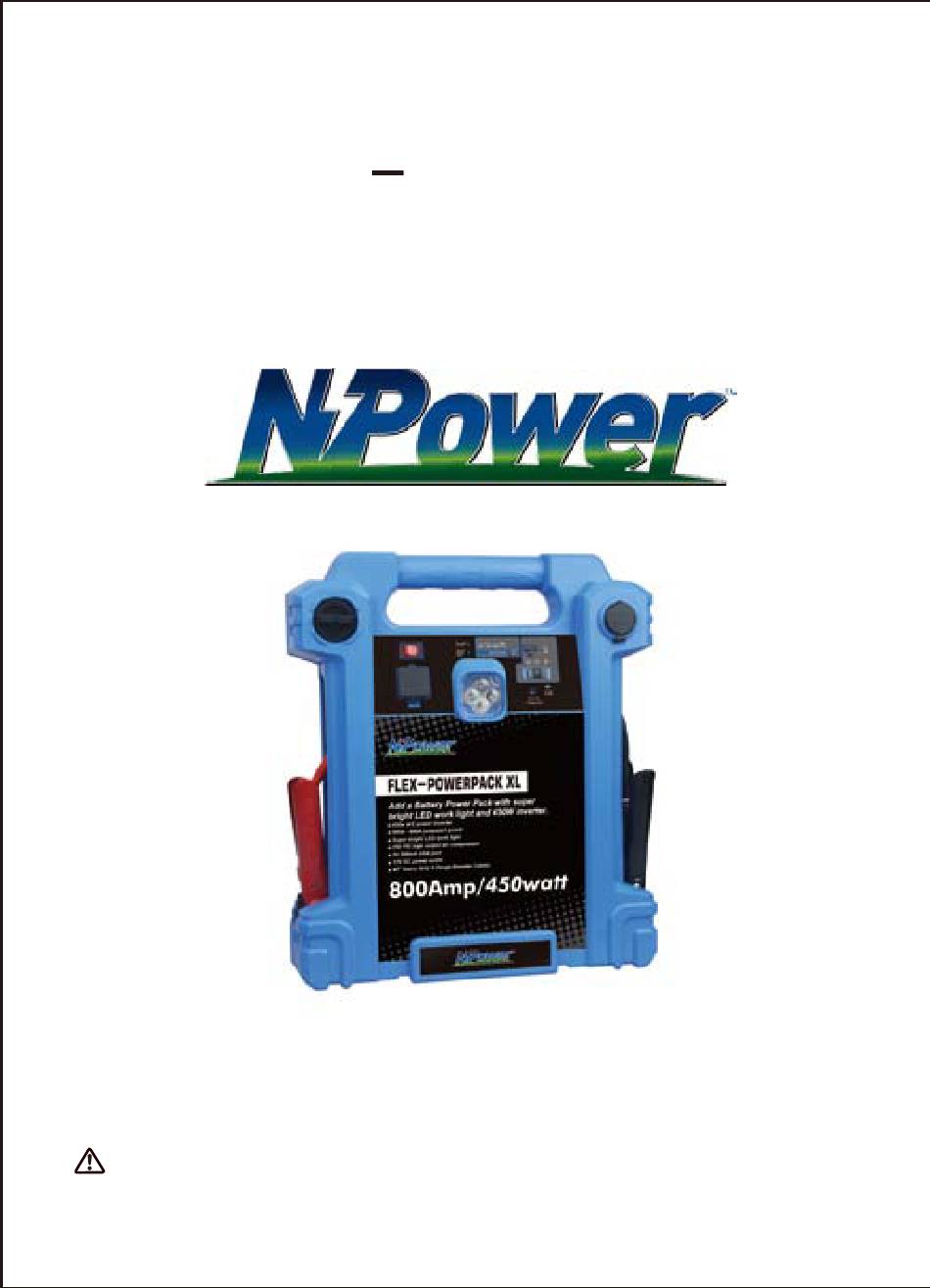

450W FLEX POWERPACK XL
IMPORTANT: For safe and optimum performance, Jump Starter must be used properly.
Carefully read and follow all instructions and guidelines in this manual and give special
attention to the CAUTION and WARNING statements.
WARNING
Battery Leakage/Seeping : Unit must be stored upright or else some batteries will
leak and cause damage not covered by the manufacturer.
OWNER'S MANUAL
Model number-24928
Please keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 450W FLEX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NPower 450W FLEX

Summary of Contents for NPower 450W FLEX

  • Page 1 450W FLEX POWERPACK XL OWNER’S MANUAL Model number-24928 IMPORTANT: For safe and optimum performance, Jump Starter must be used properly. Carefully read and follow all instructions and guidelines in this manual and give special attention to the CAUTION and WARNING statements.
  • Page 2 Conventions Used The following conventions are used in this manual. WARNING Warnings identify conditions that could result in personal injury or loss of life. CAUTION Cautions identify conditions or practices that could result in damage to the unit or to other equipment.

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction.................... 2. What’s Included..................3. Battery Choices Available ..............4. Installing the Battery................5. Specifications..................6. Important Safety Instructions..............7. Features....................8. Operations..................... 9. Recharging the Powerpack Battery............10. Troubleshooting................... 11. Warranty....................

  • Page 4: Introduction

    1. INTRODUCTION Easy-to-use and designed for reliable service, the 450W FLEX POWERPACK XL can run many AC appliances and 12V DC appliance whenever you need power for work or play, at home or on the road. Features/Benefits The 450W FLEX POWERPACK XL:...

  • Page 5: Installing The Battery

    4. INSTALLING the BATTERY CAUTION: Batteries contain acid and produce explosive gasses. Shield eyes and face from batteries all the time. CAUTION: Wrong connection on the battery terminals will trigger the alarm and damage the powerpack. PLEASE MAKE SURE TO CONNECT THE BATTERY TERMINAL TO THE CORRECT BATTERY TERMINAL CABLE.

  • Page 6: Specifications

    5. SPECIFICATIONS Electrical specifications 12 DC section Built-in incandescent light (replaceable) 0.5W bulb DC fuse AC Power Section Output power 360W Continuous output power Five minute AC output power 450W AC output surge capacity 600W Output voltage 105V-125V Output frequency 58Hz-62Hz Output wave form Modified sine wave...

  • Page 7: Important Safety Instructions

    12lb.(5.5Kg) without the battery 6. IMPORTANT SAFETY INSTRUCTIONS WARNING: The 450W FLEX POWERPACK XL is not intended for use in connection with life support systems or other medical equipment or devices. WARNING: Shock Hazard. Keep away from children The Powerpack generates the same potentially lethal AC power as a normal household wall outlet.
  • Page 8 WARNING: Fire Hazard Never allow jumpstart cables’ red and black clips to touch each other or another common metal conductor. This could cause damage to the unit and/or create a sparking/explosion hazard. WARNING: Fire Hazard Jumpstart cable clips must be connected positive to positive (red clip to battery “+”) and negative to negative (black clip to battery “-“or engine ground).
  • Page 9 Precautions when working with batteries WARNING: Explosion and Fire Hazard 1. Follow all instructions published by the battery manufacturer and the manufacturer of the equipment in which the battery is installed. 2. Make sure the area around the battery is well-ventilated. 3.

  • Page 10: Features

    CAUTION: Do not use the following with the 450W powerpack: ● Small battery-operated appliance like flashlights, razors, and night lights that can be plugged directly into an AC receptacle to recharge. ● Some chargers for battery packs used in hand power tools. Note: If you are unsure about using your rechargeable appliance with the powerpack, contact the equipment manufacturer to determine the rechargeable appliance’s compatibility with the modified sine wave (non-sinusoidal) AC...
  • Page 11 1. USB power port—it can provide 5V/500mA 2. USB power indicator—if the USB switch is on and there is electricity in the USB port. This LED indicator illuminates. 3. Slip switch—if the switch is slipped to left, the USB port can provide power. If it is at the right point, the white LED lamps illuminate.
  • Page 12 Note：The unit contains a 15A fuse for 12V DC socket over current protection. Note：It is recommended that you use the unit to power 12V accessories less than 8A. Note: It is recommended that you charge your choice of battery by the AC to DC adapter charger (provided) which has protection function.
  • Page 13 18. Pressure gauge shows the PSI (lbs/in²) 19. Compressor switch turns the compressor unit on and off. 20. Valve connector with connector hose Adapter 21. AC to DC adapter charger Features of the AC to DC charger Input voltage: 110V AC Output voltage: 13.5V DC Input current: 0.5A Note: it is recommended that you use the AC to DC adapter to charge the...

  • Page 14: Operations

    8. OPERATIONS CAUTION: Read all operating instructions before operating the Powerpack. CAUTION: The Powerpack is not intended for use as a UPS (Uninterruptible Power Supply). The unit should be operated only in locations that meet the following requirements: Don’t allow water or other liquids to drop or splash on the unit. Storage temperatures should be between -10℃...
  • Page 15 Operating AC Appliance 1. Check battery status to ensure the battery is fully charged. 2. Open the AC Outlet cover. 3. Turn the AC socket switch ON. 4. Plug the AC appliance into AC outlets. 5. Turn the AC appliance ON. 6.
  • Page 16 Note: If you are unsure about powering any device with the inverter, contact the manufacturer of the device to determine whether it is compatible with the modified sine wave output of the inverter. 12 V DC Appliances The Powerpack can operate one 12V DC auto, RV, marine, or other portable DC appliance that draws 15 amps or less from its DC socket.
  • Page 17 Do not crank the engine for more than 5 seconds. The jumpstart feature is designed for short term operation only. Operating the boosting feature for more than 5 seconds may cause damage to the unit. Allow the 450W FLEX POWERPACK XL to cool down for at least 3 minutes after each boost.
  • Page 18 Using the air compressor WARNING: Fire Hazard The compressor is designed for short term operation only. Operating the compressor over an extended period of time will cause the compressor unit to overheat, which could lead to fire. Allow the compressor to cool down for 10 minutes after each 10 minutes of continuous operations.
  • Page 19 3. Remove Valve Stem Cap from tire to be inflated. 4. Place Valve Connector firmly and completely over valve stem on the tire. 5. Press the Thumb Latch toward the house until it locks into the closed position. 6. Press the Compressor switch to turn the compressor ON. 7.

  • Page 20: Recharging The Powerpack Battery

    Charging when the battery is fully discharged takes around 28 hours. NOTE: Recharge the 450W FLEX POWERPACK XL as soon as possible after each use. When not used the Booster Pack, it should be recharged every 3 months! To recharge with AC charger: (1)Turn the rotary switch to the “OFF”...

  • Page 21: Troubleshooting

    Important: The powerpack will automatically shutdown, i.e., disconnect from the DC source in the event of an over-voltage condition such as reaching over 15V DC. However, it is recommended to detach the DC to DC charging cable from the unit and vehicle as soon as the battery is fully charged or if the vehicle’s engine is turned off.
  • Page 22 Problem Cause Solution The battery in the Charge it for at least 28 powerpack is not fully hours charged The powerpack The engine start capacity Thi s unit can provide up to 800A can not jump start exceeds the Powerpack jumpstart power vehicle jumpstart capacity.
  • Page 23 Problem Cause Solution Battery has discharged to Recharge the battery. The AC appliance Inverter has overheated Allow the Powerpack to cool does not operate; due to poor ventilation or for 15 minutes or more. Clear audible alarm is excessively warm blocked fan opening or remove sounding.

  • Page 24: Warranty

    NPower will repair or replace the defective product free of charge. Proof of purchase is required. Warranty term is not extended if NPower repairs or replaces a product.
