WARNING: USE OF THIS PRODUCT FOR ANY PURPOSES OTHER THAN ITS ORIGINAL INTENT, ABUSE OF THE PRODUCT, AND/OR MODIFICATION TO THE ORIGINAL PRODUCT IS
STRICTLY PROHIBITED BY JOHN BLUE COMPANY. JOHN BLUE COMPANY RESERVES THE RIGHT TO DENY WARRANTY OR LIABILITY CLAIMS IN ANY/ALL SITUATIONS INVOLVING
MISUSE, ABUSE OR MODIFICATION.
THE ORIGINAL INTENT OF THIS PRODUCT DOES NOT INCLUDE USE WHERE THE MAXIMUM ALLOWED PRESSURE OR TEMPERATURE IS EXCEEDED, AND IT DOES NOT
INCLUDE APPLICATIONS UTILIZING FLUIDS THAT ARE NOT COMPATIBLE WITH THE PRODUCT'S COMPONENT MATERIALS. DO NOT USE THIS PRODUCT WITH FLAMMABLE OR
COMBUSTIBLE FLUIDS SUCH AS GASOLINE, KEROSENE, DIESEL, ETC... FAILURE TO FOLLOW THIS NOTICE MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE AND WILL
VOID THE PRODUCT WARRANTY. IF IN DOUBT ABOUT YOUR APPLICATION, CONTACT YOUR STOCKING DEALER OR THE JOHN BLUE TECHNICAL STAFF AT 1-800-253-2583.
WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to:
www.P65Warnings.ca.gov.
SAFETY PRECAUTIONS:
EQUIPMENT SHOULD BE OPERATED BY RESPONSIBLE PEOPLE. A CAREFUL OPERATOR IS THE BEST INSURANCE AGAINST AN ACCIDENT.
FILL SYSTEM WITH WATER FIRST AND CHECK FOR LEAKS – REPLACE HOSES WHEN WORN OR CRACKED.

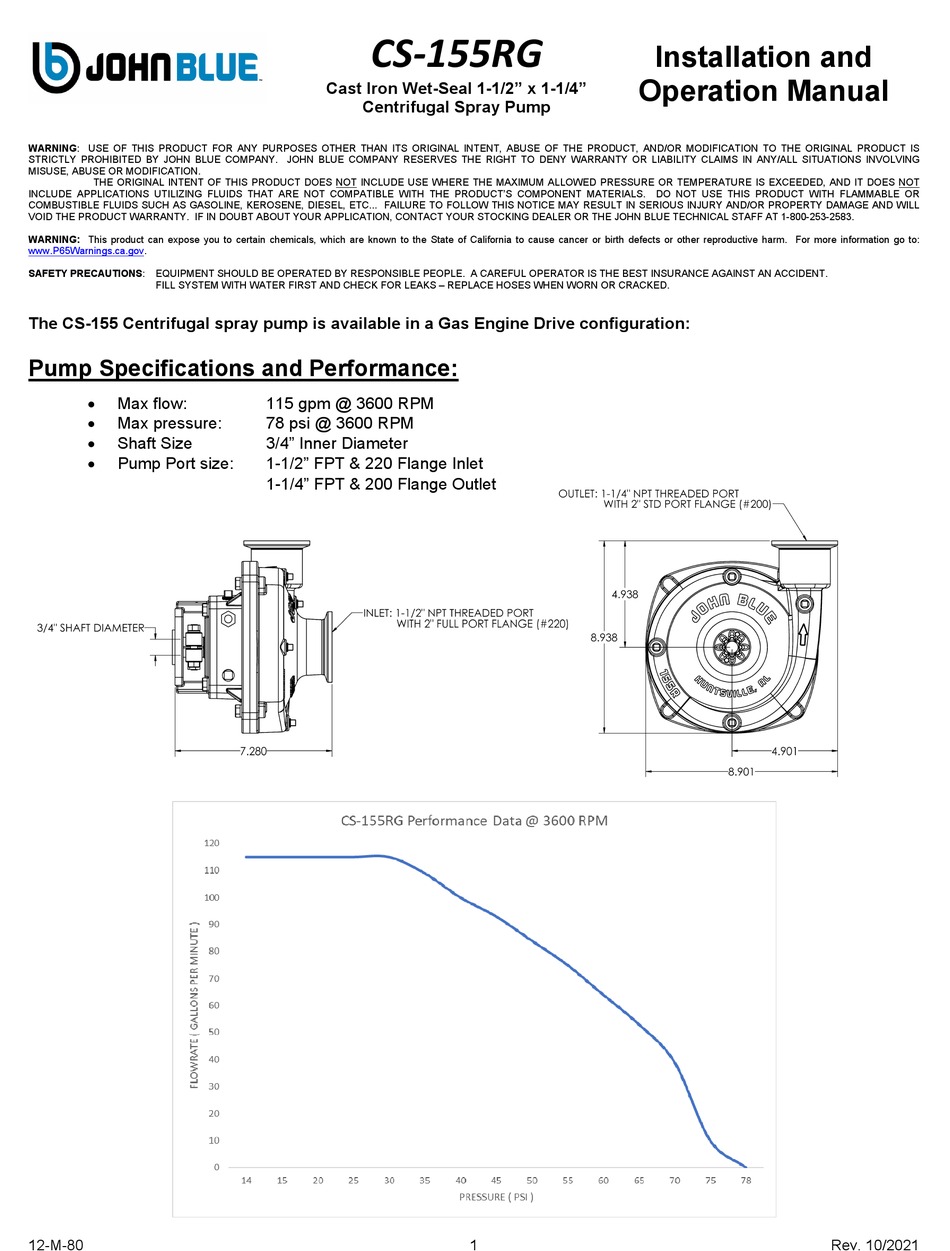

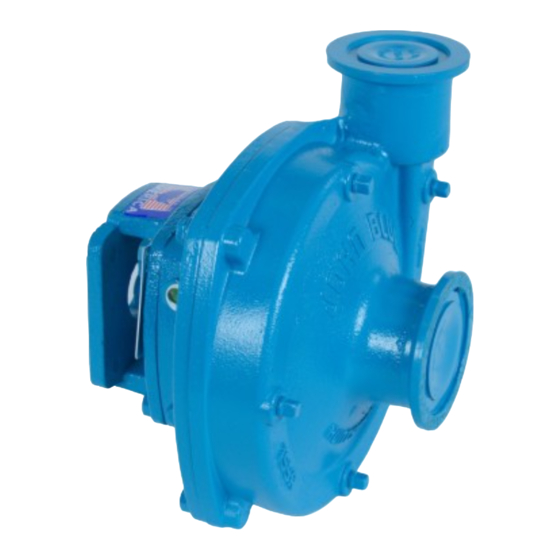

The CS-155 Centrifugal spray pump is available in a Gas Engine Drive configuration:
Pump Specifications and Performance:
Max flow:
Max pressure:
Shaft Size
Pump Port size:
12-M-80
CS‐155RG
Cast Iron Wet-Seal 1-1/2" x 1-1/4"
Centrifugal Spray Pump
115 gpm @ 3600 RPM
78 psi @ 3600 RPM
3/4" Inner Diameter
1-1/2" FPT & 220 Flange Inlet
1-1/4" FPT & 200 Flange Outlet
Operation Manual
1
Installation and
Rev. 10/2021
Advertisement
Table of Contents
Related Manuals for JOHN BLUE CS-155RG
Summary of Contents for JOHN BLUE CS-155RG
- Page 1 WARNING: USE OF THIS PRODUCT FOR ANY PURPOSES OTHER THAN ITS ORIGINAL INTENT, ABUSE OF THE PRODUCT, AND/OR MODIFICATION TO THE ORIGINAL PRODUCT IS STRICTLY PROHIBITED BY JOHN BLUE COMPANY. JOHN BLUE COMPANY RESERVES THE RIGHT TO DENY WARRANTY OR LIABILITY CLAIMS IN ANY/ALL SITUATIONS INVOLVING MISUSE, ABUSE OR MODIFICATION.
- Page 2 Installation: The CS-155RG pump is configured for use with a Honda GX-160 gas engine (John Blue Part Number: 113798-01). The pump can also be purchased assembled to the Honda engine (John Blue Part Number: CS-155RG-5H). **Note that any plumbing must be supported so that its weight does not hang off of the pump – this will void the warranty.
- Page 3 Suction lift is too great – flooded inlet recommended Collapsed suction line Seal reservoir fluid changes level Leak at the input shaft seal if level is low Leak at the impeller side seal if level is high © 2021 John Blue Co. ...
- Page 4 When it is impractical to return the defective parts of such equipment to John Blue’s factory, then John Blue shall have no liability for the labor cost involved in repairing or replacing any such parts and shall be liable solely for supplying the material necessary to replace or repair the defective parts, provided that prior thereto John Blue Company shall have determined to its satisfaction that any such parts are thus defective.
