OVAL TUBE
SQUEEZE TUBE PUMPS
PARTS AND
INSTRUCTION MANUAL

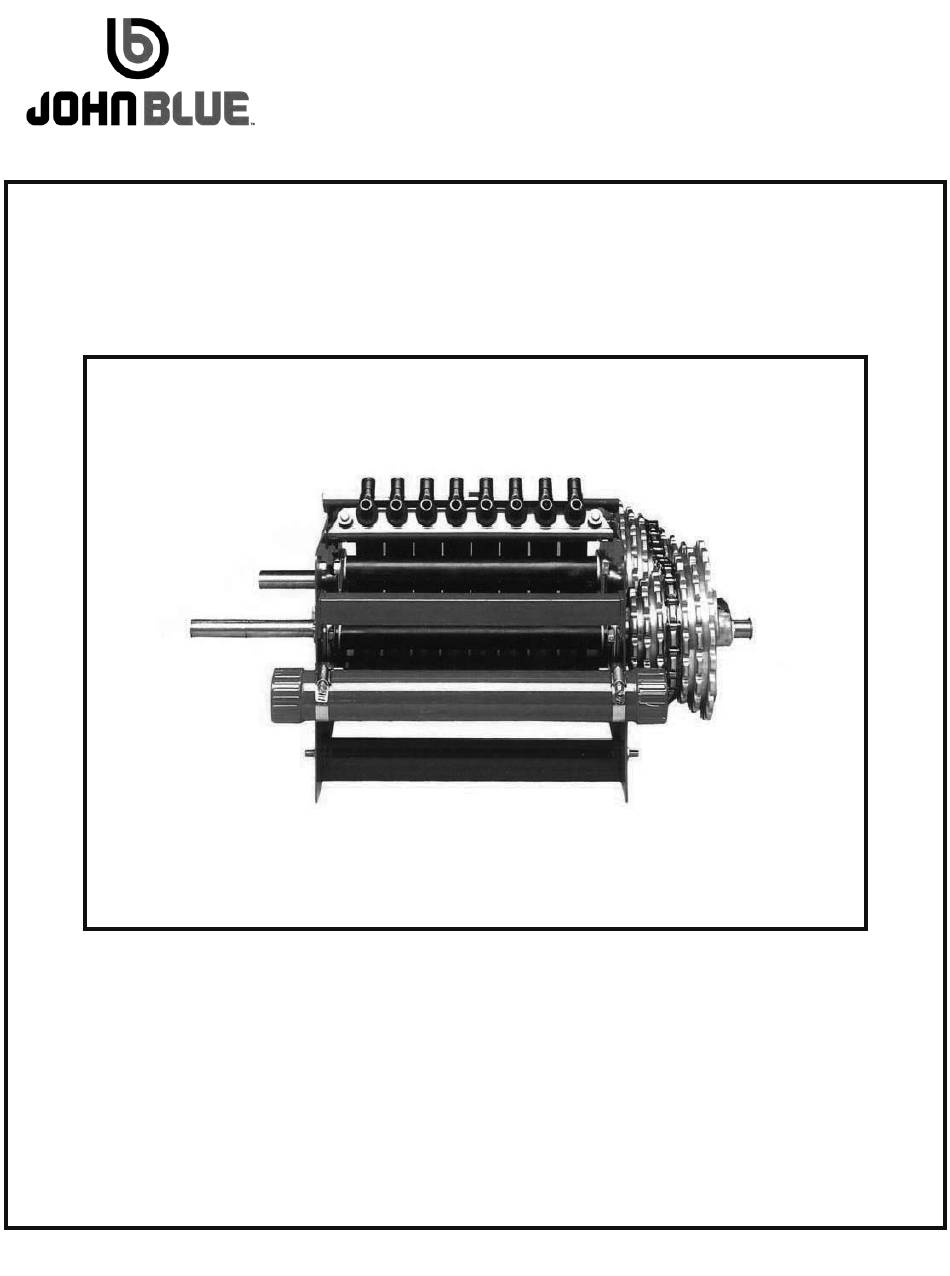

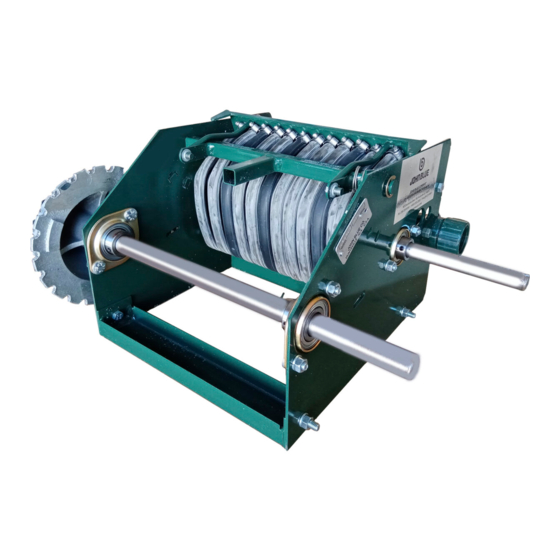

Model 8L Shown
JOHN BLUE COMPANY
DIVISION OF ADVANCED SYSTEMS TECHNOLOGY, INC.
165 Electronics Blvd, Huntsville, AL 35824
Telephone: (256) 721-9090 - FAX: (256) 721-9091
Toll Free: 1-800-253
-2583
www.johnblue.com
Copyright 2016 John Blue Company
Printed in U.S.A.
12-M-30
Rev 9/19
Advertisement
Related Manuals for JOHN BLUE 8L
Summary of Contents for JOHN BLUE 8L
- Page 1 Model 8L Shown JOHN BLUE COMPANY DIVISION OF ADVANCED SYSTEMS TECHNOLOGY, INC. 165 Electronics Blvd, Huntsville, AL 35824 Telephone: (256) 721-9090 - FAX: (256) 721-9091 Toll Free: 1-800-253 -2583 www.johnblue.com Copyright 2016 John Blue Company Printed in U.S.A. 12-M-30 Rev 9/19...
-
Page 2: Table Of Contents
To The Owner This manual has been prepared and illustrated to assist you in the maintenance of your JOHN BLUE PUMP. Enter your serial number and the date of the purchase in the space provided below for future reference in service information or for ordering parts. -
Page 3: Pump Specifications
1 1/4” FNPT 5/8” 1/2” 1 1/4” FNPT 24B-1 3/8” 3/8” 1 1/4” FNPT Hydraulic Pump Models 8B-1H 3/8” 3/8” 1 1/4” FNPT 8L-H 5/8” 1/2” 1 1/4” FNPT 12B-1H 3/8” 3/8” 1 1/4” FNPT 12L-H 5/8” 1/2” 1 1/4” FNPT 16B-1H 3/8”... -
Page 4: Installation
INSTALLATION INSTRUCTIONS 1. Pump Location The John Blue Squeeze Tube Pump should always be mounted even with or lower than the fertilizer tank for accurate metering. The pump can be mounted to any flat surface. There is no need to have the pump mounted in the middle of the equipment. The pump creates enough pressure to place it at the end of the implement. - Page 5 Do not retighten the fittings in the manifold; they are sealed at the factory. 6. Chain Adjustment The chain between the John Blue Squeeze Tube coned sprockets is adjusted by removing the master link and moving the chain to the correct position. 7. Tube Tension Adjustment...
-
Page 6: Maintenance
8. Hydraulic Pumps Tractor hydraulics can be used to power the John Blue Squeeze Tube Pumps. Hydraulic pumps come with the hydraulic motor and control valve, which is connected with standard hose and fittings. - Page 7 Step 2 Finding Sprocket Ratio The sprocket ratio is used to 1681 determine the size sprocket needed RPM Main Shaft x Wheel Diameter Ratio Pump Jackshaft to on the ground wheel and pump Ground Wheel jackshaft. Example: RPM is 23 (from step 1) and your wheel diameter is 30 inches. Correct answer: 1681 = 2.4: Divide 1681 by 23 then divide the answer 73 by 30 = 2.4 (23)(30) Step 3 Finding Actual Sprockets to Use...
-
Page 8: Parts Lists
STANDARD SQUEEZE TUBE PUMP PARTS LIST: Item # Description 24B-1 16B-1 12B-1 8B-1 Base Channel (2) 01-2410 01-1620 01-1610 01-1220 01-0820 01-0820 01-0810 Frame End Support 02-2410 02-1620 02-1610 02-1220 02-0820 02-0820 02-0810 Frame End Plate (2) 03-2410 03-2410 03-1610 03-2410 03-1610 03-1610 03-1610 Outlet Fitting Rack... - Page 9 DOUBLE SQUEEZE TUBE PUMPS PARTS LIST: Item Description 24LD 32BD-1 40BD-1 48BD-1 Base Channel (3) 01-1220 01-1610 01-1620 01-2410 Frame Support Bar (2) 02-1220 02-1610 02-1620 02-2410 Outlet Fitting Rack (2) 04-1220 04-1610 04-2010 04-2410 Tube Tension Bar (2) 05-1220 05-1610 05-2010 05-2410...
- Page 10 PARTS LIST: COMBINATION SQUEEZE TUBE PUMPS Item Description 8B-1 / 8L 12B-1 / 8L Base Channel (3) 01-0820 01-0820 Frame Support Bar (2) 02-0820 02-0820 Outlet Fitting Rack (2) 8B 04-1210 12B 04-1210 8L 04-0820 8L 04-0820 Tube Tension Bar (2)
- Page 11 10-3224 10-4813 10-4814 Modified Mainshaft 10-2423 10-2424 10-3212 10-3214 10-3223 10-3224 10-4813 10-4814 Rollers (4) 09-1221 09-1221 09-1611 09-1611 09-1621 09-1621 09-2411 09-2411 8B-1 / 8L 12B-1 / 8L Item Description Front Center Front Center Regular Roller 09-1623 09-1624 09-1623 09-1624...
-
Page 12: Warranty
John Blue Company. Any modification to the product should be approved by John Blue Company prior to use. John Blue Company will deny Warranty claims and liability in any situation involving misuse, abuse or modification.
