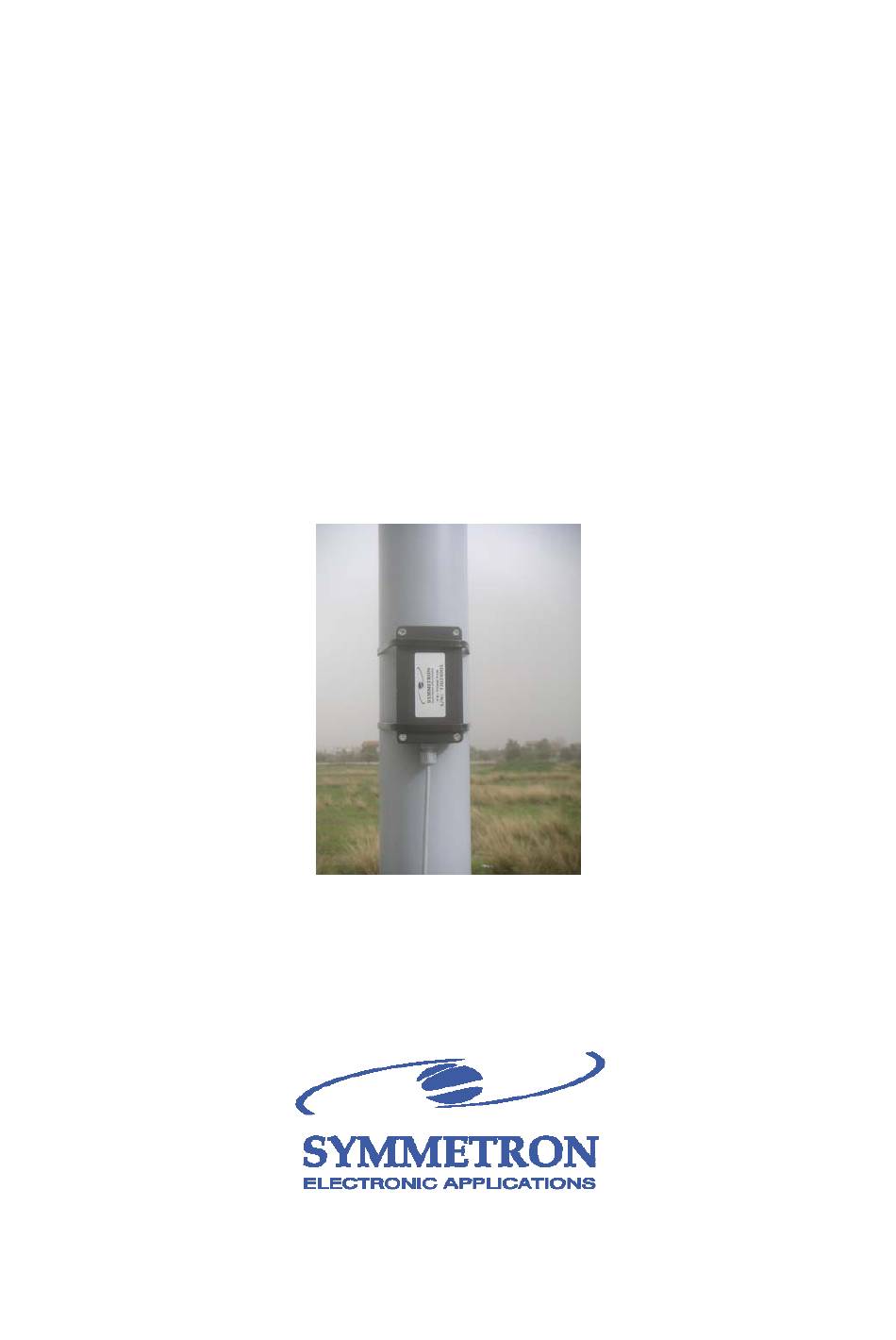

- Page 1 TILTOMETER V1.0 USER’S MANUAL...
- Page 2 Symmetron's facility or another specified location. The only responsibility of Symmetron under this warranty is, at its option, to replace or repair, free of charge, any defective component of such products.
- Page 3 EMC Emmisions: ΕΝ61326:1998 EMC Immunity: ΕΝ61326:1998 Protection: EN60529:1992 Description of Equipment Angle sensor. Model Tiltometer Batch of product covered Serial numbers: from 0 to 2000 Date and Place Pallini, Attica, Greece, December 1, 2006. Authorized signatory on behalf of the manufacturer N.
-
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................5 GENERAL DESCRIPTION ................5 COMMUNICATION WITH THE USER ...............6 SERIAL PORT..................6 SETTINGS....................7 QUERIES ....................8 CONNECTION OF THE SERIAL PORT WITH GSM MODEM ......9 PLACEMENT POSITIONS & CORRESPONDING OUTPUTS........9 TECHNICAL SPECIFICATIONS ..............11 ELECTRICAL CHARACTERISTICS ............11 MECHANICAL CHARACTERISTICS............ -
Page 5: Introduction
• Connect the serial port of the Tiltometer to a GSM Modem and have it send an SMS message to a preset number, if tilt angle exceeds a preset angle. This way a possible (and expensive) mast fall may be prevented. -
Page 6: Communication With The User
BAT-: SUPPLY GROUND 3 COMMUNICATION WITH THE USER 3.1 SERIAL PORT The Tiltometer has an RS232 serial port. It allows local set-up with a PC or data transfer. Pin assignment: Pin 2 Receive Data Line (RXD), the pin 4 of terminal (input) -
Page 7: Settings
"!HANDSHAKE=". This command sets the serial communication handshake options. The Tiltometer uses hardware control (RTS and CTS signals) when “!HANDSHAKE=HARDWARE”. The Tiltometer uses no handshake when you set “!HANDSHAKE=NONE”. You may want to use hardware handshake when, for instance, you want to inform a connected modem that the Tiltometer is about to transmit a message. -
Page 8: Queries
‘Send Carriage Return characters along with Line Feeds’ option The Tiltometer does not echo back the characters it is receiving. This means that in order ‘Local to see the commands you are typing in HyperTerminal, you must check the option echo of typed characters’... -
Page 9: Connection Of The Serial Port With Gsm Modem
Siemens and Wavecom have been tested and perform well with this function. 4 PLACEMENT POSITIONS & CORRESPONDING OUTPUTS A general idea of the space in which the tiltometer can move and typical values of the elevation and azimuth angle are given in figure 7 (E: elevation, A: azimuth). Please notice that when Elevation is at 90 degrees, then the Azimuth cannot be determined;... - Page 10 Elevation=0 • • Azimuth=270 • Elevation=0 • Azimuth=180 • • Elevation=-90 • • Azimuth indeterminate LEGEND The symbol • indicates the screw terminal’s position. The hatch indicates the horizontal level. The symbol indicates the bottom side of the Tiltometer. S-UME-TILT_1_0-004...
-
Page 11: Technical Specifications
5 TECHNICAL SPECIFICATIONS 5.1 ELECTRICAL CHARACTERISTICS Please refer to Figure 2 OUT AZIM: Output Azimuth. • Range: 0-2.5 volts or 0-5 volts, representing 0 to +360 degrees. • Resolution: 1,4 degrees. • Accuracy: better than ±4 degrees. • Output update rate: 2 Hz. OUT ELEV: Output Elevation. -
Page 12: Connecting To A Data Logger
(1) On Stylitis-101, connect the AN [-] inputs to the GND on the screw terminal. Set the input range to 0~5V, Unipolar. (2) For data loggers with input range equal to 0~2.5V, use the RS232 port to set the Tiltometer’s output range to half. Issue the command: !RANGE=HALF (See 3.2). S-UME-TILT_1_0-004...
