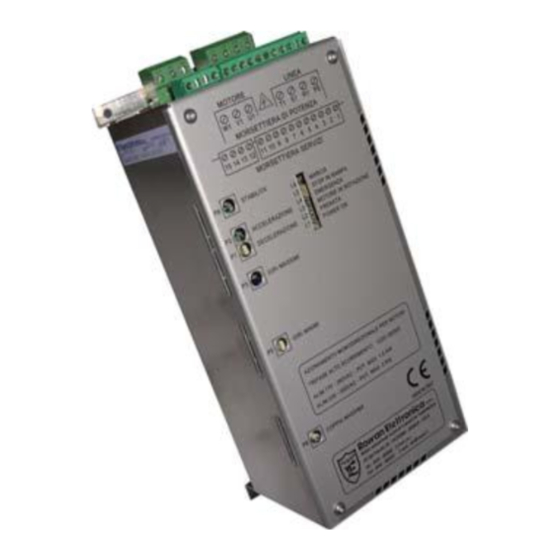

Cod.390S.B
FOR ROWAN THREEPHASE HIGH SLIP MOTORS
EMC
CONFORMITY
REV. 7 - Date
03/07/2018
INSTRUCTION MANUAL
UNIDIRECTIONAL DRIVE
Motori, azionamenti, accessori e servizi per l'automazione
Via Ugo Foscolo, 20 - CALDOGNO - VICENZA - ITALIA
Tel.:
0039 0444 - 905566 (4 linee r.a.)
Fax:
0039 0444 - 905593
E-mail: info@rowan.it - URL:\\ www.rowan.it
Data
Controllato/Approvato
Advertisement
Table of Contents
Related Manuals for Rowan Elettronica 390S.B
Summary of Contents for Rowan Elettronica 390S.B
- Page 1 INSTRUCTION MANUAL Cod.390S.B UNIDIRECTIONAL DRIVE FOR ROWAN THREEPHASE HIGH SLIP MOTORS Motori, azionamenti, accessori e servizi per l'automazione Via Ugo Foscolo, 20 - CALDOGNO - VICENZA - ITALIA Tel.: 0039 0444 - 905566 (4 linee r.a.) Fax: 0039 0444 - 905593 E-mail: info@rowan.it - URL:\\ www.rowan.it...
-
Page 2: Table Of Contents
TRANSLATION OF THE DESIGN TEXT ..................... pag. Warning ! - ROWAN ELETTRONICA s.r.l. declines any responsibility for any inaccuracies contained in this manual, due to printing and/or transcription errors. ROWAN ELETTRONICA s.r.l. reserves the right to make any variations that it considers necessary for better functioning of the product, without prior notification. - Page 3 CAUTION: Accordance with the mentioned norms depends on the connection of the separately supplied filtering devices and the scrupulous observance of the instructions given on page 10 by the installer. OVERALL DIMENSIONS (measurements in mm) ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 3 out of 24...
-
Page 4: Operating Principles
(contact closed between 9 and 12 terminals) MARCIA STOPINRAMPA EMERGENZA MOTORE IN ROTAZIONE FRENATA POWER ON ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 4 out of 24... - Page 5 U1-V1-W1 Output adjusted to the load. Pre-set a star or delta load according to the information on the plates and the supply voltage. ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 5 out of 24...
-
Page 6: Trimmer Description
8 or 11 at 0VDC (only active if couple limitation is inserted with micros S9 and S8 closed). P12 EMERGENCY intervention delay adjustment (minimum 1 sec. maximum 15 sec. when turned fully clockwise) standard calibration 8 sec. ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 6 out of 24... -
Page 7: Microswitch Description
S12 Closed: In the case of speed adjustment by potentiometer connected to terminals 3-6-7. S12 Open: In the case of speed adjustment by differential dc signal connected to terminals 13-14. ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 7 out of 24... -
Page 8: Display Description
240-415-440-460V, the relevant absorption data can be obtained by taking the 400V line voltage figures and proportionally calculating the line voltage of the motor to be used. ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 8 out of 24... -
Page 9: Connecting The Terminal Board To The Motor Services
It is necessary to bear in mind that the flywheel diode has a maximum filtering efficiency, but it delays spring brake insertion. Note: for a better use of the brake, Rowan Elettronica suggests the following connection to the C321S device: BRAKE... -
Page 10: Instructions For Correct Installation: Mechanical Installation
It is advisable, therefore, to use differentials for variable currents. Upon request Rowan Elettronica can supply the complete ANTI EMI filter: the inductors are chosen according to the nominal current of the applied Rowan motor, or to the total of several motors. A single inductor can serve several drives in parallel. -
Page 11: Setting At Work
Verify that the maximum speed is reached, eventually retouch maximum calibration with the P3 trimmer (MAXIMUM REVS.). Be careful not to exceed the maximum adjustment as this would send the motor into overabsorption, ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 11 out of 24... -
Page 12: Troubleshooting
S7. The tachometrical dynamo is worn out after many working hours or has been ruined by bad motor assembly. ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 12 out of 24... -
Page 13: Application Diagrams
S8 Closed – S9 Open (couple limitation closed) S10 Open (dc braking inserted) / S11 Open (inputs for PNP logic) / S12 Closed (speed adjustment from potentiometer) ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 13 out of 24... - Page 14 WARNING: keep in mind that while operating with blocked rotor the maximum current of the Rowan motor in continuous duty must be at least 20% lower than the nominal current. Connection diagram nr. 3 ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 14 out of 24...
- Page 15 CODE 390S CONNECTION WITH DOUBLE SPEED MOTOR Connection diagram nr. 4 ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 15 out of 24...
- Page 16 In the case of several motors, the part inside the dotted line should be increased for each additional unit, and the power of the Code 390S drive should be corrected. ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 16 out of 24...
- Page 17 DIAGRAM SHOWING HOW TO REPLACE A CODE 290 CARD WITH A CODE 390S CARD DIAGRAM SHOWING HOW TO REPLACE A CODE 290R CARD WITH A CODE 390S CARD ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 17 out of 24...
- Page 18 S1 – S5 – S6 – S8 – S10 – S11 – S12 Closed S4 – S7 – S9 Open S2 – S3 see instructions ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 18 out of 24...
- Page 19 S1 – S5 – S6 – S8 – S10 – S11 – S12 Closed S4 – S7 – S9 Open S2 – S3 see instructions ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 19 out of 24...
-
Page 20: Block Diagram
BLOCK DIAGRAM ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 20 out of 24... -
Page 21: Circuit Silk Screening
CIRCUIT SILK SCREENING ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 21 out of 24... - Page 22 If a direct brake is mounted, it is not necessary to dismount it, just check the air gap (maximum 0,3 mm) with a thickness gage through the side slots, and regulate by loosening the fixing grain on the brake holder hub if needed. ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 22 out of 24...
- Page 23 DINAMO TACHIMETRICA: TACH DYNAMO DISGIUNTORE TERMICO: THERMIC SWITCH DISPOSITIVO CONTROLLO TACHIMETRICO: TACHOMETRICAL CONTROL DEVICE EMERGENZA: EMERGENCY ENTRATE/USCITE NPN: INPUT/OUTPUT NPN FRENO A MOLLE: SPRING BRAKE ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 23 out of 24...
- Page 24 Via Ugo Foscolo, 20 - CALDOGNO - VICENZA - ITALIA Tel.: 0039 0444 - 905566 (4 linee r.a.) Fax: 0039 0444 - 905593 E-mail: info@rowan.it - URL:\\ www.rowan.it CONFORMITY ROWAN ELETTRONICA s.r.l. - Via Ugo foscolo, 20 - 36030 CALDOGNO (Vicenza) page 24 out of 24...
