Thank you for purchasing the HDM-CAT5D (HDMI
cable system over to a double Category 5 or 6 cable system offering an affordable and reliable method of transmitting
HDMI
®
. This system offers installers and end users the ability to link a HDTV Display in distant locations to any HDMI
source without the labor associated with bulky and expensive HDMI
the HDM-CAT5D can extend an HDMI
using Category 6 cable.
Due to the problematic nature of the digital system having capacitive loading and Category 5/6 cable having similar issues,
a must feature added to the HDM-CAT5D is an HDCP RECOVERY SYSTEM. This unique serial data restorer is designed
to clean up and restore HDCP and EDID signals.
The HDM-CAT5D consists of one Cat5 balanced line transmitter with unique features of bandwidth and impedance
matching for long hauls and a separate balanced line receiver used on the opposite end of the system to restore the
video back to standard.
Going the distance for LESS no longer means you have to sacrifice reliability and affordability. The HDM-CAT5D will de-
liver.

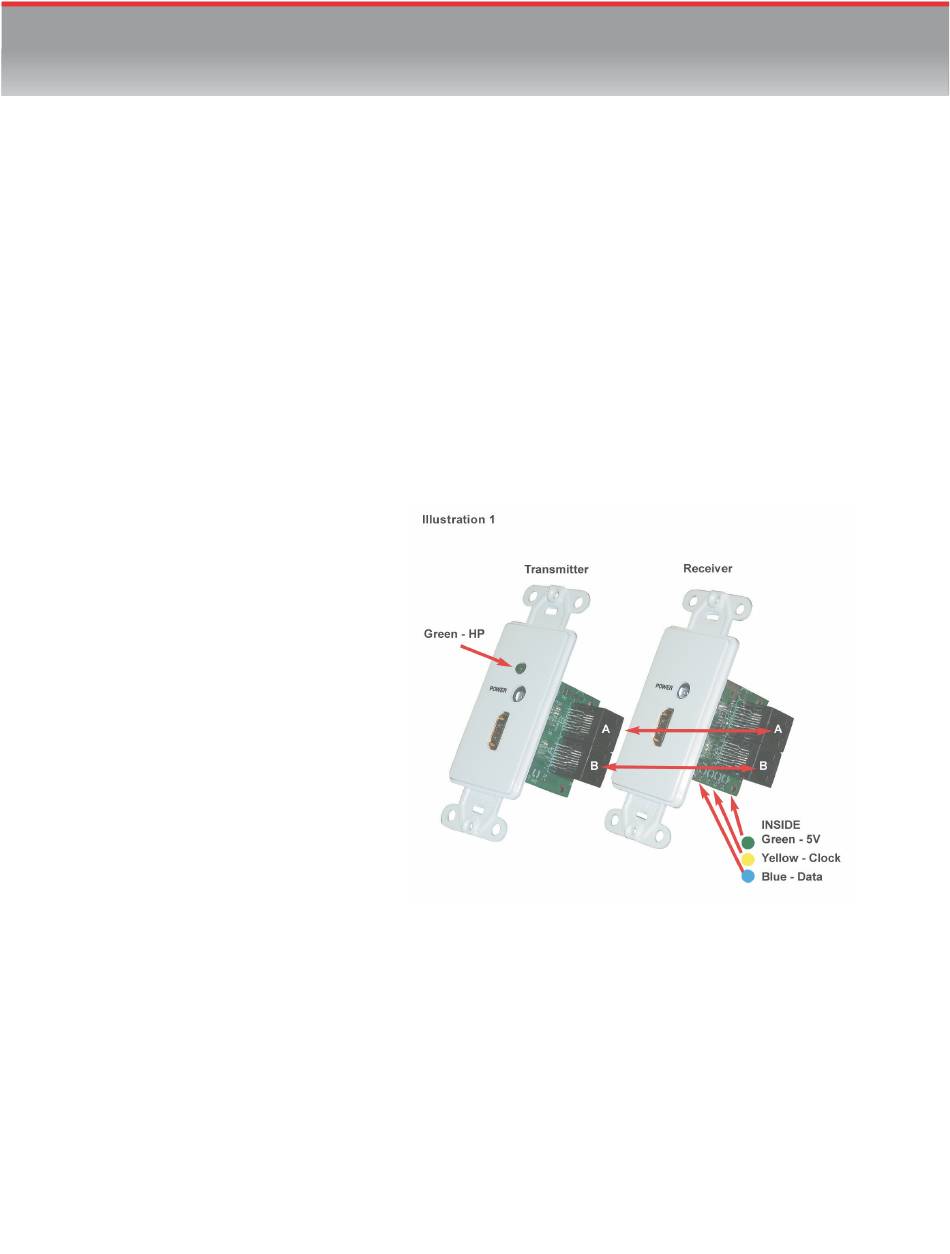

System Contents:
(1) HD Transmitter
Input – (1) HDMI
®
Connector
Output – (2) RJ45 Connectors
(1) HD Receiver
Input – (2) RJ45 Connectors
Output – (1) HDMI
®
Connector
(1) 1000 Ma 5V Power Supply
Features
▲
Designed for easy set-up & operation
▲
DVI Compatible
▲
Direct Coupled from input to output offering maximum video bandwidth
▲
Full Balanced line Differential Signaling
▲
Automatically Corrects HDCP and EDID data integrity
▲
External Power Supply 5VDC 1000mA (Receive)
▲
Optional Power Terminal (Transmit)
▲
®
Designed for HDMI
, HDTV 480p, 720p, 1080i, 1080P
▲
Compatible with Computer Resolutions VGA, SVGA, XGA, SXGA, UXGA
▲
Available in table top version - HDM-CAT5A
Must use included 5v 1000mA Power Supply included or warranty is voided. Please be aware that this is an electrical device.
Improperusage can cause fire, shock, and death. Consult a qualified installer orelectrician if you are unfamiliar
with electrical circuits. Be sure to turnOFF all power to these circuits during installation.
HDM-CAT5D
®
to Cat 5/6 Converter
HDMI
SET UP GUIDE INFORMATIO N
®
to Cat5/6 Converter).The HDM-CAT5D converts a typical HDMI
®
1080p signal over distances up to 100 feet using Category 5 cable and 150 feet
CAUTION:
®
interconnect cables. By way of digital equalization,
®
®
Advertisement
Table of Contents
Related Manuals for Ethereal HDM-CAT5D
Summary of Contents for Ethereal HDM-CAT5D
- Page 1 Due to the problematic nature of the digital system having capacitive loading and Category 5/6 cable having similar issues, a must feature added to the HDM-CAT5D is an HDCP RECOVERY SYSTEM. This unique serial data restorer is designed to clean up and restore HDCP and EDID signals.
- Page 2 2.5volts or more is present and active. The HDM-CAT5D also includes a special line driver designed specifically to correct for corruption that can occur due to capacitive load- ing. By dividing the inferior load in half, the digital system can operate at a higher level of integrity. This unit is bi-directional and can be placed between the source and AV receiver (See Illustration4) between AV receiver and display (See Illustration 5) or both as needed.
