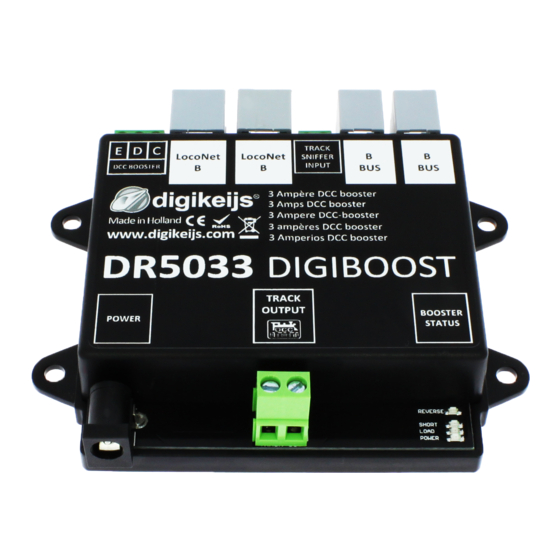

Digikeijs DR5033 DIGIBOOST Instruction Manual

Hide thumbs Also See for DR5033 DIGIBOOST:

Advertisement

Table of Contents

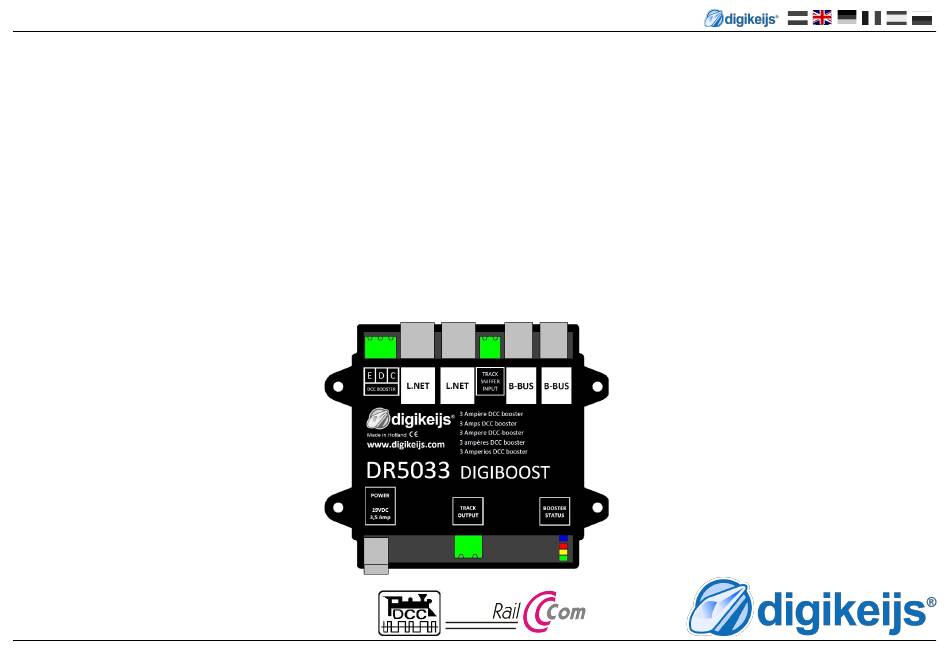

DR5033 DIGIBOOST
Stand 2021-07-06
instruction manual
© Copyright 2005 – 2019 digikeijs, the Netherlands. All
rights reserved. No information, images or any part of
this document may be copied without the prior written
permission of Digikeijs.
www.digikeijs.com
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz
DR5033
DIGIBOOST
(2021-07-06)
P 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR5033 DIGIBOOST and is the answer not in the manual?

Questions and answers

Related Manuals for Digikeijs DR5033 DIGIBOOST

Summary of Contents for Digikeijs DR5033 DIGIBOOST

  • Page 1 Stand 2021-07-06 DR5033 DIGIBOOST instruction manual (2021-07-06) © Copyright 2005 – 2019 digikeijs, the Netherlands. All rights reserved. No information, images or any part of this document may be copied without the prior written permission of Digikeijs. www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...

  • Page 2: General Information

    DR5033 DIGIBOOST Stand 2021-07-06 1.0 General Information Index General information Index Warranty and warranty conditions Legal information Product overview General product information Technical Specifications Hardware Overview Adjusting the DR5033 Configuration LocoNet® Variables (LNCV) Table Description Configuration LNCV 3 Connection examples Important instructions for using the DR5033.

  • Page 3: Warranty And Warranty Conditions

    We reserve the right to change the design of the product, the software and / or the firmware without prior notice. Copyright All Digikeijs manuals and other written instructions supplied and/or downloadable are copyrighted. Reproduction is not permitted without the written permission of Digikeijs.

  • Page 4: General Product Information

    DR5033 DIGIBOOST Stand 2021-07-06 2.0 product overview 2.1 General product information The DR5033 is a pure DCC booster capable of Railcom®. All other protocols (e.g. Märklin® Mfx®) are not supported! The DR5033 is an H-bridge booster with various connection options (CDE booster connection, LocoNet® B, Roco® booster bus, track sniffer) to connect the DR5033 to an existing central.

  • Page 5: Hardware Overview

    DR5033 DIGIBOOST Stand 2021-07-06 2.3 Hardware Overview 1 CDE Booster connection (Please check whether the CDE connection of your control panel com- plies with the requirements specified by Lenz®). 2 LocoNet® B Connector 1 3 LocoNet® B Connector 2 4 Tack Sniffer Input By connecting the Track Sniffer input to the track output of the central unit, the track signal is recognized even if none of the other input options are available.
  • Page 6 DR5033 DIGIBOOST Stand 2021-07-06 3.0 Adjusting the DR5033 Configuration The DR5033 is a DCC booster whose settings (LocoNet® module address, magnetic article address, etc.) can be easily adjusted via LNCV programming. With the LNCV 3, the behaviour (short-circuit behaviour, start behaviour, automatic polarity reversal, etc.) of the booster can be adapted.
  • Page 7 DR5033 DIGIBOOST Stand 2021-07-06 3.1 LocoNet® Variables (LNCV) Table LNCV Description range Default LNCV Description range Default Waiting time after automatic polarity reversal of the track Loconet module address 1-9999 out before a short circuit is reported to the control unit.

  • Page 8: Connection Examples

    DR5033 DIGIBOOST Stand 2021-07-06 4.0 Connection examples The connection examples shown here represent only a small part of the possibilities for connecting the DR5033 to different control panels. Please note that there are of course further possibilities and special cases which cannot be shown here! 4.1 Important notes on using the DR5033.
  • Page 9 DR5033 DIGIBOOST Stand 2021-07-06 4.2 Tested central units and connection types Central Connection Possibil- special features ities Central DR5000 B-Bus® No Railcom®, max. 4 boosters possible. LocoNet® „B“ Our recommendation! Full booster connection. Railcom® is generated by the DR5000 and passed on to the booster. The status of the DR5033, for example, can be queried via LocoNet®.
  • Page 10 DR5033 DIGIBOOST Stand 2021-07-06 Central Connection Possibil- special features ities Central Lenz® Our recommendation! Sniffer Input Uhlenbrock® Intellibox, Intellibox 2, Intellibox Basis, etc. LocoNet® „B“ Our recommendation! Full booster connection. Railcom® is generated by the central unit and passed on to the booster. The status of the DR5033, for example, can be queried via LocoNet®.
  • Page 11 DR5033 DIGIBOOST Stand 2021-07-06 4.3 DR5000, DR5033 Boosters and feedback modules DR4088 More LocoNet® components www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...
  • Page 12 DR5033 DIGIBOOST Stand 2021-07-06 4.4 DR5000, DR5033 Booster and Feedback Modules DR5088RC Detector 10 Detector 1 Detector 2 Detector 3 Detector 18 Detector 19 Detector 26 Detector 17 Global Detector Modul 1 Global Detector Module 2 1001 Detektor Adresse 1017...
  • Page 13 DR5033 DIGIBOOST Stand 2021-07-06 4.5 DR5000, DR5033 Booster and Feedback Modules DR4088xx DR4088LN CS More S88 feedback unit More LocoNet® components www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...
  • Page 14 DR5033 DIGIBOOST Stand 2021-07-06 4.6 Roco® z21®(white), z21Start® , DR5033 Connection via the B-Bus® More Boosters Track max. 4 pieces on z21®Start B-Bus® B-Bus® possible R-Bus® z21®(white) Central Booster DR50333 The displayed measured value must not exceed 0.8 Volt! Always check both track separations! www.digikeijs.com...
  • Page 15 DR5033 DIGIBOOST Stand 2021-07-06 4.7 Roco® Z21®, DR5033 Connection via the B-Bus More Boosters max. 4 pieces on Track B-Bus® possible B-Bus® Z21® Central Booster DR50333 The displayed measured value must not exceed 0.8 Volt! Always check both track separations! www.digikeijs.com...
  • Page 16 DR5033 DIGIBOOST Stand 2021-07-06 4.8 Lenz Zentrale®, DR5033 via the CDE connector Note the designation of Note the designation of the terminals!!! the terminals!!! C D E Lenz® LZ100® (EDC) (EDC) Lenz® LZ200® Note the designation of the terminals!!! (EDC)
  • Page 17 DR5033 DIGIBOOST Stand 2021-07-06 4.9 Uhlenbrock Intellibox®, DR5033 connection via LocoNet® B The track output of the Intellibox® may not be connec- ted with the the same circuit that is formed by the boosters. Even a rail separation on both sides is not...
  • Page 18 DR5033 DIGIBOOST Stand 2021-07-06 4.10 Any H-bridge control panel, DR5033 connection via Track Sniffer Digital Central Track Out mi H-bridge at the track out Central Booster DR50333 The displayed measured value must not exceed 0.8 Volt! Always check both track separations! www.digikeijs.com...
