MicroNX new NX-201N Instructions For Use Manual

MicroNX new NX-201N Instructions For Use Manual

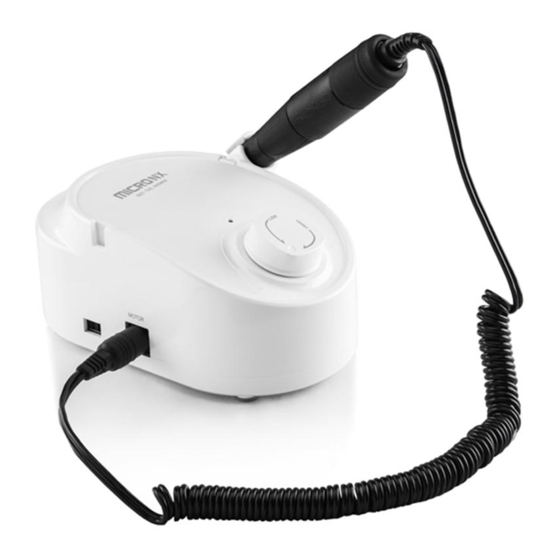

Brushed micro motor

Advertisement

Quick Links

Instructions for use
BRUSHED MICRO MOTOR
new NX-201N

Advertisement

loading
Need help?

Need help?

Do you have a question about the new NX-201N and is the answer not in the manual?

Questions and answers

Summary of Contents for MicroNX new NX-201N

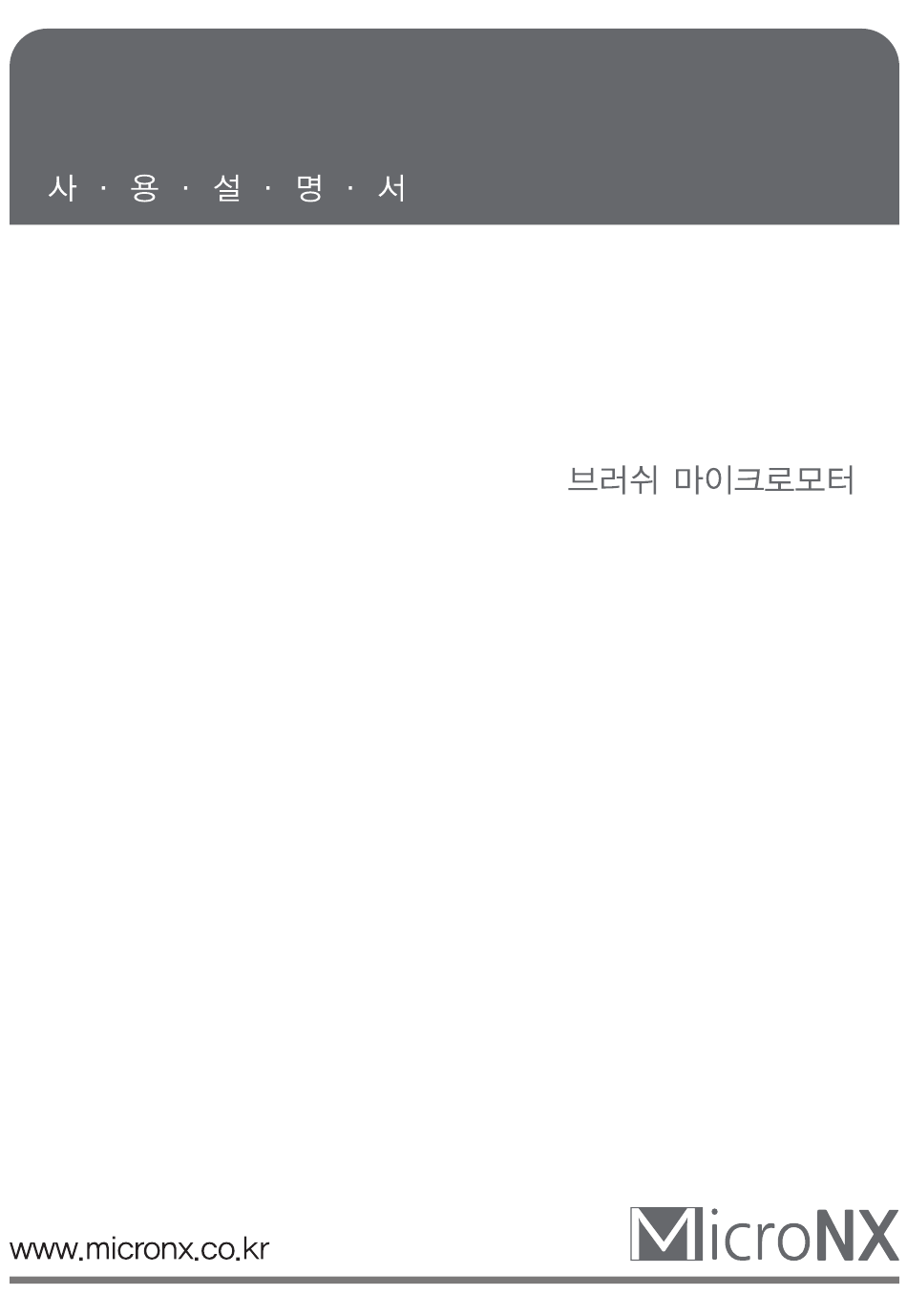

  • Page 1 Instructions for use BRUSHED MICRO MOTOR new NX-201N...
  • Page 2 다시 한 번 당사제품을 선택해 주신 것에 감사드립니다. Thank you for your selection of our products one more. 사용설명서의 지시사항을 지키지 않아 발생하는 사고는 당사에서 책임지지 않으며 사용자는 제품의 안전한 사용과 보관에 책임이 있습니다. The accidents by non fulfillment of this instruction are not our responsibility.
  • Page 5 2. 제품 설명 / Description 2.1 제품의 구성 / Description of System, Components and Functions 구성품명 Part Name 수량 Quantity 컨트롤러 Controller 핸드피스 Handpiece 풋 스위치 Foot switch 홀더 Holder 척 렌치 Chuck wrench 카본 브러쉬 Carbon brush 1) Controller ⑧...
  • Page 6 2) Handpiece (NX-170S) Bur Handcap Handle Carbon housing cover Cord 3) Foot switch (FS-30) 케이블 / Foot switch cable 풋 스위치 / Foot switch 4) Accessary Holder Chuck wrench Carbon brush 2.2 성 능 / Product Performance 1) Controller Input 110/220 V Weight 1.4 kg...
  • Page 7 2) Handpiece Max. Speed 35,000 rpm Weight 200 g Dimension L 156 x Ø 28 mm 2.3 보관 조건 / Storage Conditions Temperature +10℃~+40℃/ +48℉~+107℉ Humidity 35%~70% Air pressure 700hPa ~ 1060hPa 경고 -지정된 환경 요인을 벗어난 장소에서 운전 시 오동작의 발생 우려가 있습니다. CAUTION -Operation of the device in an environment other than those specified by manufacturer may lead to causing the device malfunction.
  • Page 10 경고 -버의 허용 회전 속도는 버의 재질과 종류에 따라 다르므로 버 생산자의 속도를 참고합시오. CAUTION -The permitted bur rotation speed is different according to its kind and materials. Please refer to its manufacturer’s permitted speed. 5.2 콜렛척 교체 / Replacing of collet chuck 1.
  • Page 11 5.3 카본 브러쉬 교체 / Replacing of carbon brush 1. 컨트롤러를 끈 후, 엔드캡을 풀고 코드를 분해합니다. After tuning off the control unit, please loose the carbon housing cover, then disassemble the cord. 2. (+)타입 드라이버로 볼트를 푼 후 오래된 카본을 제거합니다.
  • Page 13 6. 고 장 Troubleshooting 6.1 고장에 대한 설명 / Descriptions of Malfunctions 고장 Problem 고장 원인 Check point 해결책 Solution 전원을 켰을 때 전원램프가 전원선이 정확하게 연결되어 플러그를 정확히 꽂습니다. 있습니까? Insert the plug of power cord in 켜지지 않는다. Is the power cord plug connected outlet correctly.
  • Page 14 7. 서비스 / Expendables and Service 7.1 소모품목 / Expendables 1) 본 제품은 정해진 전원정격사양에서만 사용되어야 합니다. 정격 사양에서 벗어난 전원을 사용할 수 없습니다. This product shall be used only under the rated power specified. Power outside the rated power range shall not be applied. Spindle assembly Armature assembly Collet chuck housing...
  • Page 15 Address : 22, Maeyeo-ro 1-gil, Dong-gu, Daegu, 41059 Republic of Korea - 연락처 : 053-650-1000 Contract : +82-53-650-1000 - Web : www.micronx.co.kr - E-mail : micronx@micronx.co.kr ▶ EU Representative : MICRO-NX Co., Ltd. branch office - Address : Karl-Marx-Str. 6 16540 Hohen Neuendorf Germany...
  • Page 16 MICRO-NX Co., Ltd. 22, Maeyeo-ro 1-gil, Dong-gu, Daegu, 41059 Republic of Korea Tel: 82 53 650 1001 Fax: 82 53 650 1001 Web: www.micronx.co.kr MICRO-NX Co., Ltd. branch office Karl-Marx-Str. 6 16540 Hohen Neuendorf Germany EC REP Tel: 49 (0)3303 5412323 Fax: 49 (0)3303 5412324 Email: micronxeu@micronx.co.kr...
