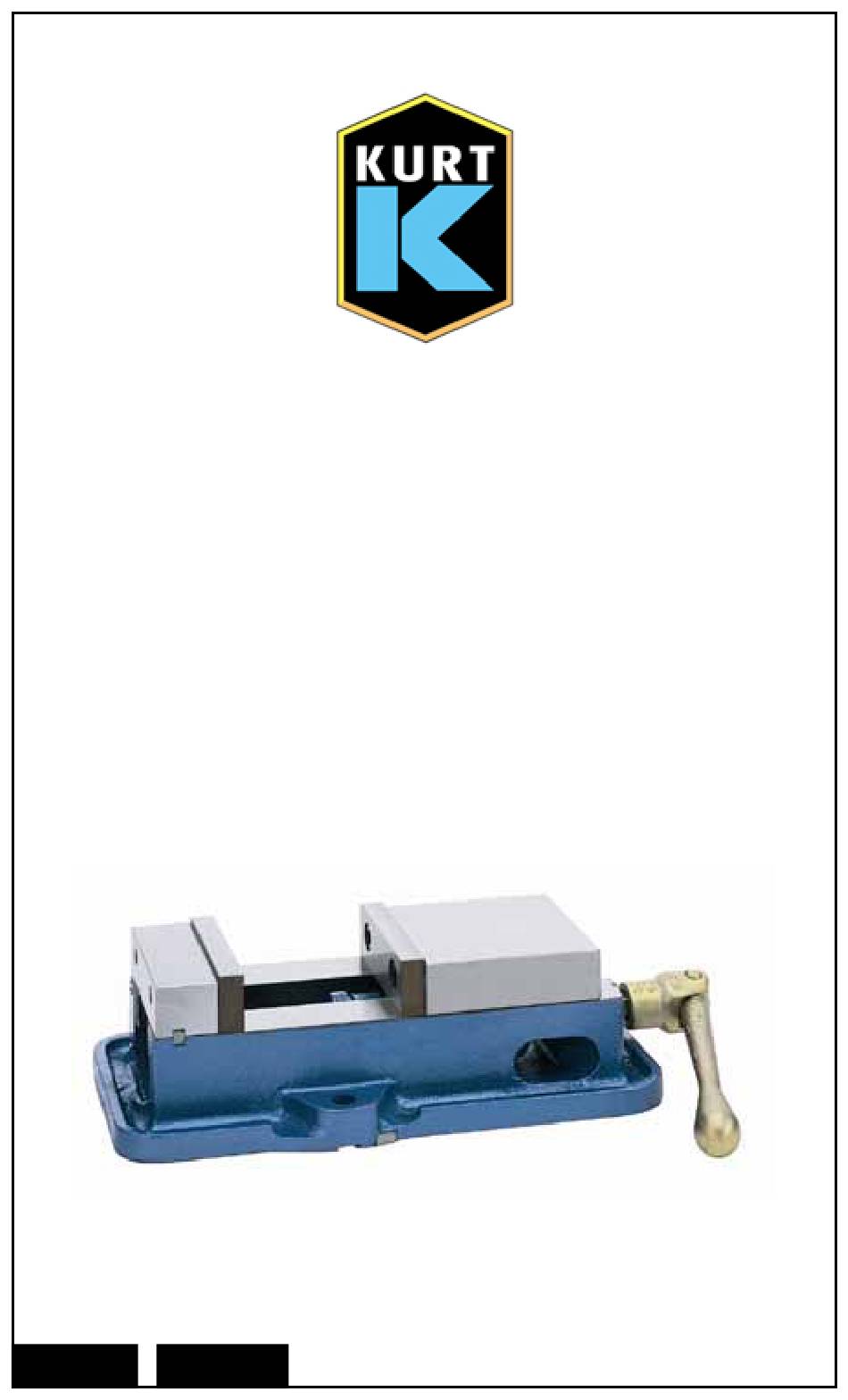

- Page 1 D40 AngLock Vise ® Base Assembly Operating Instructions Manual Manual de instrucciones de operación ENGLISH ESPAÑOL...
-
Page 2: Table Of Contents
Table of Contents Introduction .........................3 Setup Instructions ......................4 Operating Instructions ..................5-6 D40 Parts List .......................7 D40 Mechanical Drawing ..................8-9 Maintenance Schedule ..................10-12 Troubleshooting Tips ..................... 13 Vise Data Use this to fill out information about your vise for quick reference. Purchase Date: _______ - _______- _______ Purchase Order:... -
Page 3: Introduction
Introduction Thank you for purchasing a Kurt vise. You have just purchased one of the best machine vises in the industry. The outstanding accuracy of this product is second to none. Backed by a lifetime limited warranty, this product will last many years when used and maintained properly. -
Page 4: Setup Instructions
Set-up Instructions Now that you have your new Kurt HD-Series Vise, it’s time to set-up and begin using it. You will see that your new vise comes with a Kurt swivel handle and instruction manual in the shipping carton. The handle is specifically designed to provide maximum torque to your vise. -
Page 5: Operating Instructions
If you need more clamping force you may require a larger vise. To properly clamp a part in your Kurt vise you should place the part in the center of the jaws resting on the ways of the vise. Clamping only on one side or above the movable and stationary jaws can result in jaw lift or loss of accuracy. - Page 6 Fig.1 Sketch #2A Incorrect part clamping. Vise width centerline Sketch #2B Correct part clamping. Sketch #2C Correct part clamping. Sketch #2D Correct part clamping. Non- machined spacer ENGLISH | Operating Instructions...
-
Page 7: D40 Parts List
D40 Parts List ITEM# PART# DESCRIPTION QTY. D40-1 BODY D40-6A STATIONARY JAW 00-1362 SCREW,SHCS,3/8-16 X 2-1/4 D40-7 JAW PLATE, PURCHASED. 00-1353 SCREW,SHCS,3/8-16 X 7/8 D40-12A CAP, PLASTIC YELLOW D40-3 07-0230 SCREW,DRIVE,#2 X .25 D40-9 SEGMENT, D40-2 MOVABLE JAW 01-3908 SCREW,SHSS,3/8-16 X 7/8 D40-42 WASHER, THRUST BEARING, D40-41... -
Page 8: D40 Mechanical Drawing
D40 Drawing ENGLISH | D40 Mechanical Drawing... -
Page 9: Maintenance Schedule
Maintenance Schedule It is very important to perform regularly maintenance on your Kurt vise to assure proper operation. Improper maintenance will result in poor vise performance and may void your warranty. Daily / Weekly 1. Remove chips from surface of vise. - Page 10 8. Tighten the setscrew to firmly contact the nut. 9. Your vise is now ready for use. Open and close your vise to check for proper operation. Center the part to be clamped in the vise and close. Your parts should be centered from side to side to insure proper clamping.
- Page 11 3 to 6 months 1. Open vise to maximum opening. 2. Remove spiral snap ring and washer from hex end of the vise screw. 3. Slide the movable jaw toward the stationary. 4. Remove the thrust bearing assembly consisting of (2) thrust washers and (1) thrust bearing from the counter bore in the end of the body.
-
Page 12: Troubleshooting Tips
Troubleshooting Tips The Kurt D-Series vise will operate mostly trouble free for many years. If properly maintained, this product is indestructible. In some cases it will be necessary to troubleshoot. Use the information below to help in the process. Problem: My vise turns hard. - Page 13 Maintenance Log/Notes: | ENLGISH Maintenance Log/Notes...
- Page 14 Maintenance Log/Notes: ENGLISH | Maintenance Log/Notes...
- Page 15 Thank you for your purchase! If you have any feedback or questions. Please contact us at: workholding@kurt.com 1-877-226-7823 Like, Tweet, and Subscribe to us!
- Page 16 The sole obligation of Kurt Manufacturing Company, Inc. (Kurt) and the purchaser’s SOLE AND EXCLUSIVE REMEDY hereunder, shall be limited to the replacement or repair of any Kurt product or part (by an authorized Kurt technician) which are returned to Kurt Manufacturing Company’s place of business, transportation, shipping and postal charges prepaid, and there determined by Kurt Manufacturing Company to be covered by the warranty contained herein.
- Page 17 Prensa D40 AngLock ® Ensamble de Base Manual de instrucciones de operación ESPAÑOL...
- Page 18 Tabla de contenido Introducción ......................19 Setup Instructions ....................20 Operating Instructions ..................21-22 D40 List De Piezas ....................23 D40 Dibujo Mecánico ..................24-25 Programa de mantenimiento ...............26-28 Sugerencias para la resolución de problemas ..........29 Vise Datos Utilice esta opción para rellenar la información sobre el tornillo de banco para referencia rápida Fecha de compra: ______ - ______ - ______...
- Page 19 Introducción Muchas gracias por comprar una prensa Kurt. Usted ha comprado una de las mejores prensas para mecanizado de la industria. La prensa AngLock™ Serie D tiene un diseño ampliamente comprobado. La extraordinaria exactitud de este producto es insuperable. Con el respaldo de una garantía de por vida, este producto durará...
- Page 20 Instrucciones de instalación Ahora que ya tiene su nueva prensa Kurt Serie D, es el momento de comenzar a utilizarla. Usted verá que su nueva prensa viene con una manija giratoria Kurt y un manual de instrucciones suministrados en la caja de envío. La manija está diseñada específicamente para proporcionar el máximo par de torsión a su prensa.
