Important Precautions:
The Solaro Aire™ Ventilation System will need some assembly before
it becomes operational. THE FAN BLADE WILL BEGIN TO OPERATE
AS SOON AS IT IS EXPOSED TO THE SUN. PLEASE KEEP HANDS
AND TOOLS AWAY FROM THE BLADE DURING THE INSTALLATION.
Helpful Hints:
• When determining the location of the solar panel, try to face the
panel towards the equator (South in the Northern Hemisphere or
North in the Southern Hemisphere). Large trees or other houses may
cause shading during certain times of the day.
Components:

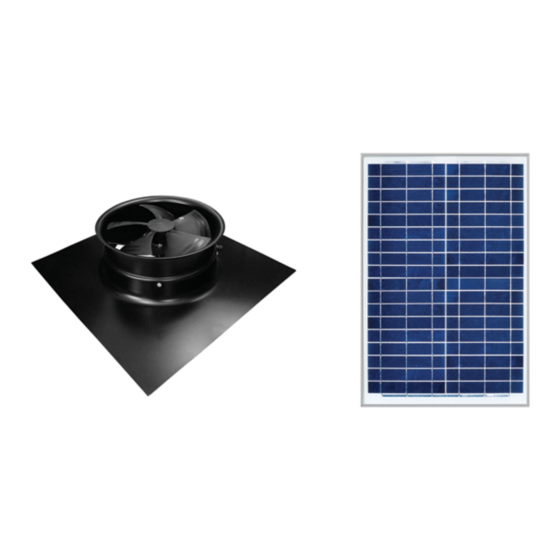

A. Solaro Aire™ Gable Fan
B. 20, 30, 40 or 50 watt solar panel
C. 25ft. (7.6 m) Interconnect cable
Solar Panel Mounting Pack
F-030
• A-BRT4: (4) Solar Panel Feet
• F-030: (4) 1.5" dual thread hex head rubber washer
screw
• F-018: (4) 0.5" self drilling phillips truss head screw
A.
Solaro Aire™ Gable
Roof Grommet Kit
F-018
• F-SP003: (1) Rubber roof grommet
• F-016: (4) 1.25" self tapping phillips truss head screw
WARNING: Take caution during installation. Please read
through ENTIRE steps before performing any work. Not
following the instruction can void the warranty and/or
cause serious injury. For professional help, please call
1-888-355-5SUN
• Always use caution when using tools and walking on roofs.
• Do not cut any structural members in the house.
• Always measure twice cut once.
Tools Needed:
• Ladder
• Drill
• Screw Driver
• Measuring Tape
• Drill Bit Set
•
#2 Screw Bit
B.
Solar Panel
• F-030: (6) Dual thread rubber washer screw
• Marker
• Caulking Gun
• Water Proof Sealant
• Wire Strippers
• Roofing Sealant
• 1/4" Hex Bit Driver
C.
25ft. Interconnect Cable
Fan Install Pack
Advertisement
Table of Contents
Related Manuals for Solaro Energy Solaro Aire SA-20WR-GAE
Summary of Contents for Solaro Energy Solaro Aire SA-20WR-GAE
- Page 1 WARNING: Take caution during installation. Please read SA-20WR-GAE SA-20WR-GA through ENTIRE steps before performing any work. Not SA-30WR-GA SA-30WR-GAE following the instruction can void the warranty and/or cause serious injury. For professional help, please call SA-40WR-GAE 1-888-355-5SUN SA-50WR-GAE Important Precautions: •...
- Page 2 Install solar panel on shingle roof Step 1: Positioning solar panel feet on solar panel • Place a mark (using a pencil or sharpie) 4” (101.6 mm) from edge at all four corners. (fig. 1.1) • Gripper pad on the bracket (A-BRT4) will be pointed away from back of the panel.
- Page 3 Step 4: Prep the Wire Penetration • Snip off the top point of the rubber roof grommet (F-SP003) with a pair of scissors, razor, or knife. (fig 4.1) • Slide the roof grommet up the cable until you are within about 1’ (30cm) of the solar panel junction box.
- Page 4 Install Gable fan NOTE: The gable fan should be mounted on the inside of the attic just behind a traditional gable or other large vent. The flashing must seal to the vent for optimal performance. Intake airflow can come from another gable vent on the opposite side of the house or from smaller vents (soffits typically) spread out throughout the attic.
- Page 5 Step 4: Mount the Gable Fan • Place the gable fan in the previously marked position and screw it into place with the 6 hex head, rubber washer screws (F-030) included with the kit. • Screw into the centers of the framing studs at the flashings 4 corners. •...
- Page 6 Step 6: Fine Tune Exhaust Venting Ridge vent Solar attic vent • Seal off any exhaust ventilation within about 15’ (5m) of the solar attic fan to prevent the vent from re-breathing the hot air exhausted by the fan. This is especially Air vent important for ridge vents.
