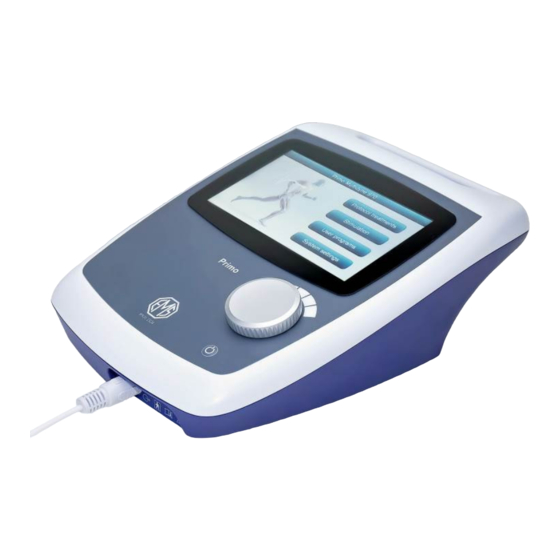

Chiroform EMS960 User Manual

Primo interferential & multidyne
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
EMS960/970
PRIMO INTERFERENTIAL &
MULTIDYNE
Model 122/123

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMS960 and is the answer not in the manual?

Questions and answers

Related Manuals for Chiroform EMS960

Summary of Contents for Chiroform EMS960

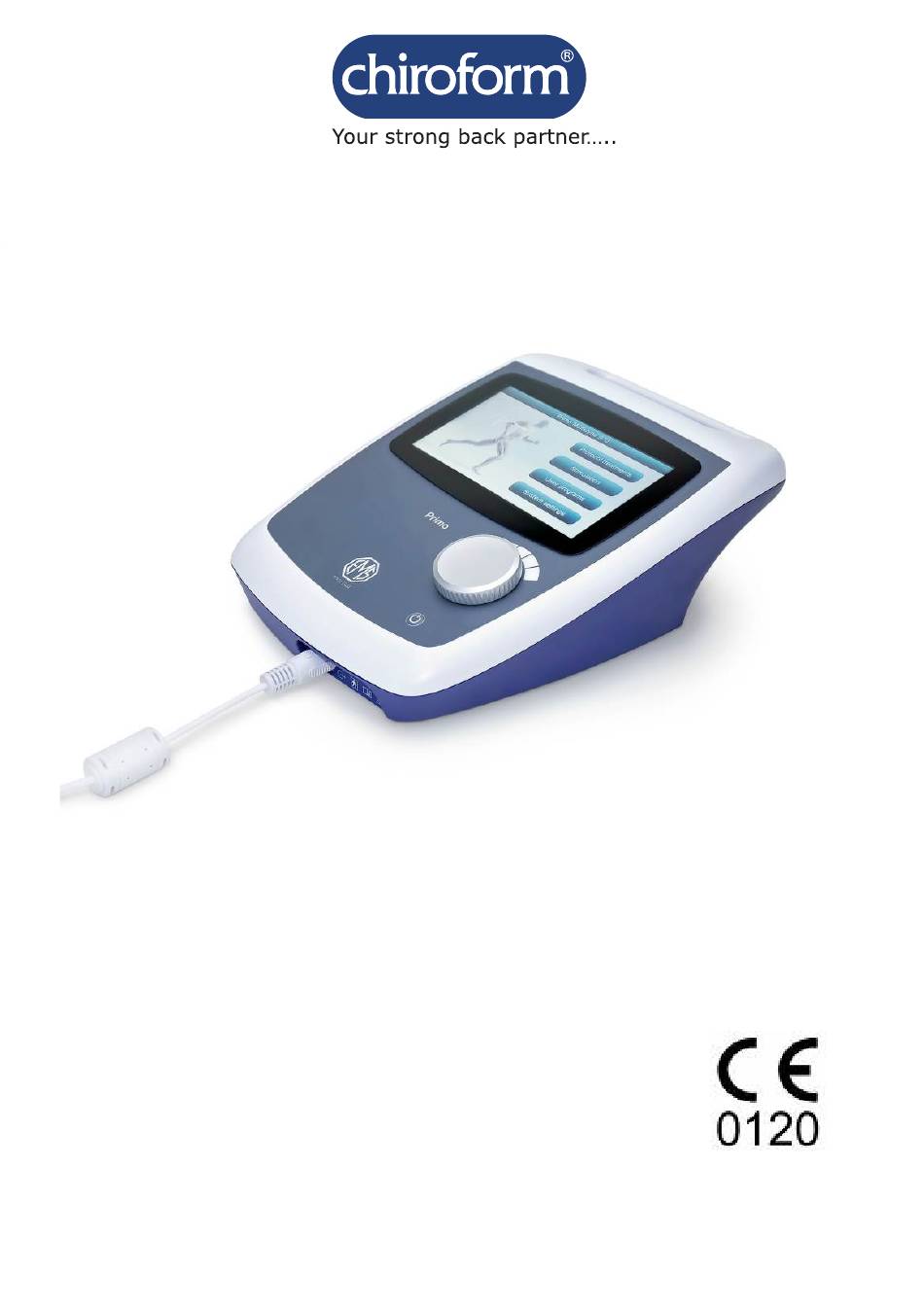

  • Page 1 User Manual EMS960/970 PRIMO INTERFERENTIAL & MULTIDYNE Model 122/123...
  • Page 2 Interferential 960/Multidyne 970...

  • Page 3: Table Of Contents

    Contents Page Contents General information Record of amendments Declaration of conformity to 93/42/EEC Warranty Introduction and indications for use Contraindications Accessories Controls and markings Installation Operating instructions Maintenance Appendix A – overview of treatment modality Appendix B - technical specification Appendix C - EMC Tables Interferential 960/Multidyne 970...

  • Page 4: General Information

    General information This manual provides the necessary information for the installation and operation of the Interferential 960 and Multidyne 970 Units. These instructions must be studied before putting the unit into operation. The information contained in this manual is subject to change without notice.

  • Page 5: Declaration Of Conformity To 93/42/Eec

    EC Declaration of Conformity Product Name Primo Interferential 960/Multidyne 970 Model Number 122/123 EMS Physio Ltd Grove Technology Park, Downsview Road Wantage, Oxfordshire , OX12 9FE, United Kingdom Declares that the device listed above is in conformity with the essential requirements and provisions of the following EC Council Directives: Directive Conformity assessment route...

  • Page 6: Warranty

    Warranty This EMS Physio Ltd., (hereinafter called the Company) product is warranted against defects in materials and workmanship for a period of two years from the date of shipment. The Company will at its option, repair or replace components which prove to be defective during the warranty period, provided that the repairs or replacements are carried out by the Company or its approved agents.

  • Page 7: Introduction And Indications For Use

    Introduction The Interferential 960 provides Interferential 4-pole and 2-pole and Medi- Wave electrotherapy only. The Multidyne 970 provides a complete range of low and medium frequency waveforms (including Interferential) for electrotherapy and electro-diagnostics. Indications for use Voltage and current waveforms may be used to provide muscle stimulation and relief from musculoskeletal pain.

  • Page 8: Contraindications

    Electrodes must not be applied where there are cuts or abrasions. Modification of the EMS960/970 is not permitted and may result in a hazardous situation. Contraindications Acute sepsis, due to the risk of spreading infection.

  • Page 9: Accessories

    Electrodes should never be placed so that the applied current goes across or through the head, eye, front of the neck (especially the carotid sinuus), upper back or chest. Electrodes must never cover the mouth. Accessories supplied as standard Catalogue Description Number SLA9000...
  • Page 10 A range of single-patient self-adhesive electrodes is available Catalogue Description Number RB410 33 x 54 mm (pack of 4) RB430 50 x 50 mm (pack of 4) RB440 80 x 100 mm (pack of 2) RB450 25 mm diameter round (pack of 4) Supplied with each unit is a detachable mains lead suitable for the country to which it is delivered.

  • Page 11: Controls And Markings

    Controls and markings Interferential/Multidyne 960/970 top TFT display with touchscreen IEC symbol 848-01-26 variability in steps Output control knob On/Off button Interferential 960/Multidyne 970...
  • Page 12 Interferential 960/Multidyne 970 front label IEC Symbol 348 Attention, consult accompanying documents Stimulator output socket IEC symbol IEC symbol 878-01-37 ISO symbol 7010-M002 878-02-03 Type Output Instructions for use BF Equipment Interferential 960/Multidyne 970...
  • Page 13 Multidyne 960 underside label (Model 970 is identical) Serial number ISO symbol 7010- Name and and date of M002 manufacture Address of Instructions for use IEC symbol 348 Attention, Manufacturer consult accompanying documents Do not dispose of as unsorted waste 2006/96/EC WEEE Directive) Model...
  • Page 14 Patient Lead (PMA3055) Electrode connecting cables FOR USE WITH EMS STIMULATORS Interferential 960/Multidyne 970...

  • Page 15: Installation

    Installation Upon receipt, check for any visible damage which may have occurred in transit. If any signs of damage are found then retain all packing material and inform the carrier and the Company or its agent from whom the unit was purchased.

  • Page 16: Operating Instructions

    Operating instructions Power on sequence and general information When the Interferential 960/Multidyne 970 is turned on, the EMS company logo is displayed on a splash screen along with the model name and the software version. After a few seconds the unit will give a short beep and display the Home screen - Interferential 960 :- Multidyne 970 :-...
  • Page 17 Standard user controls Throughout the operation of the Interferential 960/ Multidyne 970 the various modes and parameter settings are all accessed and changed by touching the relevant buttons displayed on the touchscreen. The rotary control is used to increase and decrease the stimulation intensity when the TFT is showing a set-up screen.
  • Page 18 Touching the ‘Stimulation’ button on the 970 Home screen will open this screen – Scrolling up or down using the ▲ or ▼ buttons will reveal more stimulation options, such as – (Multidyne 970 only) or – Interferential 960/Multidyne 970...
  • Page 19 System settings Touching the System Settings button at the bottom of the Home screen takes you to the System settings screen. The Display button takes you to a screen where you can adjust the display brightness using up/down buttons. The Sound button takes you to a screen where you can adjust the pitch and volume of the audio.
  • Page 20 User programs The Interferential 960/Multidyne 970 can store up to 16 user defined set- ups. Touch the User Programs button in the Home screen or in any stimulation set up screen. A screen will appear with a scrollable list of program slots – the active one is highlighted in the middle.
  • Page 21 Protocol Treatments Touching the ‘Protocol treatments’ button will open a screen with a scrollable list of clinical conditions and front/back human body image. Touching different parts of the body will select a list of conditions specific to that body area. Touching the highlighted condition in the list will open a user screen with the treatment parameters set for treating that condition.
  • Page 22 The following describes the set-up pages for each stimulation type when accessed by pressing the relevant button in the Interferential/Stimulation screen(s):- Interferential 4-pole set-up (960 and 970) Treatment time: Is selected either by touching the digits of the time display or by touching the clock symbol and entering the desired treatment time.
  • Page 23 Pattern: The pattern determines the rate at which the beat frequency sweeps between the base and peak frequencies. Three patterns are available by touching the Pattern button. The 1|1 pattern gives 1 second at the base frequency followed by 1 second at the peak frequency.
  • Page 24 Interferential 2-pole set-up (960 and 970) Interferential 2-pole therapy is similar to Interferential 4-pole except that the two medium frequencies are added together in the stimulator itself and applied to the treatment site through a single pair of electrodes. Two separate outputs A and B are available with independent level controls.
  • Page 25 Russian set-up (970 only) Russian stimulation therapy consists of a 2.5kHz medium frequency which is modulated on and off in bursts that can be set anywhere between 1 and 100Hz. An overall surge envelope can also be applied with variable work and rest periods.
  • Page 26 TENS set-up (970 only) Treatment time: Is set in the same way as described above. Three waveform types are available and each type is represented graphically on the LCD. Type Asymmetrical Symmetrical Sequential Selection is achieved by touching the Type button. Interferential 960/Multidyne 970...
  • Page 27 Frequency: Touching this button opens a new window. The pulse frequency may be set from 40 to 250 Hz in 1 Hz increments by touching the numerical digits and then touching OK. Width: Touching this button opens a new window in which the pulse width may be set from 40 to 400 µs in 5 µs increments by touching the numerical digits and then touching OK.
  • Page 28 Diadynamic set-up (970 only) Treatment time: is set as already described. Type: The diadynamic waveform may be selected by touching the Type button. The full range of diadynamic waveforms is available: DF - diaphasé fixe, MF - monophasé fixe, CP - modulé en courtes périodes, Cpiso - modulé...
  • Page 29 Sinusoidal set-up (970 only) Treatment time: is adjusted as explained above. Surge: Three surge patterns (envelopes) are available: trapezoidal, rectangular and triangular. A full description of these surge patterns is available in the technical specification section of this manual. The surge pattern may be changed by touching the surge button.
  • Page 30 Faradic set-up (970 only) Treatment time: is set as described above. Surge: Three surge patterns (envelopes) are available: rectangular, triangular and trapezoidal – a graphic showing the shape of the selected one is shown on the surge button. A full description of these surge patterns is available in the technical specification section of this manual.
  • Page 31 Galvanic set-up (970 only) Treatment time: is set as described above. Polarity: Touching this button changes the electrical polarity of the galvanic current to Pos (+), Neg (-), or Autorev (half way through the selected treatment time) Constant Current/Constant Voltage: The output may be set to be constant current or constant voltage by touching the top-right button.
  • Page 32 Interrupted galvanic set-up (970 only) Treatment time: is set as described before. Form: Three different pulse shapes are available: Rectangular), Triangular and Trapezoidal. A full description of these waveforms is available in the technical specification section of this manual. Width: The pulse width may be set from 1ms to 1s for all waveforms with additional narrower pulses for rectangular only.
  • Page 33 Träbert set-up (970 only) The available options are treatment time, polarity and constant current/voltage. These are set in exactly the same way as in the other operating modes. Medi-Wave set-up (960 and 970) Frequency: Touching this button opens this window:- The frequency may be set from 2 to 60 Hz in 1Hz increments.
  • Page 34 Mode: Normally Medi-Wave stimulation is used in continuous mode - that is with no modulation (none). In addition, burst and surged modes are also available. In burst mode the burst rate is 2 Hz for pulse frequencies greater than 20 Hz and the pulse frequency divided by 10 for frequencies less than 20 Hz.
  • Page 35 S/D curve (970 only) This mode generates rectangular interrupted galvanic pulses for plotting strength/duration curves. Output is from channel A at constant voltage only. Pressing the S/D Curve button in the stimulation list (after Microcurrent) produces this screen - The start pulse width may be adjusted from 100ms to 1s by repeatedly pressing the Start button and the end pulse width from 10µs to 1ms by repeatedly pressing the End button.
  • Page 36 The graphic at the bottom of the screen displays the pulse width and the progress bar shows when the pulse occurs. Pulse repetition rate is fixed at 20/min. Once muscle contraction has just been detected press Next. The first point of the S/D curve will be plotted and the pulse width will decrement to the next width setting.
  • Page 37 Electrode fault detection When a constant current output is chosen and the unit is operating in, 4 or 2 pole interferential, Russian, diadynamic, sinusoidal, galvanic or träbert modes, the electrode impedance is monitored to ensure that adequate electrode contact is maintained. If the unit detects an electrode impedance too high to safely deliver the required current, then the output of the Interferential 960/Multidyne 970 is terminated, an error message is displayed on the bottom line of the LCD and an intermittent alarm is...
  • Page 38 Treatment Connect the patient lead to the output socket of the unit. Attach suitable electrodes to the patient and connect the patient lead to the electrode using the blue and yellow cables provided. The yellow cables are channel A and the blue cables channel B.
  • Page 39 When running in 4-pole and Interferential 2-pole modes a graphic with a moving cursor at the bottom of the AMF button shows the position in the frequency sweep. When the treatment time reaches zero, a three second alarm is sounded. Note: In soft water areas it may be necessary to add a small amount of bicarbonate of soda to the water used to wet the sponges in order to achieve adequate contact.
  • Page 40 Electrodes It is recommended that only electrodes supplied by EMS Physio Ltd. are used with the Interferential 960/Multidyne 970. Three sizes of conductive rubber electrodes are available. These are small (70 x 50 mm), medium (100 x 70 mm) or large (130 x 100 mm). Replacement sponge covers are available for each electrode.

  • Page 41: Maintenance

    Maintenance The electrodes and covers may be disinfected using a 70% v/v aqueous solution of isopropyl alcohol. They are NOT suitable for steam sterilisation or for disinfectants containing sodium hypochlorite. N.B. Isopropyl alcohol is flammable and should be kept away from naked flames.

  • Page 42: Appendix A - Overview Of Treatment Modality

    Appendix A – overview of treatment modality Electrotherapy Low-frequency stimulation Diadynamic currents were introduced by Dr. Pierre Bernard. They are various combinations of half and full wave rectified 50 Hz sinewaves. Their therapeutic benefits include pain relief, reduction of swelling and inflammation, increased local circulation, muscle strengthening and re- education.
  • Page 43 Medium-frequency stimulation Interferential therapy employs medium frequency currents used in 2 or 4- pole configurations to produce a low frequency stimulation effect. Prior to the introduction of interferential therapy in the mid 1950s, low frequency stimulation was used for pain relief, muscle re-education etc. These currents, however, have the disadvantage that normal human skin has a relatively high impedance at such frequencies.

  • Page 44: Appendix B - Technical Specification

    Appendix B – technical specifications General Power input (SLA9000) 100-240V ac 1.5A 50-60Hz (EMS960/970) 18V, 3.33A (from external PSU SLA9000) Battery pack (optional) Internal rechargeable (NiMh) Classification (EN60601-1) Class 1, Type BF Fuse Internal T3.15A Size (height x width x depth)
  • Page 45 TENS (970 only) Waveform Asymmetrical, symmetrical or sequential Pulse width 40 – 400 µs Repetition rate 40 – 250 Hz Modulation None, burst or surged Output type 0-100mA peak 0-70V peak Output channels Diadynamic currents (970 only) Current types DF, MF, CP, CPiso, RS, LP Output type 0-70mA peak 0-140V peak...
  • Page 46 Galvanic (970 only) Output type 0-70mA peak 0-140V peak Polarity Positive, negative or auto-reverse Output channels Interrupted galvanic (970 only) Pulse width 10 µs to 1 s for rectangular 1 ms to 1 s for other shapes Waveform Rectangular, triangular or trapezoidal Pulse rate 1 to 30 /minute...
  • Page 47 Output waveforms Interferential 4-pole Channel A Channel B Carrier Frequency Period Frequency Period 2 kHz 2 kHz 500 µs 1.75-2 kHz 572-500 µs 4 kHz 4 kHz 250 µs 3.75-4 kHz 267-250 µs 8 kHz 8 kHz 125 µs 7.75-8 kHz 129-125 µs In constant current mode the maximum output current per channel is 100 mA peak (70 mA rms).
  • Page 48 Interferential 2-pole The maximum output voltage and current are the same as for Interferential 4-pole operation. Two channels of output are available with independent intensity control Russian stimulation The burst frequency may be set to be from 1 Hz to 100 Hz. The on and off times are always equal and are from 0.5s (1 Hz burst) to 5 ms (100 Hz burst).
  • Page 49 TENS Three TENS waveforms are available pulse period = 1/(repetition rate) TENS burst mode For repetition rates greater than 20 Hz, the TENS output is on for 0.25 s and off for 0.25 s ( 2 Hz burst frequency). For repetition rates less than 20 Hz the on and off times are 5 pulse periods.
  • Page 50 Diadynamic In diadynamic mode the unit produces six different waveforms. The maximum peak output current is limited to 70 mA. DF - diaphasé fixe The DF waveform is a continuous full wave rectified 50 Hz sinewave. rms current = peak current x 0.707 The maximum rms current is 50 mA.
  • Page 51 LP - modulé en longues périodes The LP waveform provides an MF signal for 5 seconds. Then over the next 2.5 seconds the other phase of the 50Hz rectified signal is smoothly increased in amplitude to give a DF signal for a further 5 seconds. Finally the signal returns to MF by smoothly reducing one phase of the rectified signal over the next 2.5 seconds.
  • Page 52 Sinusoidal In sinusoidal mode, the output is an amplitude-modulated medium frequency (4 kHz) with 50 Hz sinusoidal beat frequency. The amplitude is determined by the output level setting and the surge type and rate. The maximum output is 140 V or 50 mA peak. For a sine wave the peak output or amplitude is equal to the rms output multiplied by √2, or, conversely rms output = peak output x 0.707...
  • Page 53 Faradic The output in faradic mode is a series of 0.5ms pulses at a repetition rate of 50 Hz with zero dc content. The pulse train is surged in the same way as the sinusoidal output. Two channels of output are available with independent intensity control Galvanic Galvanic mode produces a direct current of up to 70mA or 140V in either a positive, negative or auto-reverse (half way through the treatment time)
  • Page 54 Träbert This mode produces a continuous train of 2ms pulses with a 5 ms interval between each pulse. The pulse repetition rate is therefore approximately 143 Hz. Two channels of output are available with independent intensity control, Pos (+), Neg (-), or autorev polarities are selectable. Medi-Wave The Medi-Wave output is a train of differentiated pulses with a pulse width of 6 ms.
  • Page 55 S/D curve The S/D curve mode generates rectangular interrupted galvanic pulses for plotting strength/duration curves. Only channel A is energised in this mode and the peak output voltage is 140V. Output display The Interferential 960/Multidyne 970 display shows the peak current or peak voltage of each output channel depending on whether constant current (CC) or constant voltage (CV) has been selected for the treatment.

  • Page 56: Appendix C - Emc Tables

    Appendix C – EMC tables Guidance and manufacturers declaration – electromagnetic emissions The Primo Interferential 960/Multidyne 970 is intended for use in the electromagnetic environment specified below. The customer or the user of the 960/970 should assure that it is used in such an environment. Electromagnetic environment - Emissions test Compliance...
  • Page 57 Guidance and manufacturers declaration – electromagnetic immunity The Primo Interferential 960/Multidyne 970 is intended for use in the electromagnetic environment specified below. The customer or the user of the 960/970 should assure that it is used in such an environment. Electromagnetic IEC 60601 Immunity test...
  • Page 58 Guidance and manufacturers declaration – electromagnetic immunity. The Primo Interferential 960/Multidyne 970 is intended for use in the electromagnetic environment specified below. The customer or user of the Primo Interferential 960/Multidyne 970 should assure that it is used in such an environment. IEC 60601 Compliance Electromagnetic environment...
  • Page 59 Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Primo Interferential 960/Multidyne 970 is used exceeds the applicable RF compliance level above, the Primo Interferential 960/Multidyne 970 should be observed to verify normal operation.
  • Page 60 Recommended separation distances between portable and mobile RF communications equipment and the Primo Interferential 960/Multidyne 970 The Primo Interferential 960/Multidyne 970 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the 960/970 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the 960/970 as recommended below, according to the maximum output power of the...
  • Page 61 EMS Physio Ltd. Grove Technology Park Downsview Road Wantage Oxfordshire OX12 9FE T: 0 1 2 3 5 7 7 2 2 7 2 F : 0 1 2 3 5 7 6 3 5 1 8 E : s a l e s @ e m s p h y s i o . c o . u k W e b s i t e : h t t p : / / w w w.
