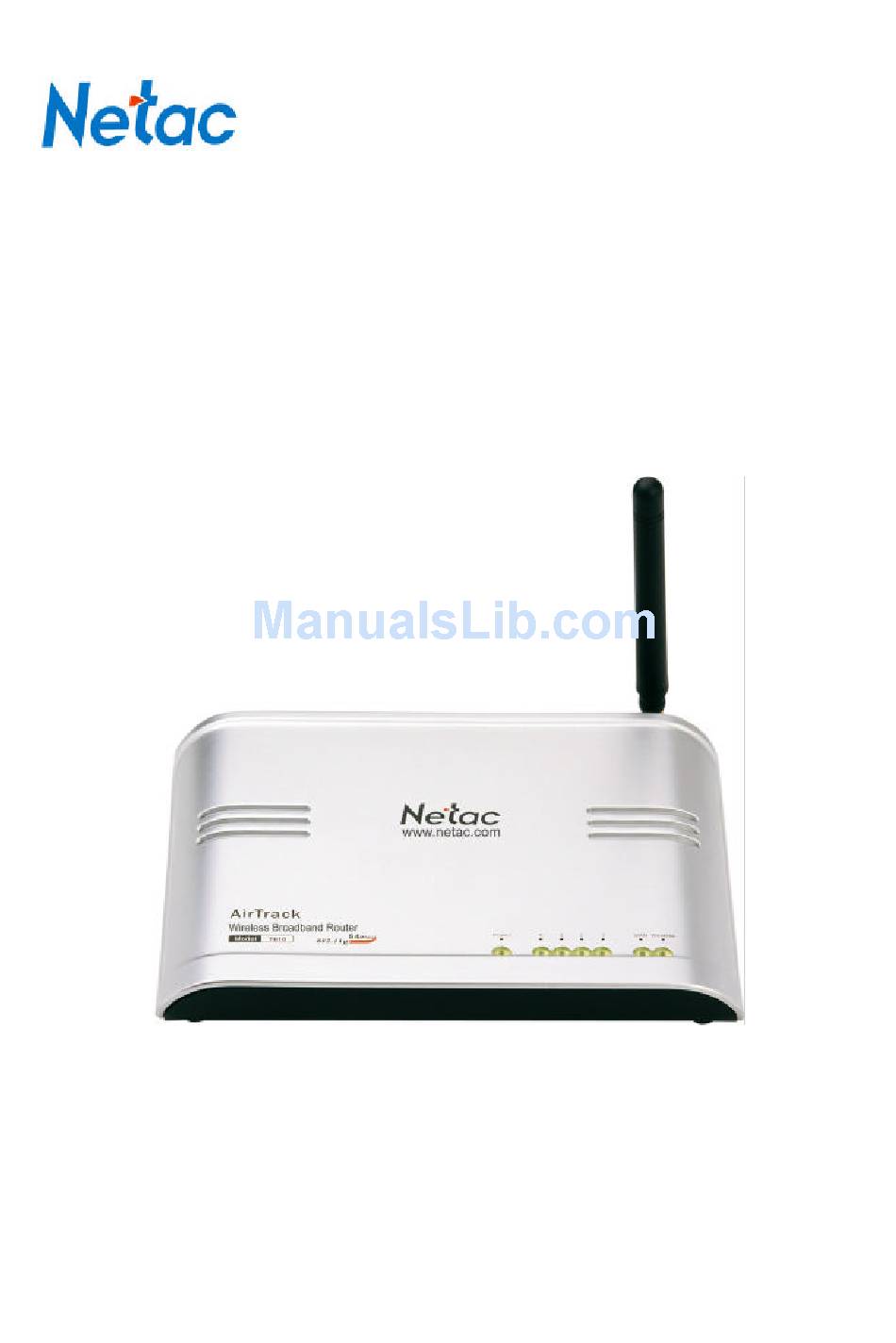

Netac AirTrack T610
Wireless Broadband Router
User's Manual
Netac Technology Co., Ltd.
http://www.netac.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirTrack T610 and is the answer not in the manual?

Questions and answers

Related Manuals for Netac AirTrack T610

Summary of Contents for Netac AirTrack T610

  • Page 1 Netac AirTrack T610 Wireless Broadband Router User's Manual Netac Technology Co., Ltd. http://www.netac.com...
  • Page 2 REMARKS This manual contains information protected by copyright law. All rights are reserved. No part of this document may be used or reproduced in any form or by any means, or stored in a database/retrieval system without prior written permission from Netac Technology Co., Ltd. Netac fulfill the repair service during warranty period in promised support range.
  • Page 3 Radio Frequency Interference Remarks This equipment has passed the test, and affirmed that it compatible to constrain B type digital equipment in section 15 of FCC. This constraint is mainly used to protect the home-keeping equipment, avoid to be interfered banefully. This equipment can produce, use, and radiate radio frequency energy.
  • Page 4 CAUTION Please use original power adapter of Netac AirTrack T610 Wireless Broadband Router, if you use other kinds, it maybe destroy the product. Prevent to get an electric shock and be destroyed, please don’ t replug the power of Netac AirTrack T610 Wireless Broadband Router by wet hand.

  • Page 5: Table Of Contents

    Table of Contents 1 Introduction ...1 1.1 Welcome... 1 1.2 Checklist ... 1 1.3 Product function... 1 1.4 Appearance ... 2 2 Logging on configuration page ...3 2.1 Connecting ... 3 2.2 Configure TCP/IP... 4 2.3 Check Configuration ... 8 2.4 Log on configuration page ...

  • Page 6: Introduction

    1 Introduction 1.1 Welcome Thank you for purchasing Netac AirTrack T610 Wireless Broadband Router. Netac AirTrack T610 Wireless Broadband Router is a wireless network product for SOHO and family, it is developed successfully based on the environment of wirelessly broadband access technology oncoming and wired network extend to wirelessly network.

  • Page 7: Appearance

    Netac AirTrack T610 Wireless Broadband Router ü IP address filter ü MAC filter ü Support port forward ü Support DMZ 1.4 Appearance Status Light Power Light LAN（1，2， Blink 3，4） Light Blink Wireless Blink Antenna Figure 1.1 Appearances Table 1.1 LEDs Description Equipment power turned on.

  • Page 8: Logging On Configuration Page

    Take out T610 from the pack, and put it on an appropriate place. User can put T610 on the table or some plane object, or build it on the wall. In order to get the best effect, you’ d better put T610 on the center position of the net which will be build, far away from some disturb fountain, such as, metal wall, micro-wave oven, and so on.

  • Page 9: Configure Tcp/Ip

    Netac AirTrack T610 Wireless Broadband Router a. When you build T610 on the wall, avoid to fall down be destroyed, please fix it well. b. Leave enough roomage around T610, so that can dispel heat normally. Connect T610's 1 LAN port with the Network Interface Card port of computer A through an Ethernet cable.
  • Page 10 Netac AirTrack T610 Wireless Broadband Router Figure 2.2 "Network and Dial-up Connections" dialog box Double click "Local Area Connection" icon; the "Local Area Connection Status" dialog box will pop-up, as Figure 2.3. Figure 2.3 "Local Area Connection Status" dialog box Click "Properties"...
  • Page 11 Netac AirTrack T610 Wireless Broadband Router Figure 2.5 "Select Network Component Type" dialog box Select “ Protocol” , click “ Add” , Figure 2.6 shows the pop-up dialog box, select “ Internet Protocol (TCP/IP)” , click “ OK” , then you can finish installing and go back to the interface as figure 2.4.
  • Page 12 Figure 2.8 Internet Protocol (TCP/IP) Properties setup Note: With built-in DHCP server, T610 can assign IP address to LAN host computer automatically, it is suggested that users select “ Obtain an IP address automatically” . Select "Use the following IP address", user should configure the parameter by hand, T610's default IP address is 192.168.1.1,...

  • Page 13: Check Configuration

    2.3 Check Configuration Power on T610, the power indicator get bright, and T610 will self check about 30 seconds. T610 will detect all devices that connected to it. After self check, through observe the status of the LED that opposite to the 1 Ethernet port, you can distinguish whether the connection between Computer A and T610 successfully or not.
  • Page 14 Communication unsuccessfully indicates wrong in the install, please check the items in turn as follows: Make sure the computer is connected to T610 properly. Mention: The link light on the computer's Network Interface Card is bright, and the LED that opposite to the 1 Ethernet port is bright.

  • Page 15: Log On Configuration Page

    Web browser (such as Internet Explorer or Netscape Communicator and so on). Use Internet Explorer on Windows 2000 operating system for example to introduce the configuration of T610 in the below. Open Internet Explorer, input "http://192.168.1.1" on address bar, press "Enter".
  • Page 16 The default user name is "admin", password is "password", click "OK" or press "Enter", then you can log on T610's configuration page by administrator ship. At the same time you can select "Save this password in your password list", next visit will enter the configuration page directly without the logging dialog box.
  • Page 17 Netac AirTrack T610 Wireless Broadband Router Figure 2.15 T610's configuration page...

  • Page 18: Router Configuration

    The LAN page allows the user to configure the connection of LAN. MAC Filter The MAC Filter page allows the user to configure the LAN firewall of T610. The specified computer with specified MAC address in LAN wouldn't communicate through WAN port.

  • Page 19: Radio Setting

    Netac AirTrack T610 Wireless Broadband Router 3.1 Radio Setting Field Description Service Set ID (SSID) Wireless Network Name. Radio Preamble Select: Short preamble, Long preamble or Auto. AP Mode Select B only, G only or mixed mode. G Mode protection Select CTS ONLY, RTS-CTS or force 802.11g mode off.

  • Page 20: Security

    Netac AirTrack T610 Wireless Broadband Router 3.2 Security Field Description WPA Mode Disable/enable the WPA encryption. Pass Phrase Pass phrase is used to generate the WPA keys. WEP Encryption Disable/enable the WEP encryption. Transmit WEP Key Select transmit WEP key from Keys1-4.

  • Page 21: Wan

    Set the method to obtain IP address for WAN connection. Select DHCP, Static or Protocol PPPoE. IP Address Set the WAN IP address of T610. (It is available when use Static protocol.) Allow the user to specify a subnet mask. (It is available when use Static Subnet Mask protocol.) Gateway Allow the user to specify a gateway.

  • Page 22: Lan

    Description Set the IP address of T610. Default: 192.168.1.1. IP Address Note: To configure T610, the user must access T610 from a PC that is on the same subnet. Subnet Mask Allow the user to specify a subnet mask. Default: 255.255.255.0.

  • Page 23: Mac Filter

    3.5 MAC Filter Field Description MAC Filter Enable/Disable MAC filter mode. Allow or deny clients listed in "Stations List" to access T610. Filter Mode Stations List Up to 32 MAC addresses can be listed. MAC addresses List of MAC addresses to filter.

  • Page 24: Ip Filter

    Field Description IP Filter Enable/Disable IP filter mode. Filter Mode Allow or deny clients listed in "Stations List" to access T610. Stations List Up to 32 IP addresses can be listed. IP Addresses List of IP addresses to filter. Figure 3.6 IP Filter Page...

  • Page 25: Port Forward

    3.7 Port Forward Field Description Forward the data package sent from WAN port to T610 to the specified port of Port forward list the computer with specified IP address. Forward all data package sent from WAN port to T610 to the specified IP address.

  • Page 26: Admin

    Netac AirTrack T610 Wireless Broadband Router 3.8 Admin Field Description To modify the user name, enter the new user name in the New Username field New Username and click Apply. To modify the password, enter the new password in the New Password and Password Reconfirm Password fields and click Apply.

  • Page 27: Association Table

    Netac AirTrack T610 Wireless Broadband Router 3.9 Association Table Figure 3.9 Association Table Page This Page displays the MAC address of wireless user, which connected to this device.

  • Page 28: Mode Of Build Network

    4.1 Build at-home network Building requirement As a gateway of family LAN, T610 access Internet through ADSL Modem/Cable Modem/optic fiber. l Suppose the PPPoE user name is "szhomeg@163.gd", password is "netac123". l The laptop and bedroom desktop access Internet wirelessly, the wireless network name is "Home".
  • Page 29 Netac AirTrack T610 Wireless Broadband Router Access Internet through ADSL Modem Access Internet through Cable Modem/optic fiber Access Internet through optic fiber Figure 4.2 WAN configurations l Configure LAN. Enter the LAN page, we suggest you to enable DHCP server, and configure start IP address and end IP address, such as: the start IP address is "192.168.1.2", the end IP address is...

  • Page 30: Build Network Of Enterprise

    "Home" or other specialized network name. 4.2 Build network of enterprise Building requirement As a gateway of enterprise LAN, T610 access Internet through ADSL Modem/optic fiber. l Modify the logging user name to "AirTrack", and password to "netac". l Enable DHCP server.
  • Page 31 Netac AirTrack T610 Wireless Broadband Router l Enter the LAN page. Enable DHCP server, set the start IP address to "192.168.1.10", the end IP address to "192.168.1.100". l Configure WAN. According to the access mode, there are two configuration: use PPPoE protocol when access Internet through ADSL Modem, input "szhomeg@163.gd"...
  • Page 32 Netac AirTrack T610 Wireless Broadband Router Access Internet through optic fiber Figure 4.8 WAN configurations l Enter IP Filter page. Figure 4.9 details the configuration. Figure 4.9 IP filter l Radio settings. Enter the Radio Setting page, the default network name is "AirTrack", modify it to "ABC".

  • Page 33: Specifications

    Netac AirTrack T610 Wireless Broadband Router 5 Specifications Item Compatible Standard Network Interface Antenna Maximal Launch Power Wireless Frequency Range Wireless Modulation Mode Wireless Transferring Rate Wireless Transmission Distance Protocol Administration Mode Operating Temperature * Storage Temperature * Relative Humidity under...

  • Page 34: Appendix A: Faq

    B. Make sure the Network Interface Card installing properly. Please refer to "2.2 Configure TCP/IP" for details. I cannot log on the configuration page of Netac AirTrack T610 Wireless Broadband Router, why? Answer: Please refer to "2.3 Check Configuration" for details.

  • Page 35: Appendix B: Contact Netac

    Netac AirTrack T610 Wireless Broadband Router Appendix B: Contact Netac Netac Technology Co., Ltd. 6F, Incubator Building, China Academy or Science & Tech Development, No.1 High-tech South St, Shenzhen, China 518057 Tel: +86-755-26727800, 26727449 Fax: +86-755-26727610, 26727620 Website: http://www.netac.com Email: sales@netac.com support@netac.com...

  • Page 36: Appendix C: Glossary

    Netac AirTrack T610 Wireless Broadband Router Appendix C: Glossary 802.11 A family of specifications developed by the IEEE for WLAN technology. 802.11b An extension to 802.11 that applies to WLANS and provides 11 Mbps transmission rate in the 2.4GHz band.
  • Page 37 Netac AirTrack T610 Wireless Broadband Router Complementary Code Keying. CTS/RTS Clear to Send/Request to Send. They are two special administrant data frame, a protecting mechanism to avoid the conflict in WLAN. DHCP Dynamic Host Configuration Protocol. DSSS Direct Sequence Spread Spectrum. DSSS is one of two types of spread spectrum radio.
  • Page 38 Netac AirTrack T610 Wireless Broadband Router Local Area Network. Media Access Control. Mbps Megabits Per Second. OFDM Orthogonal Frequency Division Multiplexing. Open System Interconnect. Point-to-Point. Point-to-Multipoint. Quality of Service. Radio Frequency. RJ-45 Ethernet Interface of A type. Wide Area Network.
  • Page 39 Netac AirTrack T610 Wireless Broadband Router WLAN Wireless Local Area Network. Wi-Fi Protected Access...
