Netac AirTrack T600 User Manual

Mini wireless router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

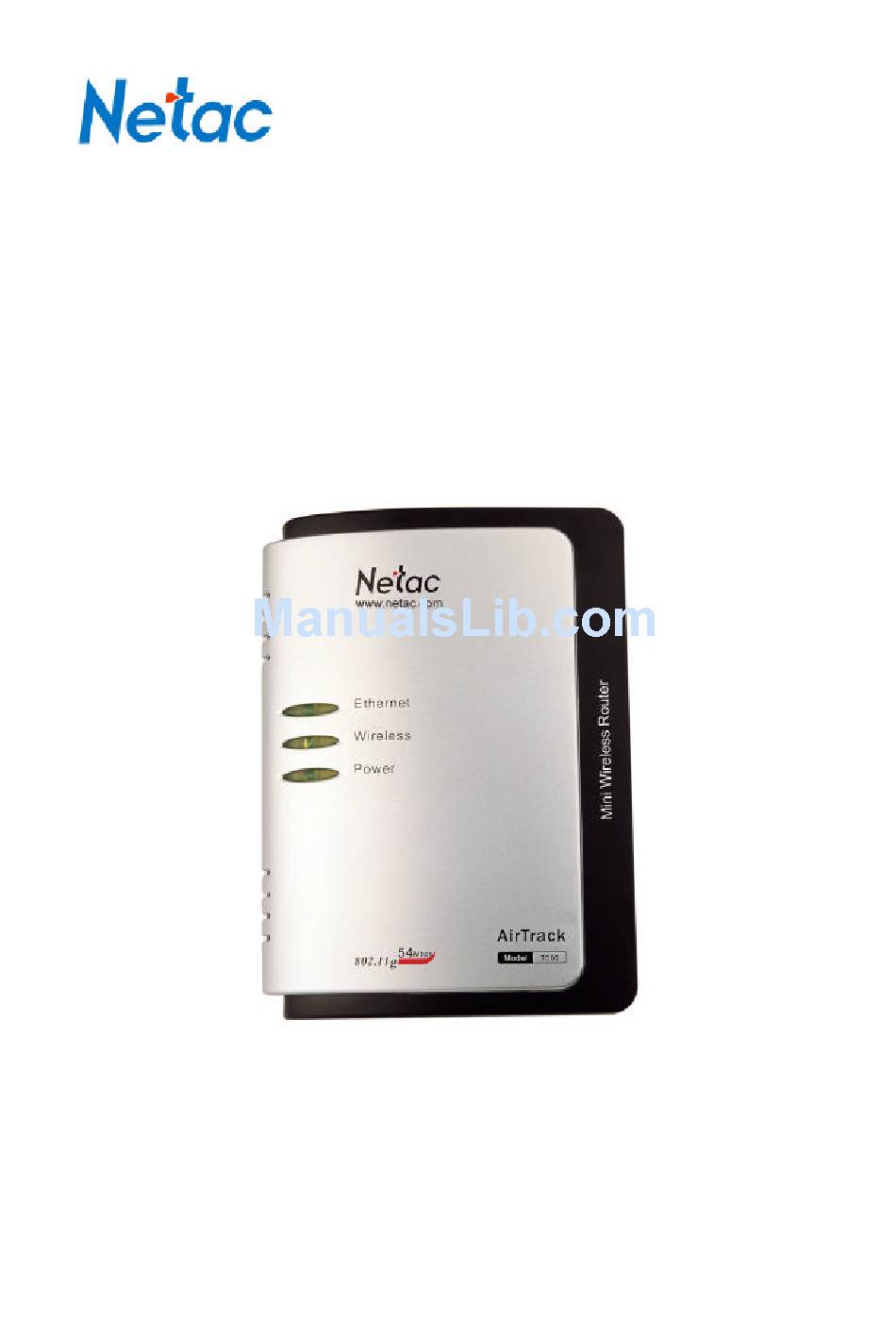

Netac AirTrack T600
Mini Wireless Router
User's Manual
Netac Technology Co., Ltd.
http://www.netac.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirTrack T600 and is the answer not in the manual?

Questions and answers

Related Manuals for Netac AirTrack T600

Summary of Contents for Netac AirTrack T600

  • Page 1 Netac AirTrack T600 Mini Wireless Router User's Manual Netac Technology Co., Ltd. http://www.netac.com...
  • Page 2 REMARKS This manual contains information protected by copyright law. All rights are reserved. No part of this document may be used or reproduced in any form or by any means, or stored in a database/retrieval system without prior written permission from Netac Technology Co., Ltd. Netac fulfill the repair service during warranty period in promised support range.
  • Page 3 Radio Frequency Interference Remarks This equipment has passed the test, and affirmed that it compatible to constrain B type digital equipment in section 15 of FCC. This constraint is mainly used to protect the home -keeping equipment, avoid to be interfered banefully. This equipment can produce, use, and radiate radio frequency energy.

  • Page 4: Table Of Contents

    1 Introduction ...1 1.1 Welcome...1 1.2 Checklist...1 1.3 Product function ...1 1.4 Appearance...2 2 Quick Start...4 2.1 Default Factory Settings ...4 3 Operating Mode Overview...5 3.1 AP Router Mode...5 3.2 Repeater Mode...6 3.3 Point-to-Point (P2P) Mode ...7 3.4 Point-to-Multipoint (PMP) Mode ...8 3.5 Client Mode...8 4 Wireless Security Support ...10 5 Mode Selection Page...11...
  • Page 5 5.3.1 P2P Mode - Security Configuration ...21 5.3.1.1 WEP Configuration Page ...21 5.3.2 P2P Mode - Advanced Settings ...21 5.4 PMP Mode Setup Page...22 5.4.1 PMP Mode - Security Configuration ...23 5.4.1.1 WEP Configuration Page ...24 5.4.2 PMP Mode - Advanced Settings ...24 5.5 Client Mode Setup Page...25 5.5.1 Client Mode - Site Survey ...26 5.5.2 Client Mode - Security Configuration...27...

  • Page 6: Introduction

    1 Introduction 1.1 Welcome Thank you for purchasing Netac AirTrack T600 Mini Wireless Router. Netac AirTrack T600 Mini Wireless Router is a wireless network product for SOHO and family, it is developed successfully based on the environment of wirelessly broadband access technology oncoming and wired network extend to wirelessly network.

  • Page 7: Appearance

    Netac AirTrack T600 Mini Wireless Router ü Transmit Rate (options: Auto, 1, 2, 5.5, 11, 24, 36, 48, 54Mbps) ü MAC Filtering l Point-to-Point Mode (P2P Mode) ü Remote wireless bridge device's MAC address settings ü Support wireless operating mode selection ü...
  • Page 8 Netac AirTrack T600 Mini Wireless Router LED-Ethernet light indicates the connection status of Internet by Ethernet interface. The light is twinkling when transfer data. LED-Wireless light indicates the connection status of Internet wirelessly. The light is twinkling when transfer data.

  • Page 9: Quick Start

    SSID, channel, and click Apply to take effect. T600 is now ready to use. 2.1 Default Factory Settings Restore the default factory settings by holding the "Reset" button for at least 10 seconds with T600 powered Table 2.1 Default Values Default Value 192.168.1.1...

  • Page 10: Operating Mode Overview

    The default operating mode is AP Router Mode. When the system is restored to the default factory settings, the operating mode also reverts to AP Router Mode. In AP Router Mode, T600 works as a standard AP, where wireless clients connected to the AP can then connect to other wireless clients or to the wired network.

  • Page 11: Repeater Mode

    AP/wireless router. Wireless clients can associate with the repeater. Up to two repeaters can be connected to a T600 in AP Router Mode. Each repeater can be connected to another repeater using a Parent/Child MAC address scheme.

  • Page 12: Point-To-Point (P2P) Mode

    To configure T600 devices to establish a P2P wireless bridge, ensure the following: Enter the MAC address of T600 P2P-2 device in the P2P MAC address field in T600 P2P-1 device (on the P2P Mode Setup page, Figure 5.8).

  • Page 13: Point-To-Multipoint (Pmp) Mode

    A T600 device operating in Point-to-Multipoint (PMP) Mode wirelessly connects two or more wired networks, as shown in Figure 3.5. The root T600 device (LAN 1) operates in PMP Mode, and the other T600 devices (LAN 2, LAN3) must operate in P2P Mode.
  • Page 14 Netac AirTrack T600 Mini Wireless Router Figure 3.6 Client in Infrastructure Mode Figure 3.7 Client in Ad-Hoc Mode Section 5.5 "Client Mode Setup Page" describes the configuration details for this mode.

  • Page 15: Wireless Security Support

    Netac AirTrack T600 Mini Wireless Router 4 Wireless Security Support T600 supports WEP and WPA-PSK encryption as shown in Table 4.1. Mode AP Router Repeater Point-to-Point (P2P) Point-to-Multipoint (PMP) Client Table 4.1 Wireless Securities WPA-PSK In AP Router Mode, T600 supports WEP and WPA-PSK.

  • Page 16: Mode Selection Page

    5 Mode Selection Page The first step in using T600 is selecting the operating mode. The default operating mode is AP Router Mode. To view the web page for the device, open a web browser and enter "192.168.1.1" (default IP address of the device) on the address bar.
  • Page 17 Netac AirTrack T600 Mini Wireless Router to reboot T600, and then click the AP Router: Setup button. Figure 5.2 and Table 5.1 describe the basic AP Router Mode setup options. Click the Apply button to apply the settings, and a status page will appear. Click the Cancel button to return to the Mode Selection page.

  • Page 18: Ap Router Mode - Security Configuration

    Netac AirTrack T600 Mini Wireless Router 5.1.1 AP Router Mode - Security Configuration To enable security, select the desired security mode (WEP or WPA) in the AP Router Mode setup page (Figure 5.2) and click the Setup button to enter the configuration page.

  • Page 19: Ap Router Mode - Advanced Settings

    Mode setup page (Figure 5.2). The Advanced Settings page allows the user to configure advanced Radio settings and extend the wireless cover range of T600 in AP Router Mode by connecting it to up to two repeaters. Figure 5.5 and Table 5.4 details the Advanced Settings for AP Router Mode.

  • Page 20: Connect Repeater

    Click the Access Filter: Setup button in the AP Router Mode setup page (Figure 5.2) to access the Access Filter page. The Access Filter page allows the user to configure T600 to allow or deny association to itself based on the MAC address of the client. Up to 32 MAC addresses can be added to the list. Figure 5.6 and Table 5.5 detail the options.

  • Page 21: Repeater Mode Setup Page

    5.2 Repeater Mode Setup Page To configure T600 in Repeater Mode, select Repeater in the Mode Selection page (Figure 5.1), click Apply to reboot T600, and then click the Repeater: Setup button. Figure 5.7 and Table 5.6 describe the Repeater...
  • Page 22 Click Setup to configure the Access Filter (Figure 5.6). NOTE: Under Repeater Mode, you must make sure the related configuration (such as Security, Channel, etc.) of Parent AP and Child AP/Router are consistent with T600 in order to communicate with each other. Figure 5.7 Repeater Mode Setup Page...

  • Page 23: Repeater Mode - Security Configuration

    Netac AirTrack T600 Mini Wireless Router l To set up the Repeater, the user must enter the MAC address of the Parent AP/Router/Repeater which this Repeater is connected in the Parent MAC Address field. l To link an additional repeater, the user must enter the MAC address of the additional repeater in the Child MAC Address field.

  • Page 24: Repeater Mode - Advanced Settings

    Netac AirTrack T600 Mini Wireless Router Data Encryption TKIP data encryption. Passphrase WPA key. Group Re-Key Time Group Re-Key interval (seconds). 5.2.2 Repeater Mode - Advanced Settings Access the Advanced Settings page by clicking the Advance Settings: Setup button in the Repeater Mode setup page (Figure 5.7).

  • Page 25: P2P Mode Setup Page

    5.3 P2P Mode Setup Page To configure T600 in P2P Mode, select P2P in the Mode Selection page (Figure 5.1), click Apply to reboot T600, and then click the P2P: Setup button. Figure 5.9 and Table 5.11 describe the P2P Mode setup options.

  • Page 26: P2P Mode - Security Configuration

    Click Setup to configure Advanced Settings (Figure 5.10). NOTE: Under P2P Mode, you must make sure the related configuration (such as Security, Channel, etc.) of Remote Bridge is consistent with T600 in order to communicate with each other. 5.3.1 P2P Mode - Security Configuration To enable security, select WEP in the P2P Mode setup page (Figure 5.9) and click the Setup button to enter...

  • Page 27: Pmp Mode Setup Page

    5.4 PMP Mode Setup Page To configure T600 in PMP Mode, select PMP in the Mode Selection page (Figure 5.1), click Apply to reboot T600, and then click the PMP: Setup button. Figure 5.11 and Table 5.14 describe the PMP Mode setup options.

  • Page 28: Pmp Mode - Security Configuration

    Click Setup to configure Advanced Settings (Figure 5.12). NOTE: Under PMP Mode, you must make sure the related configuration (such as Security, Channel, etc.) of Remote Bridge is consistent with T600 in order to communicate with each other. 5.4.1 PMP Mode - Security Configuration To enable security, select WEP in the PMP Mode setup page (Figure 5.11) and click the Setup button to enter...

  • Page 29: Wep Configuration Page

    Netac AirTrack T600 Mini Wireless Router 5.4.1.1 WEP Configuration Page The PMP Mode WEP Configuration page is identical to the one for AP Router Mode. Refer to Figure 5.3, "AP Router Mode - WEP Configuration Page" for the details. Table 5.15 details the options.

  • Page 30: Client Mode Setup Page

    5.5 Client Mode Setup Page To configure T600 in Client Mode, select Client in the Mode Selection page (Figure 5.1), click Apply to reboot T600, and then click the Client: Setup button. Figure 5.13 and Table 5.17 describe the Client Mode setup options.

  • Page 31: Client Mode - Site Survey

    Netac AirTrack T600 Mini Wireless Router Enable MAC Cloning Mode. Clones all the MAC addresses of devices connected MAC Cloning Mode to the Ethernet (wired) port to a single MAC address sent out wirelessly to an AP or Repeater. Wireless Network Name. You can enter it directly in this field or click the Site SSID Survey button to select one from a list of available networks.

  • Page 32: Client Mode - Security Configuration

    Netac AirTrack T600 Mini Wireless Router Select a wireless network, and then click the Join button to connect the client Join bridge with the selected AP/node or Ad-Hoc network. Close Close the Site Survey page. 5.5.2 Client Mode - Security Configuration To enable security, select the desired security mode (WEP or WPA) in the Client Mode setup page (Figure 5.13) and click the Setup button to enter the configure page.

  • Page 33: Wpa Configuration Page

    Netac AirTrack T600 Mini Wireless Router 5.5.2.2 WPA Configuration Page Figure 5.16 and Table 5.20 detail the WPA configuration for Client Mode. Figure 5.16 Client Mode - WPA Configuration Page Field Description Authentication Method Use PSK (Pre-Shared Keys) authentication only.

  • Page 34: Status Page

    Mode. Figure 6.3 shows the Status page for P2P Mode. The Status page for PMP Mode display the mode of T600 in the Currently Running status bar but is otherwise identical to the P2P Mode Status page. Figure 6.4 shows the Status page for Client Mode.
  • Page 35 Netac AirTrack T600 Mini Wireless Router Figure 6.2 Repeater Mode - Status Page...
  • Page 36 Netac AirTrack T600 Mini Wireless Router Figure 6.3 P2P Mode - Status Page...
  • Page 37 Netac AirTrack T600 Mini Wireless Router Figure 6.4 Client Mode - Status Page...

  • Page 38: Admin Page

    Figure 7.1 shows the Admin page for AP Router Mode. Figure 7.2 shows the Admin page for Repeater Mode. The Admin page for P2P Mode, PMP Mode and Client Mode displays the mode of T600 in the Currently Running status bar but are otherwise identical to the Admin page for Repeater Mode.
  • Page 39 Netac AirTrack T600 Mini Wireless Router Field Description FW Version Displays the firmware version and the build date. To upgrade the firmware, click the Browse button and select the image file. Click FW Upgrade Apply to upgrade. To modify the username, enter the new username in the New Username field and New Username click Apply.

  • Page 40: Lan Page

    Netac AirTrack T600 Mini Wireless Router 8 LAN Page The AP Router Mode's LAN page, shown in Figure 8.1, allows the user to set the IP address of T600. Field Description Set the IP address of T600. IP Address NOTE: To configure T600, the user must access T600 from a PC that is on the same subnet.
  • Page 41 Figure 8.2 Repeater Mode - LAN Page The LAN page for P2P Mode and PMP Mode displays the mode of T600 in the Currently Running status bar but are otherwise identical to the Admin page for Repeater Mode. The LAN page configurations for Repeater Mode, P2P Mode and PMP Mode are identical to AP Router Mode;...
  • Page 42 CAUTION: Selecting the Automatic IP option is not advised unless the user has direct access to the device that provides the IP address. Be sure to know how to distinguish the IP address of T600 from that of a connected device before selecting this option. This is important regardless of T600 operating mode.
  • Page 43 Netac AirTrack T600 Mini Wireless Router NOTE: To configure T600, the user must access T600 from a PC that is on the same subnet. Subnet Mask Allow the user to specify a subnet mask. Default: 255.255.255.0. Gateway Allow the user to specify a gateway. Default: 0.0.0.0.

  • Page 44: Other Page

    Protocol or PPPoE. Set the IP address of T600. IP Address NOTE: To configure T600, the user must access T600 from a PC that is on the same subnet. Subnet Mask Allow the user to specify a subnet mask. Gateway Allow the user to specify a gateway.

  • Page 45: Forward Page

    Netac AirTrack T600 Mini Wireless Router DNS Server 1-2 The address of DNS server. PPPoE Username, Set dialup's username and password of PPPoE. Network Operator supplies the Password username and password. 9.2 Forward Page Only AP Router Mode has Forward page, shown in Figure 9.2.
  • Page 46 Table 9.2 AP Router Mode - Forward Page Options Field Description Forward the data package sent from WAN port to T600 to the specified port of the Port Forward computer with specified IP address. Forward all data package sent from WAN port to T600 to the specified IP address.

  • Page 47: Specifications

    Netac AirTrack T600 Mini Wireless Router 10 Specifications Item Compatible Standard Network Interface Antenna Maximal Launch Power Wireless Frequency Range Wireless Modulation Mode Wireless Transferring Rate Wireless Transmission Distance Protocol Administration Mode Operating Temperature * Storage Temperature * Relative Humidity under...

  • Page 48: Appendix A: Faq

    Client Mode, you can configure the parameters of Client Mode just When T600 running in Client Mode. To configure T600 in Client Mode, select Client in the Mode Selection page (Figure 5.1), click Apply to reboot T600, and then click the Client: Setup button.

  • Page 49: Appendix B: Contact Netac

    Netac AirTrack T600 Mini Wireless Router Appendix B: Contact Netac Netac Technology Co., Ltd. 6F, Incubator Building, China Academy or Science & Tech Development, No.1 High-tech South St, Shenzhen, China 518057 Tel: +86-755-26727800, 26727449 Fax: +86-755-26727610, 26727620 Website: http://www.netac.com Email: sales@netac.com support@netac.com...

  • Page 50: Appendix C: Glossary

    Netac AirTrack T600 Mini Wireless Router Appendix C: Glossary 802.11 A family of specifications developed by the IEEE for WLAN technology. 802.11b An extension to 802.11 that applies to WLANS and provides 11 Mbps transmission rate in the 2.4GHz band.
  • Page 51 Netac AirTrack T600 Mini Wireless Router Complementary Code Keying. CTS/RTS Clear to Send/Request to Send. They are two special administrant data frame, a protecting mechanism to avoid the conflict in WLAN. DHCP Dynamic Host Configuration Protocol. DSSS Direct Sequence Spread Spectrum. DSSS is one of two types of spread spectrum radio.
  • Page 52 Netac AirTrack T600 Mini Wireless Router Local Area Network. Media Access Control. Mbps Megabits Per Second. OFDM Orthogonal Frequency Division Multiplexing. Open System Interconnect. Point-to-Point. Point-to-Multipoint. Quality of Service. Radio Frequency. RJ-45 Ethernet Interface of A type. Wide Area Network.
  • Page 53 Netac AirTrack T600 Mini Wireless Router WLAN Wireless Local Area Network. Wi-Fi Protected Access...
