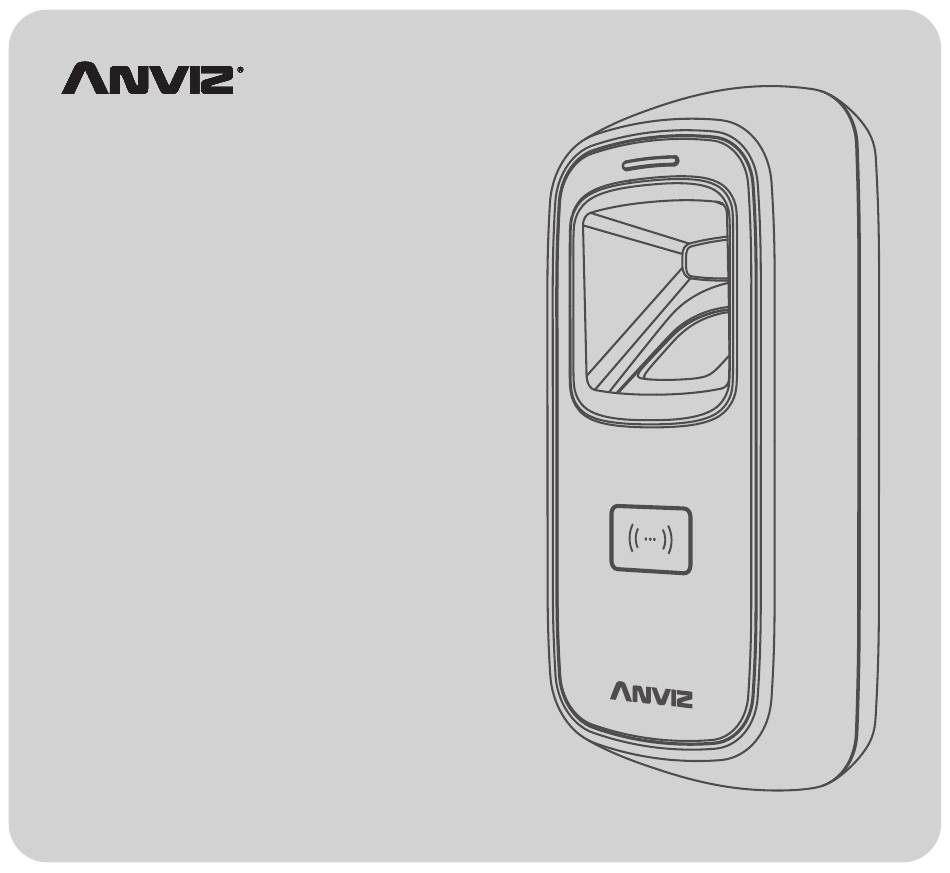

- Page 1 POWERING A SMARTER WORLD M5 Plus Outdoor Fingerprint & Card Reader/Controller Quick Guide V1.5...
-
Page 2: Package List
Package List Device Screws RJ45 Connector Quick Guide Notification: 1. Please check if the package contains all the items listed above. Contact the distributor if there is any problem. RFID Card 2. Please keep the product away from the magnetic field, and avoid causing any damage to the device. -
Page 3: Incorrect Method
Illustration for placing finger Correct method ( Straighten your finger and then place it on the sensor Ensure the finger is flat and covers the entire sensor) Always place finger in Try to place your finger covers the entire sensor. the center of the sensor. -
Page 4: Installation Diagram
Installation Diagram Back panel install way: Without back panel install way: Steps: Steps: Step2 Step1 Step1: Drill holes in the wall Install M5 screws directly to the follow the hole position on bottom shell behind the wall , the back panel. depth of screws is 8mm(0.31"). -
Page 5: Wiring Instruction
Wiring Instruction Function Cable Color Description DC12V Connect RJ45 Red (Thick) DC12 V Power Black (Thick) Tamper alarm Tamper alarm Pink (Thick) Tamper Alarm Signal Tamper alarm Wiegand DATA0 Output Black Exit Button Wiegand DATA1 Output Green Wiegand 0 Input/Output Wiegand Output White... - Page 6 Wiring Type Access Controller Switch Power Supply Power off to unlock Power on to unlock Anviz Wiegand Wiring: SC011 and the device are paired by Anviz wiegand to be a distributed access control system. Switch Power Supply Power off to unlock +12V +12V...
- Page 7 SC011 authorization setting: Make sure correct wiring between M5 Plus and SC011, power on them, then move slide switch to ‘PROGRAM MODE’ as below: Switch in‘PROGRAM’on the SC011: Move slide swith to left(ON). Wiegand Wiring: Between M5 Plus and Anviz SAC844 or other Access Controller as below: Wiegand data output format: 1.
-
Page 8: Function Button
Function Button... - Page 9 Operation Guide IMPORTANT: M5 Pro is suitable for DC12V power supply only. When connect to DC12V power supply, the indicator light displays blue and flashes fast. Meanwhile, the backlights of fingerprint sensor turn on with beeps. Register User: Add One Fingerprint per User Only: Note: 1.
- Page 10 Operation Guide Add Two Fingerprints of one User: 8. Continue to register another user * Two fingerprints belongs to one user ID. 4. Continue to register the 2nd finger Note: 1. After finish enrolling current user, 2/5. Place the 3/6. Place the 1st/2nd 7.
-
Page 11: Delete User
Operation Guide Add Two Fingerprints and Card of one User: * The wiegand output of fingerprint and card are the same. 10. Continue to register another user Note: 1. After finish enrolling current user, please swipe enroll card 4. Continue to register the 2nd finger and then continue register another user. - Page 12 Red LED flashes Red LED flashes fast Green LED lights up 4 short beeps Delete ASuccessed Anviz brand and product are trademarked and protected under law of the United States. Unauthorized use is prohibited. For more information, please visit www.anviz.com , or send email to sales@anviz.com...
- Page 13 Bluetooth connection&configuration: 1. Make sure your cell phone Bluetooth is on. 2. During the setup between app and the M5 plus, please make sure the mobile and M5 Plus are within effective distance（≦100CM)(≦39.37"). 3. According to the strength of Bluetooth signal and MAC address from the Bluetooth device which found by phone, you can check whether it’s the correct device or not.
- Page 14 The app can search and match the proper device. 9:41 9:41 Login Setting Input the M5 Plus device default ID and password to M5 Plus Input your ID and Password from M5 Plus your administrator identify the setting, once matching successfully, it is working with the voice and LED reminder.
- Page 15 9:41 9:41 9:41 9:41 Device List Device List Device List My CrossChex My Device M5 Plus M5 Plus M5 Plus Front Door Front Door Front Door Logs Support Language About User Administrator V 2.4 Rename Delete Hold the circle area a...
- Page 16 In order to protect the environment, Anviz has decided to go "CD Free" campaign since June 1st 2019. We will provide QR code for you to download the electronic documents to make sure that you understand how to install and use Anviz devices.
