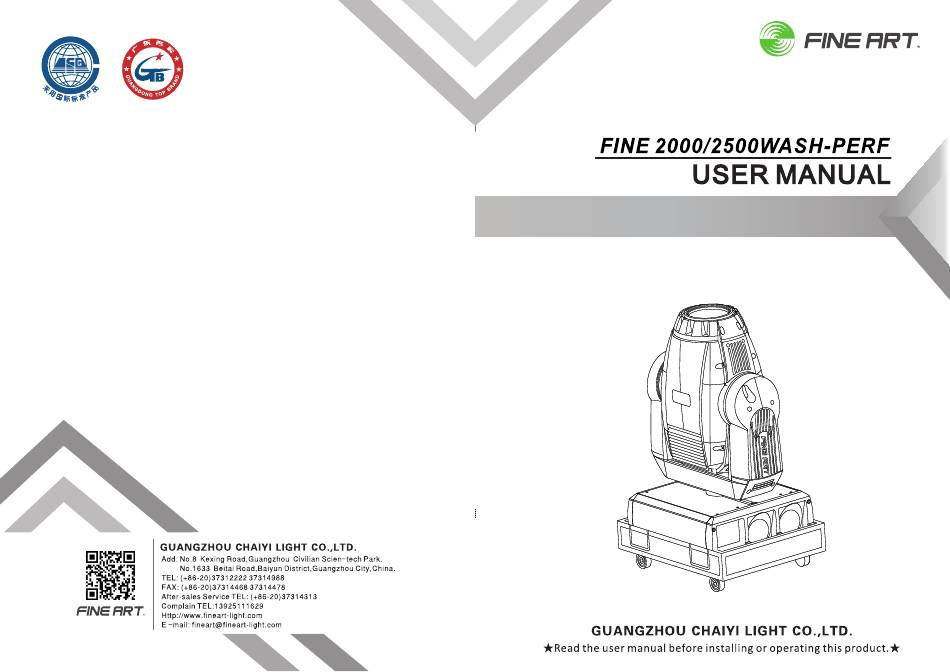

Fine Art FINE 2000WASH-PERF User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FINE 2000WASH-PERF and is the answer not in the manual?

Questions and answers

Related Manuals for Fine Art FINE 2000WASH-PERF

Summary of Contents for Fine Art FINE 2000WASH-PERF

  • Page 2: Table Of Contents

    http:// www.fineart-light.com CONTENTS Contents……………………………………………………………………1 FINE 2000 (FINE 2500) Wash Perf dimension diagram……………..3 Security Information……………………………………………………..4 Delivery……………………………………………………………………..5 Included items..………………………………………………………5 Transportation lock..…………………………………………………6 Single flight case..……………………………………………………6 Double flight case..…………………………………………………..6 Lamp..………………………………………………………………………7 Lamp introduction..…………………………………………………..7 Lamp replacement.…………………………………………………..7 AC power supply………………………………………………………….9 Fuses.…………………………………………………………………9 Power supply adjustment...…………………………………………9 Power connection…...…………………………………………….. 10 Data………………………………………………………………………..10 Connection equipment……………………………………………..11 Data link…………………………………………………………….
  • Page 3 http:// www.fineart-light.com Iris…………………………………………………………………15 Pan/tilt.……………………………………………………………15 Speed control.……………………………………………………15 Controlling channels……………………………………………………16 DMX channels..…………………………………………………19 Menu control..……………………………………………………26 Routine maintenance…………..………………………………………32 Cleaning .…………………………………………………………32 FINE 2000(FINE 2500) Wash Perf channels diagram..……………33 - 2 -...

  • Page 4: Fine 2000 (Fine 2500) Wash Perf Dimension Diagram

    http:// www.fineart-light.com FINE 2000 (FINE 2500) Wash Perf dimension diagram - 3 -...

  • Page 5: Security Information

    http:// www.fineart-light.com Protection against explosion  Shields lenses and ultraviolet screens must be replaced if they have become visible damaged to such an extent that their effectiveness is impaired.  Replace the lamp immediately if it becomes visually deformed, damaged or in any way defected. Protection against electrical shock ...

  • Page 6: Delivery

    http:// www.fineart-light.com  Don’t illuminate surfaces within 3 meters of the fixture. Projecting object in short distance.  Ensure a minimum clearance of 0.1 meter around the cooling fans and ventilations.  Do not place any filter or other object onto the optical lens.

  • Page 7: Transportation Lock

    http:// www.fineart-light.com User manual 2 Suspension fasteners Warranty card 1 Safety wire 1 Signal cable Fuse configuration Power Fuse 6×30(main fuse) 6.3A 5×20(PCB board fuse) 200/250V 3.15A 5×20(PCB board fuse) 5×20(PCB board fuse) 6×30(main fuse) 6.3A 5×20(PCB board fuse) 100/120V 3.15A 5×20(PCB board fuse) 5×20(PCB board fuse)

  • Page 8: Lamp

    http:// www.fineart-light.com  Package 1. Disconnect power and allow it to cool. 2. Turn the arm horizontally to the bottom so that it locks vertically from the rear. 3. Pull out the drawer at its full length. Hang the fixture to the drawer by two men, shown in Figure.3.
  • Page 9 http:// www.fineart-light.com 1. Cut off the power and cool down the fixture completely. Lock the moving head when it’s horizontal. 2. As figure 4, CCW rotate the screws on the lamp-access panel by 90 degree with a flat-head screw driver. Slide out the panel and leave it still.

  • Page 10: Ac Power Supply

    http:// www.fineart-light.com AC power supply Warning! In prevention of electrical shock, the fixture must be well earthed. Fuse applied in AC mains cords, leakage switch and fault-earth protections are necessary. Important! Inspect the supply apparatus before powering. Mains fuses There are 2 kinds for FINE2000(FINE2500) Wash Perf ...

  • Page 11: Power Connection

    http:// www.fineart-light.com Power connection Notice: Connecting the equipment to the power supply, do not connect to silicon system, or else, it will destroy the equipment. The fixture is provided with standard 3-pin socket. Please according to below table connect to power supply, Yellow/Green line must be earthed.

  • Page 12: Data Link

    http:// www.fineart-light.com does not reflect or cause interference. If you use a distributor, please terminate each branch of the connection. Data link a) Connect the DMX input, from the controller to the 3-pin socket of FINE2000 (FINE2500) Wash perf. b) Use the plug that matches the data cable to connect the output of the nearest device to the next device input.

  • Page 13: Control Panel

    http:// www.fineart-light.com 3. Install a clamp point in the base, insert the fasteners into the base and turn the two levers a full 1/4 buckle clockwise to lock it completely, and install the second clamp in the same way. 4. If the truss can be lift down, the light fixture can be lifted and hooked from flight case directly.

  • Page 14: Fine 2000 (Fine 2500) Wash Perf Functional Introduction

    http:// www.fineart-light.com FINE 2000(FINE 2500)WA PERF Functional Introduction Color The color mixing system consist dichroic cyan, magenta and yellow (CMY) color filters. It is a subtractive system that removes color components from the white light. A full superimposition of all CMY filters results in blackout.

  • Page 15: Framing System

    http:// www.fineart-light.com Framing system FINE 2000 (FINE 2500) Wash PERF comes with a framing module, which can be swiveled by 90° through synchronous belt drive. Four interleaved framing blades, each driven by stepping motor, are capable of panning +/-30° . Combination of displacements and pan of four individual blades bring up unlimited shades, rectangle, diamond, triangle, etc.

  • Page 16: Auto Zoom

    http:// www.fineart-light.com Auto zoom Zoom lens beam range：24° －40° , use standard lens and iris system Iris The minimum diameter of the aperture only amounts to 15% of its full open diameter. Strobe effects can be achieved through setting up opening/closing speeds.

  • Page 17: Controlling Channels

    http:// www.fineart-light.com Controlling channels Control channel：45 control channels mode and 28 control channels 45 control channels mode function： Channel 1： Strobe Channel 2： Dimmer Channel 3： Dimmer 16bit Channel 4： Pan rotation Channel 5： Pan rotation 16bit Channel 6： Tilt rotation Channel 7：...
  • Page 18 http:// www.fineart-light.com Channel 30：CMY magenta 16bit Channel 31：CMY yellow Channel 32：CMY yellow 16bit Channel 33：CTC color temperature Channel 34：CTC color temperature16bit Channel 35：Zoom Channel 36：Zoom 16bit Channel 37：Iris Channel 38：Blade rotation Channel 39：Color 1 Channel 40：Color 2 Channel 41：Color macro function Channel 42：Speed effect adjustment Channel 43：CMY macro function Channel 44：Lamp half power selection...
  • Page 19 http:// www.fineart-light.com Channel 15：Blade 3 moves inwards/outwards Channel 16：Blade 4 pan Channel 17：Blade 4 moves inwards/outwards Channel 18：CMY cyan Channel 19：CMY magenta Channel 20：CMY yellow Channel 21：CTC color temperature Channel 22：Zoom Channel 23：Iris Channel 24：Blade rotation Channel 25：Color 1 Channel 26：Color 2 Channel 27：Color macro function Channel 28：Speed effect adjustment - 18 -...

  • Page 20: Dmx Channels

    http:// www.fineart-light.com DMX Channels Opening code =0 Value Percentag Function channel channel Strobe 0-19 0-17 Shutter, close 20-49 8-19 Open Strobe, fast→slow 50-72 20-28 73-79 29-31 Shutter open Strobe open, fast→slow 80-99 31-39 Strobe close, fast→slow 100-119 39-47 120-127 47-50 Shutter open 128-147 50-58...
  • Page 21 http:// www.fineart-light.com Pan/tilt speed adjustment Track fast→slow 3-236 2-92 Speed 237-239 Speed（slow speed-surpass PTSP settings ） track menu normal speed-surpass PTSP 240-242 Menu settings） Track （ fast speed-surpass PTSP menu settings） Pan/tilt macro function Pan/tilt macro speed Blade 1 pan 0-255 0-100 Out→in...
  • Page 22 http:// www.fineart-light.com Blade 3 moves inwards/ 0-126 0-49 outwards 127-128 Angle- 129-255 51-100 Parallel Angle+ 0-255 0-100 Blade 3 moves inwards /outwards 16bit Blade 4 pan 0-255 0-100 Out→in 0-255 0-100 Blade 4 pan16bit Blade 4 moves inwards/outwards 0-126 0-49 Angle- 127-128 Parallel...
  • Page 23 http:// www.fineart-light.com 0-255 0-100 CMY yellow 16bit color temperature 0-255 0-100 6000K-3200K 0-255 0-100 CTC color temperature 16bit Zoom 0-255 0-95 Zoom: far to near 245-251 96-98 No change 252-255 99-100 Open(power mode) 0-255 0-100 Zoom 16bit Iris Open→Close 0-199 0-78 200-215 78-84...
  • Page 24 http:// www.fineart-light.com Color 1 White White→Color 1,1 1-31 1-12 Color 1,1 33-63 14-24 Color 1,1→Color 1,2 Color 1,2 65-95 26-36 Color 1,2→Color1,3 Color 1,3 97-127 38-49 Color 1,3→Color 1,4 Color 1,4 129-159 51-61 Color 1,4→White White Color wheel I fixed color 161-165 63-64 Color 1,4...
  • Page 25 http:// www.fineart-light.com Color 2 White White→color 2.1 1-31 1-12 Color 2.1 33-63 14--24 Color 2.1→color 2.2 Color 2.2 65-95 26-37 Color 2.2→Color 2.3 Gobo 2.3 97-127 39-50 Gobo 2.3→Color 2. 4 Color 2.4 129-159 52-62 Color 2.4-White White Color wheel II fixed color 161-165 64-65 Color 2.4...
  • Page 26 http:// www.fineart-light.com ： Effect speed adjustment （ Dimming ， cyan ， magenta ， yellow，CTC，Zoom） 3-239 1-93 Track 240-242 94-95 Speed：fast—slow Track (workshop mode unusable 243-245 surpass - ModE menu settings） Track （ workshop mode usable 246-248 97-98 surpass - 249-251 ModE menu settings）...

  • Page 27: Menu Control

    http:// www.fineart-light.com Menu control Menu Item Secondary Note(default setting full-face Select item type — — Address 1-512 DMX address Normal DMX horizontal close control left→right — opposite Upend DMX horizontal direction open control right→left Normal DMX vertical control close up→down Tilt opposite —...
  • Page 28 http:// www.fineart-light.com DMXcan not control fan close — Fan control speed open DMX can control fan speed fast Pan/tilt speed fast mode Pan/tilt — medium Pan/tilt speed medium mode Speed speed slow Pan/tilt speed slow mode settings Pan/tilt 0-9 step pan/tilt can adjust —...
  • Page 29 http:// www.fineart-light.com — Channel 16 0-255 Blade 2 pan16bit Blade 2 — Channel 17 0-255 moves inwards/outwards angle-parallelangle+ 0-255 Blade 2 — Channel 18 moves inwards/ outwards 16bit 0-255 Blade 3 inwards/outwards — Channel 19 out→in 0-255 Blade inwards/outward — Channel 20 16bit 0-255...
  • Page 30 http:// www.fineart-light.com CMY yellow — Channel 31 0-255 whiteyellow Channel 32 … 0-255 CMY yellow 16bit Channel 45 — Fine number 0000-FFFF Aperture excursion — Fine number 0000-FFFF Color temperature excursion — Fine number 0000-FFFF Cyan excursion — Fine number 0000-FFFF —...
  • Page 31 http:// www.fineart-light.com — Fine number 0000-FFFF — Fine number 0000-FFFF — Fine number 0000-FFFF Fine number — 0000-FFFF Magenta excursion Fine number 0000-FFFF Pan excursion Fine number 0000-FFFF Tilt excursion Fine number … 0000-FFFF Fine number Lamp on — — Display lamp work time Information time...
  • Page 32 http:// www.fineart-light.com check — code 3 check — code 4 check — code 5 check — code 6 check — code 7 check — code 8 check — code 9 check — code 11 check — code 12 check — code 13 check —...

  • Page 33: Routine Maintenance

    http:// www.fineart-light.com Routine maintenance FINE 2000(FINE 2500) Wash perf product requires routine cleaning. The service life depends on the operating environment heavily. Please kindly contact GUANGZHOU CHAIYI LIGHT CO.,LTD for more maintenance indications not included in this user’s manual. Thanks. Important! Excessive dust, smoke fluid and particulate buildup will degrade performance and cause overheating or damage to the fixture that is not covered by the warranty.

  • Page 34: Fine 2000(Fine 2500) Wash Perf Channels Diagram

    http:// www.fineart-light.com 2. Remove dust on the air filter with dust sucker or compressed air. If dust layer is too thick, unfasten the side casing with Philips screw driver, rub with cloth soaked with soap. 3. Put on the air filter, then fasten on casing. FINE 2000（FINE 2500）Wash perf channel schematics - 33 -...
  • Page 35 http:// www.fineart-light.com NEY STYLE NEY STYLE 1/9/17 CMY/CTC switch color2 yellow color1 cyan ★LA magenta ★LB ★TA tilt ★TB tilt1 Zoom tilt light sensor ★RA ★Frame rot ★RB Iris ★BA color sensor - 34 -...
  • Page 36 http:// www.fineart-light.com - 35 -...
  • Page 37 http:// www.fineart-light.com - 36 -...
