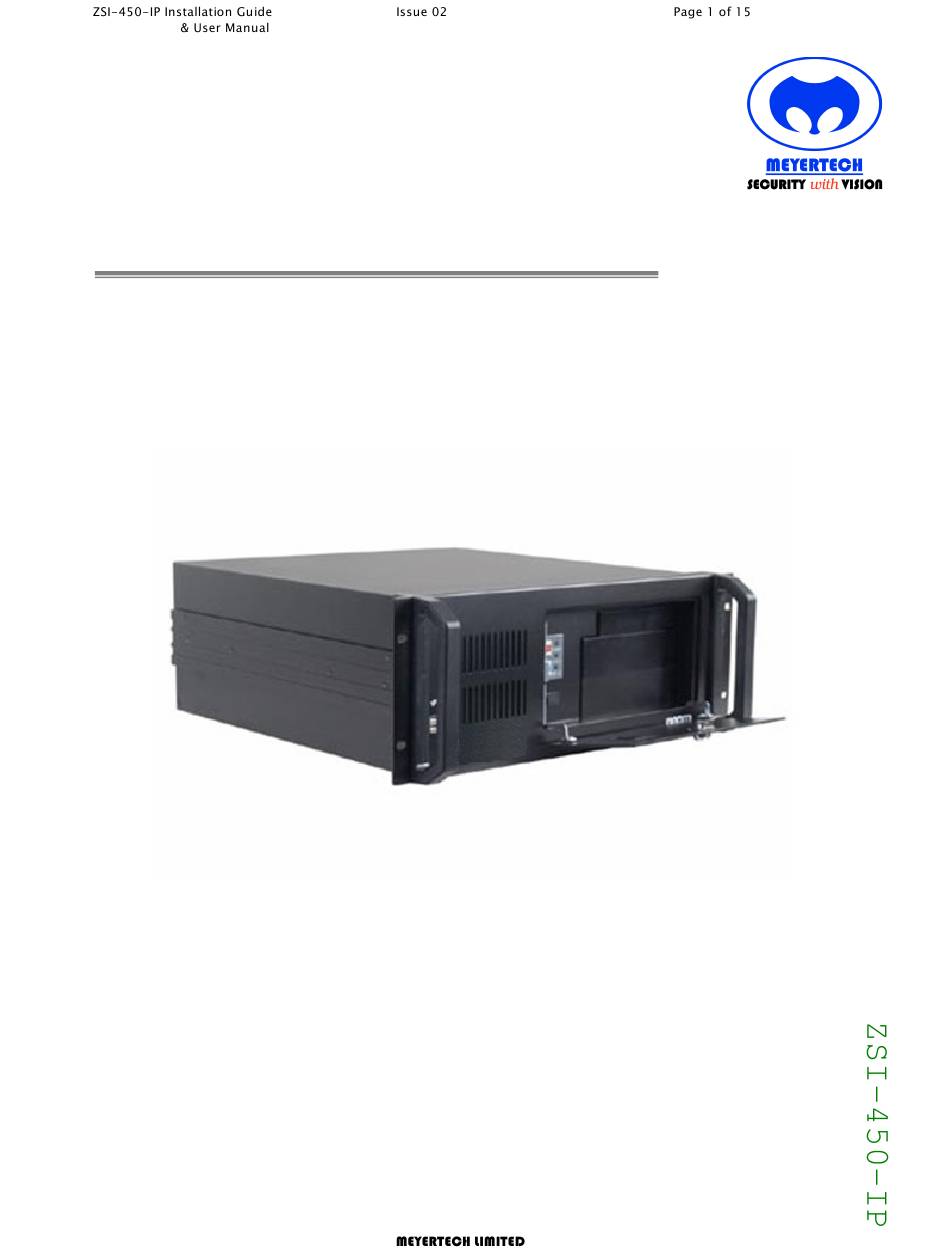

- Page 1 ZSI-450-IP Installation Guide & User Manual ZSI-450-IP CCTV Remote Site Integration via IP Issue 02...
-
Page 2: Table Of Contents
Contents Contents ....................................2 Introduction ..................................3 What is a ZSI-450-IP? ..............................3 Operation .................................... 4 Direct Control System..............................4 Remote Control System ..............................5 Multiple ZSI-450-IP System............................6 General Installation Features .............................. 7 Registry Settings ................................7 Network Settings................................9 Remote Desktop................................ -
Page 3: Introduction
It will help you to achieve the maximum benefit from the product. TCP/IP Connection What is a ZSI-450-IP? Intersite Communications A ZSI-450-IP is part of the ZoneVu family. It allows the interconnection of remote sites via 3 party TCP/IP connections. Video Transmission... -
Page 4: Operation
ZoneVu Series 2 ZVM-9648OXR This method of operation shows a single ZSI-450-IP at the control room (the right of the diagram). The ZSI- 450-IP receives commands from the ZSC-1000plus via the PC2 port. These commands may come from either Meyertech keyboards or the Fusion GUI. -
Page 5: Remote Control System
ZSC-250-IP are then passed on to the site controller at the remote site. In this mode of operation the ZSI-450-IP has an active IP connection to the DVR (video and data stream) and also an active connection to the ZSC-250-IP. -
Page 6: Multiple Zsi-450-Ip System
Multiple ZSI-450-IP System Internet ZoneVu ZoneVu ZoneVu ZSI-450 ZSI-450 ZSI-450 ZSC-250 ZoneVu ZoneVu port Intersite port ZoneVu ZSC-1000 This method of operation can use a mixture of the previously described modes. It is possible that some of the remote DVR’s also have remote control via a ZSC-250-IP, while it is also possible that they support direct control only. -
Page 7: General Installation Features
“Run”. At the prompt type “regedit” and press enter. The application will then launch. Once the registry editor has loaded, navigate to the following key: HKEY_CURRENT_USER\Software\Meyertech\VideoServer This is the main registry key for the ZSI-450-IP settings, it has three sub keys. Each of these sub keys are described below. Communications Inside the Communications key there are two values both of which are DWORD values. - Page 8 ZONEVU_ADDRESS The ZoneVu address value and the ZoneVu port value are only used if the control mode is set to 1 (for remote site control). The address value specifies the name or the IP address of the remote ZSC-250-IP to connect to.
-
Page 9: Network Settings
Network Settings While installing the ZSI-450-IP it may be necessary to configure the network settings for the unit to make it compatible with the network and so that it can communicate with the other devices on the network that it needs to (DVR’s and where applicable, other ZSI-450-IP’s). -
Page 10: Remote Desktop
>Accessories->Communications->remote desktop connection”). The remote desktop application will then launch. Enter the name or the IP address of the ZSI-450-IP to connect to. If the computer specified is valid and is on the same network then the windows login prompt for the remote PC will appear. -
Page 11: Rd Party Setup
Feature Parameter Network Ethernet 10/100M Ethernet 1G optional Telemetry RS232 No handshaking Alarms Functionality Not supported Pass through When connected will forward ZoneVu alarm information Video Format S-video Resolution party dependant Frame rate party dependant Supply 240Vac Power 161W Operating System... -
Page 12: Support
2. The GRN will be logged by our staff along with the reported problem. 3. Pack the ZSI-450-IP into the original packing it was delivered in. Failure to do so means the unit may incur further damage in transit, which Meyertech cannot be responsible for. -
Page 13: Decommissioning
Advise you that the ZSI-450-IP is not repairable. You can then decide to have the product returned to you at the standard delivery charge or we can dispose of the product free of charge. Meyertech Limited Office Block One... - Page 14 Appendix 1 List of values for the DVR mode registry entry. DVR Mode Value No DVR type specified Neurodynamics Panasonic HD-220 Vista Columbus Vigilant Elite...
-
Page 15: Warranty
Warranty Please refer to Meyertech Limited ‘Terms & Conditions of Sale of Goods & Services’ for interpretation. If the Buyer establishes to the Seller' s reasonable satisfaction that there is a defect in the materials or workmanship of the Goods manufactured, then the Seller shall at its option, at its sole discretion and within a reasonable time, arrange for the repair or making good such defect or failure in such Goods free of charge to the Buyer (including all costs of transportation of any Goods or materials to and from the Buyer for that purpose), replace such Goods with Goods which are in all respects in accordance with the Contract, or subject, in every...
