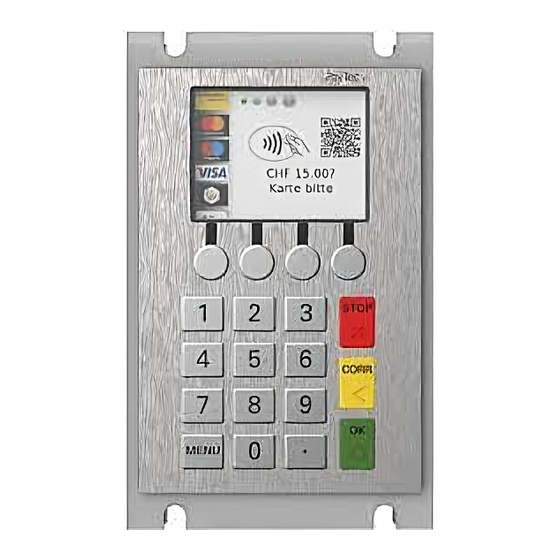

- Page 1 davinci III Vending Integration guide Digital Payments for a Trusted World...
-
Page 2: Table Of Contents
Contents List of abbreviations Installation 2.1 Dimensions for the device’s front panel cutout 2.2 Installing the Vending module 2.3 Installing the contact card slot reader 2.4 Installing the RFID reader 2.5 Supply concept 2.5.1 Connecting the components 2.6 PIN assignment for the connectors 2.6.1 PIN assignment for the davinci III Vending module 2.6.2 PIN assignment for the card readers 2.6.3 PIN assignment for the RFID reader 2.7 Earth Terminal installation Menu – function overview 4.1 HW test menu Dismantling protection 5.1 Display information 5.2 Replacing the Vending module 5.3 Test – installation without activation 5.4 Help with mounting and assembly davinci Safe... -
Page 3: List Of Abbreviations
1 List of abbreviations Europay Mastercard Visa (card payment transactions) Electromagnetic compatibility (electric) Electronic Cash Register eft/pos 2000: CH standard based on the EMV standard in electronic payment transactions Password Software Terminal ID Terminal Transaction The information provided in this documentation has been c ompiled with which relate to i nstances of material or immaterial damage, which the greatest level of care. Due to further developments in the field of are attributable to the use or non-use of the information provided and/ electronic payment transactions, as well as the technology, changes or the use of incorrect or incomplete information, are excluded in may occur that lead to deviations from these instructions. principle insofar as no deliberate or grossly negligent misconduct may be proven with respect to W orldline. W orldline shall therefore accept no liability for the up-to- d ateness, completeness or accuracy of the information provided in these oper- Please visit our homepage worldline.com/merchant-services to view ating instructions. Any claims for liability asserted against W orldline the most up-to-date version of this document. -
Page 4: Installation
2 Installation When installing the components in the device front, the cut- for the screws/ n uts, otherwise proper operation cannot be out dimensions detailed in this document must be applied. guaranteed. P articular consideration should be given to the torque used Please note (Applies to all assemblies) • The device front into which the contact card reader is installed may have a maximum thickness of 6.6 mm. • The nuts/screws used to affix all components must be tightened with a torque of 0.8 Nm (± 10%). The same also applies to the 4 screws that hold the mouthpiece module together. • T he external 4 screws (affixing the reader to the device front) may have a maximum torque of 0.3 Nm for the final tightening step. 2.1 DIMENSIONS FOR THE DEVICE’S FRONT PANEL CUTOUT Cutout for hybrid slot reader Welding studs M5 (4x) DEVICE FRONT CUTOUT Figure: Cutout for the device front for the davinci reader and RFID reader... -
Page 5: Installing The Vending Module
2.2 INSTALLING THE VENDING MODULE The Vending module is mounted to the device front with the the d evice front c utout, as well as the position for the f ixing help of self-locking screws. The applicable dimensions for bolts, can be found in Chapter 2.1. Please note • During the fixing process, ensure that the Vending module is firmly affixed to the device front as, otherwise, the dismantling protection may be triggered. • The contact area for the dismantling protection switch must be flat. Max. installation dimension max. Einbaumass Welding studs M5 (4x) DEVICE FRONT CUTOUT... -
Page 6: Installing The Contact Card Slot Reader
2.3 INSTALLING THE CONTACT CARD SLOT READER To begin with, the mouthpiece and the retainer plate are the card slot reader are screwed to the mouthpiece in step 2. mounted to the device front (step 1). The retainer plate The card slot reader is fixed with self-locking nuts (step 3). f eatures channels to carry away water. The bolts for fixing Step 1: Mounting the mouthpiece and retainer plate Step 2: Mounting the bolts for fixing the card slot reader Step 3: Mounting the card slot reader... -
Page 7: Installing The Rfid Reader
2.4 INSTALLING THE RFID READER The RFID reader is affixed to the device front as follows: Figure: Mounting the RFID reader Open and remove the mounting frame: Figure: Dismantling the RFID reader... -
Page 8: Supply Concept
2.5 SUPPLY CONCEPT The davinci III Vending module is powered using the hybrid taneously with the davinci III Vending module. The following slot reader, a mains adapter or a vending machine. In such figure displays the supply connector: instances, additional components can also be powered simul- Supply connector 2.5.1 Connecting the components The process of connecting the components is described in In the version displayed, the davinci III Vending module (Base this section. The maximum length of the connection between Unit) is connected with an RFID reader and a hybrid slot the reader and the davinci III Vending module is 2 metres. reader. The entire system is powered by means of a supply Only those cables specified by W orldline may be used. connector to the hybrid slot reader. RFID reader davinci III Base Unit hybrid slot reader... -
Page 9: Pin Assignment For The Connectors
2.6 PIN ASSIGNMENT FOR THE CONNECTORS 2.6.1 PIN assignment for the davinci III Vending module Article name Connector type Application Power Screw/plug connection 5 VDC Supply (Aux) Comm RJ45 Ethernet RJI2 Cash register U in U in interface Ext Ext +12V +12V USB type 1.1 Standard type A Host and device + 5V Standard type B Connect to module Mini-DIN 6-pin Connection to +12V +12V the c omponents... -
Page 10: Terminal Installation
3 Terminal installation Following the proper installation of the terminal, this must then be activated and put into operation with the corresponding p arameters. Please note If the communication of the davinci III Vending is executed via a vending machine, the terminal’s operation may differ from these instructions. In the following steps, the possible selection of entries is also made using the arrow button and then confirmed with the OK button. ECR Integration? Standalone Cash register-autonomous installation ECR Integrated Cash register-integrated installation ECR Connection RS.232 Connection to cash register via RS.232 Connection to cash register via LAN Connection to cash register via USB ECR PORT Speed Detect Interface speed 115200 57600 Network Interface Terminal communication directly via LAN IP Configuration DHCP... -
Page 11: Menu - Function Overview
4 Menu – function overview The terminal must be approved in advance by the vending Following the approval, the terminal password must be machine in order for these functions to be selected. entered. Every terminal has one password which is defined as per the customer’s request upon activation. (MPD Command: 4 – 1 Activate the Service Menu on the t erminal) The following menu structures can be selected with the arrow button and then confirmed with the OK button. It is possible to go back one level by pressing the STOP button. Closings Daily closing statement Daily closing statement is executed manually Queries Data transmission Transaction data is transferred Settings Setup Trx storage Displays the transaction log in the terminal Language Terminal language can be changed D / E / I / F at present Service PW Without function Configuration Triggers configuration manually Initialisation Triggers initialisation manually SWUpdate Triggers a software update manually The terminal is cleared and reactivated. Password required 1235789 Trm Reset Info... -
Page 12: Dismantling Protection
5 Dismantling protection In accordance with international PCI regulations, the individual intent during operation, before then being put back into components of the davinci Vending terminal have been o peration. For this reason, the dismantled parts must always equipped with dismantling protection. This is intended to pre- be returned to W orldline in order for these to be re a ctivated. vent it from being dismantled and modified with malicious 5.1 DISPLAY INFORMATION The dismantling protection consists of electronic contacts, Whether or not the dismantling protection of a component which are located on the device front and can only be acti- is active can be determined based on the status information vated when the components are mounted correctly. shown on the d isplay: Display Description Help Tampered (0) • T he security apparatus of the Vending module was • R eturn the Vending module to W orldline Tampered (2) triggered or tampered with Reader Tampered (0) • T he security apparatus of the reader was t riggered • R eturn the reader to W orldline Reader Tampered (2) -
Page 13: Replacing The Vending Module
5.2 REPLACING THE VENDING MODULE When replacing the Vending module it is important to note (static data authentication). These would then, under certain that the card reader must also be replaced. Otherwise, it is circumstances, no longer function correctly. The Swiss no longer technically possible to execute “Plaintext” PIN M aestro card is not affected by this. v erifications against chip cards, which have an SDA chip 5.3 TEST – INSTALLATION WITHOUT ACTIVATION During a menu query regarding activation, the process can Important: In this mode, no transactions are possible. be cancelled by pressing the STOP button and then entering By executing a repeat PowerUp, the user is then taken to the Z p assword. In doing so, the status of the dismantling the same “Activation menu” again. protection will not be queried or amended. In this mode, the terminal can be put into operation and, e.g. initialised. 5.4 HELP WITH MOUNTING AND ASSEMBLY • I f the silicone seal is not mounted correctly, the device must be returned (see example: d avinci 2 Vending). • The silicone seal is mounted correctly, the device is w atertight and can be mounted (example: d avinci III Vending). • The flex cable is very sensitive and must not be bent or contacted. -
Page 14: Davinci Safe
6 davinci Safe Assembly instructions for the davinci Safe terminal. Upper bracket Open housing. Attention – consider the direction Unlocking Housing Base plate assembly Loosen the 4 nuts Your local point of contact can be found at: worldline.com/merchant-services/contacts...
