Nokia ONT G-010G-Q Quick Reference Manual

1. Product Overview
The Nokia Optical Network Terminal (ONT) G-010G-Q is the solution
for home networking delivered by Gigabit Passive Optical Network
(GPON). It is designed to connect
individual users to the network for
ultra-broadband services with
gigabit speed. The Nokia ONT G-
010G-Q provides a GPON
interface to the subscriber and
paves the way to deliver premium
triple play services in a fiber to the
home (FTTH) environment. The
Nokia ONT G-010G-Q is designed to take advantage of the Nokia
award-winning management platforms, including the Nokia 5520
Access Management System (AMS) platform.
This residential bridge ONT is designed to deliver Ethernet services
to the subscriber through FTTH on one Gigabit Ethernet (GigE) port,
which has the ability to burst up to a full gigabit dynamically. It is a
temperature non-hardened bridge ONT suitable for indoor
deployments. Compliant with the standard ONT Management Control
Interface (OMCI) definition, the G-010G-Q ONT can be managed from
a remote site using an AMS and can support the full range of fault,
configuration, accounting, performance and security (FCAPS)
functions.
A. Technical Specifications
Height: 89 mm (3.5 in)
Width: 82 mm (3.2 in)
Depth: 27 mm (1.1 in)
Weight: 0.1 kg (0.22 lb)

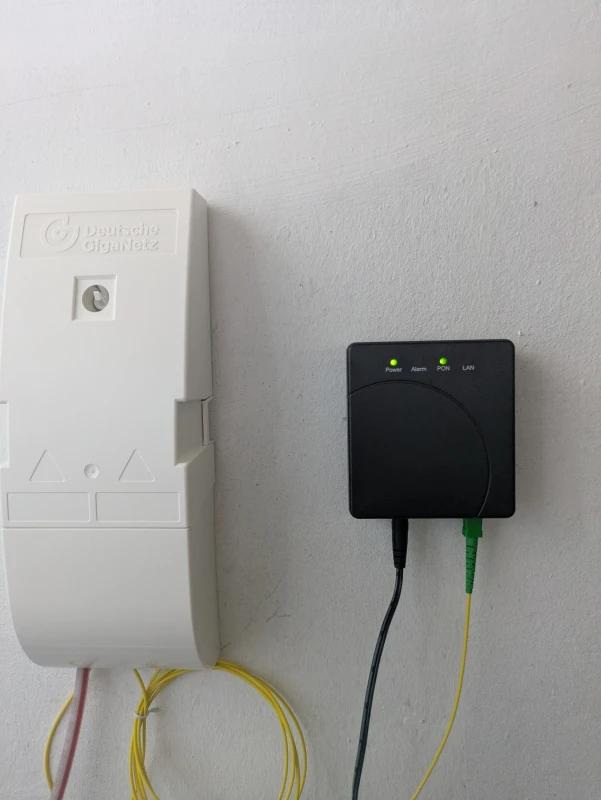

Wall or desk mount
Power consumption:
Standby mode: 2.08 W
•
Typical mode: 2.44 W
•
B. Manufacturer Information
For Products Purchased in EU/EAA Countries
The products are manufactured and imported by Nokia Solutions and
Networks Oy.
Karakaari 7, 02160 Espoo, Finland.
Nokia is a registered trademark of Nokia Corporation.
For Products Purchased in the United States
The products are imported by Nokia of America Corporation.
Offices: https://www.nokia.com/contact-us/offices/#north-
•
america
Support: https://www.nokia.com/networks/business-support/
•
Other contacts: https://www.nokia.com/contact-us/
•
Nokia ONT G-010G-Q Quick Reference Guide
Nokia – Proprietary and Confidential
Use pursuant to applicable agreements
Contact your Internet Services Provider in case of questions on the
product.
2. Safety Guidelines
ALWAYS READ THE PRODUCT GUIDE BEFORE SET UP OR USE OF THE
PRODUCT. IT IS YOUR RESPONSIBILITY TO FAMILIARIZE YOURSELF
WITH THE PRODUCT GUIDE AND WARNINGS, AND TO USE A PRODUCT
PROPERLY. CONTACT YOUR INTERNET SERVICES PROVIDER FOR
FURTHER QUESTIONS.
Warning - Risk of electric shock or fire
Connect the Product power adaptor or cord to the right supply
voltage (for example, 230V in Europe, Turkey, Ukraine, 120V AC
in US, 230V in Australia and New Zealand, 230V in South Africa, 220V
in Russia, Morocco).
The socket-outlet shall be easily accessible.
Pay attention to the power load of the electrical outlet and possible
extension cord. An overburdened power outlet or damaged cords
and plugs may cause electric shock or fire. Check the power cords
regularly. If you find any damage, replace the cord immediately.
Do not connect the plug into an extension cord, receptacle, or other
outlet unless the plug can be fully inserted with no part of the blades
exposed.
Leave adequate space for heat dissipation to avoid any damage
caused by overheating the Product. Do not cover the Product or its
ventilation holes. Blocking the ventilation holes may cause fire.
Use the power adapter provided with your Product and do not fasten
the power cable to building surfaces. Ensure the cable can move
freely. Do not place heavy objects on the cable.
Do not use the Product outside, and make sure all the connections
are indoors.
Do not install, use, or service this Product during a thunderstorm.
There is a remote risk of electric shock from lightning.
Caution - Potential equipment damage
Follow these recommendations to protect yourself and the Product
from harm:
Do not look directly at the optical port without protection.
•
Do not insert any sharp object into the openings of a Product.
•
Do not put the Product near a heat source. Avoid placing the
•
Product in direct sunlight.
Do not put the Product in damp or wet locations; for example,
•
near a bathtub, washbowl, kitchen sink or laundry tub, in a wet
basement, or near a swimming pool. Do not spill any liquid on
the Product.
Do not touch the Product or its power adapter or cord with wet
•
hands.
Do not place the Product on an unstable surface or support.
•
Do not place heavy objects on top of the Products.
•
Do not use liquid or aerosol cleaners; unplug the Product and
•
use a soft, dry cloth for cleaning.
CID210702
3FE-45458-AAAA-TCZZB
Issue 1, July 2021
