Summary of Contents for Mission QX-1 MKII

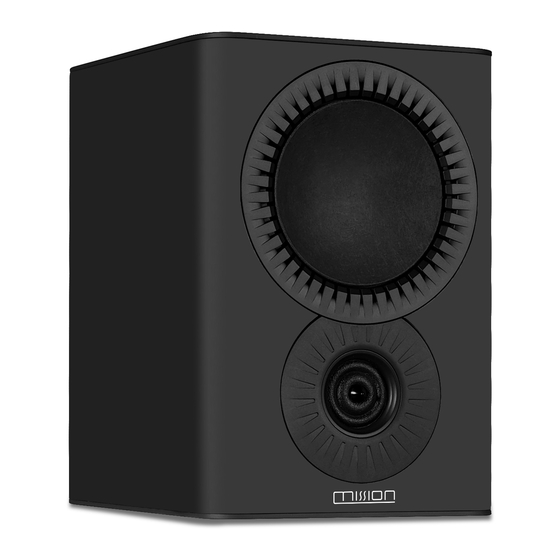

- Page 1 QX-1 MKII QX-2 MKII Scan the QR code using a smart-phone device, for product warranty registration online. QX-3 MKII QX-4 MKII QX-5 MKII QX-C MKII QX-12SUB MKII User's Manual...
-
Page 2: Important Safety Instructions
Important Safety Instructions Before installing this product read all these instructions! This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Before making any connections, switch all the units in your system o at the mains. -
Page 3: Warranty Conditions
Equipment for attention under warranty should be considered return carriage paid. If equipment is found to comply with the published specification, Mission reserves the right to raise a charge. The above conditions do not a ect your statutory rights as a consumer. - Page 4 Mission is a brand that purveys lifestyle audio that fuses Hi-Fi heritage with contemporary design. Music leads, technology follows. The QX MKII Series is the latest in a long line of distinguished Mission loudspeakers. These technologically advanced loudspeakers will complement the finest electronics and décor. This series incorporates purpose – designed bass driver cones, precision engineered motor systems and advanced tweeters.
-
Page 5: Connecting Your Loudspeakers
Bi-Wiring All floorstanding speaker models in the Mission QX MKII Series can be bi-wired for improved performance. Remove both pairs of shorting links and connect a cable to each pair of terminals, running them to a common connection at the amplifier output terminals. In the figure to the right, the terminal panel on the left is bi-wired;... -
Page 6: Positioning Your Loudspeakers
Floor Standing and Bookshelf Loudspeakers Mission QX-3 MKII, QX-4 MKII and QX-5 MKII loudspeakers should be placed on the floor (ideally on spikes). Mission QX-1 MKII and QX-2 MKII should be mounted on rigid stands, ideally spike coupled to the floor. -
Page 7: System Connections
When used with a subwoofer, digital AV processors usually require you to set the size of the loudspeakers for good bass management. This is usually ‘Large’ or ‘Small’. With the exception of the QX-1 MKII and QX-2 MKII all the loudspeakers should set to ‘Large’. - Page 8 Mains Power Fuse IEC Mains Input Socket Designed and AUTO SENSE - engineered in the United Kingdom 8 Mains Power Switch PHASE - IAG-MISSION CROSSOVER - 40Hz 150Hz VOLUME - Serial No. INPUT - WARNING: SHOCK HAZARD-DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR...
- Page 9 Operating Your Subwoofer QX-12SUB MKII Operating Your Subwoofer Phase Switch: If the bass is indistinct or lacks depth, the Phase switch may need adjustment. Set the switch to 0° and listen carefully to some music with extended bass. If there is insu cient bass output from the subwoofer set the Phase switch to 180°.
-
Page 10: Warranty Coverage
We hope you will derive many years of good service from our products. Mission warrants its products, subject to the following terms and conditions below, to be free from defects in materials and workmanship. - Page 11 Mission or the authorised distributor, dealer or service centre may make a charge for the supply of new packaging for the return of the repaired item. Please note, insurance is recommended as goods are returned at the owner’s risk.
- Page 12 Other than the warranty and services set out in this warranty, to the fullest extent permitted by law, Mission shall not be liable to you and/or any third party or entity whatsoever for: Any loss, damages and/or malfunction caused to any product(s) which is/are connected to any of the products covered by this warranty.
-
Page 13: Specifications
Specifications Model QX-1 MKII QX-2 MKII General Description 2-way Bookshelf Speaker 2-way Bookshelf Speaker Design Philosophy and Core Technology Enclosure Type Bass Reflex Bass Reflex Transducer Complement 2-way 2-way Bass Driver 5"(135mm) Long Fiber Composite Cone 6.5"(165mm) Long Fiber Composite Cone... - Page 14 Specifications Model QX-5 MKII QX-C MKII General Description 3-way Floorstanding Speaker 2-way Centre Speaker Design Philosophy and Core Technology Enclosure Type Bass Reflex Bass Reflex Transducer Complement 3-way 2-way Bass Driver 12" (300mm) Cone Long-throw x1 5" (135mm) Long Fiber Composite Cone X2 Midrange Driver 6.5"...
- Page 16 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK Tel: +44(0)1480 452561 Email: service@mission.co.uk www.mission.co.uk IAG reserves the right to alter the design and specifications without notice. All rights reserved © IAG Group Ltd. Mission is a member of the International Audio Group.
