BBG Industry 30 User Manual

Weighing indicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Industry 30
Weighing indicator
USER MANUAL
Edition:10052001A

Advertisement

Table of Contents
loading

Related Manuals for BBG Industry 30

Summary of Contents for BBG Industry 30

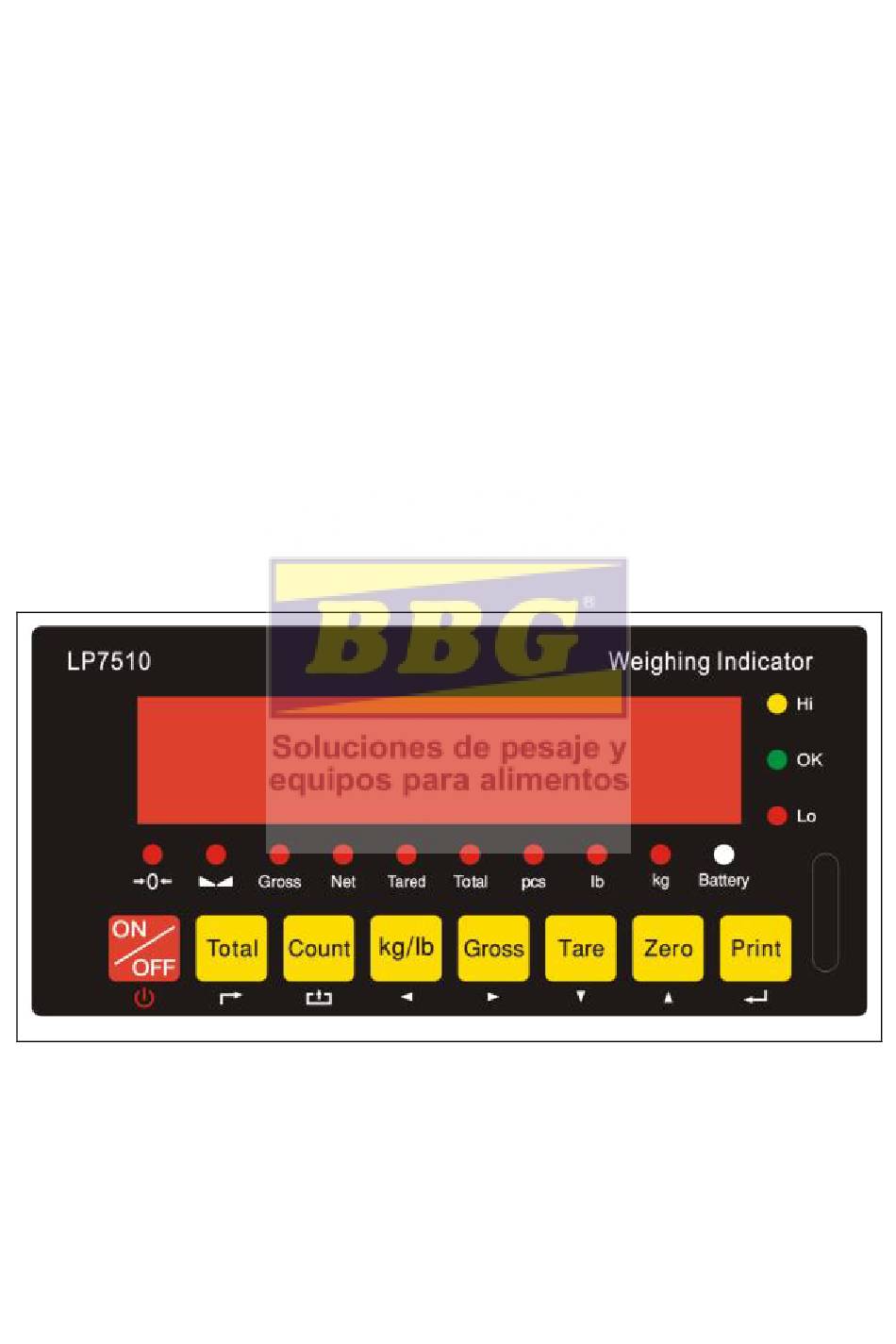

  • Page 1 Industry 30 Weighing indicator USER MANUAL Edition:10052001A...
  • Page 2 Safety Instruction For safety operation pls. follow the safety instruction. WARNING Setting. Calibration Inspection and Maintain of the indicator is prohibited by Non-professional staff. WARNING Pls. make sure the weighing display have good ground in using WARNING The indicator is the static and sensitive equipment, cut off the power during electrical connections, internal components touched by hand is prohibited, and please take the measure of anti-static.

  • Page 3: Table Of Contents

    LIST 1. Instruction ....................1 1.1 Main function .................. 1 ................ 1 Technical parameter ................... 2 Drawing ................3 Battery instruction 2. Installation and calibration ..............4 2.1 Power supply connection ............... 4 2.2 Loadcell connection ............... 4 2.3 communcation interface ..............5 2.4 4~20mA ..................

  • Page 4: Instruction

    1. Instruction This weighing indicator is designed for bench scale. Floor scale, the basic weighing function include: Hold. Print kg/lb conversion . optional: I/O , 4-20mA output. 1.1 Main function Weighing function: Zero, tare, G.W, N.W, accumulation. printing, animal -weighing. kg/lb convert.
  • Page 5 1.3 Outline（mm）...

  • Page 6: Battery Instruction

    1.4 Battery instruction 1. . when you use the internal battery first time， you should charge the battery fully, to prevent low voltage resulted from self leakage of battery. 2. when the “red” light flash means low battery, pls. charge it in time 3.

  • Page 7: Installation And Calibration

    2.Installation and calibration 2.1 Power supply connection The indicator is powered by adapter, you plug the adapter directly into the “DC” pin at the back cover the indicator is ok. 2.2 Connection of load cell and indicator The indicator can connect with 6 load cell of 350Ω at most, 4 wire or 6 wire load cell both ok.

  • Page 8: Communcation Interface

    Weighing display Load cell +EXC + voltage + output signal ----------- Shielded wire - output signal -EXC -IN HD +IN +EXC -EXC - voltage 2.3 Communication interface RS232 : DB9 Pin or 3 Pin DB9 definition Pin function and definition as bellows: DB9 joint Definition Function...
  • Page 9 Inner connection TXD RXD GND Pin definitions： Pins Definitions Function Sending data RS232 Receiving data Ground RS485 output “A”port RS485 RS485 output”B”port 2.4 4-20mA output Technical parameters: Resolutions: 1/1000 Outside Load: 100-350Ω Connection: Inside connection: 4-20mA, load input port connect with “I” of J2, Ground port connect with “...

  • Page 10: 20Ma

    Connect the 250Ω to the 4-20mA, adjust the multimeter to the current stalls, the red pan connect the loading port, and the black pan connect” GND” to test the output current. Calibration: Press” Print” and “ Total” go to C32, show[out-4], the output current should be 4mA.
  • Page 11 Out4 Open stable control function Output stable control signal Out1 Weight>=C13 instant connection Feeding control signal Out2 Weight<=C14 instant connection Feeding control signal Out3 OUT1、OUT2 close When OUT1、OUT2 C33＝2 connect will output alarm signal, connect with buzzer Out4 Weight<=C14 constant Feeding start and connection stop...
  • Page 12 50kg, OUT 2 OUT3 instant connection and break off, OUT 4 constant connection. DB9 pin definition port 1 pin output signal pin Out1 6 pin output signal pin Out1 2 pin output signal pin Out2 7 pin output signal pin Out2 3 pin output signal pin...

  • Page 13: Basic Operation

    3. Basic operation 3.1 keypad instruction Weighing data...
  • Page 14 Hold Data hold Gross Gross weight Net weight Tare tare The weighing data is stable Weight is zero Overload Underload Decimal Show the counting status. TOTAL Go to accumulation mode Keys function keys Key name Key function 1.work with “ZERO” TARE” “ON/OFF” key Print to perform many functions.
  • Page 15 Counting operation Counting Kg/lb convert Covert between kg and lb 1. Accumulation 2. work together with “ Print” to perform Accumulation The accumulation function and check the accumulation result Power on/off Press 2 seconds to power on or power off Power on &...
  • Page 16 Press “TARE” key, the gross weight is tared, indicator show the Net weight, the “Net” “tared” status light is on. At tare mode, Press” TARE” key, clear the tare weight, the indicator will show the gross weight. Accumulation operation At Zero mode, load weight till stable, Press go to accumulation mode, ”Total”...
  • Page 17 3.7 Hold There are two different hold function. Peak hold function and data hold function. And the setting is different accordingly. C11=3 Automatic hold function C11=0 close hold function. 3.8 COUNT 1.At weighing mode, load the weights on the platform scales, Press” Count”...

  • Page 18: Power On

    The key functions in setting： ENTER DOWN LEFT RIGHT BACK EXIT CALIBRATION POWER 4.2. Step of calibration operation: According to the second method which can enter setting menu, C01-C39 step display Remark Method of operation [C01 After enter calibration mode, it display [C01 press [C01 Weight unit...
  • Page 19 2=lb press [C02 Set decimal digits press [C02 option：0/1/2/3/4 press [C02 Select decimal digit example：two decimal point： [C02 2] [C03 Set graduation press [C03 press option：1/2/5/10/20/50 [C03 Select required graduation press example： graduation 5： [C03 5] [C04 Max capacity press press [0100.00] [0100.00]...

  • Page 20: Print Function

    press [CAL For example: the weights is …… 80kg [0080.00] As bellows: [CAL End] Input the 0080.00, count down , then indicator shows 0080.00 , calibration is over. If you want to set application function parameter. Press “PRINT” if you want to exit press “COUNT”...

  • Page 21: Hold Function

    option：0= close power saving setting setting Power saving 3= close display if no change within 3min. setting 5= close display if no change within 5 min. LCD Version: 0=Close he backlight 1= backlight when the weight change or press the keyboard 2=constant backlight option：0=close hold function 1=Peak hold /2=Data Hold...
  • Page 22 option： 0= Close serial interface data output 1=Continuous sending, connect second display 2=Print method, connect printer. 3=Command request method ， Serial interface Communication data output method connect computer. setting 4=PC continues sending format, connect computer. 5=PC/ second display continuous sending format. option：...
  • Page 23 Options: 0= close zero tracking 0.5=±0.5d 1.0=±1.0d 2.0=±2.0d Automatically zero 3.0=±3.0d tracking range 4.0=±4.0d 5.0=±5.0d Zero tracking Note: 1. d = division 2. the zero tracking range can not bigger than manual zero range. Options: 0= close zero tracking time Automatically zero 1= 1 second tracking time...
  • Page 24 Digital filter option：0= close dynamic filter Dynamic filter 1=1 digital filter strength ： 2=2 digital filter strength Instruction Dynamic filter 3=3 digital filter strength collecting the data 4=4 digital filter strength filter before loaded 5=5 digital filter strength weight stable. 6=6 digital filter strength Note ：...
  • Page 25 Muti C34= 0~99 Add. Code communication Communication add. add. Wireless C35=0~99 signal communication Gravity C36=9.7000~9.9999 calibration location Gravity C37=9.7000~9.9999 destination Version No. Preserved menu...

  • Page 26: Output Format

    5. Output format 5.1 Second display continuous sending format Output continuous format State A Bits0,1,2 Decimal point position XXXXXX0 XXXXXXX XXXXX．X XXXX．XX XXX．XXX Bits3,4 Division State B BitsS function Bits0 gross=0, net=1 Bits1 Symbol: positive =0,negative =1 Bits2 Overload(or under zero)=1 Bits3 dynamic=1 Bits4...
  • Page 27 State C Bit2 Bit1 Bit0 unit Kg or lb Bit 3 printing=1 Extend Bit 4 display=1 Bit 5 Constant 1 Bit 6 Constant 0 5.2 Computer continuous sending format Data weight status, ST= standstill, US= not standstill, OL= overload weight mode, GS=gross mode, NT=net mode weight of positive and negative, “+”...

  • Page 28: Print Output Format

    PRINT Print the weight G.W/N.W Read gross weight or net weight Kg/lb Kg/lb conversion Check gross weight at net weight mode R command receive data format 5.4 Print format 004 （Serial No.） ID.NO. Date: XX.XX. XX (yy.mm.dd) Time: XX.XX.XX (hh.mm.ss) GROSS 8.88kg (gross weight) 2.88kg （tare）...
  • Page 29 6. Maintenance 6.1 Regular error and solution ERROR REASON SOLUTION 1. Overload 1. reduce the weight 2. wrong connection 2. check load cell connection with load cell 3. inspection load cell. Check UUUUUU 3. load cell has quality the input and output problem.

  • Page 30: Maintain

    During calibration, the After the platform is stable, ERR4 signal is unstable start calibration ERR5 Change PCB 6.2 Daily maintain 1. Protect the indicator from strong sunlight to prolong the using life 2. Good connection between load cell and indicator. Far from away from strong electric field, magnetic field.
  • Page 31 Hold function １ Prohibit kg/lb conversion Upper limit alarm 000000 Under limit alarm 000000 Inner code Date setting Time setting Serial interface data output Serial interface Baud rate 3（9600） Zero manually Initial zero Zero tracking range 0．5 Zero tracking time Overload range Negative range Standstill time...

  • Page 32: Packing List

    6.4 Packing list Packing list ITEM NAME UNIT PACKING Weighing indicator Plastic bag China/DC9V US/DC9V UK/DC/9V Adapter EU/DC9V AU/DC9V OTHERS USER MANUAL RS232 3 PIN OR DB9 LOADCELL Quick PLUG disconnect Φ5/3 core shield Signal cable signal cable 3 coreΦ0.75mm Power cable Bracket Wall-mounted...
