I N S T A L L A T I O N G U I D E

TS-1

New Construction Bracket

3/4

INTRODUCTION

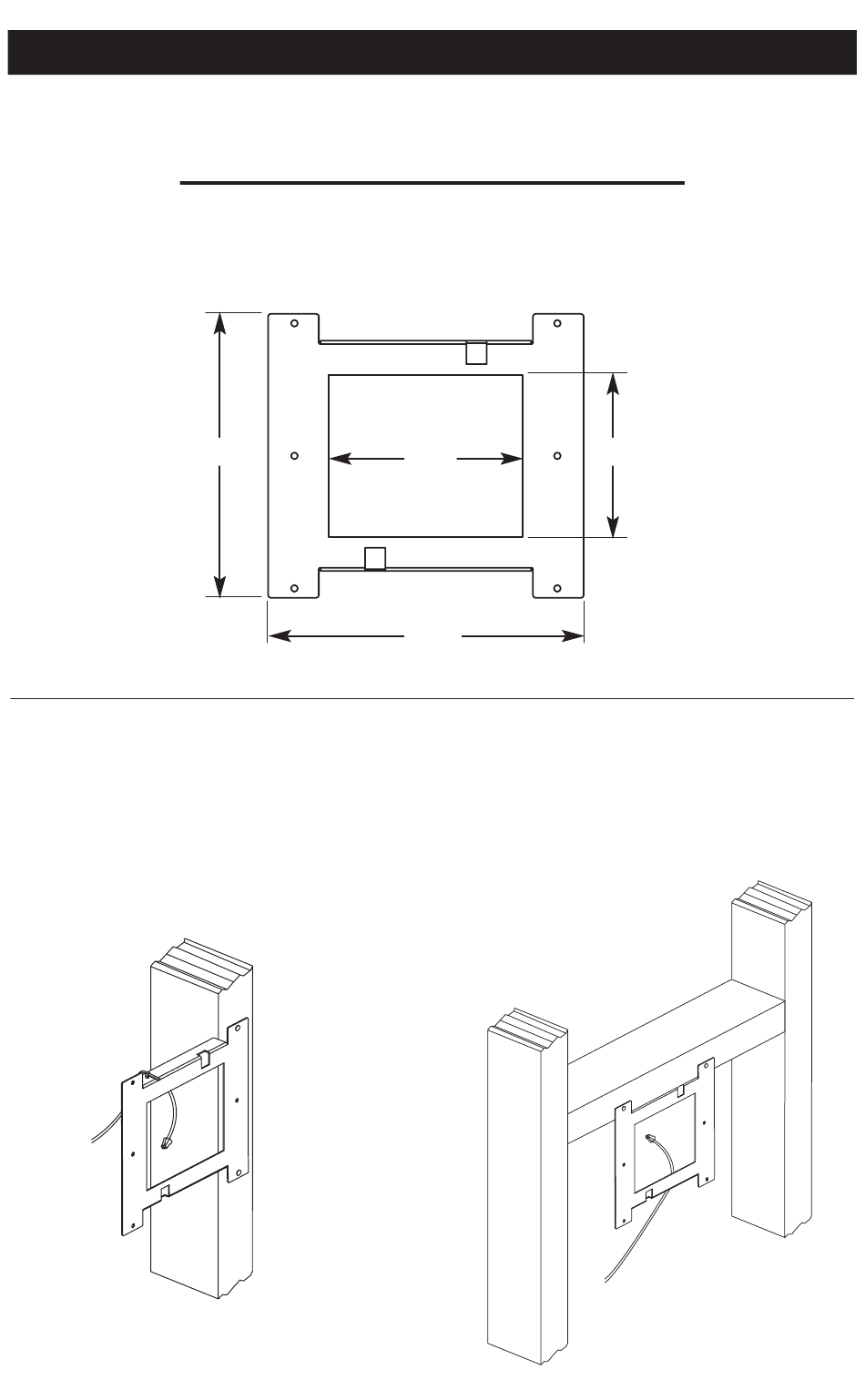

The TS-1 BKT, shown above, is a new construction bracket for the IntelliPad

Ci TS-1 Touch

Screen Keypad. It is fastened to the horizontal or vertical stud of a framed wall prior to hanging

drywall and reserves an installation location for a single TS-1 touch screen keypad. Mounting

may be accomplished on the right, left, top or bottom side of a stud. Standard drywall nails or

screws (not supplied) attach the TS-1 BKT to the stud. The TS-1 BKT must be level before the

application of drywall.

Figure 1

Figure 2

Vertical stud

Horizontal Stud
