Bravi Platforms SOLO GYPS User And Maintenance Manual

Drywall panel hoist
Hide thumbs

Advertisement

Quick Links

Download this manual

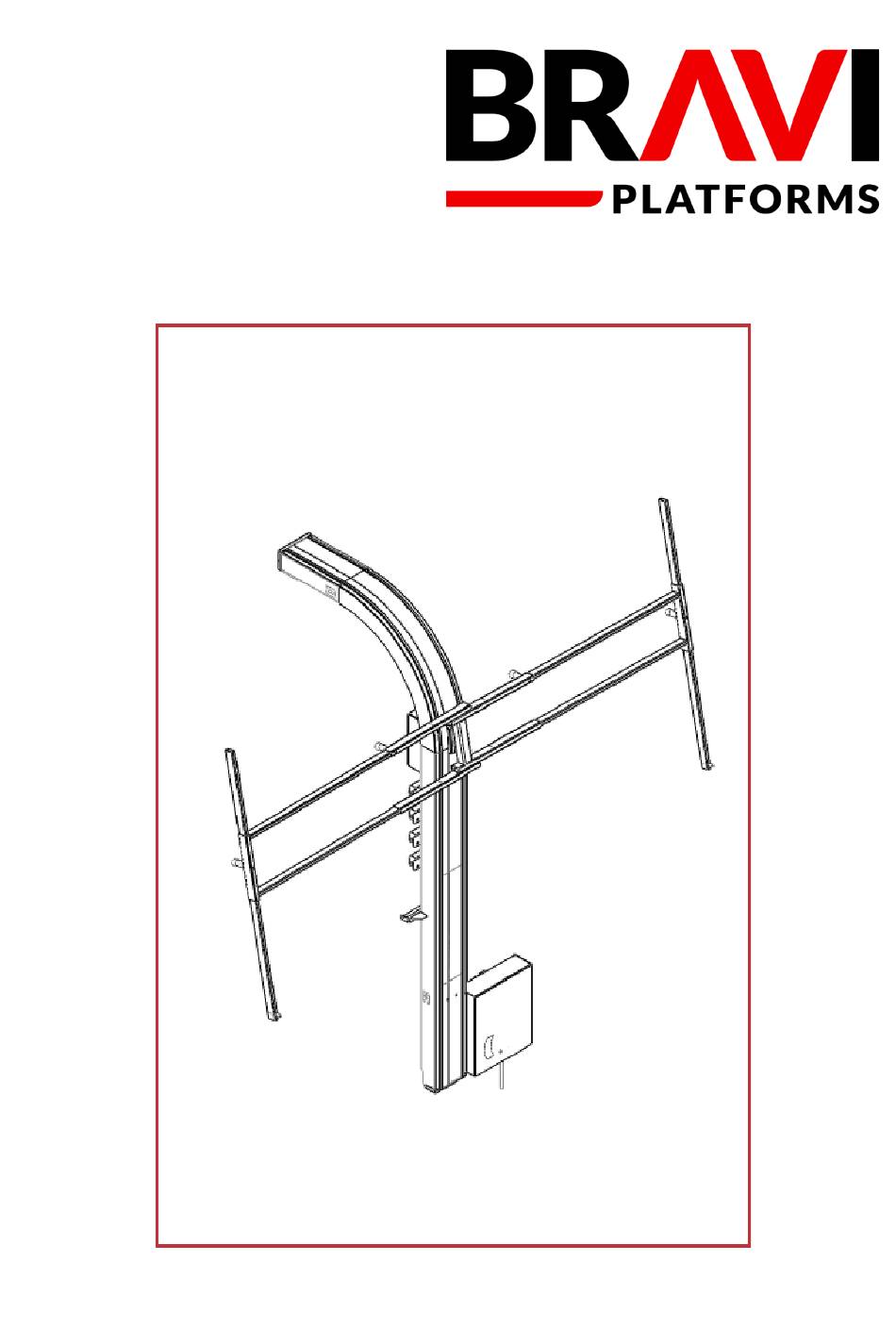

USER AND MAINTENANCE MANUAL
Original instructions
SOLO GYPS
DRYWALL PANEL HOIST
EC Directives
English
September 2020 rev0

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOLO GYPS and is the answer not in the manual?

Questions and answers

Related Manuals for Bravi Platforms SOLO GYPS

Summary of Contents for Bravi Platforms SOLO GYPS

  • Page 1 USER AND MAINTENANCE MANUAL Original instructions SOLO GYPS DRYWALL PANEL HOIST EC Directives English September 2020 rev0...
  • Page 2 Part 1 Introductory Informations SOME NOTES ON THIS USER MANUAL Remember that the USER MANUAL is not an accessory of the SOLO GYPS drywall panel hoist but it is an inte- gral part of it and a SAFETY MEASURE (EN 12100-1).
  • Page 3 Therefore, who works in these areas or is responsible for these phases must be a trained person ac- quainted with the fact that are “dangerous” and as regards the SOLO GYPS drywall panel hoist protec- tions category, has not been possible to eliminate them entirely.

  • Page 4: Table Of Contents

    Part 1 Introductory Informations INDEX Content Page Part 1 Introductory Informations Part 2 Safety Prescriptions 2.11 Part 3 Machine Specifications 3.13 Part 4 Installation and Assembly 4.14 Part 5 Control panel 5.20 Part 6 Operations 6.21 Part 7 Cleaning 7.23 Part 8 Ordinary Maintenance 8.24...
  • Page 5 It is strictly forbidden any reproduction, even partial, of the text and illustrations. The original copy has been given to the owner together with all of the documents relating to the SOLO GYPS drywall panel hoist. Macchina/Machine...
  • Page 6 1.2.1 The number of this manual is written at the bottom of each page. Each SOLO GYPS drywall panel hoist has its own number, with the consequent CE marking. 1.2.2 To contact Braviisol Divisione Meccanica srl or its centres of assistance concerning the SOLO GYPS drywall panel hoist, please always refer the model and serial number legibly affixed to the identification plate.
  • Page 7 Part 1 Introductory Informations 1.3 GENERAL DELIVERY NOTES SOLO GYPS drywall panel hoist can be shipped in containers, or on a pallet wrapped in a protective film, packed in boxes or on the platforms Always verify that upon receipt: 1 - The packaging is intact 2 - The supply corresponds to the order specifications (see bill of lading or packing-list) 3 - There is no damage to the SOLO GYPS drywall panel hoist.
  • Page 8 Part 1 Introductory Informations LIMITED WARRANTY—Warranty Statement IF THE WARRANTY IS NOT INCLUDED IN THE SALES CONTRACT, THE FOLLOWING GUIDELINES APPLY TO THE MACHINE WARRANTY. The Manufacturer BRAVIISOL SRL warrants that all new units of equipment manufactured and sold by it conform to the Company latest specifications.
  • Page 9 Part 1 Introductory Informations PROCEDURE OF THE WORKS COVERED BY THE WARRANTY: • The manufacturer must be notified of all claims covered by the warranty within 48 hours of the anomaly, in writing or by fax (not only verbally) and as detailed as possible. •...
  • Page 10 The SOLO GYPS drywall panel hoist enables drywall panel lifting by a single person. Safety is our priority. The SOLO GYPS drywall panel hoist eliminates the manual drywall lifts and make the job safer. Com- posed by a lightweight, electric powered track and detachable adjustable frame to hold and lift sheets.

  • Page 11: Part 2 Safety Prescriptions

    Part 2 Safety Prescriptions INTRODUCTION TO THE SAFETY PRESCRIPTIONS WARNING Read and follow these warnings and the instructions that follow. Failure to do so could result in serious property damage and/or serious bodily injury. a) Keep work area clean. Cluttered areas invite injuries. b) Observe work area conditions.
  • Page 12 Part 2 Safety Prescriptions o) Locking pins. Do not use the device if the locking pins for the anchorage points, the extendable arms and crossarms are not in place. p) Manouvers. Do not manouver the platform in order to have rough move- ments.
  • Page 13 Part 3 Specifications 3.1 SOLO GYPS DRYWALL PANEL HOIST SPECIFICATIONS DRYWALL PANEL QUANTITY CAPACITY LOAD RATING 40 Kg (89 Lbs) NET WEIGHT 45Kg (99,2 Lbs) DRYWALL PANEL SIZE CAPACITY 365 cm x 120 cm (12 ft x 4ft) Load Cradle Rising button Load Cradle Lowering button 3.13...
  • Page 14 Part 4 Installation and Assembly 4.1 SOLO GYPS INSTALLATION AND ASSEMBLY ON PLATFORMS Before performing the Solo Gyps drywall panel hoist installation it is necessary to bring the Platform to the Zero Power Condition, that is: - Platform completely lowered (see PART 5 of the Platform user manual).
  • Page 15 Part 4 Installation and Assembly INSTALLATION ON LEONARDO HD Install the Solo Gyps drywall panel hoist main frame matching the anchorage point to the Leonardo HD lateral side cage as showed in fig1b Anchorage points fig1b Insert the safety pins for the anchorage points as showed in fig2b 4.15...
  • Page 16 Part 4 Installation and Assembly Safety pins fig2b Install the load cradle to the main frame as showed in fig 3a fig3a Install the crossarms to the extendable arms as showed in fig4a. Secure them using the safety pin(one position available fig5a) 4.16 09 - 2020 - Rev 00 07-2011 - Rev.00...
  • Page 17 Part 4 Installation and Assembly fig4a fig5a Install the extendable arms to the load cradle as showed in fig 6a. Secure them using the safety pins (two positions available fig7a-fig8a) 4.17 09 - 2020 - Rev 00 07-2011 - Rev.00...
  • Page 18 Part 4 Installation and Assembly fig6a fig7a fig8a 4.18 09 - 2020 - Rev 00 07-2011 - Rev.00...
  • Page 19 Part 4 Installation and Assembly For Leonardo HD: connect the Solo Gyps drywall panel hoist plug to the Platform’s socket as showed in fig 3b. Secure the electric cable as showed in photo. fig3b For Leonardo HD: connect the Solo Gyps drywall panel hoist plug to the Platform’s socket as showed in fig 4b.

  • Page 20: Part 5 Control Panel

    P1 - Emergency Stop Button In case the Solo Gyps Drywall panel hoist should work improperly or there should be an urgent need to block all the moving activities of the device, press this button to cut off the power supply.

  • Page 21: Part 6 Operations

    Drywall Panel Installation Procedure Drive the Platform, with the Solo Gyps drywall hoist installed on board, at the desired position following the instruction of the 6.1 of this manual. At this point the operator can operate the installation of the dry-...
  • Page 22 Lower the platform at the minimum height • Repeat the procedure Due to the fact the Solo Gyps drywall panel hoist is electrically connected to the Platform batte- ries check during operations the top control battery gauge in order to verify the battery charge level.

  • Page 23: Part 7 Cleaning

    Part 7 Cleaning 7.1 CLEANING 7.1.a As the Platform works in presence of dusts, it must be daily or whenever it would be necessary clean it. 7.1.b The person in charge with the cleaning must have read and well understood the safety prescriptions shown in this manual (Part 2) 7.1.c Before each cleaning operation bring the Platform to the Zero Power Condition and unplug the Solo...

  • Page 24: Ordinary Maintenance

    Part 8 Ordinary Maintenance 8.1 PREFACE AND GENERAL MAINTENZANCE TIPS 8.1.a Regular inspection and conscientious maintenance is the key to efficient economical op- eration of your device. The manufacturer has worked hard to improve device reliability and simplify ordinary maintenance operations. Your equipment will perform satisfactorily with a minimum of service and repair.
  • Page 25 Part 8 Ordinary Maintenance 8.25 09 - 2020 - Rev 00 07-2011 - Rev.00...
  • Page 26 Part 8 Ordinary Maintenance PART NUMBER QUANTITY DESCRIPTION 217.10002 SOLO GYPS MAIN FRAME 217.10003 RUNNER 217.10008 ELECTRIC MOTOR BRACKET 300.0100A ELECTRIC MOTOR 217.10009 ELECTRIC MOTOR SPUR GEAR 217.10010 SPROCKET 217.60018 LOWER CHAIN GUIDE 217.60012 UPPER CHAIN GUIDE 217.10016 LIMIT SWITCH BRACKET 315.9001...

  • Page 27: Technical Informations

    Part 9 Technical Informations 9.1 ELECTRIC DIAGRAM 9.27 09 - 2020 - Rev 00 07-2011 - Rev.00...
  • Page 28 BRAVIISOL Divisione Meccanica S.r.l. S.S. 16 Adriatica km. 314,600 60022 Castelfidardo (AN) Tel. 071.7819090 Fax 071.7819355 E-mail: info@bravi-platforms.com Website : www.bravi-platforms.com...
