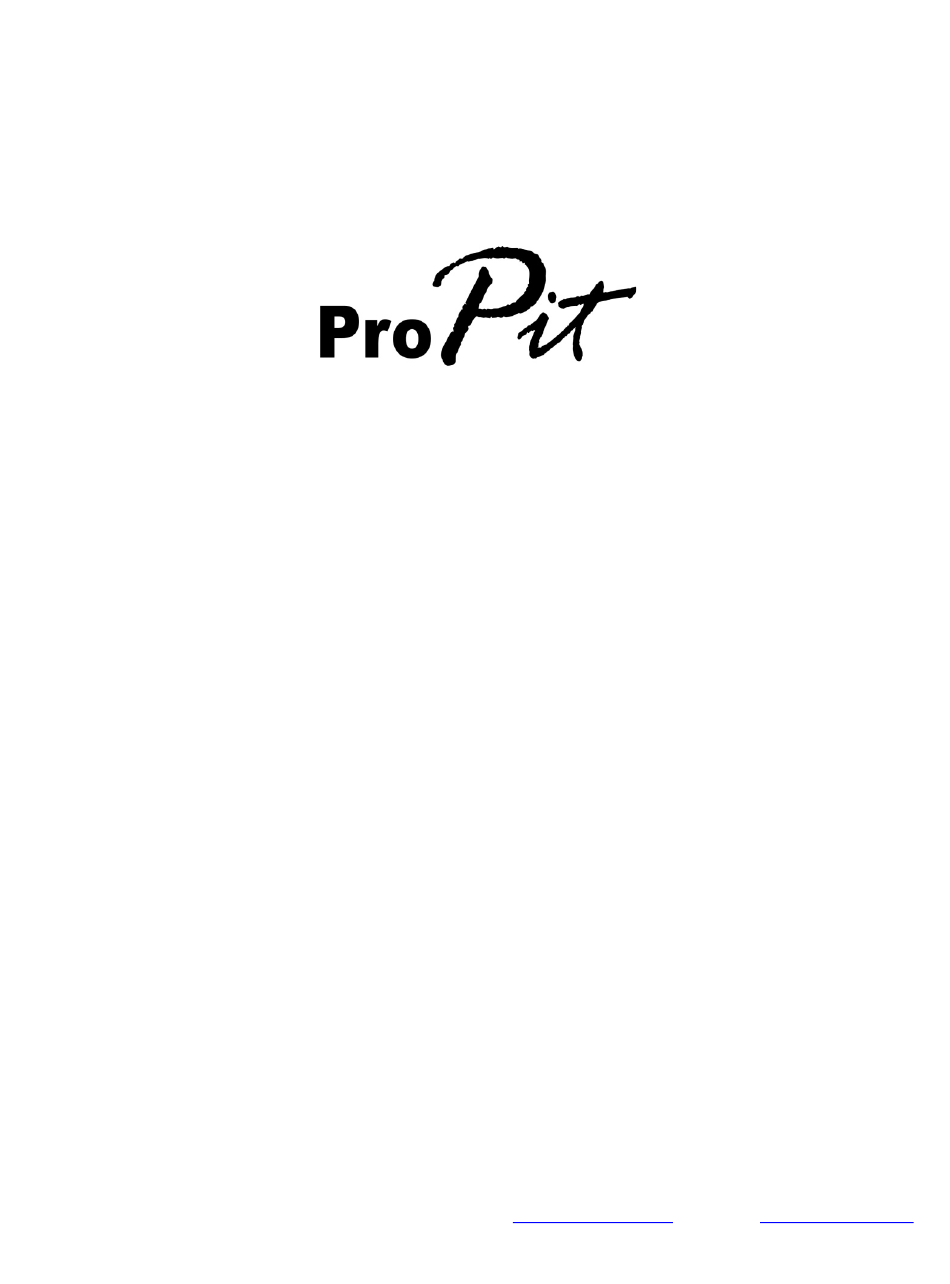

TM
USER MANUAL
Please read this manual before operating your units and keep
it for future
reference.
VRinsight
Virtual Reality Insight
All stated here is subject to change without advanced notice for improvement.
Tel : +82-31-284-7090~91 Fax : +82-31-284-7092 E-mail :
tech@vrinsight.com
Web site :
www.vrinsight.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProPit and is the answer not in the manual?

Questions and answers

Related Manuals for VRinsight ProPit

Summary of Contents for VRinsight ProPit

  • Page 1 USER MANUAL Please read this manual before operating your units and keep it for future reference. VRinsight Virtual Reality Insight All stated here is subject to change without advanced notice for improvement. Tel : +82-31-284-7090~91 Fax : +82-31-284-7092 E-mail : tech@vrinsight.com...
  • Page 2 VRinsight panel The ProPit panel of VRinsight is a control and screen system for propel type aircrafts. All gauges are displaying synchronized with Microsoft’s Flight Simulator, supporting the default propel type aircraft of MSFS and add-on propel type aircrafts. Gauges are with full functional rotation knobs, push buttons and GPS giving for users to be experienced the most enthusiastic flight.
  • Page 3 NOTE : This manual could be redistributed unless you modify the contents. This manual has been written out on a ProPit panel basis. All software (& software versions) stated here is subject to change without advanced notice for improvement.
  • Page 4 Features • Same functionality and externality with real Propel type aircraft cockpit. • Gauges on the panel; - SPEED indicator - ALTITUDE indicator with position bar setting rotary knob - ALTIMERTER with BARO setting rotary knob - TURN COORDINATOR - HEADING indicator with heading bug and gyro rotary knob - VERTICAL SPEED indicator - VOR1 indicator with OBS rotary knob - VOR2 indicator with OBS rotary knob...

  • Page 5: Usb Connection

    VRiSim Installation In the ProPit package, one “Install DVD” is included. When you insert it in DVD driver of your computer, “VRinsight HTML” document will be shown. Then click “VRiSim” (operating software) and install it at a proper folder. “VRiSim” is the main operating software of VRinsight used for all VRinsight flight panels.
  • Page 6 Controls & Displays for each part Controllable gauges : VOR1, VOR2, HDG, ALT, Altitude indicator and Heading indicator Display gauges : Airspeed indicator, Turn coordinator, RPM indicator, CLOCK, Fuel indicator, Fuel flow indicator Controllable buttons : RNG+/-, DIR, MENU, CLR, ENT, CRSR, PROC, TERR, FPL, MSG, OBS, NRST...

  • Page 7: Monitor Setting

    Monitor setting 1. Check the current display properties in order that another sub monitor is connected or not. (See “Settings”) 2. Connect video cable of to your computer. 3. Connect AC/DC adaptor to your 4. Check the display property in order that monitor is detected or not.
  • Page 8 * If the monitor (=Monitor 2) isn’t detected, check the connection of video cable & AC/DC adaptor. * If your OS is VISTA, please restart your computer. 5. When the monitor is recognized, click monitor 2(= monitor). 6. Adjust the resolution for monitor.

  • Page 9: Multiple Display

    11. Multiple display 11-A. NVIDIA 11-A-1. Launch “NVIDIA Control Panel”. 11-A-2. Go to “Set up multiple displays and check “Configured independently from each other (Dualview). Then the monitor of will independently display your “Desktop” view.
  • Page 10 11-B. ATI 10-B-1. Launch “Catalyst(TM) Control Center”. The monitor of will automatically display your “Desktop” view. 11-B-2. Go to “Displays Properties” and select monitor 2.
  • Page 11 Software Installation Driver and application software “VRiSim” is installed to make ProPit work in the PC. VRiSim is application software managing VRInsight's flight simulation hardware panels. Multiple hardware panels can be used with single instance of VRiSim. To reduce distributing file size, software installer is supplied as divided package;...
  • Page 12 Select Aircraft Open device’s tab to select “Aircraft”. Fly Now! As the aircrafts are specified to fly with VRi’s unit, press “Fly Now!” button. Remember that Flight Simulator should be running and you are in-cockpit before pressing this button. Otherwise, you will see following message.

  • Page 13: Before Flight

    Preparing before Flight Step 1 : Initial check up Before flight with , please check the followings are done A. Install of VRiSim. * Check that “Install USB-Serial Driver” is checked or not. B. Confirm that proper version of FSUIPC is installed or not (FSUIPC v3.80 or later for FS9 / FSUIPC v4.26 or later for FSX) C.
  • Page 14 Initial screen of MSFS will be shown like pic 1. Then undock it. Pic 1 Step 3. Run VRiSim . Select your aircraft and press “Load FS Module” like pic 2. Step 3. Run VRiSim . Select your aircraft and press “Load FS Module” like pic 2. Pic 2...
  • Page 15 Step 4. Confirm all gauges are move to ProPit like pic 3. Pic 3 Step 5. If all gauges are still in MSFS9 / MSFSX window like pic 4, it means Pic 4...
  • Page 16 “Panel Config” window at the bottom of your monitor like pic 5. Pic 5 Step 7. Input the X & Y position of sub monitor for ProPit and press “Redraw”. Step 8. Confirm the gauges display has been move to ProPit panel. Then press “Save”...
  • Page 17 X, Y Current position of gauges display window ++ U Moves gauges display window to up ++ D Moves gauges display window to down ++ L Moves gauges display window to left ++ R Moves gauges display window to right W, H Current size of gauges display window ++ H...
