Z3 Technology DME-10J User Instructions

Hevc hd multimedia system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

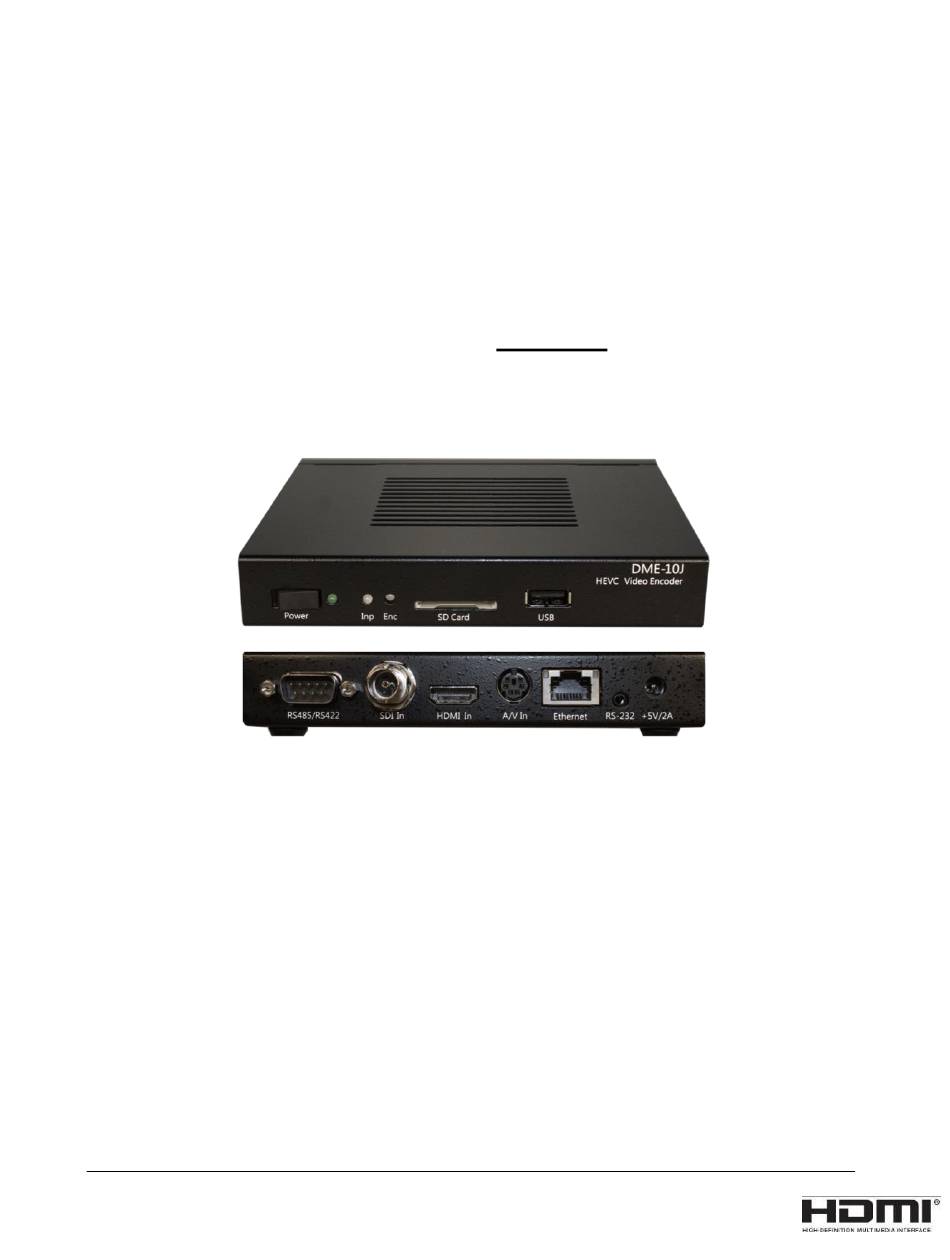

User Instructions
HEVC HD Multimedia System
Digital Encoder and Streamer
DME-10J
Model Name:
DOC-USR-0112-02
Manual Version 2.03a
Software Version 2.03
January 12, 2017
Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Copyright © 2017 Z3 Technology, LLC. All rights reserved.
This document contains proprietary and confidential information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced,
disclosed, or disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this
product at any time and without notice. All product names, trademarks, trade names, service marks, or service names mentioned in this document
are the property of their respective owners.
Z3 Technology, LLC incorporates HDMI® technology. The terms of HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DME-10J and is the answer not in the manual?

Questions and answers

Related Manuals for Z3 Technology DME-10J

Summary of Contents for Z3 Technology DME-10J

  • Page 1 Copyright © 2017 Z3 Technology, LLC. All rights reserved. This document contains proprietary and confidential information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced, disclosed, or disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this product at any time and without notice.
  • Page 2 DOC-USR-0112-02 REVISION HISTORY Version Date Change Note Author 2.03 12/22/2016 Original Document TA/RL 2.03a 01/12/2017 Correction to Section 8.5 ___________________________________________________________________________________________...

  • Page 3: Table Of Contents

    Tuning for Latency ....................15 Encoding with Pro-MPEG Forward Error Correction ............16 Encoding Telop Display Text ..................17 7.0 PERFORMING OTHER OPERATIONS WITH THE DME-10J ............18 Saving Current Settings ................... 18 Advanced Settings Mode ..................20 Using a Static IP Address ..................22 Making a Firmware Update ..................
  • Page 4 Figure 15 Saving Updated Network Settings ................22 Figure 16 Save Complete Message ..................23 Figure 17 DME-10J IP Address Shown in ZFinder ..............23 Figure 18 User Interface Using New IP Address ..............24 Figure 19 Updating the Device Firmware from the Web Interface ..........25 Figure 20 Firmware Update Screen ..................

  • Page 5: General Description

    1.0 GENERAL DESCRIPTION The DME-10J encoder is a cost-optimized, compact 146 x 115 mm system that allows HEVC/H.265 encode of HD video (up to 1080i) through SDI input. It allows users to quickly stream video to the web or internal clients/PCs via RTSP or TSRTP.

  • Page 6: Quick Start Guide

    You can update the firmware via the HTTP-based user interface (GUI) by following the instructions in Section 7.4 “Making a Firmware Update” on page 25. Please Note: Actual version numbers for your DME-10J product may differ from those pictured in this document. ___________________________________________________________________________________________...

  • Page 7: Package Contents

    DOC-USR-0112-02 3.0 PACKAGE CONTENTS DME-10J 5V 2A Power Supply ___________________________________________________________________________________________...

  • Page 8: Features

    DOC-USR-0112-02 4.0 FEATURES HD resolutions up to 1920x1080 including 1080i  Pro-MPEG Forward Error Correction (FEC) encode support  Telop text display support  Video Inputs: HD-SDI  Outputs RTSP or TSRTP  1x USB 2.0 interface for local storage ...

  • Page 9: Operating Controls

    DOC-USR-0112-02 5.0 OPERATING CONTROLS 1: Power Switch 3: SD Card 6: HD-SDI Input 9: Gigabit Ethernet 2: Status LEDs 4: USB 2.0 7: HDMI Input* 10: RS-232 Serial - Input 5: RS-485/RS-422 8: Composite Input* 11: 5V Power - Encoder Serial Figure 1 Front and Rear Panels *Not supported in this release.

  • Page 10: Running The Encoder

    This section gives step-by-step instructions on HEVC/H.265 encoding with the DME-10J and streaming 1080i video to VLC media player running on your PC. In addition to the DME-10J, an HD video source with SDI output and a PC with VLC media player are required.

  • Page 11: Access The User Interface Using Zfinder

    Access the User Interface using ZFinder ZFinder is a PC Utility that allows you to find any Z3 Technology product on your network. If you have not downloaded this to your computer, you can find it on the USB drive provided with your system or request it from Z3 Technology.

  • Page 12: Figure 4 Dme-10J User Interface Ch1 Tab

    DOC-USR-0112-02 Click on “Open Device.” An Internet browser window is opened (for best results, Firefox or Chrome are recommended) and the HTTP-based graphical user interface (GUI) appears at the CH1 tab. Figure 4 DME-10J User Interface CH1 Tab ___________________________________________________________________________________________...

  • Page 13: Configure Encoder For Streaming Rtsp

    DOC-USR-0112-02 Configure Encoder for Streaming RTSP Note: Settings in the user interface cannot be changed if the unit is currently encoding. If necessary, click the “Stop” button in the “Channel Controls” section of the CH1 tab or the “Stop All” button in the lower right corner of any screen to stop any current encoding. (10) Verify “Video Resolution”...

  • Page 14: View The Rtsp Stream In Vlc

    In the “Open Media” box, type “rtsp://{IP Address}/z3-{ch #}{m}.mp4”, where {IP Address} is the IP address of the DME-10J noted previously, {ch #} is 1 for CH1, and {m} is added if a multicast address is being streamed. For example, if the IP address of the DME-10J is 192.168.0.120, encode is being done from CH1, and unicast streaming is being done, the user would type in “rtsp://192.168.0.120 /z3-1.mp4”.

  • Page 15: Tuning For Latency

    DOC-USR-0112-02 Tuning for Latency In general, streaming using RTP will result in lower latency than streaming using TS. If streaming to the VLC media player, latency can be reduced on the decode side by adjusting the network caching value. By default, this is set to 1000ms. You can lower this to as low as 200ms. To do this, go to the following: VLC →...

  • Page 16: Encoding With Pro-Mpeg Forward Error Correction

    DOC-USR-0112-02 Encoding with Pro-MPEG Forward Error Correction The DME-10J supports encode of TSRTP streams with Pro-MPEG Forward Error Correction (FEC). Return to the user interface. If necessary, click the “Stop” button in the “Channel Controls” section of the CH1 tab or the “Stop All”...

  • Page 17: Encoding Telop Display Text

    DOC-USR-0112-02 Encoding Telop Display Text The DME-10J can also encode with Telop text data. This feature is supported in both RTSP and TSRTP output formats. (17) Return to the user interface. (18) Select your desired format from the “Output Format” drop down.

  • Page 18: Performing Other Operations With The Dme-10J

    DOC-USR-0112-02 7.0 PERFORMING OTHER OPERATIONS WITH THE DME-10J Saving Current Settings If you have a specific configuration you’d like to preserve, you can save it so that when the encoder is powered off and back on, it automatically uses those settings.
  • Page 19 DOC-USR-0112-02 A pop-up window appears to confirm the saving of these settings is complete. Click “OK”. In order for changes to IP settings to take effect, the unit must be re-started. A prompt will appear requesting a reboot. Click “Ok” and wait 20-30 seconds for the unit to boot. ___________________________________________________________________________________________...

  • Page 20: Advanced Settings Mode

    DOC-USR-0112-02 Advanced Settings Mode A limited range of encoding settings is available by default. Additional settings can be accessed in Advanced Settings Mode for greater customization to your specific application. 7.2.1 Setup a Custom Configuration (1) The first step is to set up a custom configuration so that the advanced settings will remain visible.

  • Page 21: Figure 14 Default Tsrtp Settings (Left) And Advanced Tsrtp Settings (Right)

    DOC-USR-0112-02 (8) Return to your channel tab to set additional encoding configuration parameters for your stream. See Section 8.5, The CH1 Tab, for more information on the advanced settings available for each streaming output. Figure 14 Default TSRTP Settings (Left) and Advanced TSRTP Settings (Right) (9) You can return to the use of limited settings by un-checking the “Advanced Settings”...

  • Page 22: Using A Static Ip Address

    DOC-USR-0112-02 Using a Static IP Address The encoder supports DHCP (Dynamic Host Configuration Protocol). This is enabled by default, allowing the encoder to dynamically receive an IP address at startup. The IP address that is assigned can be seen through using ZFinder. If you prefer, you can set your encoder to a static IP address. If you would like to have your PC set to a static IP address, you will need to set your encoder to a static IP address as well in order for it to be discoverable by ZFinder.

  • Page 23: Figure 16 Save Complete Message

    Run the “ZFinder” PC Utility on your Windows PC. The ZFinder window appears. ZFinder completes a scan of the network and lists the location of all Z3 systems connected to the network. The DME-10J appears with your manually entered IP address. New IP address Figure 17 DME-10J IP Address Shown in ZFinder Select the DME-10J and click “Open Device.”...

  • Page 24: Figure 18 User Interface Using New Ip Address

    DOC-USR-0112-02 (10) A web browser will then open at the IP address of the DME-10J and you will see the user interface. New IP address Figure 18 User Interface Using New IP Address (11) You can return to the use of DHCP by checking the “Use DHCP” checkbox in the System Setup tab and saving that to the preset.

  • Page 25: Making A Firmware Update

    DOC-USR-0112-02 Making a Firmware Update 7.4.1 Update Via the User Interface The DME-10J supports updating of firmware through the user interface. You will need an update image file. (1) Access the user interface and return to the System Setup tab.

  • Page 26: Figure 21 Firmware Update In Progress

    (7) Your encoder is now updated. 7.4.2 Update Via SD Card The DME-10J supports updating of firmware through an SD card. You will need an update image file. Locate your desired UPD-z3-dme-vx.xx.xx.img update file and copy it an SD card.

  • Page 27: Setting A Password

    DOC-USR-0112-02 Setting a Password The DME-10J supports the assignment of a password to restrict access to the user interface. Note: Once a password has been set, it can be changed, but the requirement of a password cannot be undone. In the System Setup tab, click on the “go” button next to “Set Password”.

  • Page 28: Summary Of Options

    DOC-USR-0112-02 8.0 SUMMARY OF OPTIONS This section lists the different options that are available in the various menus and tabs for configuration of your encoder. The System Setup Tab Parameter Options (default in bold) Notes Local IP Setup Sets the IP address of the unit. Note that a “save” Local IP Address 192.168.x.y (192.168.0.120) of these settings and a reboot is needed for...
  • Page 29 DOC-USR-0112-02 Device Management Sets a custom name for the camera to appear in Set Device Name the user interface. Button Sets a password to limit access to the user Set Password Button interface. Click this button to access Simple Network Time Set SNTP Button Protocol (SNTP) configuration options.

  • Page 30: The User Presets Tab

    DOC-USR-0112-02 Suppresses Temperature Recovery Trap such that at Temperature (30) most one trap will be sent per Host every X Seconds Recovery Trap Suppression Access the Software Updater to update the Update device firmware on your device. An image file of the firmware Button desired firmware is needed.
  • Page 31 DOC-USR-0112-02 Bitrate (Kbps) Current target bitrate of encoder Actual Bitrate Actual bitrate being output by encoder Current target frames per second of encoder Actual FPS Actual frames per second being encoded Key-frame FPS Number of key-frames per second (for example, a value of 0.5 means a key frame is inserted every two seconds) Width Width of encoded picture...

  • Page 32: The Term Tab

    57600 38400 19200 9600 4800 2400 1200 Device File /dev/ttyAMA1 Selects the serial device to send the TCP serial commands to. /dev/ttyAMA1 is the RS485/RS422 port on rear panel of DME-10J. Terminal Controls Update Button Applies new terminal settings ___________________________________________________________________________________________...

  • Page 33: The Ch1 Tab

    DOC-USR-0112-02 The CH1 Tab An asterisk (*) denotes a field available in Advanced Settings Mode. See Section 7.2 to access these fields. Parameter Options Notes (default in bold) Encoder Setup Video Source HD-SDI Fixed setting. The video source selected for encode. Output Resolution 320x180 –...
  • Page 34 DOC-USR-0112-02 File Prefix MOV1_%F_%T Textbox to set file name prefix for recorded .ts file. (Aux TS File Only) The prefix will be followed by a number starting at zero and auto-incremented if an existing file with the same prefix is detected on the USB storage device. Max File Size 1024M Textbox for entering the maximum size of the...
  • Page 35 DOC-USR-0112-02 must be less than or equal to 100. Enables Telop display text. Telop Enable True False Textbox for entering display text. Telop Display Text Z3DEV Sets screen location of display text. Telop Location Top Left Top Center Top Right Bottom Left Bottom Center Bottom Right...

  • Page 36: Values Appearing At The Bottom Of All Tabs

    DOC-USR-0112-02 Values Appearing at the Bottom of All Tabs Parameter Options (default in bold) Notes preset encoder The preset configuration file to use. (any user-defined profiles) encoder = factory defaults --- new preset --- More profiles by selecting “--- new preset ---“. Save Click on this to save selected values to the current preset.

  • Page 37: Appendix A: Troubleshooting

    System Setup tab to capture logs of any issue you’d like to report and send the resulting file to Z3 Technology. Z3 Technology’s Express Limited Warranty will be void if the label on the hardware bearing the Serial Number is removed, tampered with or defaced. You can view Z3 Technology’s full hardware warranty at http://z3technology.com/Support/ZEUS-HW-Warranty.html.
