RSD-EYE+ Operation Manual
◆
Introduction

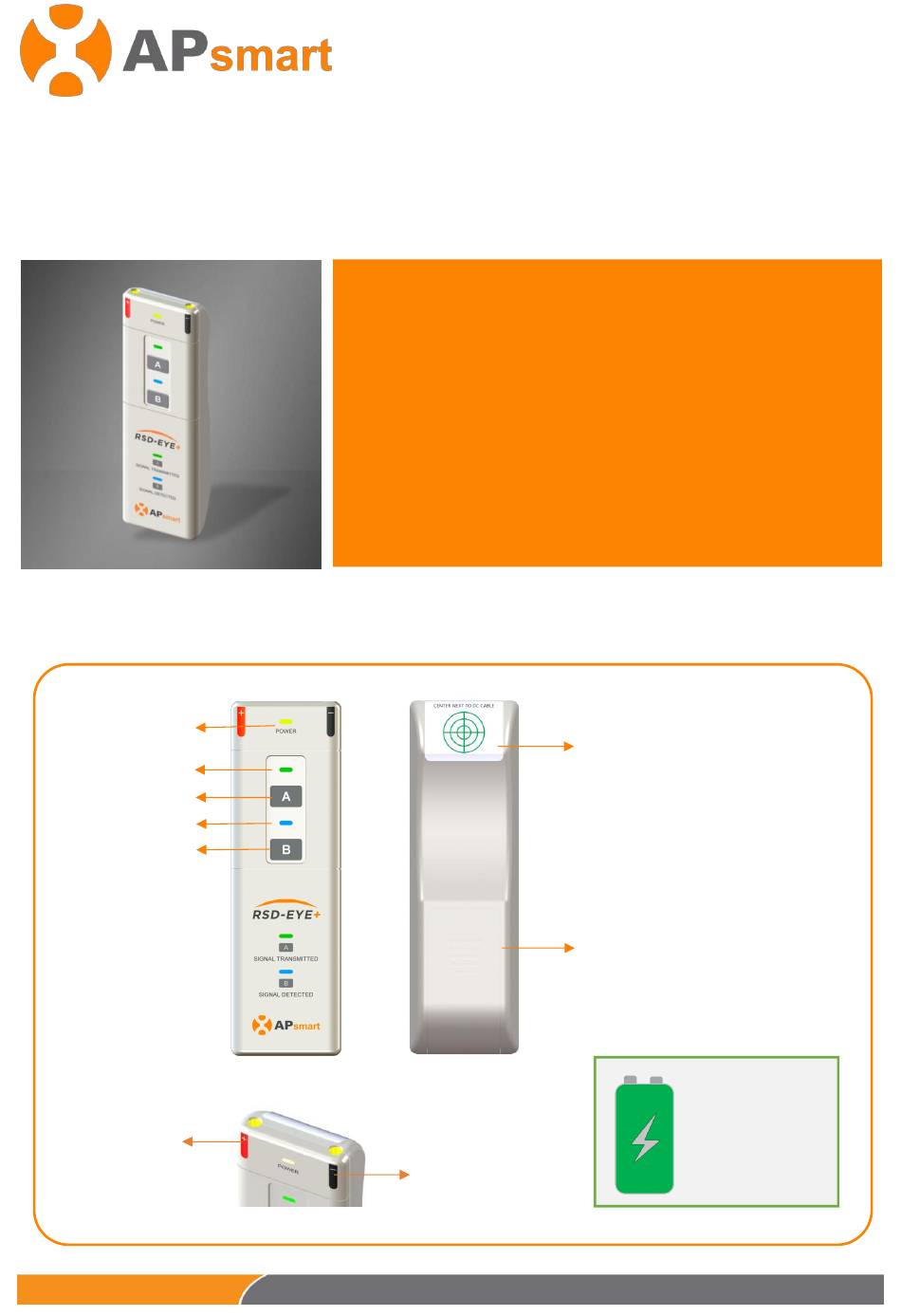

◆ Product Structure
Power LED
Transmit LED
Transmit Button
Detected LED
Detected Button
Red Cable
Positive
Connection
Signal Smart Detector
RSD-EYE+
RSD-EYE+ is a small and lightweight multifunctional
handheld detection device for sensing pulse modulation
from the power line communication (PLC) signal between
transmitter and RSD-S-PLC, to ensure compliance to the
SunSpec Alliance Rapid Shutdown protocol. In addition,
the RSD-EYE+ can also be used as a handheld transmit
device, by connecting an optional external DC cable to
send an in-line keep-alive signal to RSD-S-PLC.
Black Cable
Negative
Connection
1
Sensor Area
Place the sensor area on
the RSD-EYE+ within 2cm
from the RSD-S-PLC output
line
9V Battery
Not supplied by APsmart ，
please purchase by yourself
+
-
Please confirm
the positive and
negative poles of
the battery when
installing it
2020/6/10
Rev1.0
Advertisement
Related Manuals for APsmart RSD-EYE+
Summary of Contents for APsmart RSD-EYE+
- Page 1 Place the sensor area on the RSD-EYE+ within 2cm Transmit Button from the RSD-S-PLC output Detected LED line Detected Button 9V Battery Not supplied by APsmart ， please purchase by yourself Please confirm the positive and Red Cable negative poles of Positive Black Cable...
- Page 2 ◆ System Diagram ① RSD-S-PLC ② RSD-EYE+ ③ Transmitter-PLC ④ Inverter ◆ RSD-EYE+ Detected Mode After all RSD-S-PLC in the PV system have been installed and the transmitter is connected and powered on, place the sensing area on the RSD-EYE+ within 2cm from the RSD-S-PLC output powerline.
