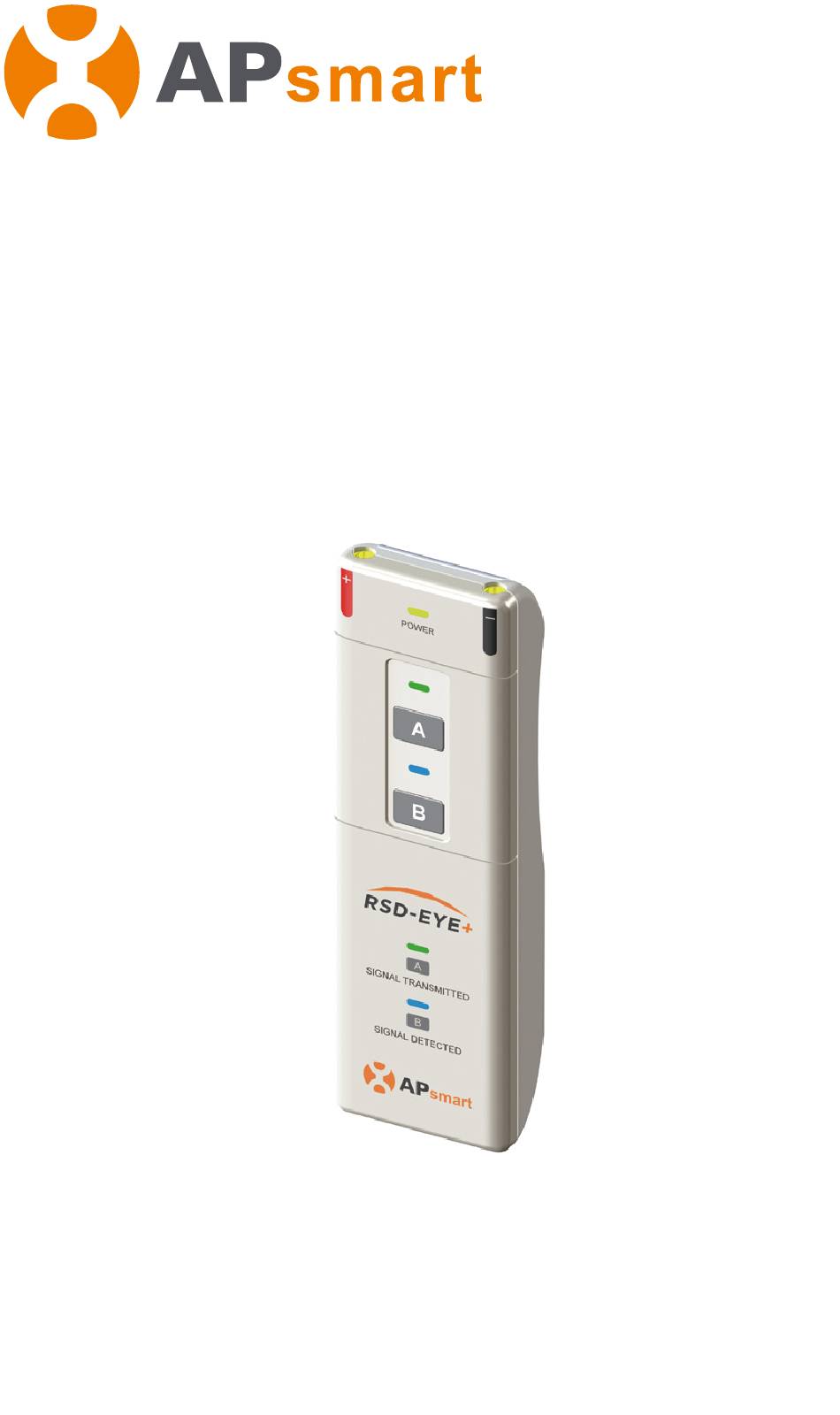

- Page 1 Smart Signal Detector RSD-EYE+ Operation Manual @ALL Rights Reserved...
- Page 2 Introduction The RSD-EYE+ is a small and lightweight multifunctional handheld detection device for sensing pulse modulation from the power line communication (PLC) signal between transmit- ter and RSD, to ensure compliance to the SunSpec Alliance Rapid Shutdown protocol. In addition, the RSD-EYE+ can also be used as a handheld transmit device, by connecting an optional external DC cable to send an in-line keep-alive signal to the RSD.
- Page 3 Technical Data 26.00 42.00 Input operating Voltage: 9Vdc Input operating Current: 0.1A Operating Ambient Temperature Rang: -40℃~+60℃ Enclosure Rating: IP20 Dimensions (W x H x D): 136mmx42mmx26mm Weight: 240g System Diagram ① RSD ② ② RSD-EYE+ ③ Transmitter-PLC ④ Inverter …...
- Page 4 RSD-EYE+ Detect Mode After all RSD units in the PV system have been installed and the RSS transmitter is connected and powered on, the RSD output powerline needs to be as parallel as possible to the DC cable line in the sensing area within 2cm for best performance. Testing each RSD with the RSD-EYE+ to confirm the presence of a keep-alive signal.
- Page 5 RSD-EYE+ Transmit Mode Confirm the RSD input cables are connected to the PV module output cables, and its output cables are connected to the external cable from the RSD-EYE+ properly. During the detection process, the transmit mode button A should be pressed for at least 2 seconds.
- Page 6 600 Ericksen Ave NE, Suite 200 Seattle, WA 98110 TEL:+1-737-218-8486/+1-866-374-8538 EMAIL:support@APsmartGlobal.com APsmartGlobal.com Product information is subject to change without notice.
