Wiring
3
WARNINGS:
- For wiring and installation operations, refer to the current standards and good technical principles.
- Wires powered at different voltages must be physically separated, or suitably insulated with at least 1 mm extra insulation. The wires must
be clamped by an extra fastener near the terminals, for example by bands.
- For connection to the mains, use a multipolar cable with a minimum of 3x1.5mm
ned regulations. For example, if the cable is outside (in the open), it has to be at least equal to H07RN-F, but if it is on the inside (or outside
but placed in a plastic cable channel) it has to be or at least equal to H05VV-F with section 3x1.5mm
NOTA: Before connecting the control unit to the mains voltage, check that the JP5 (voltage change) terminal is preset for the correct working
voltage. The board is supplied with a serie of previously bridged terminals. The jumpers refer to the following terminals: 26-30, 26-31.

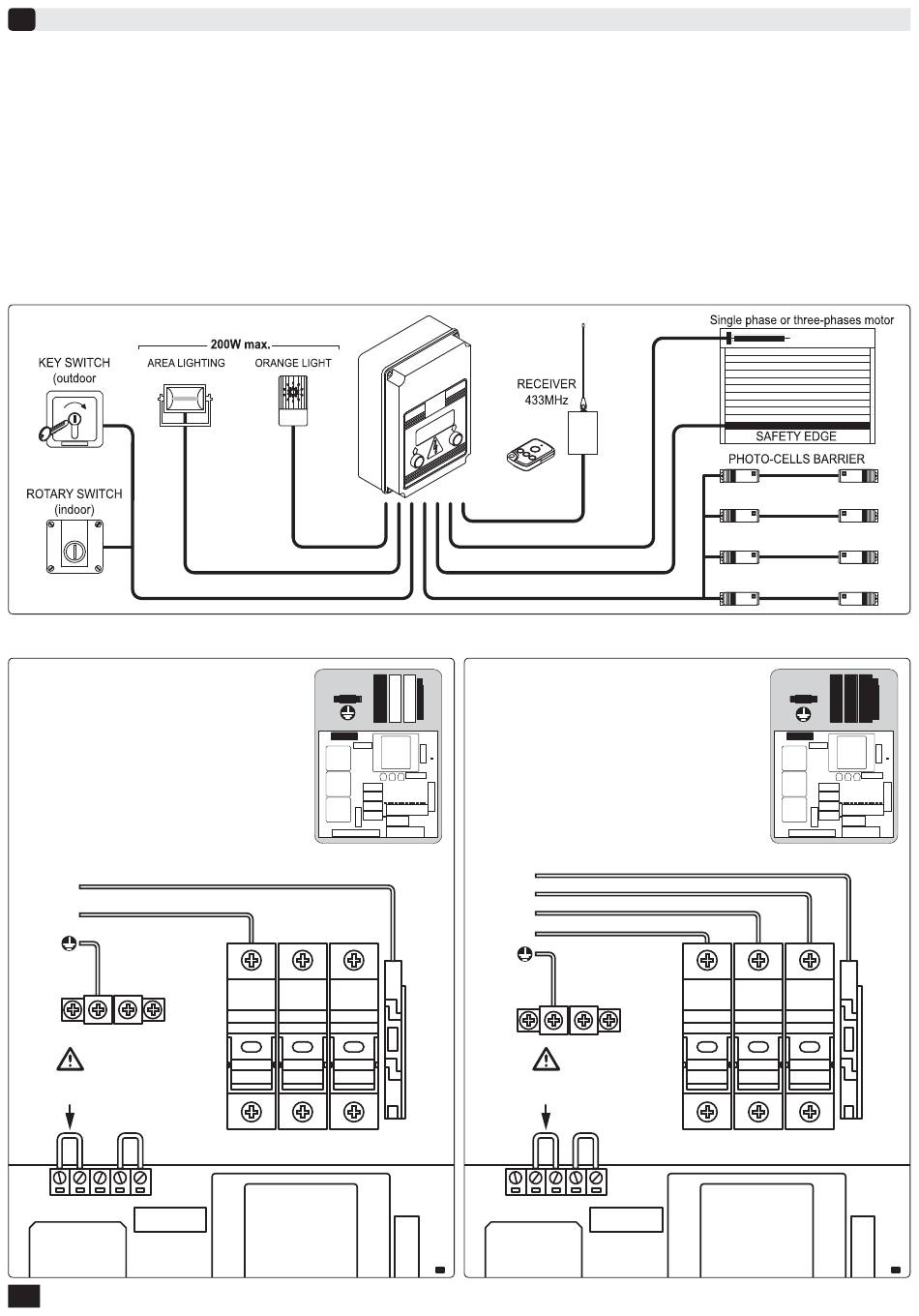

3.1 - Wiring possibility
3.2 - Power supply connection (the control box is provided in 400V 3 phases setup)
SINGLE PHASE 230V - 50Hz
N
L
Check the jumper
between 40 and 41
JP5
41
40
39
38
37
2/8
2
cross section and complying with the previously mentio-
THREE-PHASES 400V - 50Hz + NEUTRAL
N
L1
L2
L3
Check the jumper
between 39 and 40
41
40
39
38
37
DL1
2
.
JP5
DL1
