Genebre GE 5803 Installation, Operation & Maintenance Manual

Electric quarter turn actuator single phase
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
genebre@genebre.es - www.genebre.es

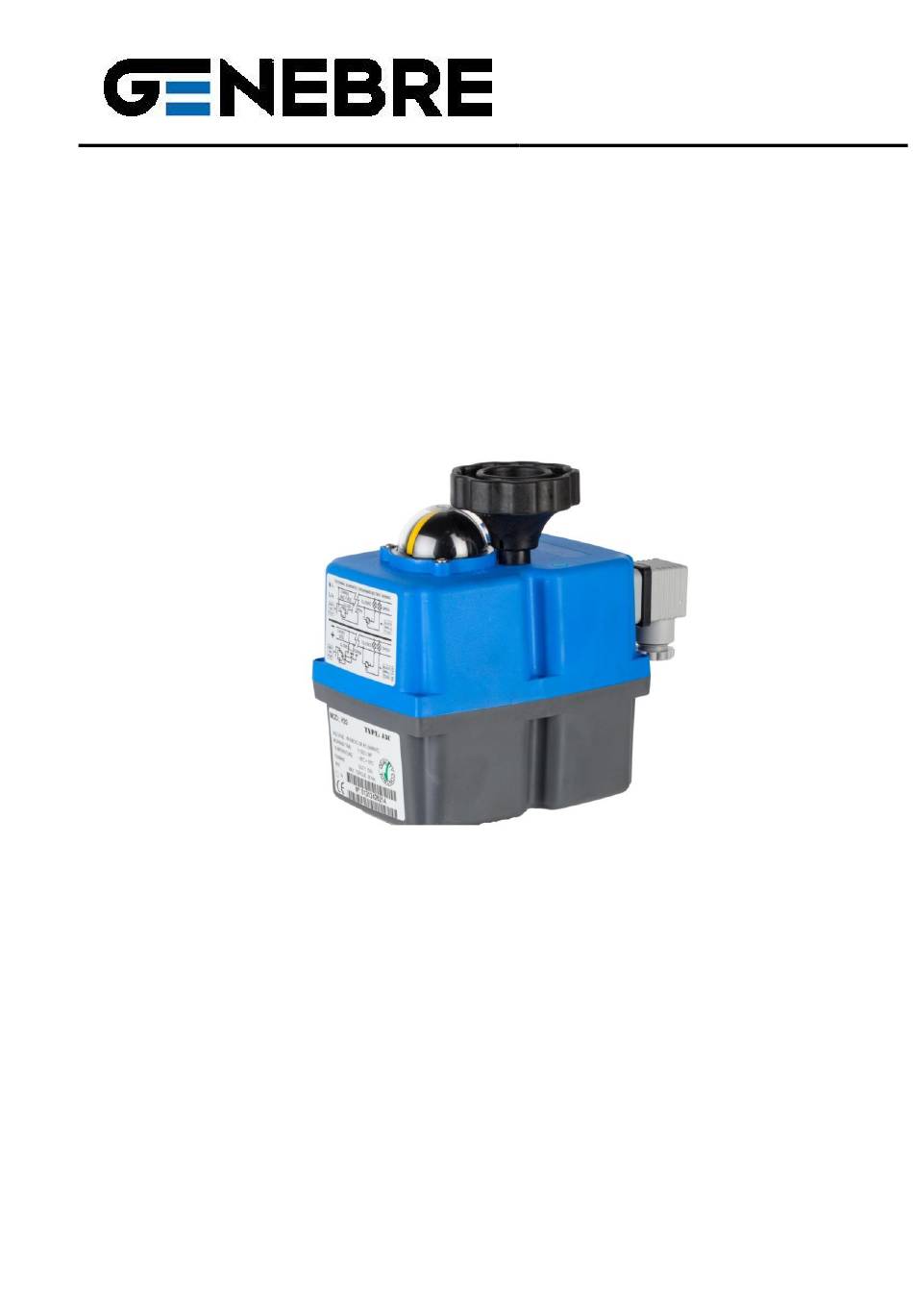

INSTALLATION, OPERATION
& MAINTENANCE MANUAL
GE
Electric quarter turn Actuator
Single Phase
Ref. GENEBRE: 5803
GENEBRE S.A.
FECHA DE REVISIÓN: 19/01/2021
NUMERO DE REVISIÓN: 2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GE 5803 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genebre GE 5803

Summary of Contents for Genebre GE 5803

  • Page 1 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION & MAINTENANCE MANUAL Electric quarter turn Actuator Single Phase Ref. GENEBRE: 5803 GENEBRE S.A. FECHA DE REVISIÓN: 19/01/2021 NUMERO DE REVISIÓN: 2...

  • Page 2: Table Of Contents

    Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTRUCTIONS FOR INSTALLATION, OPERATION & MAINTENANCE MANUAL 1. Product Description ................3 2. Technical Features & Data ..............3 3. Safety Instructions ................3 4.

  • Page 3: Product Description

    - www.genebre.es 1. Product Description Genebre, S.A. offers a comprehensive range of electrical actuators such fraction of a turn (turn 90 degrees) and different types of voltages GE electric Actuators are designed to automation of industrial valves of quarter turn with 0 –...

  • Page 4: Transport And Storage

    • If there is any discrepancy, please contact with your local distributor, or Genebre, S.A., to solve that discrepancy. Once the electric actuator has been set up, Genebre, S.A.

  • Page 5: Actuator Mounting

    Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 6. Actuator Mounting • Do not lift the actuator by the hand wheel. Do not attach to the hand wheel ropes or hooks to lift by hoist.
  • Page 6 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es • Diameter of cable: Small Connector Big Connector Model Min. Diameter Max. Diameter Min. Diameter Max. Diameter GE-0 / GE-15 5 mm 6 mm 8 mm 10.5 mm...
  • Page 7 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 2 wires (VDC): Plug (Grey Color) = Power Supply VDC 2 wires PIN 2 = (+) Positive + PIN 3 = (-) Negative = Close...

  • Page 8: Preliminary Test And Settings

    Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 8. Preliminary Test and Settings • It is recommended that only qualified electrical engineers be allowed to connect or adjust these actuators. Always ensure that the power supply is disconnected prior to removing the top cover by disconnecting the DIN power input plug.
  • Page 9 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Manual Override Automatic/manual lever WARNING: Do not remove the selector lever securing cross head screw as this will allow its internal mechanism to become loose and will cause irreparable damage to the actuator’s gearbox.

  • Page 10: External Led Status Light

    Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 8.3 External LED Status Light (Only in J3 Type) The LED status light provides visual communication between the actuator and the user Status 8.4 Adjusting of the cams...
  • Page 11 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Cams position: 1 = Cam1 adjusting of the closed position. 2 = Cam 2 adjusting of the open position. 3 = Cam 3 adjusting of the closed position confirmation.

  • Page 12: Maintenance

    Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es To adjust the open position to more than 90º: Turn the wrench to anti-clockwise direction – cams 2 and 4. The cam 4 should press the lever of the micro switch a little before that the cam 2.
