D2-Series Interactive Display
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the D2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Loft D2 Series

Summary of Contents for Loft D2 Series

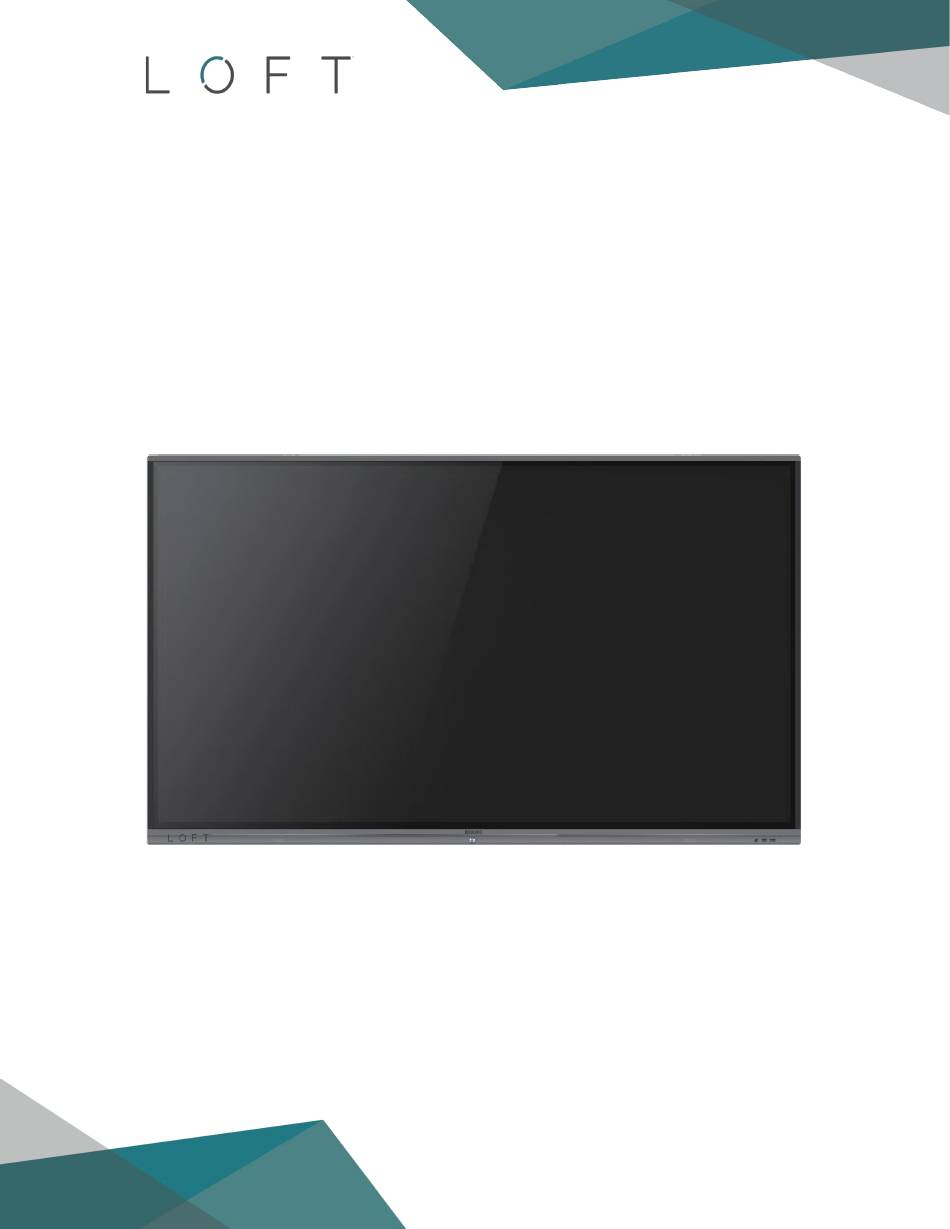

  • Page 1 D2-Series Interactive Display User Manual...

  • Page 2: Table Of Contents

    Table of Contents Safety Warning......................................3 FCC Statement......................................5 FCC Warning ........................................5 Control Panel ......................................... 6 Connection and Setting ..................................11 Menu Operation ......................................14 Simple Troubleshooting ..................................20 Maintenance ........................................ 22...

  • Page 3: Safety Warning

    Safety Warning Please read this manual thoroughly before operating and keep it for future reference. Images shown in this manual are indicative only. There may be differences between the pictures and the actual product. Placement • Do not put heavy objects on top of the unit. •...
  • Page 4 Temperature • Normal operating temperature is 0 ~ 40℃. • Do not place the unit near or over a radiator or a heater. • If your unit is suddenly moved from a cold to a warm place, please unplug the power cable and do not turn it on at least 2 hours.

  • Page 5: Fcc Statement

    Power Switch Status Signs • “I” means power on, “O” means power off. Notes for Maintenance • This machine can only be maintained by a certified engineer. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 6: Control Panel

    Control Panel 1. Prepare to Install Number Items Function Magnetic zone Area for placing the magnetic pen Tap to enter energy-saving, press at least 2 seconds to enter standby mode Remote control signal Receives the remote signal receiver USB interface for Android system Bottom loudspeaker Amplify audio 2.
  • Page 7 Numbe Items Function Description External computer image input AUDIO IN External computer audio input SPDIF Carry multichannel sound via optical signals RS232 Serial interface, used for mutual transfer of data between devices AUDIO OUT Audio output to the external speaker Connect RJ45 terminals USB 2.0,connect USB devices such as mobile hard disk, U disk, USB keyboard and mouse, USB drives, etc...
  • Page 8 3. Remote Control Remote Control Button Instruction...
  • Page 9 Detailed Function Description Number Items Function Power on/off Enter or exit mute mode Start PC's Windows key Space PC's Space key Alt+Tab PC's Alt+Tab key Alt+F4 PC's Alt+F4 key Numeric Keys Numeric input keys Display Display channel information Input Pop up TouchMenu-General Setting Home Return to android system main screen key Menu...
  • Page 10 Remote Control Instruction – Install Batteries Open back cover of the battery component on the back of remote control. Install AAA type battery according to the corresponding electrode, and make sure the battery positive and negative poles are correct ("+"to"+", "-" to "-"), please do not mix using old and new batteries.

  • Page 11: Connection And Setting

    Connection and Setting NOTE: For the safety of you and the machine, please do not connect any power plug before connection. External Computer and Touch Connection a) Use the VGA cable to connect to the VGA output port of external computer, and use the headphone audio cable to connect to the external computer audio output interface (or use HDMI cable to connect to HDMI output port of external computer).
  • Page 12 2) Audio and Video Equipment a) Use HDMI cable to connect audio and video equipment with the HDMI output. b) After cable connection, plug in the power cord and switch the power on. c) Press to turn equipment on. d) Press INPUT key to switch to HDMI port. 3) Audio and Video Equipment a) Use HDMI cable to connect audio and video equipment with HDMI input.
  • Page 13 5. LAN Connection 6. USB Connection...

  • Page 14: Menu Operation

    Menu Operation Touch Menu Operation Call up Method: Take middle point position on the bottom of display screen as a starting point, and use the touch pen to drag towards screens center position to call up touch menu, as shown below. Note: "Touch A Method"...
  • Page 15 Starting Menu General Setting • Press INPUT button on remote control or via touch A method to call up General Setting menu. • Press button on remote control to select the channel you need. • Press the Enter button on remote control or directly click with touch pen to confirm selected input channel.
  • Page 16 Detail Setting Menu Press Menu on the remote control or click the icon on the General Setting menu with the touch pen to call up the detail setting menu. The Detail Setting menu includes Audio, Screen, Display and Adjust. Audio •...
  • Page 17 Screen • Press the button on the remote control to select Screen Setting menu. • Press on the remote control or directly click with the touch pen to select the option. • Press Enter on the remote control or directly click with the touch pen to enter the selected mode.
  • Page 18 Display • Press the button on the remote control to select Display Setting menu. • Press button on the remote control or directly click with the touch pen to select the option. • Press Enter on the remote control to enter adjustment mode, and press the button or directly click with touch pen to adjust each option.
  • Page 19 Adjust • Press the button on the remote control to select Adjust Setting menu. • Press button on the remote control or directly click with the touch pen to select the option. • Press Enter on the remote control to enter adjustment mode, and press button or directly click with touch pen to adjust each option.

  • Page 20: Simple Troubleshooting

    Simple Troubleshooting Machine Fails to Work Normally Remote control failure • Check whether there are other objects between remote control and equipment control receiving window, thus leading to failure of remote control. • Check whether the battery electrode in the remote control is correct.
  • Page 21 Touch Function Touch function invalid • Check whether the size of article touched is comparable with finger. Touch positioning not correct • Check whether touch pen is facing the screen. Video Function Can't Work Normally No picture and no sound •...

  • Page 22: Maintenance

    Maintenance • Please unplug power plug before cleaning and maintenance, to prevent electric shock. Clean Screen • Please mix and stir a little fabric softener or tableware detergent with alcohol. • Use a soft cloth completely soaked in the mixture. •...
