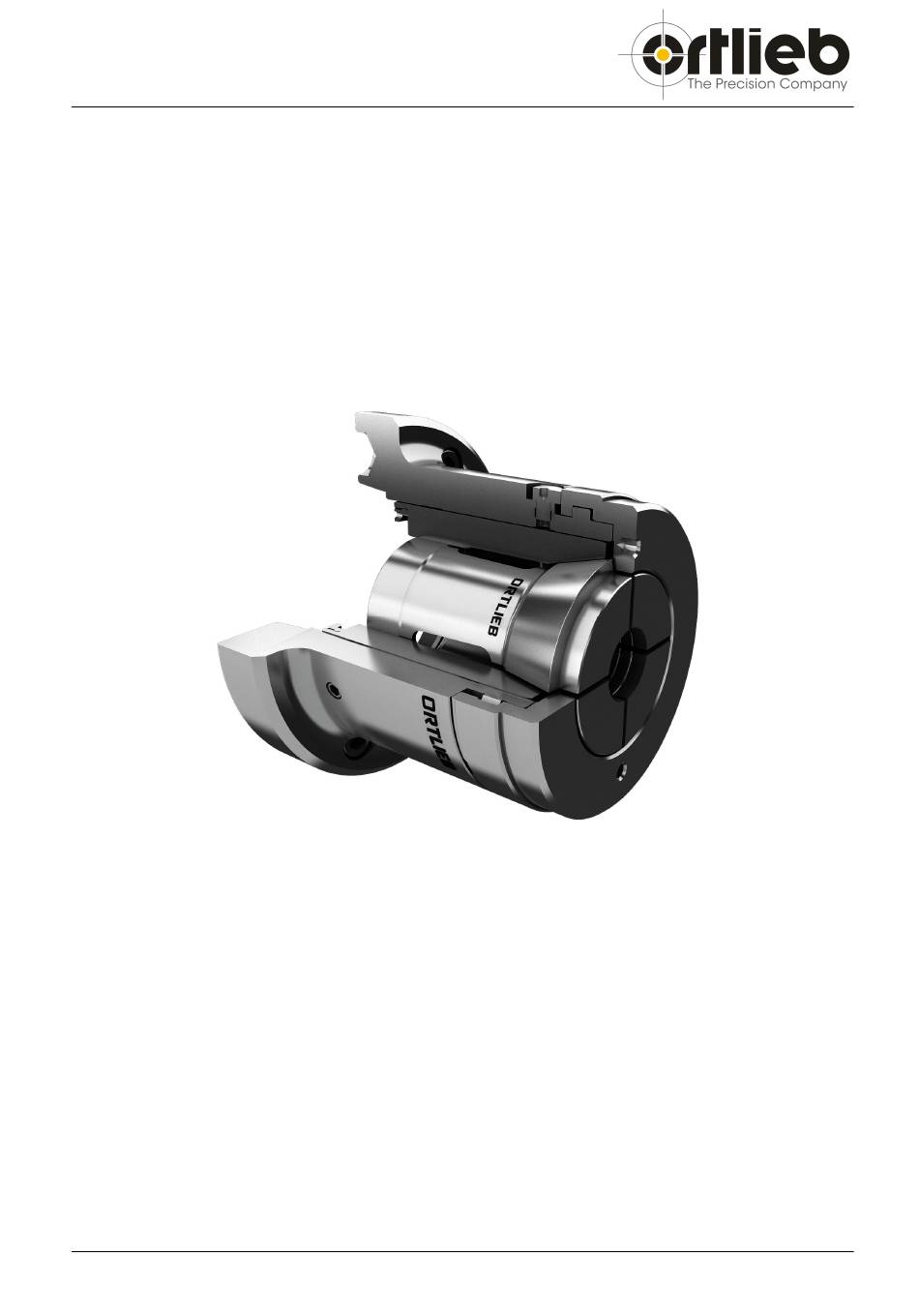

- Page 1 Technical Documentation ® QUADRO - Collet Chuck Dead Length Collet Chuck for NC and CNC lathes with short taper mount acc. DIN 55026/27 or cylindrical flange acc. DIN 6353 for steel collets or Rubber-Flex® collets acc. DIN 6343 Version 24.03.2020...
-
Page 2: Table Of Contents
Content: Gerneral ..........................3 Introduction ........................3 Guarantee ........................4 Intended Use ........................5 Initial start-up ........................5 Product description ........................ 6 Component-overview ...................... 7 Technical Data ....................... 7 Mounting instructions ...................... 8 Check run-out ......................... 9 Change the collet......................9 Accessory .......................... -
Page 3: Gerneral
1. General 1 General 1.1 Introduction This manual helps you to operate your Ortlieb product safely and to avoid potential dangers and risks Please read this manual and the safety instructions before initial operation. This technical documentation includes all files and data for initial operation, maintenance and service of your Ortlieb product. -
Page 4: Guarantee
1. General 1.2 Guarantee Products of Ortlieb Präzisionssysteme GmbH & Co. KG are produced according to national and international standards as well as company standards, supervised by a certified quality assurance. For those products Ortlieb Präzisionssysteme GmbH & Co. KG assumes liability in the manner that parts with material or production defects proven within 12 month after purchasing were repaired free-of-charge, replaced by new ones or taken back to the charged price. -
Page 5: Intended Use
1. General 1.3 Intended Use Use the collet chucks only for the intended use. Insufficiently clamped tools or work-pieces, failure to comply „safety and accident prevention regulations“, and the use of work-pieces and our products on machines that are not intended for this propose, can result in personal injury and damages to the clamping devices. -
Page 6: Product Description
The high quality-standard and the universal range of application are reasons that QUADRO® - dead length collet chucks are counting to the first class products in the clamping technology. Your benefit: No axial movement of workpieces due to clamping by pressure It is possible to use Rubber-Flex®... -
Page 7: Component-Overview
2. Product description 2.1 Component-overview Components 1 – chuck body 2 – pressure sleeve 3 – bayonet nut 4 – nut-lock screw 5 – safety screw 6 – mounting screws 2.2 Technical Data Type Art. Nr. Fmax Collet KSFB 26/4 036.000.2.157 15 kN 6000 1/min... -
Page 8: Mounting Instructions
2. Product description 2.3 Mounting instructions Disassemble the collet chuck (1) Mount the adaptor to the pressure sleeve (glue with thread glue) (2) Drive pressure tube to the front position Mount the chuck body to the machine spindle. Check run-out (TIR). Adjust, if necessary. Mind the proper toque! (3) size class 8.8... -
Page 9: Check Run-Out
2. Product description 2.4 Check run-out To provide best possible run-out results, it is necessary to adjust the clamping device. Therefore loose the mounting screws between chuck and machine spindle. Check the TIR with a dial indicator in the taper of the pressure sleeve. After adjusting the chuck, do not forget to retighten the mounting screws with the proper torque. -
Page 10: Accessory
3. Accessory 3 Accessory 3.1 Spare parts Components 1 – chuck body 2 – pressure sleeve 3 – bayonet nut 4 – nut-lock screw 5 – safety screw 6 – mounting screws Type Art. Nr. Pos. 1 Pos. 2 Pos. 3 Pos. -
Page 11: Reduction Parts
3. Accessory 3.2 Reduction parts The reduction parts allow the use of smaller Rubber-Flex® collets or steel collets acc. DIN 6343 in the same chuck body. Your require a suitable pressure sleeve and bayonet nut.. Collet sleeve bayonet nut KSFB 30 161E RFC 20 036.111/0... -
Page 12: General Safety Instructions
4. General Safety Instructions General Safety Instructions 1. Safety requirements to machines Operation of the machine spindle is only allowed, when the clamping pressure and clamping force is in the acceptable range. Do not rotate the spindle without a workpiece clamped. On a breakdown of the clamping power a signal must stop the machine spindle and the workpiece has to be clamped till a complete stop of the spindle. - Page 13 Those remaining dangers must be considered by the worker and eliminated by appropriate means. 6. Maintenance Accurate and regularly maintenance (quarter annually) increases the natural life of the QUADRO® dead length collet chuck. Please keep the following advices: Clean the chuck frequently, especially when changing the collet.
-
Page 14: Troubleshooting
5. Troubleshooting 5 Troubleshooting Below, you will find some of the most frequently asked questions. If an error cannot be eliminated with the methodes below, please contact your technical support team. Always name the accurate article-number and the description in case of questions or re-order. Problem Possible cause Remedy... -
Page 15: Assembly Declaration
+49 (0) 7164 79 70 1 - 51 ® The QUADRO Dead length collet chuck is described as a incomplete machine according article 2g of the machine directive and designated only to be mounted into or with an other machine or equipment. -
Page 16: Shipping Data
7. Shipping data Shipping data Article-No.: ......................Serial No.: ......................Delivery date: ......................Ortlieb Präzisionssysteme GmbH & Co. KG • Jura Str. 11 • 73113 Zell u. Aichelberg • Germany Tel.: +49 (0) 7164 79 70 1-0 • Fax.: +49 (0) 7164 79 70 1-51 • e-mail: info@ortlieb.net • www.ortlieb.net...
