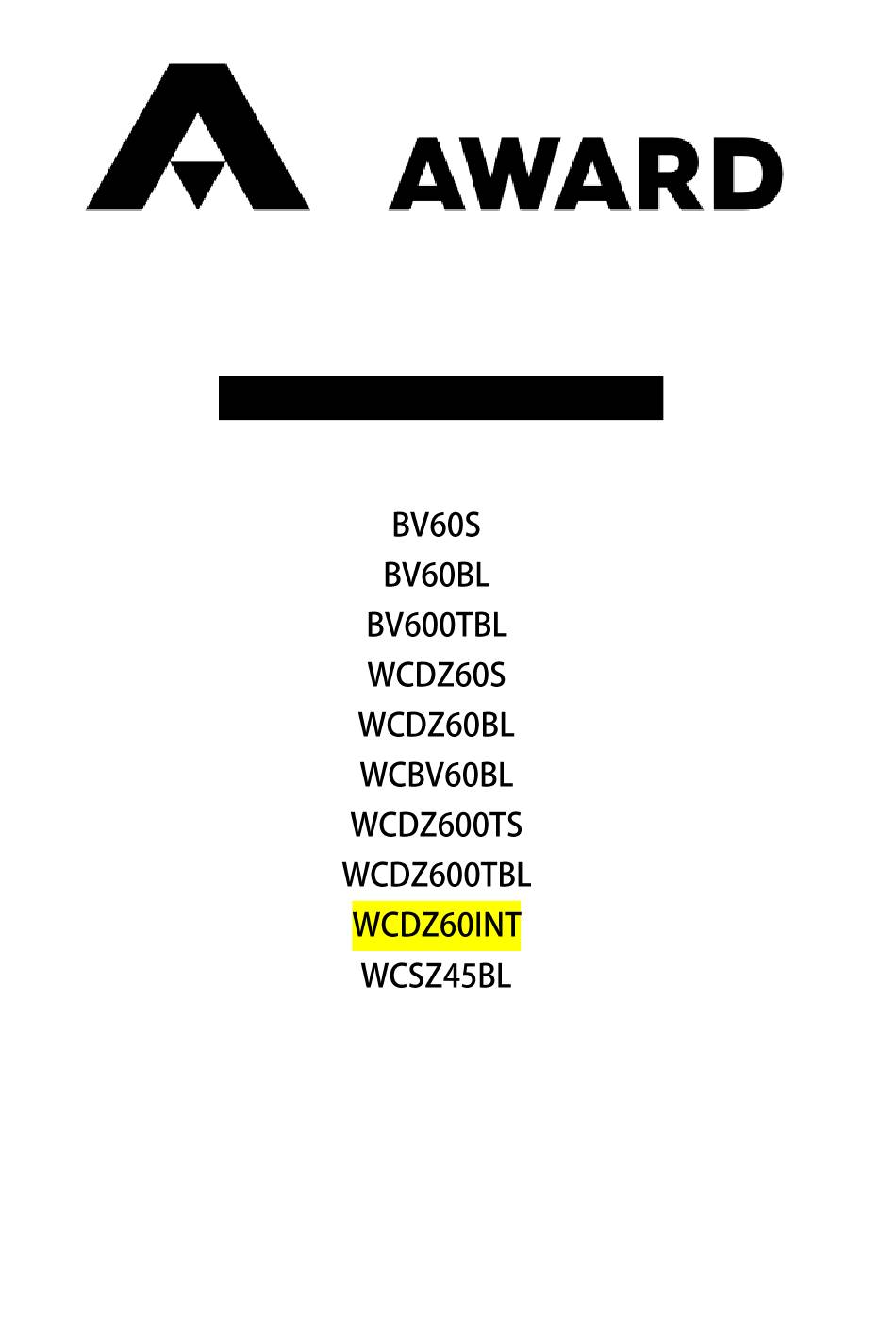

- Page 1 Wine / Beverage Preservation Technology INSTRUCTION MANUAL Thanks for buying one of our Wine or Beverage cabinets. Before use, please read and follow all safety rules and operating instructions. 20220124...
- Page 2 WARNING The information in this document is subject to modification without prior notice. Some models are available in dedicated countries only. All warranties are void if the appliance is being used for any purpose other than that for which it was specifically designed. Warranty applies to the wine cabinet only and not to the content of the wine cabinet.
- Page 3 Notify Customer Service for necessary action and advice. The room you installing the appliance in must be at least 1 cubic metre per 8 grams of refrigerant. The refrigerant quantity contained in this appliance is listed on the Rating Plate of the appliance.
-
Page 4: Installing Your Wine Cabinet
- Away from the microwave oven. Certain microwave ovens do not have wave interference shield. When placed within 1 meter vicinity of the wine cabinet, they may affect the operation of the wine cabinet. Wine cabinet should be placed where the ambient temperature is constant (not to hot or cold). -
Page 5: Dimensional Drawings
2. Please follow the installation diagram when installing built-in wine cabinets. No less than the minimum installation dimension, or it will affect the venting of cabinet. 3. Built-in wine cabinets draw air from right of ventilation frame and expel through left of ventilation frame under the front door. - Page 6 WCSZ45BL ≥ Cabinet panel ho le h eight 465mm ≥ Installation h ole height 457mm ≥ In stallatio n ho le dept h 575m m ≥ Woo d Plate thicknes s 22mm Ventilation o penin g width ≥40mm ≥7mm Ventilation o pening width ≥40mm Installation Instruction:...
- Page 7 2.Take out 3pcs Phillips screws from accessory bag , use Phillips screwdriver to tighten the fixed plate on the lower left side of wine cooler(1pcs screw) , then tighten the other 2pcs Phillips screws on the upper door hinge and lower door hinge. BV60BL, BV60S, WCDZ60BL, WCDZ60S, WCDZ60INT...
- Page 8 WCDZ600TS, WCDZ600TBL, BV600TBL OPEN ANGLE SIZE DRAWINGS: BV60BL, BV60S, WCDZ60BL, WCDZ60S...
- Page 9 WCBV60BL WCDZ60INT...
- Page 10 WCDZ600TS, WCDZ600TBL, BV600TBL RADIATOR SYSTEM DESCRIPTION BV60BL,BV60S,WCDZ60BL,WCDZ60S,WCBV60BL,WCDZ600TS,WCDZ600TBL, BV600TBL WCDZ60INT Models use side anti-dew tube and Independent cooling system:...
- Page 11 WCSZ45BL Models use a rear cooling system. TURNING ON YOUR WINE CABINET Plug in and switch on the cabinet by pressing on the power button for a few seconds. When you use the wine cabinet for the first time (or restart the wine cabinet after having it shut off for a long time), there will be a few degrees variance between the temperature you have selected and the one indicated on the LED readout.
- Page 12 LOADING YOUR WINE CABINET You may load your wine bottles in single or double rows while taking note of the following: if you do not have enough bottles to fill your wine cabinet, it is better to distribute the load throughout the wine cabinet so as to avoid “all on top” or “all below” type loads.
-
Page 13: Temperature Settings
TEMPERATURE SETTINGS Important: The LED displays by default shows the actual internal air temperature. In the event of loss of power the unit will return to your preset temperatures when turned back on. The electrical board of all models comes with memory function. It is important to understand that there is a difference between the air temperature inside the wine cabinet and the actual temperature of the wine: You will need to wait approximately 12 hours before noticing the effects of temperature adjustment due to the... - Page 14 BV60BL,BV60S,BV600TBL:SNGLE TEMPERTURE DISPLAY BOARD OPERATING INSTRUCTION: ①Energy Saving Mode Press the icon and hold for 3 seconds into the energy-saving mode, press ⑥⑦ out of energy-saving mode ②ON/OFF Power Icon: In the standby mode: press and hold for 3 seconds, the power is turned on, the whole...
- Page 15 WCDZ60S WCDZ60BL WCDZ600TS:DUAL TEMPERTURE DISPLAY BOARD OPERATING INSTRUCTION: ①ON/OFF Power Icon: In the standby mode: press and hold for 3 seconds, the power is turned on, the whole machine starts In the power-on state: press and hold for 3 seconds, window 4 shows the countdown 3 2 1, then power is turned off, the machine is turned off (show 3 2 1 process, the hand cannot leave the button) ...
- Page 16 ⑧C/F Display Conversion Function Icon: Press and hold for 3 seconds, the window to achieve Celsius / Fahrenheit display conversion WCDZ60INT:DUAL TEMPERTURE DISPLAY BOARD OPERATING INSTRUCTION: ①Power key: Standby mode: short press the button, the power is switched on, the machine starts Boot state: the duration of 3 seconds, the window 10 shows the countdown 321, power off, the whole machine off ...
-
Page 17: Wine Serving Temperature Chart
⑥Child lock： Boot state, the keyboard does not operate for more than 15 seconds, automatically locked, continued to press 3 seconds to unlock ⑦ Humidification system: Indicates that the humidification function is activated ⑧ Dehumidification system: Indicates that the dehumidification function is activated ... - Page 18 IMPORTANT INFORMATION ABOUT TEMPERATURE Your wine cabinet has been designed to guarantee optimum conditions for storing and/or serving your wines. Fine wines require long and gentle developments and need specific conditions in which to reach their full potential. All wines mature at the same temperature, which is a constant temperature set between 12ºC to 14ºC.
-
Page 19: Adjustable Wooden Shelves
ADJUSTABLE WOODEN SHELVES Shelf installation and taking instruction: Common wooden shelf: Shelf taking: According to below instruction drawing to press one side of shelf limit pin①, extract and remove the shelf from the other side of support bracket②, then take off the shelf following the arrow mark ③. -
Page 20: Reversibility Of The Door
REVERSIBILITY OF THE DOOR BV60BL,BV60S,WCDZ60BL,WCDZ60S,WCBV60BL,WCDZ600TS,WCDZ600TBL BV600TBL will use same method to install the door 1. To put the cabinet on open operation place, the door opened to the maximum angle 2. - Page 21 1.Decorative nail 2. Knife 3. Drop-proof device 4. M5 six angle 5. M5 six angle screwdriver 6. Door spindle core 7. Upper door hinge 8. Lower door hinge...
- Page 22 WCDZ60INT will use follow method to install the door 1.Put the cabinet in an open operating area, have the door opened to the maximum angle. Use the knife② to remove the decorative nails① from the left side of the cabinet. (Figure 1) Use the Phillips screwdriver④...
- Page 23 At last, install all decorative nails to the other side of the door①, door installation is all set! (Figure 5) WCSZ45BL will use follow method to install the door Warning: To avoid accidents during the process of changing the door, we recommend that you get assistance.
- Page 24 AUTO-DOOR OPERATING INSTRUCTION Operate the auto-door in the power-on state. Look for the press sign on the door. Press the button and hold to push the door out and open it by hand. Before closing the door, make sure the top auto-scaling rod has retracted.
-
Page 25: Operation Anomalies
Do not close the door before the auto-scaling rod retracts. Note: In the power-off state, you cannot operate the auto-door. You can open the door from the crack directly with hand if needed. OPERATION ANOMALIES Ensure that there is power to the electrical supply plug by connecting another electrical appliance to it. -
Page 26: Troubleshooting Guide
TROUBLESHOOTING GUIDE Common problems may easily be solved, saving you the cost of a possible service call. Please read carefully the instruction manual and revert to troubleshooting guide chart. PROBLEM POSSIBLE CAUSE Wine cabinet Not plugged in. does not The appliance is turned off. operate. - Page 27 Standard features: Compressor operated: R600a - Available in rated voltage/frequency: 220 - 240V, 50Hz - Automatic defrost - Humidity : 65% RH +/-10% RH - Black outer and inner finish - Internal light - Adjustable feet x 4 - Triple layers glass door - Optional Common or Seamless stainless steel finish door frame or Full black glass door...
