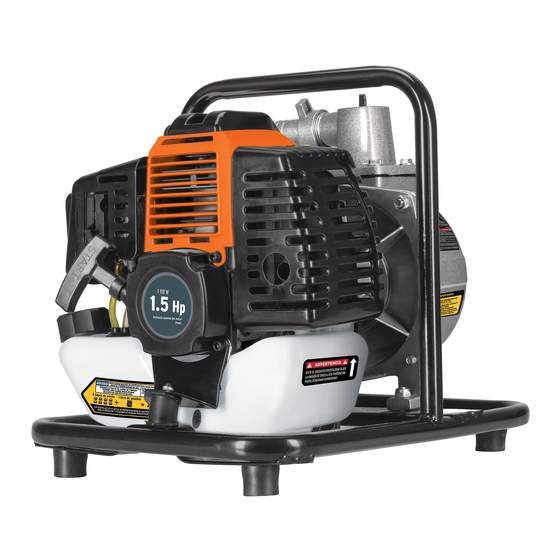

- Page 1 Manual Water Pump Agricultural Use Applies for: Code Model 101110 MOTB-1 Read the user’s manual thoroughly CAUTION before operating this tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical Data Fuel Specifications To gain the best performance of the tool, prolong the duty life, General Safety Warnings for Motor Tools make the Warranty valid if necessary, and to avoid hazards Safety Warnings for Water Pumps of fatal injuries please read and understand this Manual before Parts using the tool. -
Page 3: Technical Data
Technical Data MOTB-1 Code 101110 Description Water Pump Motor Rated Power 1.5 Hp Maximum Flow Rate 26 gal/min Fuel Gasoline + Oil Gas Tank Capacity 1.3 L Inlet and Outlet Diameters 1” Maximum Suction Depth 16,4 feet Maximum Height 65.6 feet Fuel Specifications •... -
Page 4: General Safety Warnings For Motor Tools
General Safety Warnings for Motor Tools Keep your work area clean, tidy and well lit. Wear adequate protective safety accessories. CAUTION CAUTION Cluttered and dark areas may cause accidents. Wear eye protection, dust mask, non-skid safety shoes, helmet and ear plugs. These safety gears reduce the risk Never use the tool in explosive areas or in the presence of injury. -
Page 5: Safety Warnings For Water Pumps
Safety Warnings for Water Pumps Appropriate use Fuel Handling • Do not use the pump to pump flammable or corrosive • Never smoke close to where there is fuel, nor the liquids such as gasoline, oils and acids, neither pumping filling up zone or when operating the pump. -
Page 6: Parts
Parts Purge Water Outlet Throttle Spark Plug Filter Water Inlet Water Drain Switch Throttle Pump Switch Starter Fuel choke Tank Cap Tubular Purge Choke Chassis Lever Spark Plug Water Inlet Exhaust Starter jack-line Fuel Tank Fuel Tank Pump Water Drain ENGLISH... -
Page 7: Assembly
Assembly Coupling Mounting • Insert the coupling (A) in the screw (B) as shown in figure . • Set the seal (C) in the coupling . • Screw the screw in the inlet / outlet of the pump (D). Water Water Intlet Outlet... -
Page 8: Set Up
Set Up • Place the equipment on a dry, firm, flat and leveled surface. • Connect one end of the suction hose (not included) to the pump water inlet (A), and the other end of the hose to the filter (B). •... -
Page 9: Fuel Supply
Fuel Supply • Set the Pressure Washer on a flat and leveled surface. • Clean and dry the area around the fuel cap. • Remove the fuel cap. • Using a funnel fill slowly the fuel tank up to the lower part of the tank neck. -
Page 10: Start Up
Start Up Purge • The system shall be purged of any air bubble by filling the pump with clear water before starting. • Remove the purge cap (A). Fill up with water up to the orifice level and screw back the cap. Only then the pump can be started. -
Page 11: Maintenance
Maintenance • Before inspecting, cleaning or servicing the tool, turn off the motor. Wait for all the moving parts to stop. Disconnect the spark plug cable and separate it from the spark plug. Otherwise, you could be severely injured and the equipment could get damaged. - Page 12 Maintenance Tool storage If storing the tool a month or more, be aware of the following: • Drain all the contents in the fuel tank into an approved gasoline container. All the remaining fuel should be used again in other equipment with a two-cycle motor with a ratio of 50:1.
-
Page 13: Troubleshooting
Troubleshooting Problem Cause Solution The motor does not • There is no spark. • Check the spark. Remove the motor cover. Remove the spark plug from start. the cylinder. Connect the spark plug cable and set it on top of the motor cylinder with its metal part touching the cylinder. -
Page 14: Notes
Notes ENGLISH... -
Page 15: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center. -
Page 16: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Stamp of the business.
