- Page 1 TSOL-RSDM-DS-A/B/C/D TSOL-RSDM-DD-A/B/C/D TSOL-RSDM-CQ-A/B V1.02 - 1 - TSOL-RSDM-DS/DD/CQ User Manual V1.02...
-
Page 2: Table Of Contents
5.1.1 Function test .............................. - 16 - 5.1.2 Maintain test .............................. - 16 - 5.2 Troubleshooting ............................- 16 - 6. Recycling and Disposal ..........................- 17 - 7. Guarantee Service ............................. - 17 - 8. Contact TSUN ............................- 17 - V1.02 - 2 -... -
Page 3: Safety Precautions
1 Safety Precautions 1.1 Scope of Application This User Manual describes instructions and detailed procedures for installing, operating, maintaining, and troubleshooting of the following TSUN PV Rapid Shutdown Equipment (PVRSE): TSOL-RSDM-DS-A TSOL-RSDM-DS-B TSOL-RSDM-DS-C TSOL-RSDM-DS-D TSOL-RSDM-DD-A TSOL-RSDM-DD-B TSOL-RSDM-DD-C TSOL-RSDM-DD-D TSOL-RSDM-CQ-A TSOL-RSDM-CQ-B Please keep this manual all time available in case of emergency. -
Page 4: Preparation
·Any unauthorized actions including modification of product functionality of any form may cause lethal hazard to the operator, third parties, the units or their property. TSUN is not responsible for the loss and these warranty claims. -
Page 5: Explanations Of Symbols
2.2 Explanations of Symbols Symbol Description Danger of high electrical voltage This device is connected in series to the solar inverter, thus all work to the PVRSE shall only be carried out by qualified personnel. Danger of hot surface The components inside the PVRSE will release a lot of heat during operation. -
Page 6: Product Information

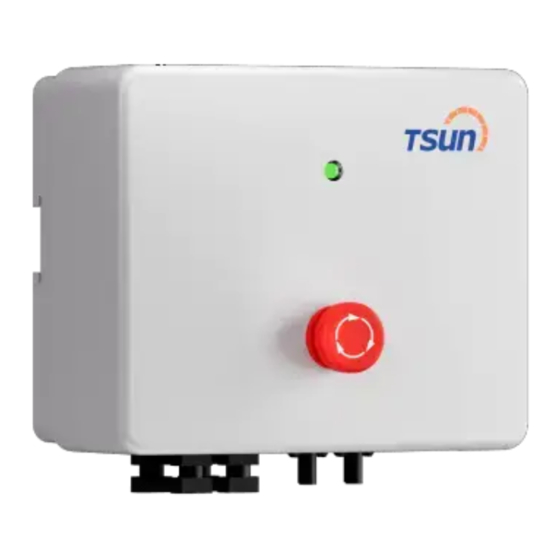

3 Product Information 3.1 Application Scope of Products TSOL-RSDM series Rapid Shutdown System is a fast shut-off device developed according to NEC2020 regulations. It contains the rapid shutdown device (TSOL-RSDM-DS, TSOL-RSDM-DD) and the rapid shutdown controller (TSOL-RSDM-CQ). The Rapid Shutdown System operates one or two standard PV modules, eliminates the high voltage threat of PV system modules. -
Page 7: Overview And Dimensions Of Products
3.4 Overview and Dimensions of products The dimensions of TSOL-RSDM-DS are shown in Figure 3.3&3.4&3.5. Figure 3.3&3.4&3.5 Dimensions of TSOL-RSDM-DS The dimensions of TSOL-RSDM-DD are shown in Figure 3.6&3.7&3.8. Figure 3.6&3.7&3.8 Dimensions of TSOL-RSDM-DD V1.02 - 7 -... -
Page 8: Datasheet
The dimensions of TSOL-RSDM-CQ are shown in Figure 3.9&3.10&3.11. Figure 3.9&3.10&3.11.5 Dimensions of TSOL-RSDM-CQ 3.5 Datasheet TSOL-RSDM TSOL-RSDM TSOL-RSDM TSOL-RSDM MODEL -DS-A -DS-B -DS-C -DS-D Max. DC Input Voltage [V] MPPT Voltage Range [V] 12 - 80 Max. Short Circuit Current [A] Max. - Page 9 TSOL-RSDM TSOL-RSDM TSOL-RSDM TSOL-RSDM MODEL -DD-A -DD-B -DD-C -DD-D Max. DC Input Voltage [V] 80 / 80 MPPT Voltage Range per Input [V] 12 - 80 Max. Short Circuit Current [A] 20 / 20 15 / 15 20 / 20 15 / 15 Max.
-
Page 10: Instructions For Installation
Standard and local code. 4.2 Pre-installation Check Although TSUN’s products have surpassed stringent testing and are checked before they leave the factory, it is uncertain that the products may suffer damages during transportation. Please check the package for any obvious signs of damage, and if such evidence is present, do not open the package and contact your dealer as soon as possible. - Page 11 Figure 4.1&4.2 Fixing the Rapid Shutdown Device 2) Connect the input of rapid shutdown device to the solar module. Figure 4.3 Connecting TSOL-RSDM-DS and solar module Figure 4.4 Connecting TSOL-RSDM-DD and solar modules V1.02 - 11 -...
-
Page 12: Installation Of Tsol-Rsdm-Cq
3) Connect the outputs of all the rapid shutdown devices one after another. Figure 4.5 Connecting Rapid Shutdown Device in Series 4) While TSOL-RSDM-DS or TSOL-RSDM-DD are used without TSOL-RSDM-CQ, connect each string of the rapid shutdown devices to the solar inverter. 4.4 Installation of TSOL-RSDM-CQ WARNING ·While TSOL-RSDM-DS or TSOL-RSDM-DD are used with TSOL-RSDM-CQ, be sure that... - Page 13 Figure 4.6&4.7 Fixing the Rapid Shutdown Controller 2) Separate the AC connector. Connect the AC cable to the Connector. The definition of the port is shown below: Port 1(Brown/Red): Live Port 2(Blue/Black): Neutral Port 3(Yellow-Green): Ground Figure 4.8&4.9 Separate and connect the AC connector WARNING ·Make sure each cable is connected to the right port.
- Page 14 3) Assemble the AC connector. Plug the connector into the AC socket of rapid shutdown controller. Then connect the other side of AC cable to the distribution box or another power source. Figure 4.10&4.11 Assemble and connect the AC connector WARNING ·To prevent electrical hazards, make sure the power source of rapid shutdown controller is turned to “OFF”...
-
Page 15: Start The Pvrss System
5) Plug each string of rapid shutdown devices to the rapid shutdown controller. Then plug each output cable to the solar inverter. Figure 4.16 Connect the DC cable 6) Put the warning label in the PV system as required in the section 690.56(C) of NEC (NFPA70). Figure 4.17 Warning Label of PVRSS 4.5 Start the PVRSS system Turn on the power source of rapid shutdown controller. -
Page 16: System Test And Troubleshooting
2) Check if the AC power supply is normal; PVRSS doesn’t work. 3) Check if the AC voltage is over the operating voltage rang; 4) Contact TSUN. 1) Test the voltage of DC cable. If the voltage of DC cable is zero, check the connection of DC cable. -
Page 17: Recycling And Disposal
* Operation in very harsh environment not as described in this manual; * Out of the scope of installation and use specified in relevant international standards; * Damage caused by abnormal natural environment. More information can be found in TSUN Warranty Policy. 8. Contact TSUN TSUNESS Co., Ltd (Headquarter) Tell：... - Page 18 V1.02 - 18 -...
