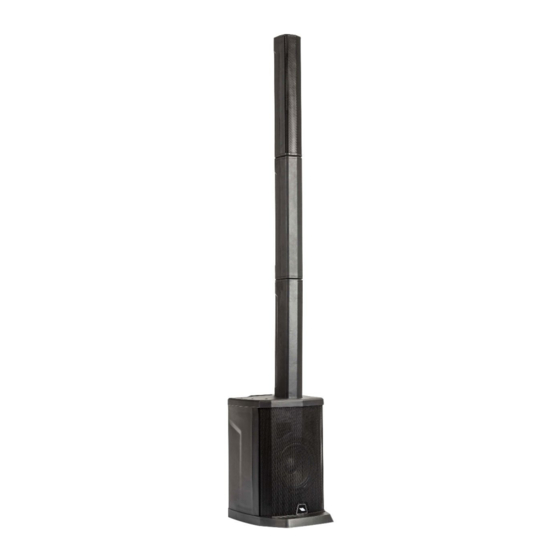

Compact portable column system
Table of Contents

Advertisement

Available languages

Available languages

USER'S MANUAL
MANUALE D'USO
ENGLISH
ITALIANO
96MAN0159-REV.40/21

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Session 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for PROEL Session 1

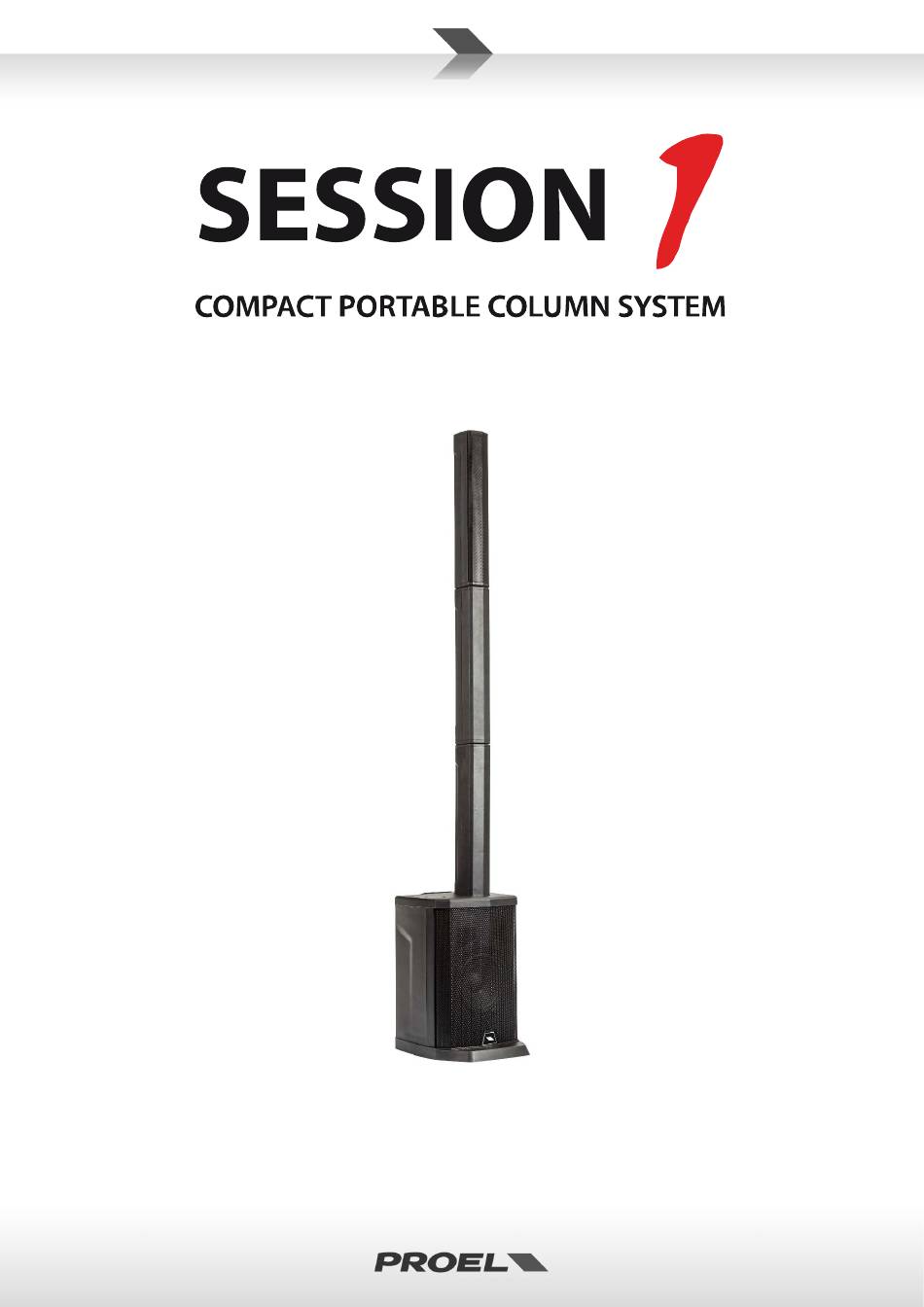

  • Page 1 USER’S MANUAL MANUALE D’USO ENGLISH ITALIANO 96MAN0159-REV.40/21...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the • presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3: Federal Communications Commission (Fcc) Statement

    This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired.
  • Page 4: Table Of Contents

    INDEX IMPORTANT SAFETY INSTRUCTIONS __________________________________________________ 2 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT ____________________________ 3 DECLARATION OF CONFORMITY _____________________________________________________ 3 LIMITED WARRANTY _______________________________________________________________ 3 CONDITIONS OF USE _______________________________________________________________ 3 INDEX ___________________________________________________________________________ 4 INTRODUCTION ___________________________________________________________________ 5 DESCRIPTION _____________________________________________________________________ 5 MAIN PANEL OPERATIONS __________________________________________________________ 5 INSTALLATION ____________________________________________________________________ 8 TECHNICAL SPECIFICATIONS _________________________________________________________ 9 MAIN PANEL ____________________________________________________________________ 18...
  • Page 5: Introduction

    INTRODUCTION Thank you for choosing a PROEL product. Please take some time to read this manual to understand all the features of your system and take advantage of all its performance capabilities. All PROEL products are CE approved and designed for continuous use in professional applications.
  • Page 6 CH3 LINE IN (MINI JACK) This is a MINI JACK (3.5mm) female connector that accepts a STEREO MINI JACK plug from Computer / CD / DVD / MP3 players. The MINI JACK is wired as follows: Tip = positive signal of left channel Ring = positive signal of right channel Sleeve = shield or ground CH3 LINE/MP3 SWITCH...
  • Page 7 • On the device in the list of Bluetooth devices a new device named “SESSION1” will appear and a tone will be reproduced by the loudspeaker, To associate it to your device choose it and if the linking is successful another tone will be •...
  • Page 8: Installation

    REPLACE THE PROTECTION FUSE ONLY WITH THE SAME TYPE. IF, AFTER THE REPLACEMENT, THE FUSE BLOWS AGAIN, DO NOT TRY TO REPLACE IT AND CONTACT THE NEAREST PROEL SERVICE CENTER. INSTALLATION Insert the column modules upper the sub with the column speaker on top.
  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS MIXER Section MONO inputs 2 x MIC/LINE IN (XLR-F + 1.4" JACK) STEREO input 1 x LINE IN (MINI-JACK) Outputs LINE OUT (XLR-M) EQ control SUB LEVEL (SPEECH-MUSIC-BOOST) Internal Effect ECHO-DELAY MULTIMEDIA Section Player Type USB / SD / WIRELESS AUDIO player with STEREO LINK Compatible File Formats MP3, WAV, WMA, APE, FLAC Control Interface...
  • Page 10: Istruzioni Di Sicurezza Importanti

    ISTRUZIONI DI SICUREZZA IMPORTANTI Guarda questi simboli: • Il lampo con la freccia all'interno di un triangolo equilatero ha lo scopo di avvisare l'utente della presenza di "tensione pericolosa" non isolata all'interno della custodia del prodotto, che può essere di ampiezza sufficiente a costituire un rischio di scossa elettrica per le persone.
  • Page 11: Dichiarazione Di Conformità

    GARANZIA LIMITATA Proel garantisce tutti i materiali, la lavorazione e il corretto funzionamento di questo prodotto per un periodo di due anni dalla data di acquisto originale. I difetti rilevati entro il periodo di garanzia sui prodotti venduti, attribuibili a materiali difettosi o difetti di costruzione, devono essere tempestivamente segnalati al proprio rivenditore o distributore, allegando evidenza scritta della data di acquisto e descrizione del tipo di difetto riscontrato.
  • Page 12: Indice

    INDICE ISTRUZIONI DI SICUREZZA IMPORTANTI ______________________________________________ 10 DICHIARAZIONE DI CONFORMITÀ ___________________________________________________ 11 GARANZIA LIMITATA _____________________________________________________________ 11 CONDIZIONI D'USO _______________________________________________________________ 11 INDICE _________________________________________________________________________ 12 INTRODUZIONE __________________________________________________________________ 13 DESCRIZIONE ____________________________________________________________________ 13 FUNZIONI DEL PANNELLO PRINCIPALE ________________________________________________ 13 INSTALLAZIONE __________________________________________________________________ 16 SPECIFICHE TECNICHE _____________________________________________________________ 17 PANNELLO PRINCIPALE ____________________________________________________________ 18 INSTALLAZIONE __________________________________________________________________ 19...
  • Page 13: Introduzione

    INTRODUZIONE Grazie per aver scelto un prodotto PROEL. Dedicate del tempo alla lettura di questo manuale per comprendere tutte le funzionalità del vostro sistema e sfruttare al massimo le sue possibilità operative. Tutti i nostri prodotti sono conformi alle normative CE per un utilizzo continuo in applicazioni professionali.
  • Page 14 CH3 LINE IN (MINI JACK) Connettore femmina MINI JACK (3.5mm) che accetta un JACK MINI STEREO maschio da una sorgente ausiliaria ( PC / CD / DVD / lettore MP3). Il MINI JACK è terminato come segue: Tip (punta) = segnale positivo del canale sinistro Ring (anello) = segnale positivo del canale destro Sleeve (manicotto) = schermo o massa CH3 TASTO LINE/MP3...
  • Page 15 e verrà emesso un tono dal diffusore. • Per associare il diffusore al dispositivo selezionarlo e se il collegamento ha esito positivo verrà emesso un altro tono dall'altoparlante. • Ora vedrai "SESSION1" nell'elenco dei tuoi dispositivi Bluetooth riconosciuti sul tuo smartphone o tablet e sei pronto per riprodurre musica con esso utilizzando la tua app preferita.
  • Page 16: Installazione

    CARATTERISTICHE RIPORTATE SUL PRODOTTO. SE, DOPO LA SOSTITUZIONE, IL FUSIBILE SI INTERROMPE NUOVAMENTE, NON INSISTETE NELLA SOSTITUZIONE E CONTATTATE IL SERVIZIO ASSISTENZA PROEL PIU’ VICINO. INSTALLAZIONE 1. Inserire i moduli della colonna nella parte superiore del sub con l'altoparlante della colonna in alto.
  • Page 17: Specifiche Tecniche

    SPECIFICHE TECNICHE Sezione MIXER Ingressi MONO 2 x MIC/LINE IN (XLR-F + 1.4" JACK) Ingressi STEREO 1 x LINE IN (MINI-JACK) Outputs LINE OUT (XLR-M) Controllo EQ SUB LEVEL (SPEECH-MUSIC-BOOST) Internal Effect ECHO-DELAY Sezione MULTIMEDIA Dispositivi di Riproduzione USB / SD / WIRELESS AUDIO con STEREO LINK Formato File Compatibili MP3, WAV, WMA, APE, FLAC Controlli Interfaccia...
  • Page 18: Main Panel

    MAIN PANEL / PANNELLO PRINCIPALE...
  • Page 19: Installation

    INSTALLATION / INSTALLAZIONE...
  • Page 20 PROEL S.p.A. (World Headquarters - Factory) Via alla Ruenia 37/43 64027 Sant’Omero (Te) – Italy Tel: +39 0861 81241 Fax: +39 0861 887862 www.proel.com...
