Indispensable power supply for the addressed system
The switching power supply ASI012 is born to complete the addressed gas leak detection system
this power supply is used to provide a 15VDC electrical voltage to feed 8 gas sensors
A series of courtesy terminals have been added for a possible RS-485 MODBUS Network connection.
+
+
input
output output
230VAC
15VDC 15VDC
Line RS 485 - Max 1000m
BXI32
S10
S11
Installation
and user guide
Note. Before connecting the equipment, it is recommended that you read the instruction manual carefully and keep it for future
reference.
It is also recommended to perform the electrical connections correctly as per enclosed drawings, observing the instructions
and the Standards.

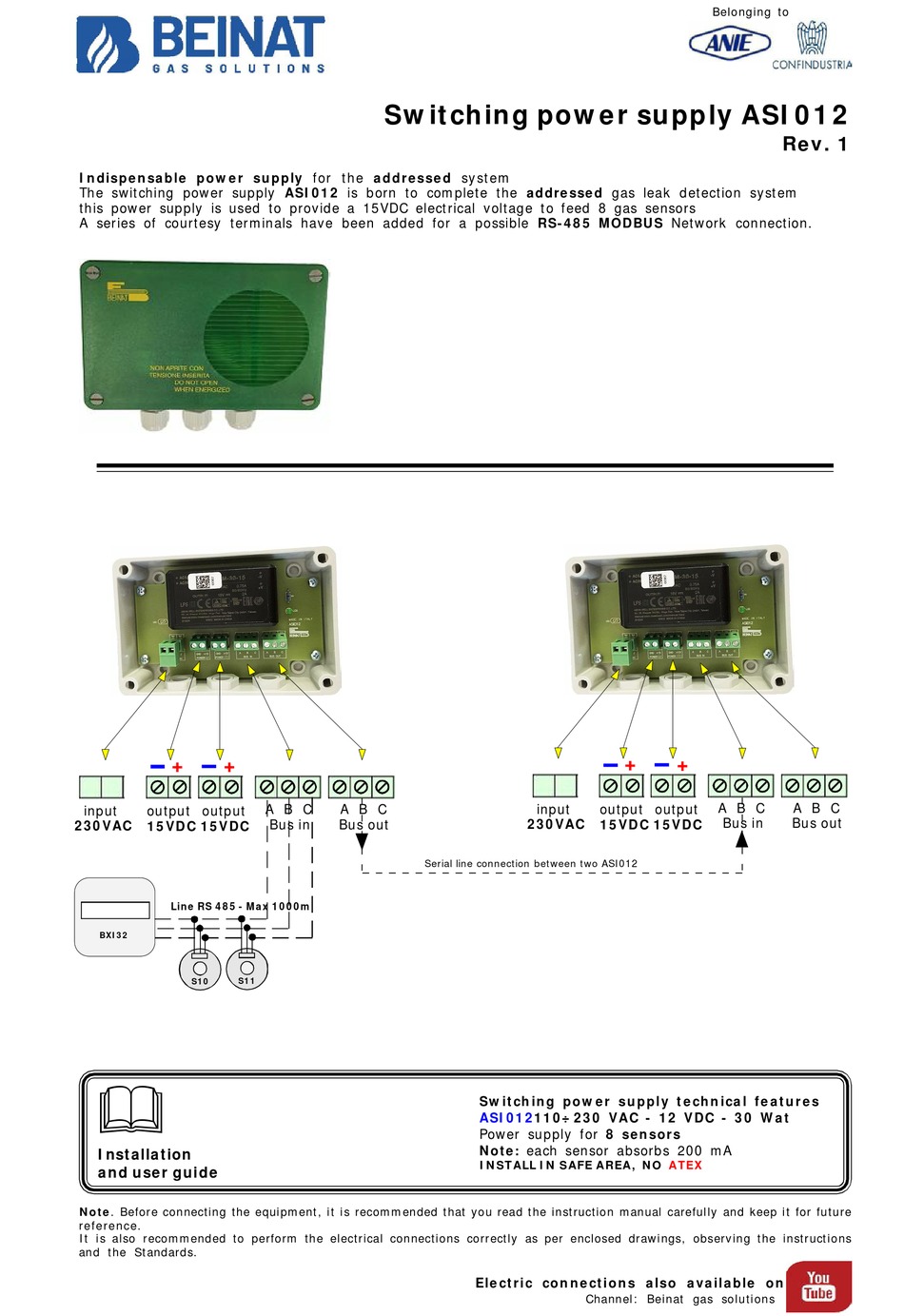

Switching power supply ASI012
A B C
A B C
Bus in
Bus out
Serial line connection between two ASI012
+
input
output output
230VAC
15VDC 15VDC
Switching power supply technical features
ASI012110÷230 VAC - 12 VDC - 30 Wat
Power supply for 8 sensors
Note: each sensor absorbs 200 mA
INSTALL IN SAFE AREA, NO
Electric connections also available on
Channel: Beinat gas solutions
Belonging to
Rev. 1
+
A B C
A B C
Bus in
Bus out
