VIDASHIELD
™
Assembly and Installation Instructions
1. DESCRIPTION
1.1
The VidaShield Surface Mount Kit is a perimeter trim system
designed to create ready-to-assemble installations for surface mounted
VidaShield units.
1.1.1.
Included in the Kit are:
• Axiom
Interlude
Trim, with factory-cut end details
®
®
• Aircraft cable, cut to 10' length, and accessories
• Axiom splices to join sections of Axiom
• Trim Kit Brackets to attach the Axiom trim to VidaShield unit
• Hardware to attach trim kit brackets to VidaShield unit
• Threadlocker to secure trim kit bracket hardware
NOTE: Kits contains all of the components required to construct and
hang a complete cloud except for the VidaShield unit and fastening
hardware.
KIT ITEM #: 52SURMK PARTS LIST
Item
Qty
Item Number
1
2
AXLD6
2
2
AXLD6
3
8
AXSPLICE2
4
8
–
5
2
–
6
1
–
7
8
–
8
1
–
2. INSTALLATION REQUIREMENTS
2.1 Important Notice
2.1.1
Failure to follow these instructions could result in damage or
injury of property and/or body.
Surface Mount Kit
Description
6" Axiom Interlude
6" Axiom Interlude
Splice Plate
AXLD6
1/4-20 X 3/8 PFH WH SCREWS
Surface Mount Bracket Assembly
Surface Mount Plate Assembly
10-32 X 3/8 PPH ZN SCREWS
BLU THRDLCKR 2ML TUBE
2
7
6
5
4
1
3

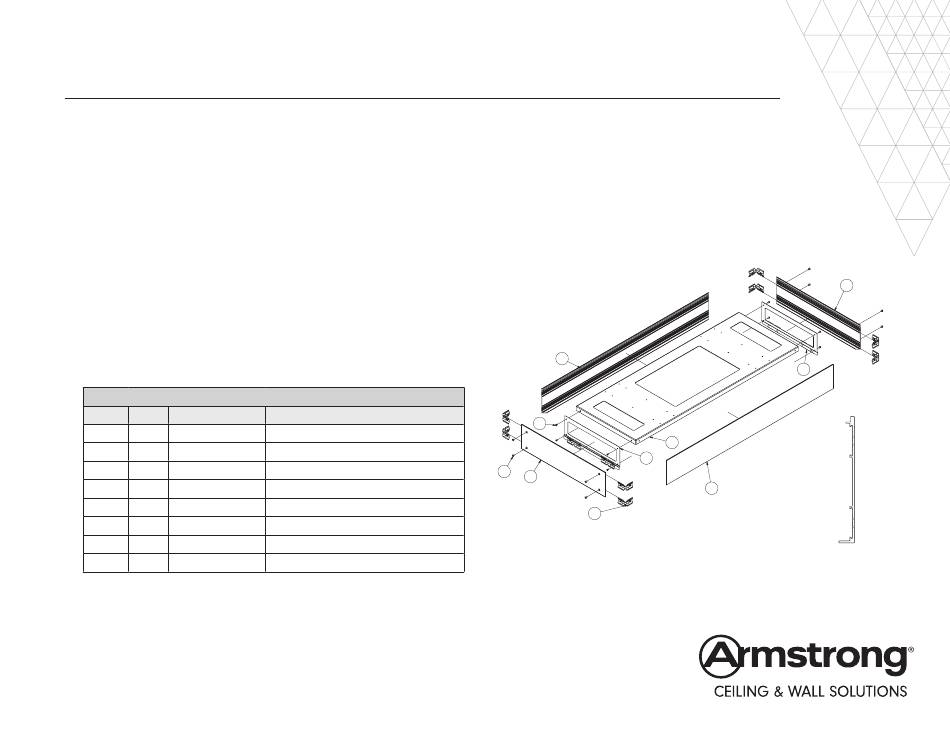

(Fig 1)
1
5
2
SURFACE MOUNT TRIM KIT

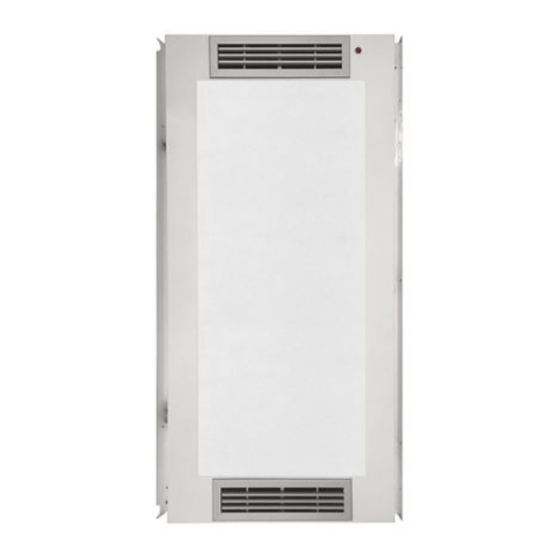

VIDASHIELD G2 UV24 AIR PURIFICATION SYSTEM
AXLD6
Advertisement
Table of Contents
Related Manuals for Armstrong VIDASHIELD
Summary of Contents for Armstrong VIDASHIELD
- Page 1 • Aircraft cable, cut to 10’ length, and accessories • Axiom splices to join sections of Axiom • Trim Kit Brackets to attach the Axiom trim to VidaShield unit • Hardware to attach trim kit brackets to VidaShield unit • Threadlocker to secure trim kit bracket hardware...
- Page 2 The mounting plate has large cut-outs to accommodate routing. Do not modify the mounting plate for wire routing. There will (Fig 3) be approximately 1.5" gap between the ceiling and the VidaShield unit once installed. 3.2 Attaching Mounting Plate to Structure 3.2.1...
- Page 3 3.4.2 Once the electrical wiring has been complete, pre-apply blue threadlocker to the machine screws. Then raise the VidaShield unit/ Trim Kit Brackets to the mounting plate, ensuring the trim kit brackets are located on the outside flanges of the mounting plate. Finally, secure the trim kit brackets to the mounting plate with the machine screws reference above.
- Page 4 3.6.1 Slide short trim pieces into the splice plates attached to the trim kit brackets previously attached to the VidaShield unit. The Axiom trim should be oriented such that the acoustical flange is face down. Utilize the lower channel on the trim. See (Fig 10)
- Page 5 (Fig 12) M ORE INFORM ATI O N For more information, or for an Armstrong Ceilings representative, call 1 877 276-7876. For complete technical information, detail drawings, CAD design assistance, installation information, and many other technical services, call TechLine customer support at 1 877 276-7876 or FAX 1 800 572-TECH.
