Armstrong VIDASHIELD Exposed Trim Kit Assembly And Installation Instructions

VIDASHIELD
™
Assembly and Installation Instructions
1. DESCRIPTION
1.1
The VidaShield Exposed Trim Kit is a perimeter trim system
designed to create ready-to-assemble installations for independently
suspended VidaShield units. (Fig 1)
1.1.1.
Included in the Kit are:
• Axiom Interlude Trim, with factory-cut end details
® ®
• Aircraft cable, cut to 10' length, and accessories
• Axiom splices to join sections of Axiom
• Trim Kit Brackets to attach the Axiom trim to VidaShield unit
• Hardware to attach trim kit brackets to VidaShield unit
• Threadlocker to secure trim kit bracket hardware
NOTE: Kits contains all of the components required to construct and
hang a complete cloud except for the VidaShield unit.
2. INSTALLATION REQUIREMENTS
2.1 Important Notice
2.1.1
Failure to follow these instructions could result in damage or
injury of property and/or body.
2.2 Existing Ceiling Structure
2.2.1
It is the sole responsibility of the installer to confirm that the
existing ceiling structure is suitable to support any imposed loads
from the Surface Mount Kit and VidaShield unit for any building
design category.
2.3 Component Anchorage and Restraint
2.3.1
Most building codes require non-structural building components
to be restrained. Armstrong also recommends anchorage and restraint
in accordance with local building code requirements. Please consult
with the building code professional having jurisdiction over the project
to determine appropriate anchorage and restraint requirements for this
installation. Anchorage and restraints are not included in this kit.

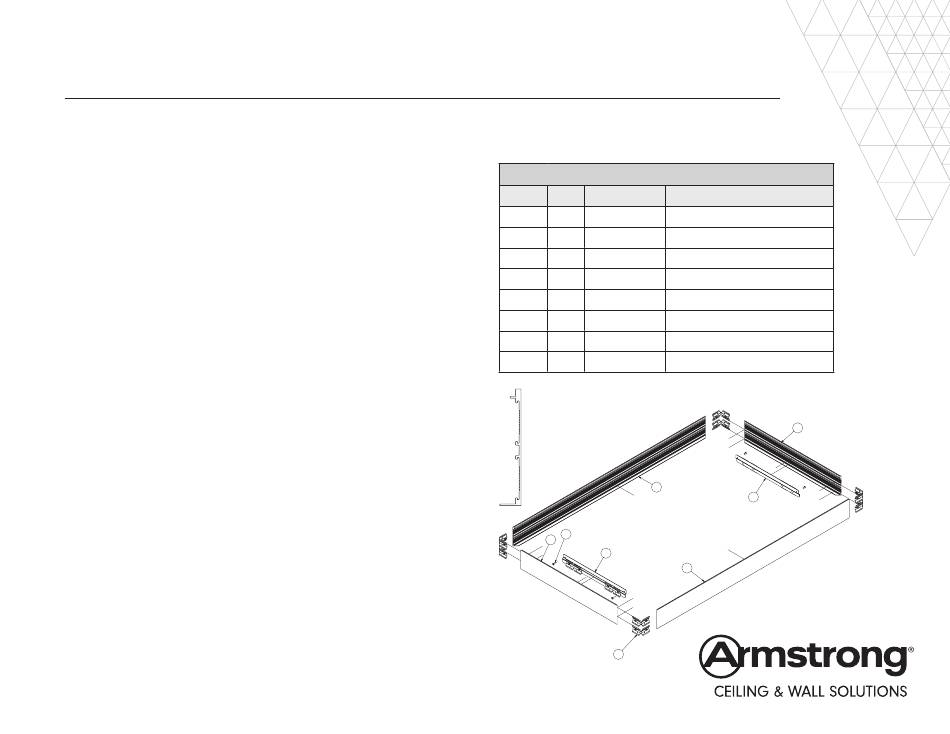

Exposed Trim Kit
KIT ITEM # 52EXPTK Parts List
Item Qty Item Number
1 2 AXLD4
2 2 AXLD4
3 2 N/A
4 8 AXSPLICE2
5 4 N/A
6 1 N/A
7 4 AC1210
8 4 ACHC
AXLD4
5
1
3
AXLD4
(Fig 1)
4
Description
4" Axiom Interlude
® ®
4" Axiom Interlude
Trim Kit Bracket
Axiom Splice Plate
10-32 x 3/8 PPH ZN Screws
Blu THRDLCKR 2ml Tube
Aircraft Cable 10' Length
2
Quick Loop Connectors
5
1
1
3
2
3
2
4
EXPOSED TRIM KIT
G2 AIR PURIFICATION SYSTEM
