Home Theater Optimized
DILA1080pHD
Installation and
Operations Manual
NOTICE: THIS PROJECTOR HAS BEEN SIGNIFICANTLY
MODIFIED AND OPTIMIZED TO PRODUCE VERY HIGH
QUALITY IMAGES USING THE FAROUDJA PROCESSOR.
ANY CHANGES MADE TO THESE SETTINGS CAN CORRUPT
THIS PROCESS. RESETTING THE OPTIMIZATION IS NOT
COVERED UNDER WARRANTY.
™
Advertisement
Table of Contents
Related Manuals for Faroudja DILA1080pHD
Summary of Contents for Faroudja DILA1080pHD
-
Page 1: Instructions

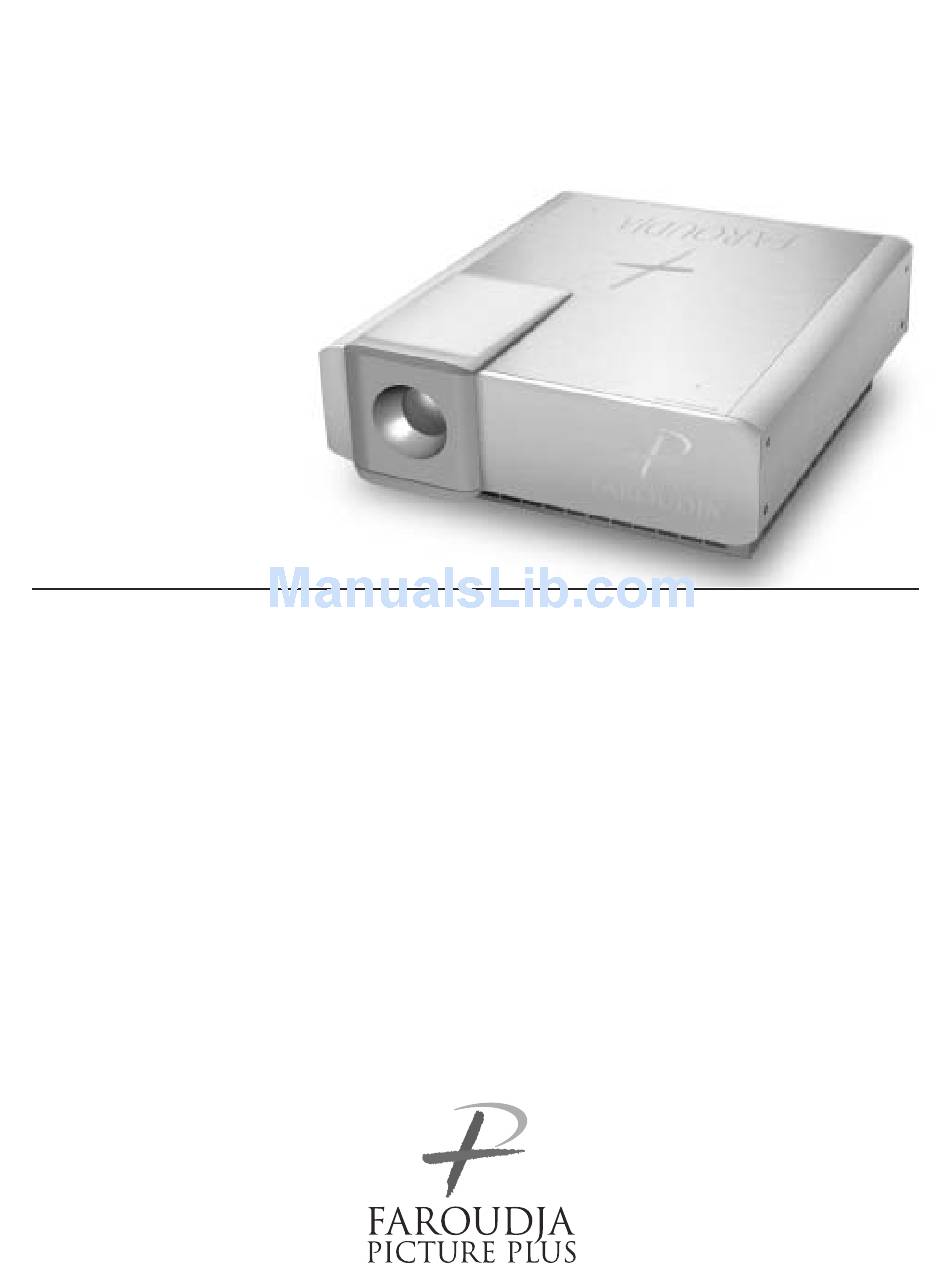

Home Theater Optimized DILA1080pHD Installation and Operations Manual NOTICE: THIS PROJECTOR HAS BEEN SIGNIFICANTLY MODIFIED AND OPTIMIZED TO PRODUCE VERY HIGH QUALITY IMAGES USING THE FAROUDJA PROCESSOR. ANY CHANGES MADE TO THESE SETTINGS CAN CORRUPT THIS PROCESS. RESETTING THE OPTIMIZATION IS NOT COVERED UNDER WARRANTY. -
Page 2: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT INFORMATION NOTICE (For USA) Language for Manuals of Products using HID Lamps (that contains mercury) This product has a High Intensity Discharge (HID) lamp that contains a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your com- munity due to environmental considerations. - Page 3 – Slots and openings in the cabinet are provided for ventila- tion. These ensure reliable operation of the product and pro- tect it from overheating. These openings must not be blocked or covered. (The openings should never be blocked by plac- ing the product on bed, sofa, rug, or similar surface.
-
Page 4: Power Connection
Safety Precaution (continued) POWER CONNECTION WARNING: Do not cut off the main plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter or consult your dealer. -
Page 5: Caution
Caution About Burning-in of D-ILA Device ● Do not allow the same still picture to be pro- jected for a long time or an abnormally bright video image to be projected. Do not project video images with a high intensity or high contrast on a screen. -
Page 6: Table Of Contents
Contents SAFETY PRECAUTIONS ... 2 Caution ...5 Accessories ...6 Controls and Features ... 7 Front Side/ Top Surface/ Left Side ... 7 Rear Side/ Right Side/ Bottom Surface ... 8 Connector Panel ... 9 Control Panel ... 10 Indicator Display on the Control Panel ... 11 Remote Control ... -
Page 7: Controls And Features
Controls and Features Front Side/Top Surface/Left Side Backup Control Panel Use in case IR remote cannot be used. Panel is located behind metal plate. AC Power Input Terminal This is the AC power input terminal. Connect the supplied power cord to this terminal. ( Foot Lever (for front adjustable foot) Use when extending or retracting the front adjustable foot. -
Page 8: Rear Side/Right Side/Bottom Surface
Controls and Features (continued) Rear Side/Right Side/Bottom Surface Connection Panel Access panel by removing four screws and removing side panel. Lamp Cover Remove this cover when replacing the lamp. See manual insert for details on accessing bulb. Exhaust Vent Warm air is expelled through this vent to keep the system cool. -
Page 9: Connector Panel
Connector Panel [SYNC OUT] Terminal This terminal is intended for servicing purposes. Do not use it. Using it may give rise to error or malfunction of the unit. [SERVICE] Terminal This terminal is intended for servicing purposes. Do not use it. Using it may give rise to error and malfunction of the unit. -
Page 10: Control Panel
Controls and Features (continued) Control Panel [TEMP] Indicator Blinking : Indicates that temperature inside this unit is ab- normally high. ( Pages 11, 33) [LAMP] Indicator Light on: Indicates that lamp has been used for more than 1900 hours. ( Blinking : Indicates that lamp usage time (about 2000 hours) is exceeded. -
Page 11: Indicator Display On The Control Panel
Indicator Display on the Control Panel In addition to the standby mode, operate mode and cool down mode*, this unit also displays other operational states using different combination of indicators. ● Please refer to Page 28 for explanations on warning indication for * [STAND BY] light on Unit is in standby mode STAND BY... -
Page 12: Remote Control
Controls and Features (continued) Remote Control OPERATE FOCUS LIGHT MENU ENTER PRESET Remote Control’s Signal Transmitter Page 17) [OPERATE ON] Button When this unit is in the standby mode, pressing the button for more than 1 second will turn this unit on and cause the [OPERATE] indicator to light up. -
Page 13: Loading Batteries Into The Remote Control
Loading Batteries into the Remote Control Load batteries into the remote control. If the remote control starts to function erratically, replace the batteries. Open the back cover Press the back cover slightly and slide it in the direction of the arrow. Load the batteries Insert the 2 (AAA) batteries supplied according to the marks. -
Page 14: Installing The Projector
Installing the Projector Precautions for Installation Please read the following carefully when installing this unit. Installation Environment This unit is a precision device. Do not install it at the following places. Doing so may cause fire or malfunction of the unit. •... -
Page 15: Projector And Screen Installation
Projector and Screen Installation The optimum image can be obtained when the center of this unit lens and the screen are placed perpendicular to each other. Take note of the projection angle when placing them. Failing to do so may give rise to trapezoidal distortion of the projected image. -
Page 16: Screen Size And Projection Distance
Installing the Projector (continued) Screen Size and Projection Distance ● This unit uses a 1.3x manual zoom lens for projection. ● Although the focusable projection distance is about 1.5 m to 12 m, the projection distance recommendable for performance is about 2 m to 8 m. Install this unit within this range and adjust the screen size when the aspect ratio of the screen is 16:9. Screen Installation Screen Relationship Between Projection Distance and Projection Screen Size... -
Page 17: Effective Range Of Remote Control Unit
Effective Range of Remote Control Unit The operable distance of the remote control unit is about 7 m for direct reception. The remote control unit can be used by having the transmission signal reflected off a screen. ● If the fluorescent lamp is lit, the remote control unit might not function properly. When reflecting off a screen Ensure that total of distance A between this unit and screen and distance B between remote control and screen is within 7 m. -
Page 18: Connecting To Various Devices
Connecting to Various Devices Connecting to Devices Before connection, be sure to turn off both the projector and the device to be connected. Connecting to digital video processors ● Read the manual that is supplied with the digital video processor thoroughly. ●... -
Page 19: Connecting The Power Cord (Supplied)
Connecting the Power Cord (supplied) After all devices have been connected, connect the supplied power cord. Power Cord (supplied) Cautions Against Fire and Electric Shock ● Since the power requirement of this unit is high, insert the power plug directly into a wall outlet. ●... -
Page 20: Basic Operations Procedures
Basic Operation Procedures If setting for this unit is not completed, please refer to “Adjustments and Settings Using Menus”( power and perform the required setting accordingly. Once the basic setting is completed, this unit can be used by simply performing the following operation procedures. OPERATE FOCUS LIGHT... -
Page 21: Hiding The Image Temporarily
Hiding the image temporarily Press [HIDE] ● The displayed image will disappear. ● Press [HIDE] again to restore the image. Turning off the power OPERATE FOCUS LIGHT TEST Note MENU EXIT ● The [OPERATE OFF] button will not work within approximately 1 minute ENTER PRESET HIDE... -
Page 22: Adjustments And Settings Using Menus
Adjustments and Settings Using Menus The menus displayed on the screen are used to perform adjustment and setting for this unit. Menu Structure The menus of this unit have the following structure. Main Menu Gamma Image adjust Color temp. Set up Options GREEN Information... -
Page 23: Menu Operation Buttons
Menu Operation Buttons The menus are operated using buttons on this unit or remote control unit. STAND BY LAMP TEMP OPERATE MENU EXIT Menu ENTER Operation Buttons PRESET HIDE OPERATE FOCUS LIGHT TEST MENU EXIT Menu Operation ENTER Buttons PRESET HIDE Button This Unit... -
Page 24: Procedures For Menu Operation
Adjustments and Settings Using Menus (continued) Procedures for Menu Operation STAND BY LAMP TEMP OPERATE 1, 6 MENU EXIT 2, 3 ENTER OPERATE 1, 6 FOCUS TEST LIGHT MENU EXIT 2, 3 ENTER PRESET HIDE Press the [MENU] button ● The main menu is displayed on the screen. Display of the menu item currently selected becomes solid and icon of the Gamma... -
Page 25: Menu Configuration
Menu Configuration Item values shown in { } are factory settings. 1 “Image adjust” Menu To adjust images. On the “Image adjust” menu, you can adjust the following items. “Gamma” Switches the gradation characteristics of the image. Select your preference setting values according to the image to be viewed. -
Page 26: Screen Masking
Screen Masking Images for which quality at the outer area has deteriorated can be projected by masking (hiding) the outer area of the projected image. 2, 5 MENU EXIT 3, 4 ENTER PRESET HIDE OPERATE 2, 5 FOCUS LIGHT TEST MENU EXIT 3, 4... -
Page 27: Picture Shift Setting
Picture Shift Setting When projecting images with black bands at the top and bottom (cinema image), use this to move the image up or down while retaining one of the black bands at the upper or lower end. 2, 5 MENU EXIT 3, 4... -
Page 28: Replacing The Lamp
Replacing the Lamp Light-source Lamp and Lamp Usage Time The light-source lamp has a service life. The life of lamps used for this unit is about 2000 hours. ● The lamp life of 2000 hours is merely the average life span of lamps and we do not provide any guarantee for this figure. The lamp life may not reach 2000 hours depending on the operating conditions. - Page 29 Loosen the screws on the lamp unit and lift up the handle ● Loosen the 2 screws with a screwdriver. Pull out the lamp unit Insert the new lamp unit until it is fully in Caution Do not touch the glass surface of the lamp directly with your hand or stain it.
-
Page 30: Resetting Lamp Time
Replacing the Lamp (continued) Resetting Lamp Time After installing a new lamp (lamp unit), reset the lamp time. The lamp time counter will be reset and a new count will start. If display of the accumulated lamp time has reached 2000 hours, this unit will not work (lamp does not light up) unless the lamp time is reset. -
Page 31: Cleaning And Replacing The Filter
Cleaning and Replacing the Filter Clean the filter regularly or air intake efficiency may deteriorate and malfunction may occur. If the filter is extremely dirty and cannot be cleaned, or if it is damaged, replace the filter with a new one (lower filter: LC32087-002A / inner filter: LC32058- 002A). -
Page 32: What To Do When These Messages Are Displayed
What to do when these messages are displayed Message No Signal DVI-D 1000h L a m p r e p l a c e m e n t L a m p r e p l a c e m e n t W a r n i n g Cause (Details) No device is connected to the DVI terminal. -
Page 33: Warning Indication
Warning Indication About warning indicators If abnormality occurs in this unit during projection, the warning mode will be triggered and the type of abnormality will be indicated by a combination of indicators displayed on the control panel. This unit will then automatically stop projection and run the cooling fan for about 90 seconds. -
Page 34: Troubleshooting
Troubleshooting Before sending the unit to your authorized dealer for repair, check the following points. Symptom Probable Cause Power is not • Is the power cord disconnected? supplied. • Is the lamp cover properly shut? • Is the filter cover properly shut? •... -
Page 35: Terminal Description
Terminal Description Pin Arrangement RS-232C Terminal Pin No. 9 8 7 6 5 4 3 2 1 DVI Terminal Pin No. TMDS = Transition Minimized Differential Signaling DDC = Display Data Channel Signal Name Pin No. Signal Name Signal Name Pin No. -
Page 36: Rs-232C External Control
Terminal Description (continued) RS-232C External Control Control of this unit via a computer is possible by connecting the computer to this unit with a RS-232C cross cable (D-sub 9 pins). The commands to control this unit and the response data format against the received commands are explained here. For details, please consult your authorized dealer. - Page 37 3 Special parameters Parameters for input video image format Character Operation mode parameters Character 0000 30h 30h 30h 30h 0001 30h 30h 30h 31h 0002 30h 30h 30h 32h 0004 30h 30h 30h 34h 3. External control command table Function Command Operate HIDE...
-
Page 38: Specifications
Specifications Model Name/ Article Name DILA1080pHD Home Theater Projector Emission Method D-ILA* Display Panel/Size D-ILA Device* Projection Lens x 1.3 zoom lens (1.8:1 to 2.35:1) (Zoom/Focus adjustment: manual) Light-source Lamp 250 W Ultra-high Pressure Mercury Lamp [Part No.: BHL5006-S / Rating: 250 W] Screen Size Approx. - Page 39 Dimensions (Unit: mm) Front Bottom M6 (Depth: 10 mm) 67.5 Mounting screw should be more than 6 mm but less than 10 mm in length. Side 63.5 Center of Lens...
- Page 40 DVD Drives: One (1) year limited parts and labor Plasmas (HD20 version): Four (4) years limited parts and labor Projectors: DILA1080pHD, DILA3, Two (2) years limited parts and labor DLPHD20 DILA2 Three (3) years limited parts and labor These limited warranties are contingent upon proper use and installation and does not apply to products damaged as a result of accident, misuse, neglect, alteration, improper installation, unusual physical or electrical stress or unauthorized repair.
