Clas Ohlson JH-834-2 Quick Start Manual

Motorcycle Intercom
Art. no 38-3720
Please read the entire instruction manual before using the product and save it for future reference.
We reserve the right for any errors in text or images and any necessary changes made to technical data.
If you have any questions regarding technical problems please contact Customer Services.

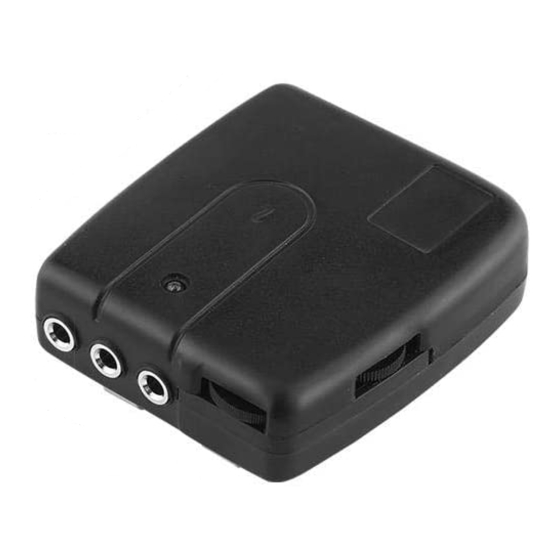

Product description
6
5 4 3
1. On/off switch/volume control for rider
2. On/off switch/volume control for pillion
3. Headset socket for rider
4. Headset socket for pillion
5. Audio socket for external audio sources
6. LED
Installation
Batteries
Insert 2 x AAA/R03 batteries. Align the plus (+)
and minus (-) according to the markings in the
battery compartment and replace the battery
cover. Prolonged use will result in the LED fading,
deteriorated sound quality and loss of volume.
Replace the batteries frequently for optimum
performance. Remove the batteries if the product
is not to be used for a long time.
Headset
Fasten the headset to the lining of the helmet
(as close to the ear as possible) using the velcro.
Place the microphone in a suitable position and
connect the cable to the unit.
GREAT BRITAIN
For consumer contact, please visit www.clasohlson.co.uk
and click on customer service.
Model JH-834-2
1
2
Audio socket
This socket allows you to connect sound sources
such as CD players, radios or MP3 players.
Use
The on/off switch/volume control on the end of
the unit is for the pillion. The dial on the side is
the power/volume control for the rider. Test the
function of the unit when you have put your
helmet on. Check the sound quality (adjust
microphone if necessary) and that the volume
is set right (adjust using resp. volume control).
Warning
When the sound quality is affected by high speed
or strong wind, it is best not to raise the volume
because the sound enters the unit via the mi-
crophones. If the sound is more annoying when
the volume is raised, it might be better to lower
the volume instead.
Disposal
Follow local ordinances when disposing of this
product. If you are unsure of how to dispose of
this product, please contact your municipality.
Specifications
Power supply:
Rated power:
Frequency response:
Size in mm:
Weight:
Operating temperature:
2 x AAA/R03 batteries
150 mW
50–20 000 Hz ±3 dB
63 x 56 x 20 (main unit)
40 g (main unit)
-20 °C to +50 °C
