10.1SP

Penates 10.1SP

User Manual
for Mac
MAC OSX 10.7/10.8/10.9
Driver Version 2.0.5
Version:V14.07
Release Date:2014/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Penates 10.1SP and is the answer not in the manual?

Questions and answers

Summary of Contents for UC Logic Penates 10.1SP

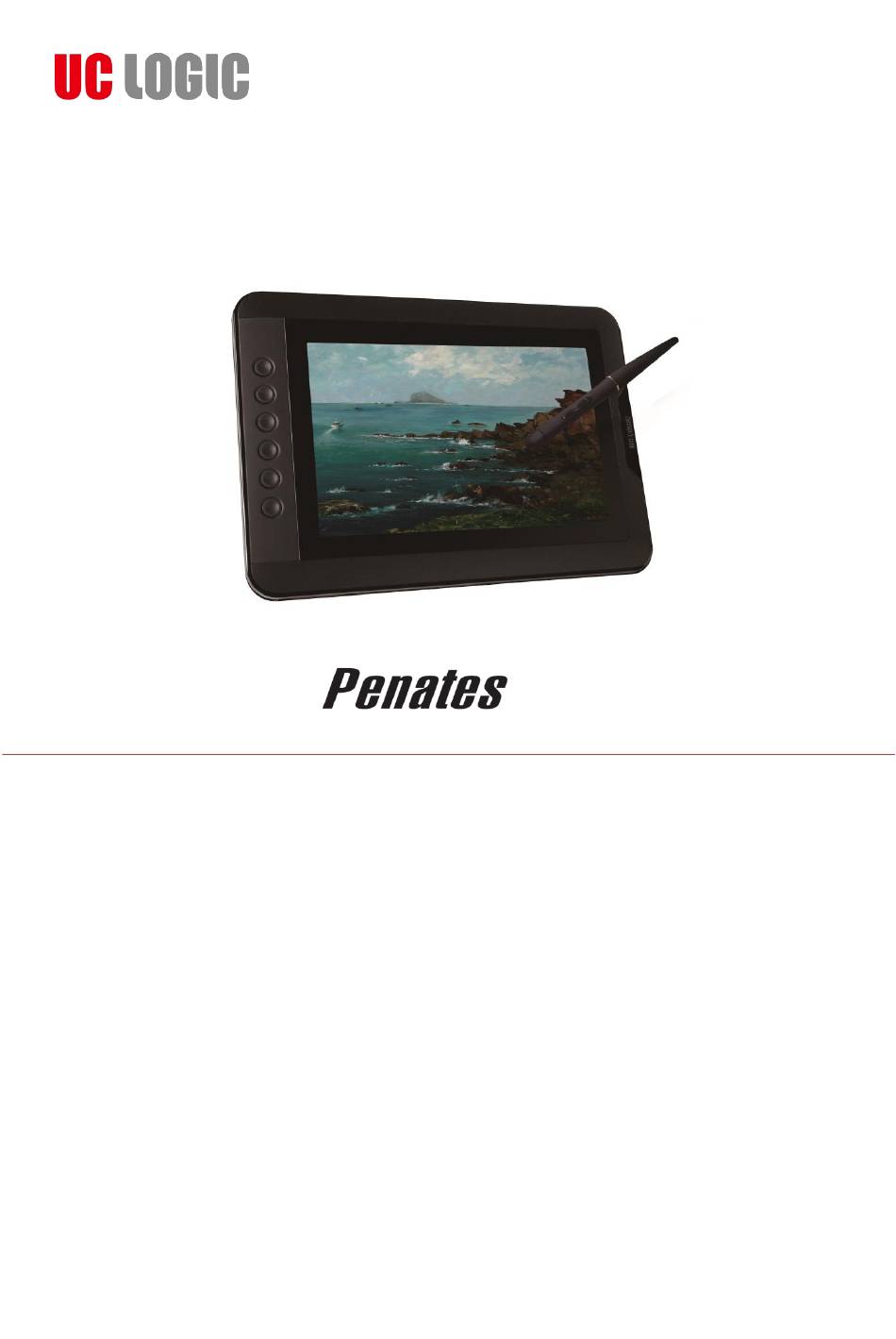

  • Page 1: Penates 10.1Sp

    10.1SP Penates 10.1SP User Manual for Mac MAC OSX 10.7/10.8/10.9 Driver Version 2.0.5 Version:V14.07 Release Date:2014/07...
  • Page 2: Table Of Contents

    Penates 10.1SP Driver Version 2.05 Contents Penates 10.1SP ............................1 General Information ........................3 OVERVIEW ..........................3 PENATES FUNCITONS ......................... 3 SYSTEM REQUIREMENTS ......................3 VERYFYING HARDWARE ......................4 HARDWARE INSTALLATION ......................5 INSTALLING THE DRIVER SOFTWARE ON WINDOWS ..............6 UNINSTALLING THE DRIVER ON MAC SYSTEM ................
  • Page 3: General Information

    Penates 10.1SP Driver Version 2.05 I. General Information OVERVIEW Welcome to the world of Penates! You’ll be able to discover how easy it is to control your personal computer by using a U Pen instead of a mouse. The function of the U Pen is able to draw a very thin, thick, light, or dark line (called “pressure sensitivity”).
  • Page 4: Veryfying Hardware

    Penates 10.1SP Driver Version 2.05 VERYFYING HARDWARE Your Penates and package contents are shown below. If anything is missing, contact your dealer immediately.
  • Page 5: Hardware Installation

    Penates 10.1SP Driver Version 2.05 HARDWARE INSTALLATION Connect your Penates with the HDMI & USB interface into the computer before the driver installation.
  • Page 6: Installing The Driver Software On Windows

    Penates 10.1SP Driver Version 2.05 INSTALLING THE DRIVER SOFTWARE IN MAC To install the driver, just follow the installation instructions below: Place the DVD into the optical disc drive. Select 【mac driver】 ►【Mac OS X】► 【PenTabletDriver】 for installation. Continue to follow the installation instructions on screen.
  • Page 7 Penates 10.1SP Driver Version 2.05 3.2 Click【Install】 3.3 Enter the user name and password. Click【Install Software】. 3.4 Click【Close】to complete the installation. If you do not have a CD/DVD driver, download the driver from www.uc-logic.com “Supports” page and follow the installation instructions on screen.
  • Page 8: Uninstalling The Driver On Mac System

    Penates 10.1SP Driver Version 2.05 UNINSTALLING THE DRIVER ON MAC SYSTEMS Click【GO】►【Applications】 Click 【TouchTablet】►【Uninstall PenTablet Driver】 Click【UninstallTabletDriver】 You can enter the user name and password and click【OK】to complete the uninstall process.
  • Page 9: Usage Tips

    If your computer is equipped with more than one monitor, the display resolution of your other monitor must be the same resolution as your Penates. Otherwise, the pen cursor will be misplaced on the screen. For Penates 10.1SP, please make sure the other monitor resolution is 1280 x 800.
  • Page 10: Penates Configuration

    Penates 10.1SP Driver Version 2.05 II. Penates configuration YOUR PENATES SETTING Click【GO】►【Applications】 1.2 Click【TouchTablet】►【Tablet Setting】...
  • Page 11: The Info Tab

    Penates 10.1SP Driver Version 2.05 THE INFO TAB The Info tab displays the version number of the driver and Tablet PC function.
  • Page 12: The Pen Tab

    Penates 10.1SP Driver Version 2.05 THE PEN TAB  Pen Button Setting You may re-program the functions of the pen two-barrel buttons by selecting the button name from the drop down menu and assign a command of a traditional three-button mouse to it.
  • Page 13: Pressure Test

    Penates 10.1SP Driver Version 2.05  Pressure Test There are four different colors for selecting the pressure sensitivity of Penates, and they can be adjusted in this tab. There is a test area to see the thickness of a line by pressing down on the pen tip to the pad.
  • Page 14: Hot Express Keys Define Tab

    Penates 10.1SP Driver Version 2.05 HOT EXPRESS KEYS DEFINE TAB Hot Express keys: You may re-program the functions from the Hot Express Keys configuration page.  Default Button Setting Tap on the【Default】button to recover the manufacturer settings.  Re-define Hot Express keys Function Key Define: Tap on the【K1-K6】button to select the function which you would like to...
  • Page 15 Penates 10.1SP Driver Version 2.05 Application: Use the browser button to select a file or application. Hot-key: You can choose the common settings from the【Default Hotkey】drop-down menu. Or enter a keystroke or keystroke combination in the area below as marked in the red frame by...
  • Page 16 Penates 10.1SP Driver Version 2.05 Internet: Enter the URL for quick access. Mouse: Select mouse mode settings.
  • Page 17: The Calibration Setting Tab

    Penates 10.1SP Driver Version 2.05 THE CALIBRATION SETTING TAB Calibration: Click “Calibration” to activate the calibration screen. Reset Calibration: Return to the default settings. Rotate: Select the orientation that you would like to rotate your Penates orientation. Monitor Parameter: Adjust the brightness and contrast of your Penates. If you would like to recover the manufacturer settings, click “Monitor Default Setting”.
  • Page 18: Changing The Pen Tip

    Penates 10.1SP Driver Version 2.05 III. Changing the Pen Tip  Changing the pen tip: Pull out the pen tip from U Pen by using the tip remover device built into the pen case. Push the pen tip into the digital pen...
  • Page 19: Question & Answer

    Penates 10.1SP Driver Version 2.05 IV. Question & Answer  How can I get the updated software? You can download the new driver from our website (www.uc-logic.com). Uninstall your old driver and refer to the section “UNINSTALLING THE DRIVER ON MAC SYSTEM”.
