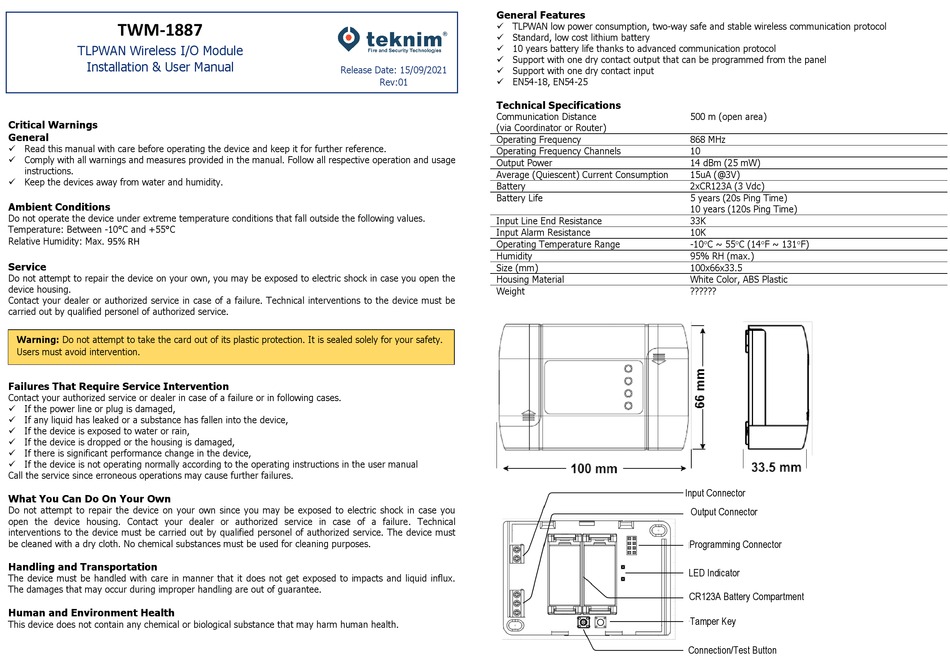

Teknim TWM-1887 Installation & User Manual

TWM-1887 TWM-1887
TLPWAN Wireless Inout Output Module TLPWAN Wireless I/O Module
Installation & User Manual
Installation & User Manual
Critical Warnings
General
✓ Read this manual with care before operating the device and keep it for further reference.
✓ Comply with all warnings and measures provided in the manual. Follow all respective operation and usage
instructions.
✓ Keep the devices away from water and humidity.
Ambient Conditions
Do not operate the device under extreme temperature conditions that fall outside the following values.
Temperature: Between -10°C and +55°C
Relative Humidity: Max.
95% RH
Service
Do not attempt to repair the device on your own, you may be exposed to electric shock in case you open the
device housing.
Contact your dealer or authorized service in case of a failure. Technical interventions to the device must be
carried out by qualified personel of authorized service.
Warning: Do not attempt to take the card out of its plastic protection. It is sealed solely for your safety.
Users must avoid intervention.
Failures That Require Service Intervention
Contact your authorized service or dealer in case of a failure or in following cases.
✓ If the power line or plug is damaged,
✓ If any liquid has leaked or a substance has fallen into the device,
✓ If the device is exposed to water or rain,
✓ If the device is dropped or the housing is damaged,
✓ If there is significant performance change in the device,
✓ If the device is not operating normally according to the operating instructions in the user manual
Call the service since erroneous operations may cause further failures.
What You Can Do On Your Own
Do not attempt to repair the device on your own since you may be exposed to electric shock in case you
open the device housing. Contact your dealer or authorized service in case of a failure. Technical
interventions to the device must be carried out by qualified personel of authorized service. The device must
be cleaned with a dry cloth. No chemical substances must be used for cleaning purposes.
Handling and Transportation
The device must be handled with care in manner that it does not get exposed to impacts and liquid influx.
The damages that may occur during improper handling are out of guarantee.
Human and Environment Health
This device does not contain any chemical or biological substance that may harm human health.
General Features
✓ TLPWAN low power consumption, two-way safe and stable wireless communication protocol
✓ Standard, low cost lithium battery
✓ 10 years battery life thanks to advanced communication protocol
✓ Support with one dry contact output that can be programmed from the panel
Release Date: 15/09/2021
✓ Support with one dry contact input
Rev:01 ✓ EN54-18, EN54-25
Technical Specifications
Communication Distance
(via Coordinator or Router)
Operating Frequency
Operating Frequency Channels
Output Power
Average (Quiescent) Current Consumption
Battery
Battery Life
Input Line End Resistance
Input Alarm Resistance
Operating Temperature Range
Humidity
Size (mm)
Housing Material
Weight
500 m (open area)
868 MHz
10
14 dBm (25 mW)
15uA (@3V)
2xCR123A (3 Vdc)
5 years (20s Ping Time)
10 years (120s Ping Time)
33K
10K
-10C ~ 55C (14F ~ 131F)
95% RH (max.)
100x66x33.5
White Color, ABS Plastic
??????
Input Connector
Output Connector
Programming Connector
LED Indicator
CR123A Battery Compartment
Tamper Key
Connection/Test Button
